Introduction

A tricone drill bit oilfield application is still relevant when drilling conditions demand controlled crushing, dependable formation engagement, and tolerance for changing rock properties. Although PDC technology has become dominant in many sections of modern wells, roller-cone bits remain useful in formations where impact loading, tooth structure, bearing durability, or directional drilling behavior make them a practical choice. Baker Hughes notes that tricone roller-cone technology continues to serve a wide range of drilling applications, including challenging formations and directional intervals.

The right bit is rarely determined by formation hardness alone. A drilling engineer needs to consider compressive strength, abrasiveness, interbedding, rock plasticity, well trajectory, required ROP, hydraulic conditions, WOB, RPM, torque, and expected bit life. In petroleum exploration, the objective is not simply to select a bit that can break the rock. The bit must maintain acceptable drilling efficiency while preserving hole quality and avoiding premature bearing, cutting-structure, or gauge damage.

For that reason, tricone bits continue to occupy a useful position alongside PDC and hybrid technologies. The selection becomes especially important when a well passes through mixed formations or when conventional fixed-cutter drilling encounters excessive vibration, impact damage, or unstable drilling behavior.

Why Tricone Bits Still Matter in Petroleum Drilling

Rock-breaking mechanism and formation response

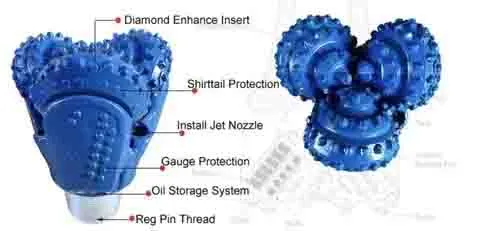

A tricone bit uses three rotating cones carrying steel teeth or tungsten carbide inserts. As the cones rotate against the formation, the cutting structure applies a combination of crushing, chipping, gouging, and scraping actions.

This mechanism gives roller-cone bits a different response from fixed-cutter PDC Bits. A PDC cutter primarily removes rock through shearing, while a tricone transfers significant mechanical energy through individual teeth or inserts contacting the formation.

The distinction becomes important when formation behavior changes downhole.

In softer formations, a more aggressive tooth structure can help generate penetration without requiring excessive WOB. In harder formations, tungsten carbide inserts can provide greater resistance to tooth wear and impact. IADC drilling literature describes how tooth spacing, tooth length, journal geometry, and offset are adjusted according to formation characteristics.

For petroleum exploration, the main formation variables include:

• Formation compressive strength: Strong carbonates and hard sandstone require a more durable cutting structure.
• Abrasiveness: Quartz-rich sandstone can rapidly wear exposed cutting elements and gauge components.
• Interbedding: Alternating shale, limestone, sandstone, or chert can create repeated impact loading.
• Formation plasticity: Soft shale may generate inefficient cutting and poor hole cleaning if the bit and hydraulics are not properly matched.
• Fracturing: Highly fractured rock can increase vibration and impact loading.
• Temperature and pressure: Deep and HPHT wells place additional demands on bearings, seals, lubrication, and bit-body integrity.

A useful example is a well section containing alternating shale and limestone. A highly aggressive bit may drill quickly through the shale but experience excessive impact when entering harder limestone. Conversely, a conservative cutting structure may survive the limestone but produce disappointing ROP in the softer intervals. The practical target is a cutting structure that remains stable across the expected formation range.

Steel tooth versus TCI designs

The choice between milled-tooth and tungsten carbide insert designs is closely related to formation conditions.

Steel-tooth bits can provide aggressive cutting action in relatively soft formations, while TCI designs are commonly selected when greater insert wear resistance and durability are required. IADC material also identifies roller-cone bits with tungsten carbide or other wear-resistant inserts as a distinct bit category.

Bearing design matters just as much as the visible cutting structure. Roller-cone bearings operate under high unit loads, and sealing and lubrication systems help protect the bearing system from drilling-fluid contamination.

This is why a bit that appears to have adequate teeth or inserts can still fail prematurely. Bit life is determined by the interaction between cutting structure, bearings, seals, gauge protection, formation loading, and operating parameters.

The role of hydraulics

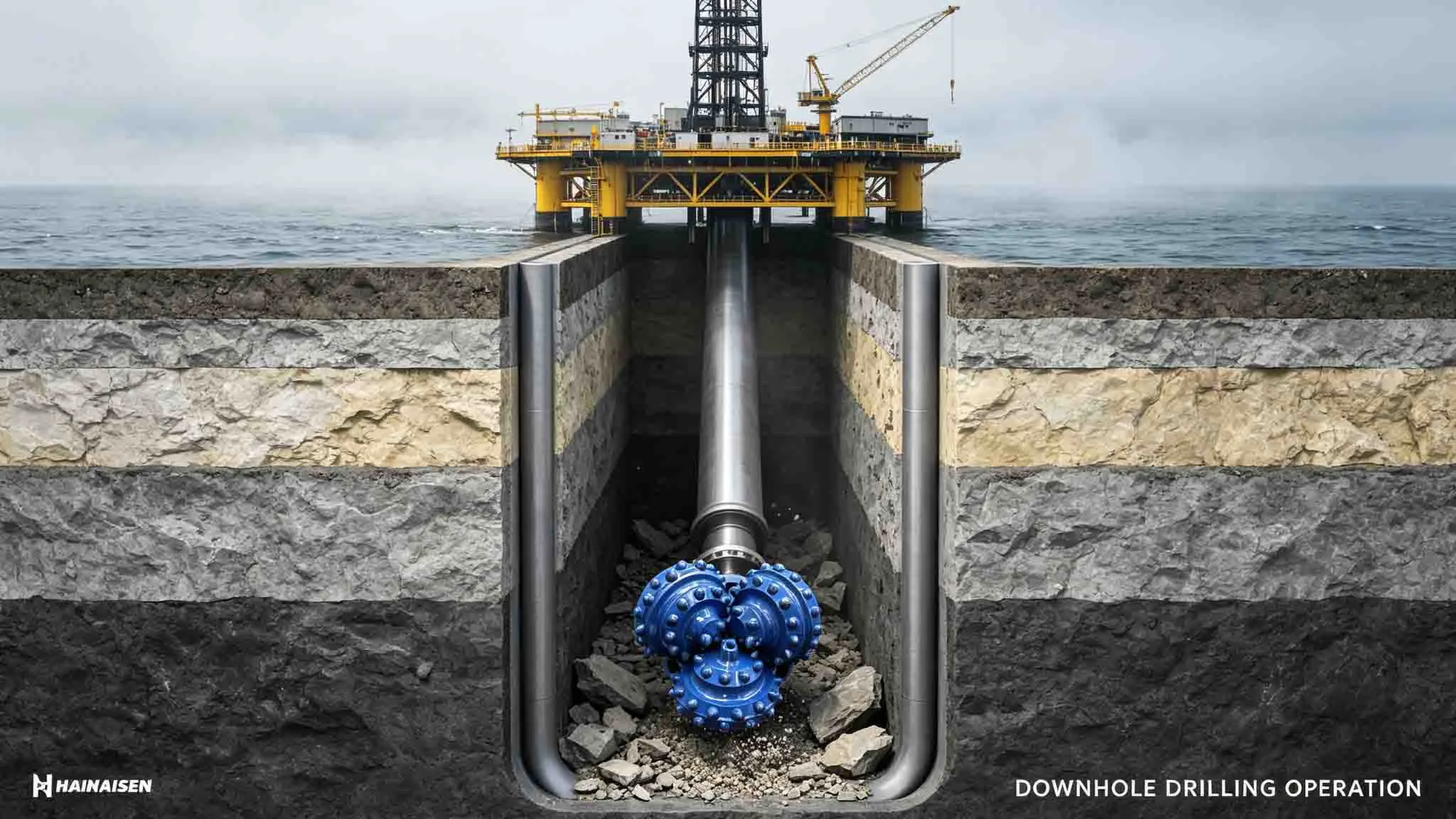

Hole cleaning is another major consideration. Cuttings must be removed from around the cones and transported efficiently up the annulus. Poor hydraulic performance can allow cuttings to accumulate around the bit, increasing regrinding, torque, heat generation, and the risk of inefficient drilling.

Modern roller-cone designs therefore pay considerable attention to nozzle configuration and flow distribution. Baker Hughes, for example, describes hydraulic configurations designed to improve bit and hole cleaning across different applications.

An appropriate flow rate and nozzle arrangement should be considered together with mud properties, annular velocity, formation behavior, and available pump capacity. Increasing flow blindly is not necessarily the solution; hydraulic optimization must account for pressure losses and the overall drilling system.

How to Select and Run the Right Tricone Bit

Match the cutting structure to the formation

The first selection step should be a formation-based assessment rather than simply choosing a familiar bit size.

For a soft shale or relatively soft clastic formation, an aggressive cutting structure can support higher penetration. For hard limestone or abrasive sandstone, stronger inserts and greater wear resistance may be more appropriate. In interbedded formations, stability and impact resistance often become more important than maximum initial aggressiveness.

For directional wells, the situation becomes more demanding. The bit may experience side loading, changing contact conditions, and additional vibration while building or holding angle. Directional roller-cone designs are therefore developed with attention to stabilization, leg protection, and resistance to cyclical side loading.

Consider WOB, RPM, torque, and ROP together

A common field mistake is to treat WOB as the main control variable.

In reality, WOB and RPM must be balanced with the bit's cutting structure and formation response. Excessive WOB can overload inserts and bearings, while insufficient WOB may prevent the cones from efficiently crushing the formation. Excessive RPM can increase vibration, bearing temperature, and wear in some applications.

Torque provides another useful diagnostic signal. A sudden increase may indicate changes in formation strength, poor hole cleaning, bit balling, increased friction, or an unstable bottomhole condition.

ROP should therefore be evaluated together with torque, WOB, RPM, pump pressure, vibration, and drilling efficiency rather than considered in isolation.

A practical operating review can include:

• WOB: Adjust according to formation response and bit design limits.
• RPM: Maintain a range that provides effective cone rotation without excessive vibration or wear.
• Torque: Monitor changes as an early indication of downhole instability or formation transitions.
• Flow rate: Maintain sufficient cleaning around the cones and across the bottomhole area.
• ROP: Compare instantaneous performance with drilling trend rather than chasing the highest short-term value.
• Vibration: Watch for stick-slip, lateral vibration, and irregular torque behavior.
• Bit condition: Use dull grading and trip data to understand the actual failure mechanism.

IADC and SPE have continued to develop standardized approaches to bit dull grading and drilling-forensics data because post-run analysis can reveal whether the limiting factor was cutter wear, bearing damage, gauge wear, vibration, or another operational issue.

When a hybrid or PDC solution deserves consideration

Tricone technology does not exist in isolation. Modern drilling programs increasingly combine different rock-breaking mechanisms according to the section being drilled.

Hybrid bits, for example, combine roller-cone crushing with PDC shearing. Baker Hughes describes this approach as a way to combine the stability and crushing action of roller cones with the continuous shearing action of PDC cutters, particularly in challenging and highly interbedded formations.

This does not mean that one bit type replaces another. The better approach is to identify the dominant drilling problem.

If the problem is severe impact loading, unstable hard stringers, or a highly variable formation, roller-cone or hybrid technology may deserve consideration. If long continuous intervals of suitable shale or sandstone can be drilled efficiently by shearing, a PDC solution may offer advantages.

A practical field example

Consider an anonymous drilling contractor working on a directional oil well where the section contains alternating shale and hard limestone. The original drilling run achieved acceptable ROP through the shale, but drilling became erratic when the bit entered the harder limestone. Torque fluctuated, vibration increased, and the bit required an earlier trip than planned.

The engineering review did not simply classify the problem as “hard rock.” The team examined the formation sequence, drilling parameters, bit dull condition, hydraulic performance, and BHA behavior. The next bit was selected with a more suitable cutting structure and greater attention to stability and impact resistance. WOB and RPM were also adjusted rather than continuing with the original operating combination.

The result was a more consistent drilling response across the formation transition, with less severe vibration during the hard intervals.

The important lesson is not a particular bit model. The lesson is to diagnose the failure mechanism before changing the bit. A bit that wears quickly because of abrasion requires a different response from one damaged primarily by impact or vibration.

Where Hainaisen Fits Into Modern Bit Selection

Hainaisen approaches drill-bit selection from the actual drilling application rather than treating every well as a standard order. For customers evaluating a tricone drill bit oilfield requirement, the technical discussion should start with the hole size, formation description, well profile, expected depth, rig parameters, drilling fluid, and previous bit performance.

Hainaisen's broader drilling-tool experience also includes PDC cutter technology and customized bit design, which is useful when a drilling program needs to compare roller-cone, PDC, or application-specific solutions rather than selecting one technology in isolation.

Several aspects are particularly useful for overseas drilling contractors and purchasing teams:

• Formation-based recommendations rather than relying only on standard catalogs.
• Stable product quality supported by structured quality-control procedures.
• PDC cutter technology for applications where fixed-cutter designs are more appropriate.
• Customized bit design for different hole sizes, formations, and drilling conditions.
• Technical communication focused on practical drilling requirements.
• Support for different drilling applications, including oil & gas, mining, and water-well projects.
• Export experience that helps international customers coordinate specifications, production, inspection, and delivery.

For buyers comparing suppliers, it is worth asking for more than a quotation. A useful supplier should be able to discuss formation suitability, cutting structure, gauge protection, hydraulic requirements, operating parameters, expected failure modes, and post-run evaluation.

That approach can also prevent a common purchasing mistake: selecting a bit solely because its unit price is lower. The actual economics depend on ROP, footage per run, trip frequency, drilling time, bit consumption, and the cost of nonproductive time.

For Hainaisen customers, the most useful starting point is usually the previous bit record. Information such as formation, footage, drilling hours, WOB, RPM, torque, flow rate, dull condition, and the reason for pulling the bit can make the next selection much more precise.

The right tricone bit is not simply the hardest or most aggressive option. It is the design that matches the formation, drilling system, and operational objective.

FAQ

What type of tricone bit is suitable for hard limestone?

A TCI tricone bit with an appropriate insert grade and cutting structure is commonly considered for hard limestone. The final selection should also account for abrasiveness, interbedding, vibration, WOB, RPM, and the required ROP.

Are tricone bits still used in modern oil and gas drilling?

Yes. Tricone bits remain part of modern drilling programs, particularly where crushing action, formation variability, impact resistance, or specific directional requirements make roller-cone technology appropriate.

How do I choose between a tricone bit and a PDC bit?

Compare the formation's compressive strength, abrasiveness, interbedding, vibration tendency, directional requirements, expected ROP, and bit-life target. Previous offset-well performance is also valuable when available.

What drilling parameters affect tricone bit life?

WOB, RPM, torque, flow rate, hydraulic efficiency, and vibration all affect performance. Operating outside an appropriate range can accelerate cutting-structure wear or bearing and seal damage.

Can a tricone bit be used in directional wells?

Yes. Specialized roller-cone designs are available for directional intervals where side loading and stabilization are important. The BHA, steering system, formation, and bit design must be considered together.

How can I improve bit life?

Start with the failure mechanism. Review the dull condition, formation changes, drilling parameters, vibration, hydraulics, and hole cleaning. Changing the bit without understanding why the previous bit failed can simply reproduce the same problem.

About the Author

Daniel Morgan is a drilling technology writer and technical consultant focusing on oil and gas drilling equipment, roller-cone and PDC bit selection, formation evaluation, and drilling performance. His work covers practical bit applications in vertical, directional, and deep-well drilling environments, with an emphasis on connecting bit design with actual field conditions.

References

1. Baker Hughes, Tricone Drill Bits — overview of roller-cone technology, applications, and drilling performance.
2. International Association of Drilling Contractors (IADC), Bits (BI) – IADC Drilling Manual — technical coverage of roller-cone and fixed-cutter bits, cutting structures, hydraulics, drilling parameters, and dull evaluation.
3. International Association of Drilling Contractors (IADC), New IADC Bit and BHA Dull Grading Manual Now Available, 2026 — updated industry guidance on bit dull grading, drilling forensics, and data collection.
4. Baker Hughes, GX Roller Cone Drill Bits — information on cutting structures, bearings, leg protection, hydraulic configurations, and hole cleaning.
5. Baker Hughes, Vanguard Directional Advanced Tricone Roller Cone Bit — discussion of roller-cone applications in demanding directional drilling intervals.
6. IADC/SPE, Advanced Hydraulic Analysis Optimizes Performance of Roller-Cone Drill Bits, IADC/SPE 59111 — technical discussion of CFD-based hydraulic analysis and roller-cone bit cleaning performance.
