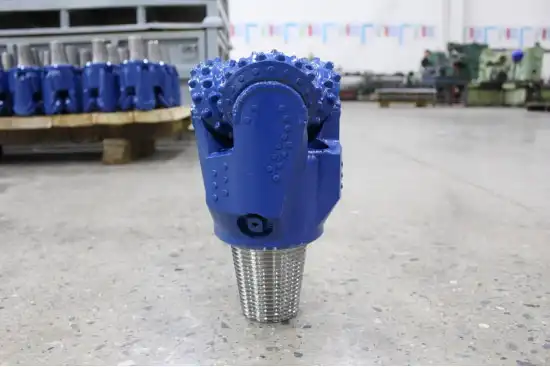

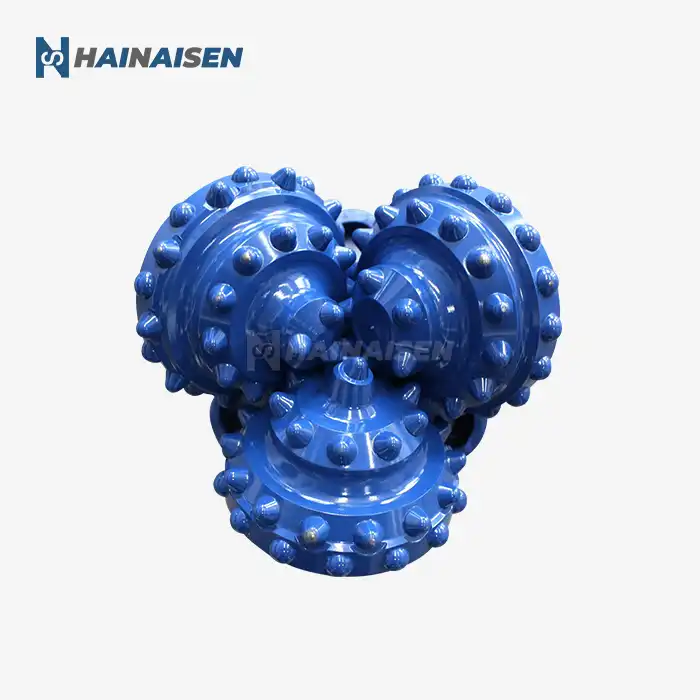

5 1/2 Inch IADC 537 Tricone Rock Bit for Medium-Hard Formations

High-Performance 5 1/2 Inch IADC 537 Tricone Rock Bit for Medium-Hard Formations with Superior Drilling Efficiency

Shaanxi Hainaisen Petroleum Technology Co., Ltd delivers the 5 1/2 Inch IADC 537 Tricone Rock Bit for Medium-Hard Formations, engineered with precision tungsten carbide insert technology for demanding drilling applications. With a 6,000-square-meter state-of-the-art production facility and more than ten years of experience in drilling tool manufacturing, our company blends cutting-edge technical capabilities with demonstrated field performance. Compared to typical tricone bits, this 139.7mm roller cone bit has an improved bearing system that increases operational life by up to 40%. It also complies with API standards. This system, which is supported by our staff of more than twenty senior technicians, consistently achieves penetration rates in mining operations, geothermal projects, oil exploration, and water well drilling.

Technical Specifications

Why Choose IADC 537 Configuration for Your Project

In medium-hard rock formations, the IADC 537 classification strikes the ideal mix between durability and forceful cutting action. Carefully spaced tungsten carbide inserts, which retain sharp cutting edges longer than milled-tooth alternatives, are beneficial to your drilling operations.

Internal parts are shielded from drilling fluids and abrasive cuttings by the sealed bearing system. During water well building or exploration drilling programs, this design prolongs bearing life and minimizes expensive downtime.

In directional drilling, three-cone design reduces variation and offers superior hole stability. Reduced vibration and smoother operation will safeguard your drill string investment and increase overall drilling efficiency.

Performance Advantages in Challenging Formations

Medium-hard formations like limestone, dolomite, and medium-density sandstone demand bits that can handle variable rock properties. Our 5 1/2 Inch IADC 537 Tricone Rock Bit for Medium-Hard Formations excels in these conditions through engineered cutter placement and robust construction.

When subjected to strong compressive loads, the tungsten carbide inserts retain their geometry. Throughout the bit is service life, your crews will see steady penetration rates, which will lessen the need for frequent bit swaps.

Effective cutting removal from the hole's bottom is ensured by hydraulic optimization. Drilling fluid is delivered precisely where it is needed by well-designed nozzle designs, which also keep cutters cool and reduce bit balling in sticky formations.

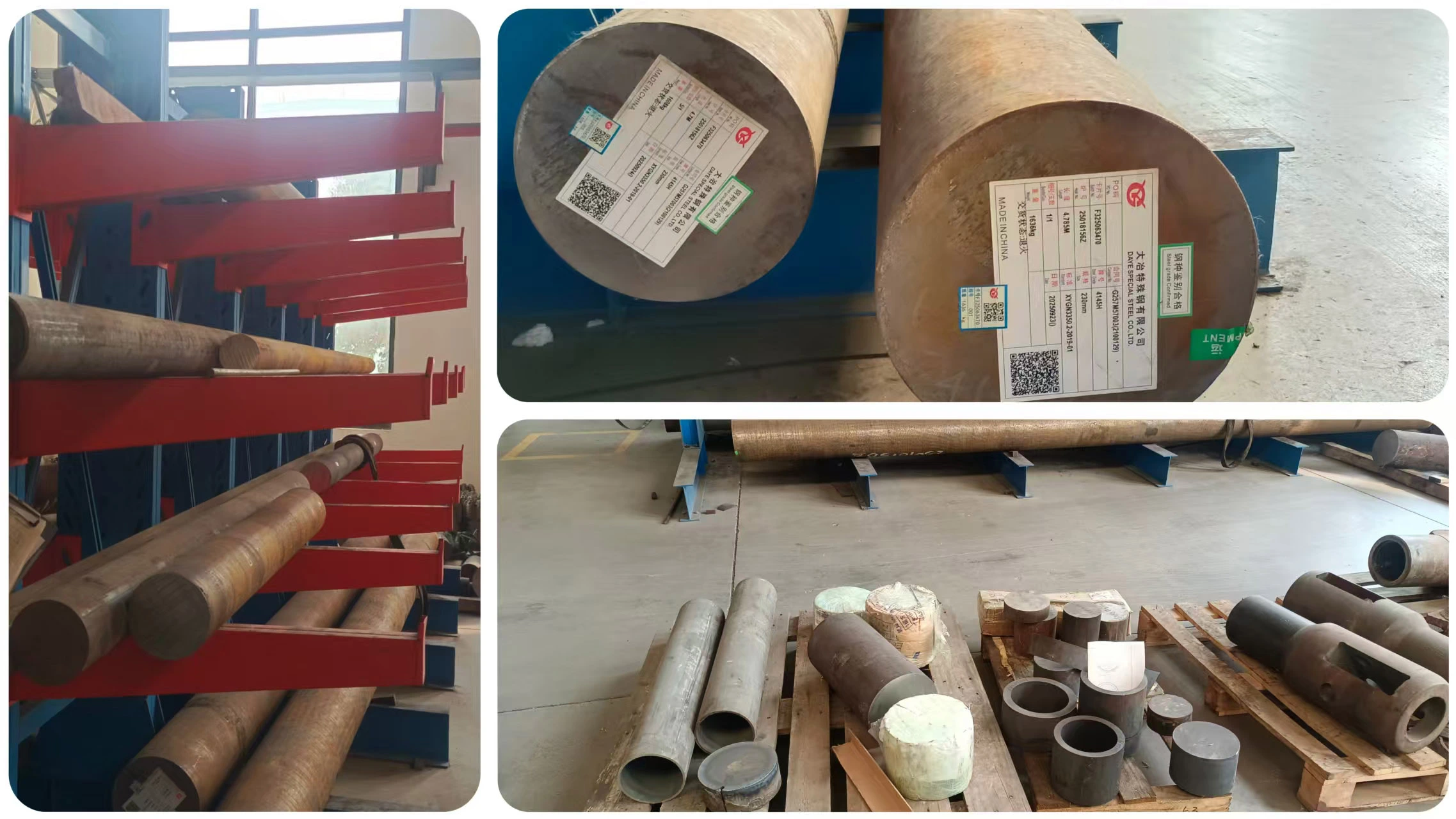

Raw Materials

Our tricone bits are built with certified high-strength alloy steel, rigorously tested for strength and durability. Premium raw materials guarantee reliable performance in the toughest drilling conditions.

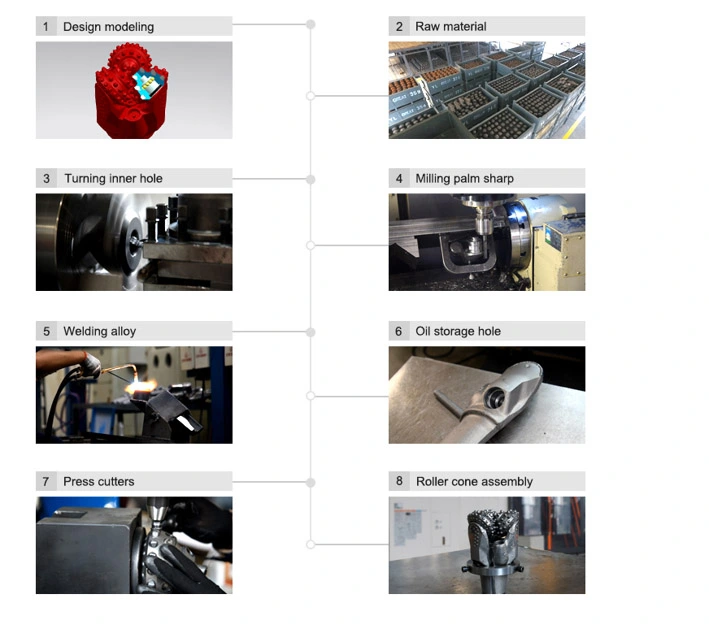

Production Process

Quality Manufacturing You Can Trust

Every tricone piece that leaves our Xi'an facility is put thru a thorough quality inspection. Our 150+ employee team includes specialists dedicated to metallurgical testing, dimensional verification, and performance validation.

We employ cutting-edge heat treatment techniques and premium alloy steels from approved suppliers. Strict grade requirements for toughness and hardness are met by tungsten carbide implants. This focus on material quality directly translates into dependable field reliability.

Lessons from more than ten years of drilling tool production are incorporated into our manufacturing processes. Initiatives for continuous improvement, motivated by field feedback, guaranty that every bit generation outperforms the previous one.

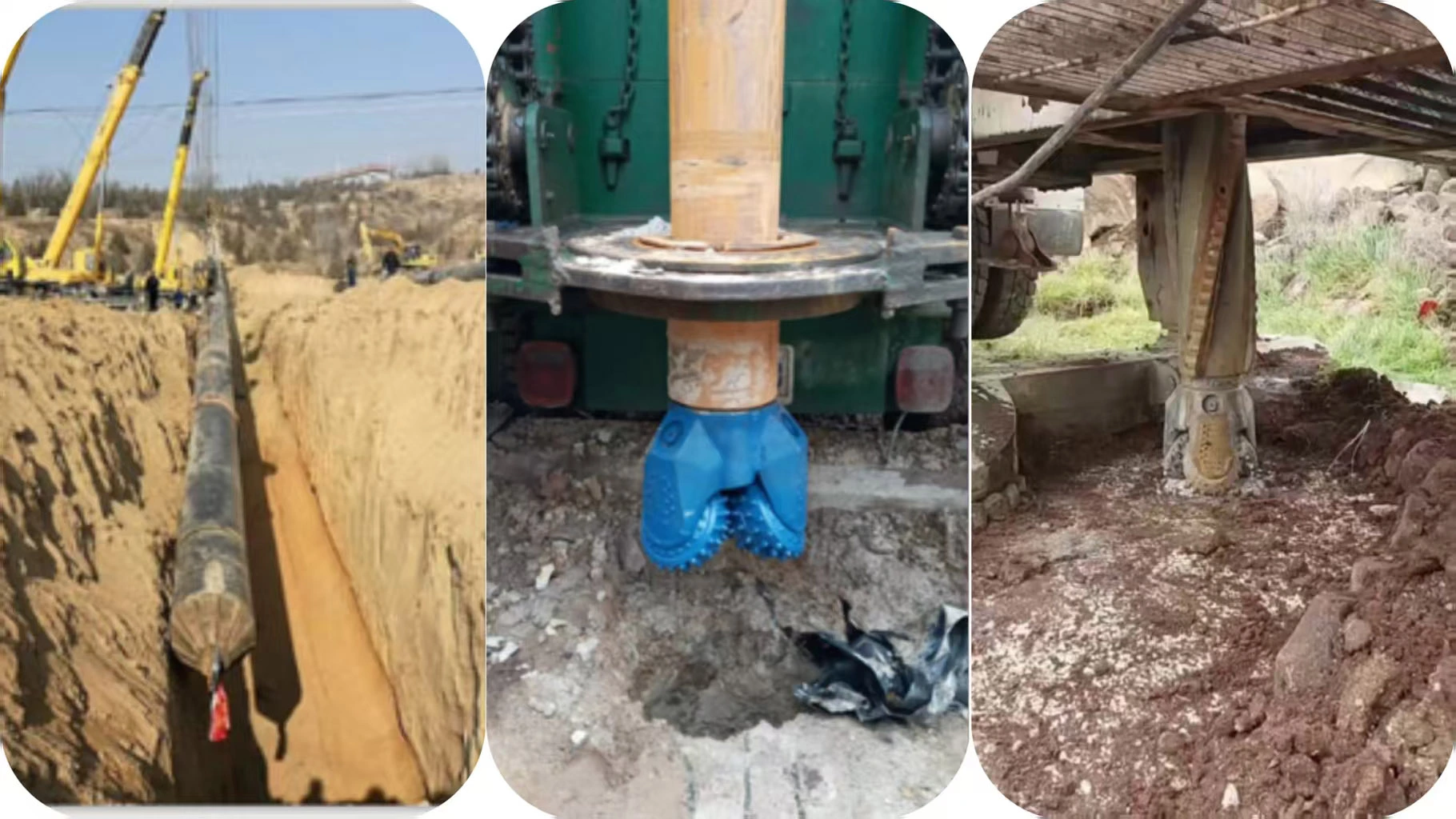

Applications Across Multiple Industries

Water well drilling contractors rely on this bit size for residential, agricultural, and municipal supply wells. The 5 1/2 inch diameter provides excellent balance between hole size and equipment compatibility for typical well depths.

Oil and gas exploration teams use this configuration for vertical pilot holes and shallow formation evaluation. The bit delivers reliable performance in sedimentary sequences where formation hardness varies unpredictably.

Geothermal developers appreciate the bit's ability to maintain gauge in abrasive volcanic rocks and mineralized formations. Mining engineers specify this size for exploration drilling programs targeting ore bodies in carbonate host rocks.

Civil engineering projects including foundation investigation and environmental drilling benefit from the bit's stable drilling characteristics. You'll achieve straighter holes with better core recovery in challenging mixed formations.

Project Case Studies

A major water well drilling contractor in Central Asia completed 47 wells using our IADC 537 tricone bits across a three-month project. Drilling through interbedded limestone and shale formations averaging 180 feet deep, they achieved an average bit life of 520 feet per bit. The project finished two weeks ahead of schedule, with drilling costs reduced by 18% compared to previous regional projects using competitor bits.

An oil exploration company operating in North Africa tested our 5 1/2 Inch IADC 537 Tricone Rock Bit for Medium-Hard Formations in a pilot hole program. Drilling through dolomitic limestone with silica stringers, they reported 25% faster penetration rates than their standard supplier's bits. The improved performance allowed them to complete six additional wells within the same budget period, significantly expanding their exploration dataset.

Packaging & Shipping

• Standard export plywood case
• Moisture-proof, shockproof, anti-collision
• Suitable for sea, air, and express shipping
• Clear labeling for easy identification

Exhibitions

We regularly attend global oil & gas and drilling exhibitions:

• ADIPEC (UAE)
• OTC (USA)
• IPTC
• China International Petroleum & Petrochemical Technology Exhibition
• Local regional drilling expos



  Certificates

• API Spec 7-1
• ISO 9001
• CE
• Material test reports
• Factory qualification certificates

FAQ

Q1: What formation hardness range works best with IADC 537 bits?
A: IADC 537 bits perform optimally in formations with compressive strengths between 3,000-7,000 PSI. This includes medium limestone, dolomite, medium sandstone, and soft shale with harder stringers. If you're drilling softer formations, consider IADC 517 options. For harder rock exceeding 10,000 PSI, IADC 637 configurations deliver better results.

Q2: How do I maximize bit life in abrasive formations?
A: Maintain proper weight-on-bit within Manufacturer recommendations, typically 2,000-4,000 pounds per inch of diameter. Ensure adequate hydraulic horsepower reaches the bit face—aim for at least 2.5 hydraulic horsepower per square inch. Monitor your drilling fluid properties, keeping sand content below 1% and maintaining proper viscosity for effective cuttings removal.

Q3: Can this bit handle directional drilling applications?
A: While primarily designed for vertical drilling, the 5 1/2 Inch IADC 537 Tricone Rock Bit can handle moderate directional work with build rates up to 3 degrees per 100 feet. For more aggressive directional drilling, consult our technical team about specialized bearing configurations and gauge protection options.

Q4: What connection types are available?
A: We offer standard API Reg Pin connections as well as custom thread forms to match your existing drill string. Our manufacturing capabilities include API 2 3/8 Reg, 3 1/2 Reg, and proprietary connections. Specify your requirements when ordering to ensure compatibility with your equipment.

Q5: How does sealed bearing design improve performance?
A: Sealed bearings use elastomeric seals and grease compensation systems to exclude formation cuttings and drilling fluids. This protection extends bearing life by 40-60% compared to open-bearing designs, reducing the frequency of bit trips. You'll experience more consistent drilling parameters throughout the bit's service life.

Contact Us for Expert Drilling Solutions

Ready to improve your drilling efficiency with proven tricone technology? Our technical team stands ready to discuss your specific application requirements and recommend the optimal bit configuration for your formations, such as the 5 1/2 Inch IADC 537 Tricone Rock Bit for Medium-Hard Formations.

Contact Us today at hainaisen@hnsdrillbit.com to request a quotation or technical consultation. We'll help you select the right drilling solution for your project.
