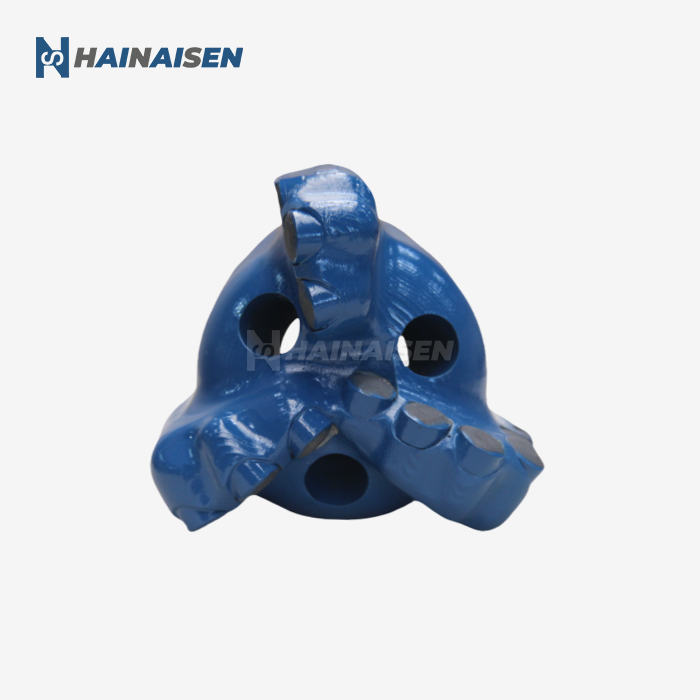

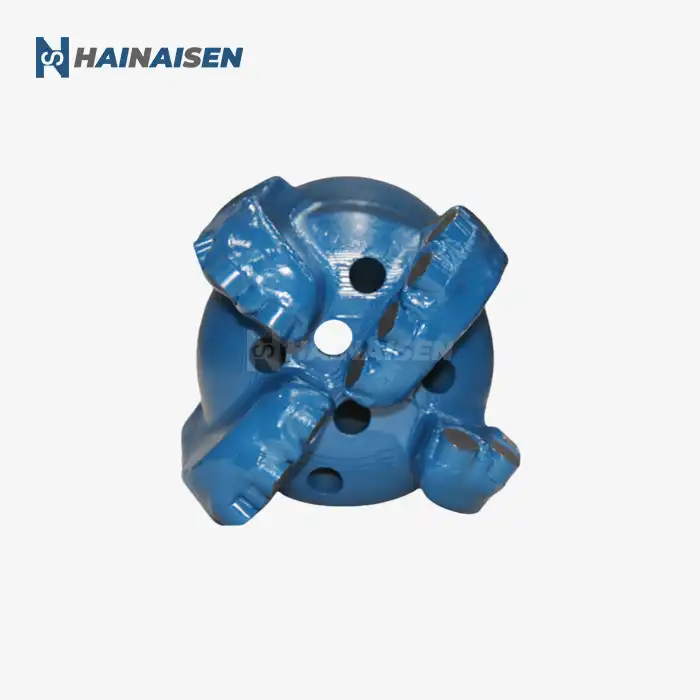

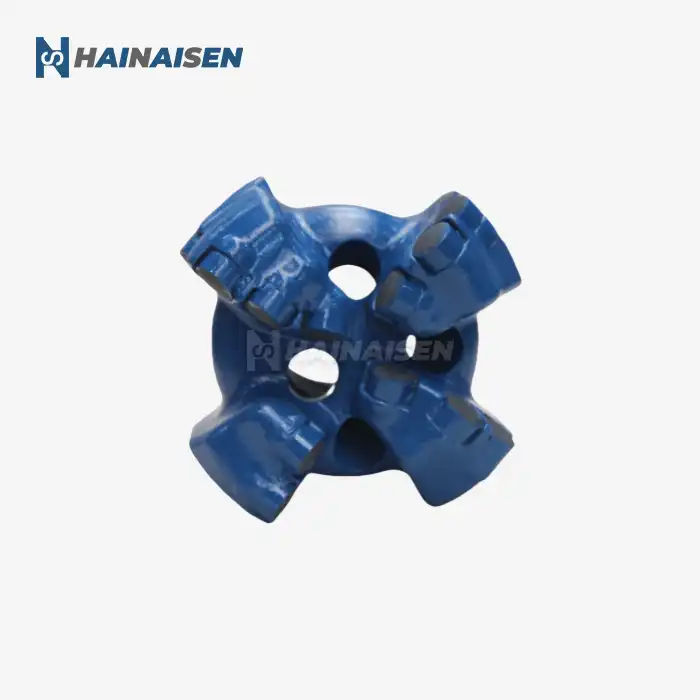

Arc Drill Bit

An arc drill bit, also called a rounded or convex profile bit, features a smoothly curved crown that distributes cutting forces evenly across the bit face. This profile is particularly effective in soft to medium formations where fast penetration rates are achievable without excessive cutter loading. The arc shape allows cutters to engage the rock progressively, reducing impact damage and extending bit life in formations where sharp profiles would chip or fracture prematurely.

Core Advantages:

- Smooth crown curvature for even force distribution across all cutters

- Progressive rock engagement reduces cutter impact damage

- Excellent ROP in soft to medium formations (shale, sandstone, limestone)

- Reduced vibration for smoother drilling and less drill string fatigue

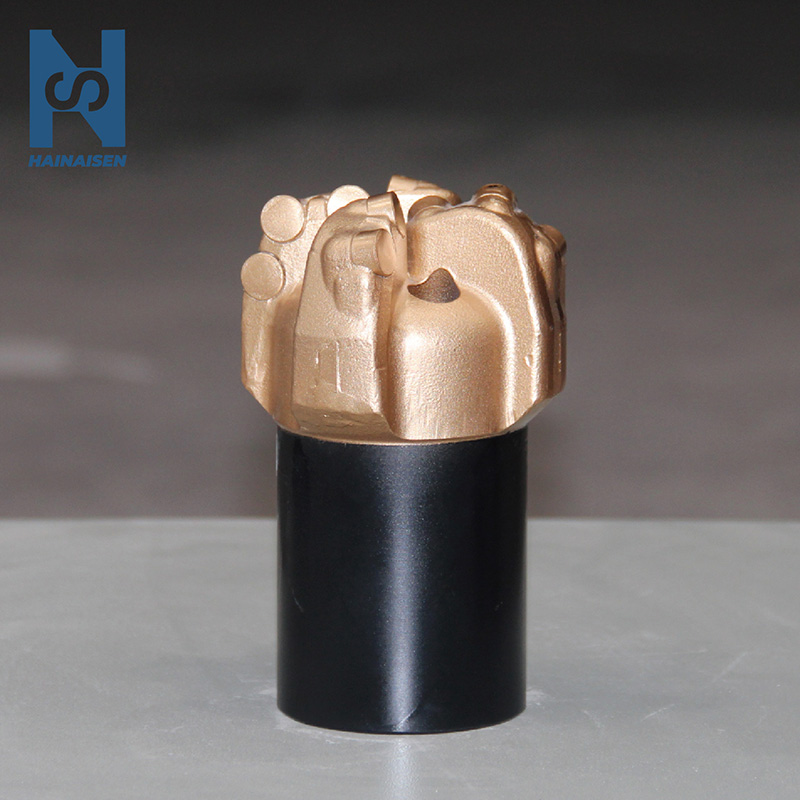

- Available with 3-6 blade PDC configurations

- Suitable for both vertical and directional drilling applications

Q: What formation types work best with an arc profile bit?

A: Arc profile bits excel in homogeneous soft to medium formations—particularly shale, claystone, and sandstone. They're less effective in hard, abrasive formations where a concave or flat-top profile provides better durability.

Looking for bits that deliver fast ROP in soft formations? Request a quote on our arc profile bits with your specific formation details.
