113mm PDC Arc Angle Drill Bit

113mm PDC Arc Angle Drill Bit - Three-Wing Design for High-Performance Geological and Mining Drilling

Premium Three-Wing PDC Drilling Solution from Shaanxi Hainaisen

The 113mm PDC Arc Angle Drill Bit represents advanced drilling technology developed by Shaanxi Hainaisen Petroleum Technology Co., Ltd, a specialized Manufacturer with over 10 years of expertise in PDC cutting technology. This three-wing arc design drill bit delivers exceptional performance across soft to hard geological formations with enhanced cutting efficiency ratings of up to 12-grade strata compatibility. Manufactured in our 6,000-square-meter facility by a team of 20+ senior technicians, each bit integrates high-grade 1308 PDC cutters positioned along arc edges to maximize contact area and penetration rates.

Advanced Three-Wing Arc Design Technology

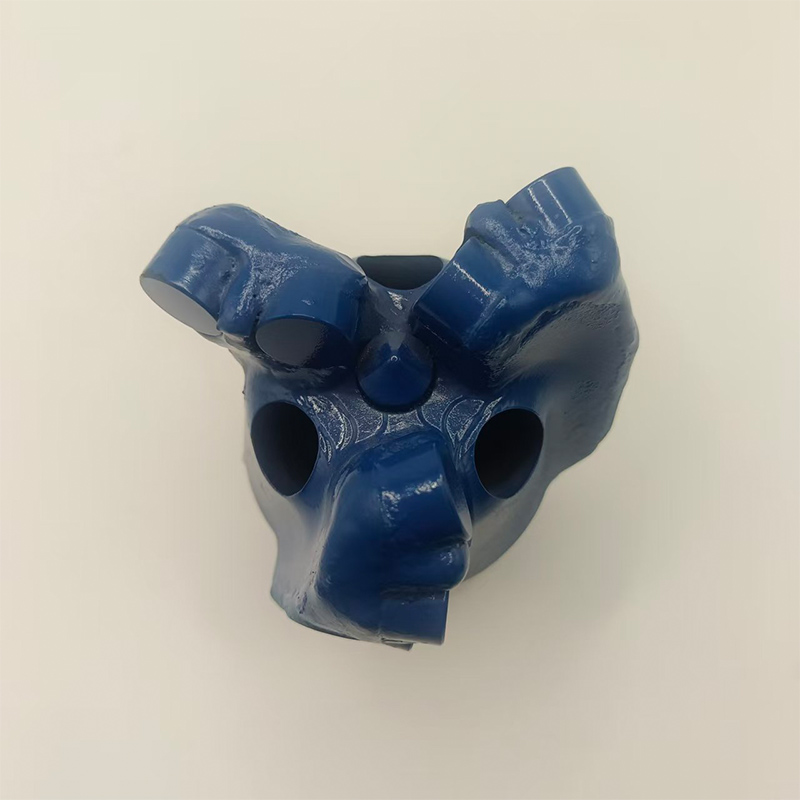

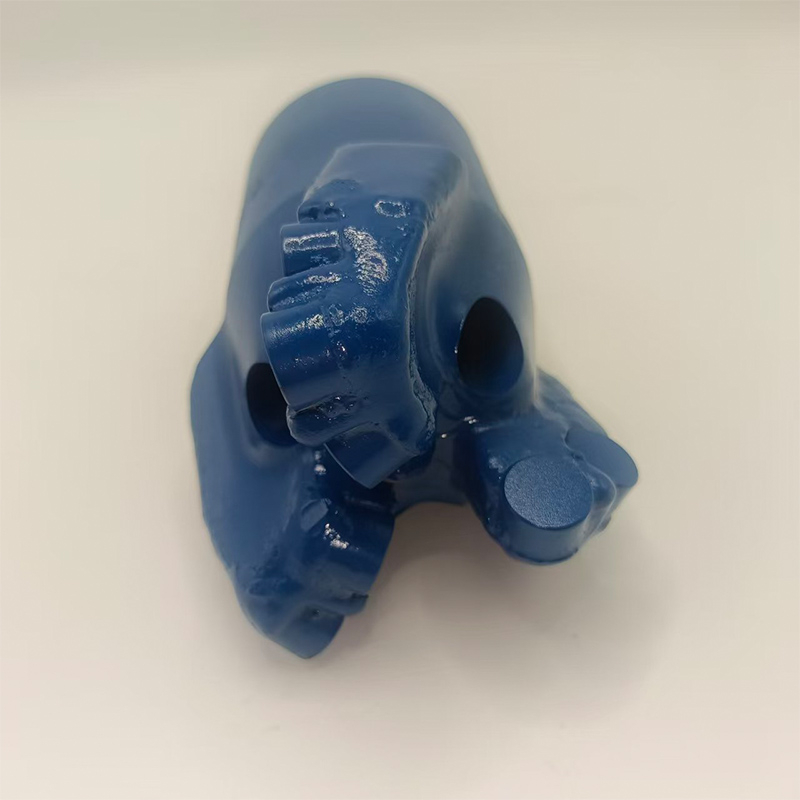

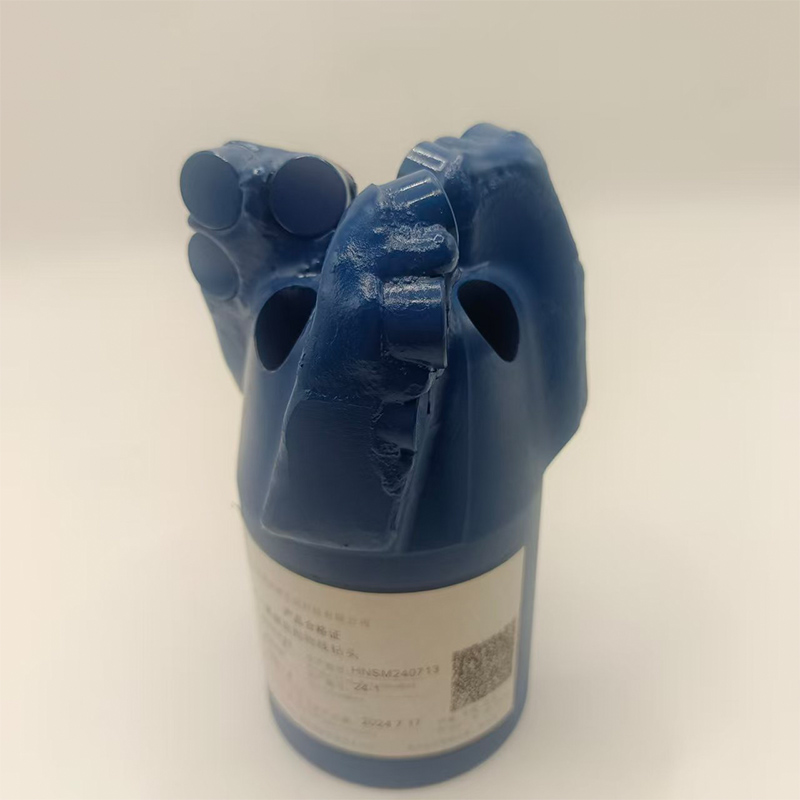

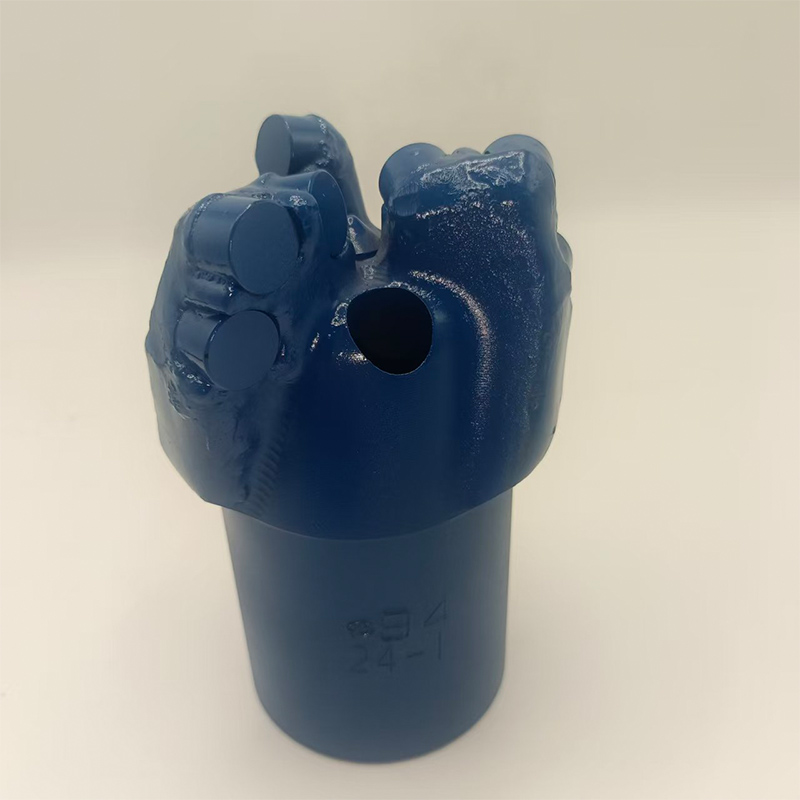

Our 113mm PDC Arc Angle Drill Bit features an innovative three-wing arc configuration that revolutionizes drilling performance. The arc-shaped edges create expanded contact zones with the formation, distributing cutting forces more evenly across the bit face.

This design delivers superior stability and guidance during operation. The three-wing structure generates larger junk slots between wings, facilitating rapid cuttings removal and preventing clogging that typically reduces drilling efficiency. Your drilling operations benefit from consistent penetration rates and extended operational intervals between maintenance cycles.

The strategic placement of PDC cutters along the arc edges amplifies cutting capacity while reducing vibration. This configuration enables faster drilling speeds without compromising bit integrity or borehole quality.

Selection Guide & Comparison

Quick Selection Tip:If your project targets soft to medium formations, the 113mm 4-wing arc angle bit is the most cost-effective choice. It delivers steady ROP and reliable performance without the premium cost of heavy-duty bits.

Versatile Application Across Multiple Industries

The versatility of this drill bit makes it an ideal choice for diverse drilling scenarios. Your geological exploration projects benefit from its ability to penetrate variable formations with consistent performance.

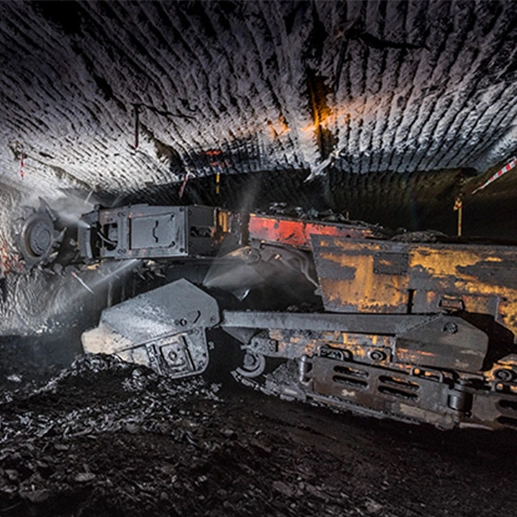

In coal mining operations, the bit demonstrates exceptional durability when drilling through abrasive strata. The three-wing design maintains cutting efficiency even in challenging underground conditions where other bits experience rapid wear.

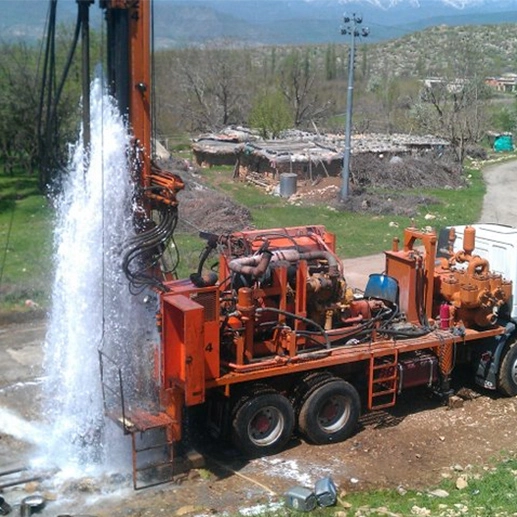

For water well drilling projects, the enhanced debris removal capability ensures clean boreholes and faster completion times. Geothermal drilling operations leverage the bit's heat-resistant properties and stable performance in high-temperature environments.

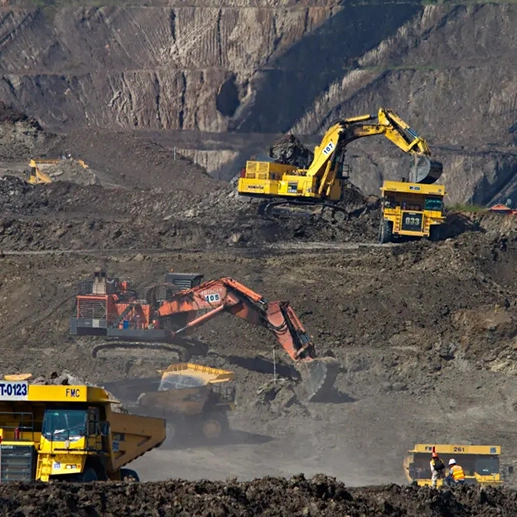

Oil and gas exploration teams appreciate the reliable penetration rates this 113mm PDC Arc Angle Drill Bit delivers across sedimentary formations. Mining engineering applications ranging from mineral exploration to blast hole drilling achieve improved productivity with reduced bit consumption.

Quality Manufacturing Process

Shaanxi Hainaisen employs rigorous quality control throughout the manufacturing process. Our independent R&D capabilities enable continuous optimization of bit geometry and cutter placement based on field performance data.

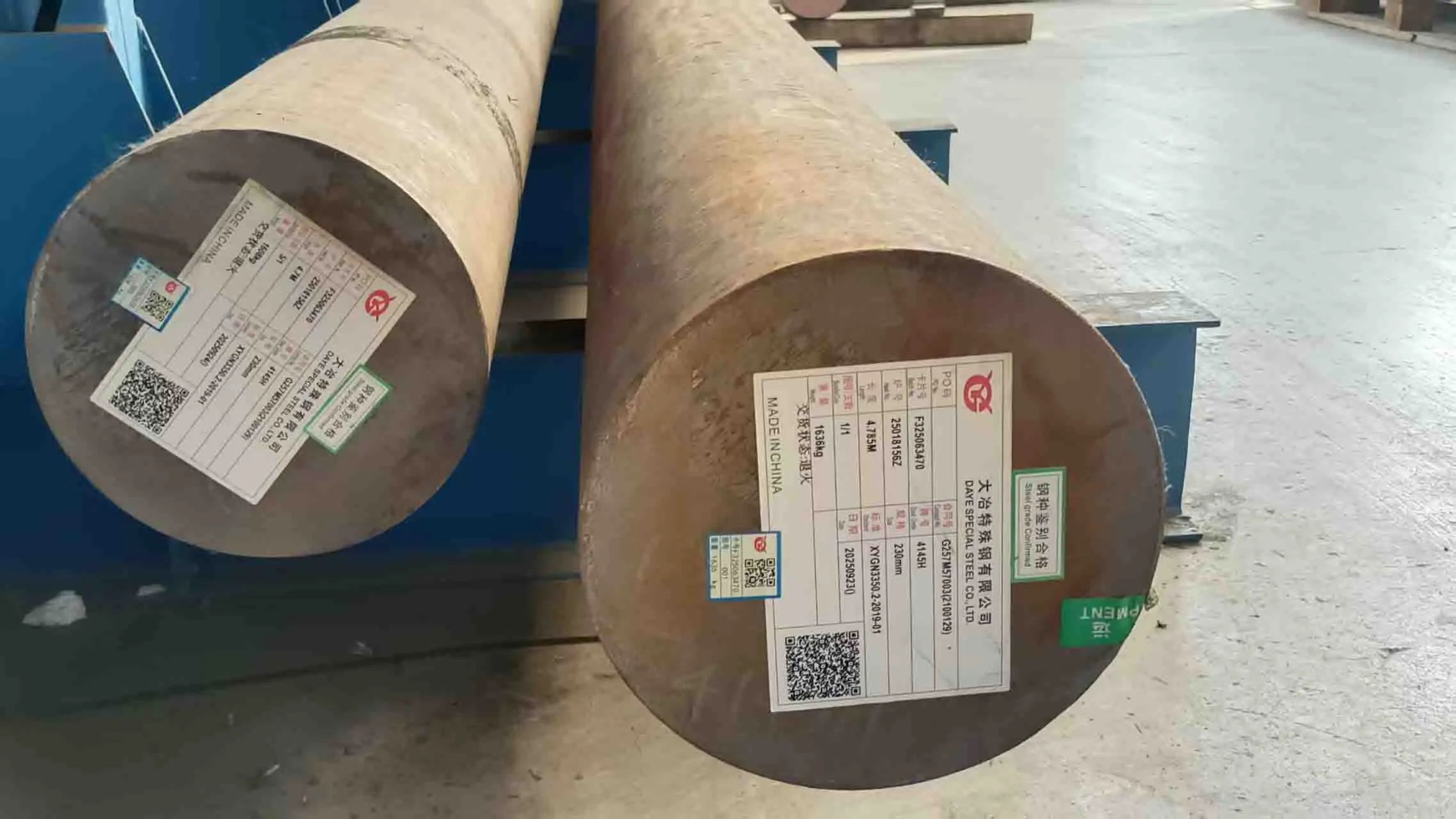

Each 113mm PDC Arc Angle Drill Bit undergoes precision machining in our modern facilities. Senior technicians supervise critical production stages to ensure dimensional accuracy and proper cutter bonding. We select premium-grade PDC materials that resist thermal degradation and maintain sharp cutting edges throughout extended drilling intervals.

Quality testing includes structural integrity verification, hydraulic flow simulation, and material composition analysis. This comprehensive approach ensures every bit leaving our facility meets international performance standards and your specific operational requirements.

Superior Performance Advantages

Your drilling operations gain multiple competitive advantages when you choose this advanced PDC bit solution. Enhanced cutting efficiency stems from the expanded arc contact area, which increases penetration rates by up to 40% compared to conventional flat-blade designs.

The improved cuttings removal system prevents bit balling and maintains consistent drilling parameters. Larger junk slots between wings create efficient hydraulic pathways that transport debris away from the cutting face, reducing torque requirements and extending bit life.

Faster drilling performance translates directly into reduced operational costs. The combination of increased cutting capacity and optimized debris ejection enables you to complete projects ahead of schedule while minimizing equipment wear.

Extended service life results from balanced load distribution across the three-wing structure. This design minimizes localized stress concentrations that typically cause premature cutter failure in traditional bit configurations.

Project Case Studies

Our drilling solutions have proven effectiveness across demanding field conditions. Mining operations in Northwest China deployed our three-wing arc bits for coal seam exploration, achieving 35% faster penetration rates compared to previous bit selections while reducing bit consumption by half.

A geothermal project in Central Asia utilized our 113mm bits for deep well drilling through mixed volcanic formations. The team reported exceptional directional stability and consistent performance throughout 800-meter drilling intervals without requiring bit replacement.

Water well contractors in Southeast Asian markets selected our PDC Bits for challenging limestone formations. The improved cuttings removal capability eliminated the borehole cleaning issues they experienced with conventional bits, reducing total project completion time by three weeks across multiple sites.

Packaging and Transportation

Our drill bits are securely packaged in sturdy wooden crates to ensure safe transportation. We work with reliable logistics partners to deliver your order promptly and in perfect condition.

Transaction Feedback

We value your feedback and continuously strive to improve our products and services. Share your experience with our product to help us serve you better.

Qualification Certification

Our product meets international quality standards:

• ISO 9001:2015 certified
• API Spec 7-1 compliant
• CE marked for European markets

After Sales Service

HAINAISEN provides comprehensive after-sales support:

• Technical consultation
• Maintenance guidance
• Performance optimization recommendations
• Prompt response to inquiries

FAQ

Q1: Which configurations are most effective when using the PDC Arc Angle Drill Bit?
A: Sandstone, limestone, shale, coal seams, and moderately fractured rock are among the soft to hard formations classified 1–12 in which this bit works well. The majority of exploration and mining operations include changeable geology, which the three-wing design effectively accommodates.

Q2: How is drilling efficiency increased by the arc angle design?
A: By extending the cutting surface contact area, the arc arrangement increases penetration per revolution and more efficiently distributes pressures. Bigger rubbish gaps between wings improve hydraulic cleaning by avoiding the buildup of cuttings that impedes drilling progress.

Q3: Can you alter our drilling equipment's connection type?
A: Absolutely. Although 63.5mm cone buckle connectors are part of our standard setup, we provide full customisation to meet your unique drill rig specifications. To guaranty appropriate interface compatibility, our technical staff collaborates with you.

Q4: What upkeep procedures prolong the life of a bit?
A: Maintain appropriate weight-on-bit settings based on the hardness of the formation, make sure there is enough hydraulic flow to remove cuttings, and routinely check cutters for wear patterns. Bit lifetime and performance consistency are greatly impacted by the characteristics of the drilling fluid.

Q5: For large orders, what quantity discounts are offered?
A: We provide competitive volume pricing arrangements for purchases that surpass our 10-piece minimum. To discuss your project needs and obtain personalized quotes depending on order volume and delivery schedules, get in touch with our sales team.

Contact Us

Ready to improve your drilling performance with our advanced three-wing PDC technology? Our technical team stands ready to discuss your specific application requirements and recommend optimal bit configurations, including the 113mm PDC Arc Angle Drill Bit.

Reach us at hainaisen@hnsdrillbit.com for quotations, technical specifications, or drilling consultation services.
