113mm Three Wing Arc Angle Drill Bit

113mm Three Wing Arc Angle Drill Bit - Professional PDC Drilling Solution for Enhanced Performance

SHAANXI HAINAISEN INTELLIGENT EQUIPMENT MANUFACTURING CO.,LTD presents the 113mm Three Wing Arc Angle Drill Bit, an advanced PDC drilling tool engineered for superior performance across soft to medium-hard formations. Featuring three strategically positioned wings with arc angle geometry and premium 1308 PDC cutters, this bit delivers exceptional cutting efficiency and extended service life. Suitable for strata grades 1-12, our drill bit combines over 10 years of PDC cutting technology expertise with modern manufacturing capabilities spanning our 6,000-square-meter facility. Backed by 20 senior technicians and proven in diverse geological conditions, this drilling solution offers optimized cuttings removal, faster penetration rates, and reliable performance for oil, gas, and mining operations.

Advanced Three-Wing Arc Design Technology

The innovative three-wing arc configuration distinguishes this drill bit from conventional designs. Each wing features precisely calculated arc angles that expand the edge contact area during operation. This geometric optimization creates larger junk slots between wings, facilitating superior cuttings evacuation and preventing clogging during continuous drilling.

The arc angle design increases cutting capacity by maximizing PDC cutter engagement with formation materials. Your drilling operations benefit from higher penetration rates and reduced torque requirements. The balanced three-wing structure provides exceptional stability and guidance, minimizing deviation and ensuring accurate borehole trajectories.

Superior Performance Characteristics

Enhanced cutting efficiency stands as the primary advantage of this drilling tool. The three-wing arc geometry expands the effective cutting surface, enabling faster drilling speeds across sandstone, shale, limestone, and mixed formations. Your team experiences improved productivity through consistent penetration rates and reduced downtime.

Optimized debris removal prevents bit balling and maintains cutting effectiveness throughout the drilling cycle. The strategically sized junk slots accommodate high-volume cuttings transport, essential for maintaining bit face cleanliness in demanding geological conditions.

Extended durability results from the combination of premium 1308 PDC cutters and advanced geometric design. The arc angles distribute cutting forces evenly across the bit face, reducing cutter stress and extending operational life. This translates to lower replacement costs and improved drilling economics for your projects.

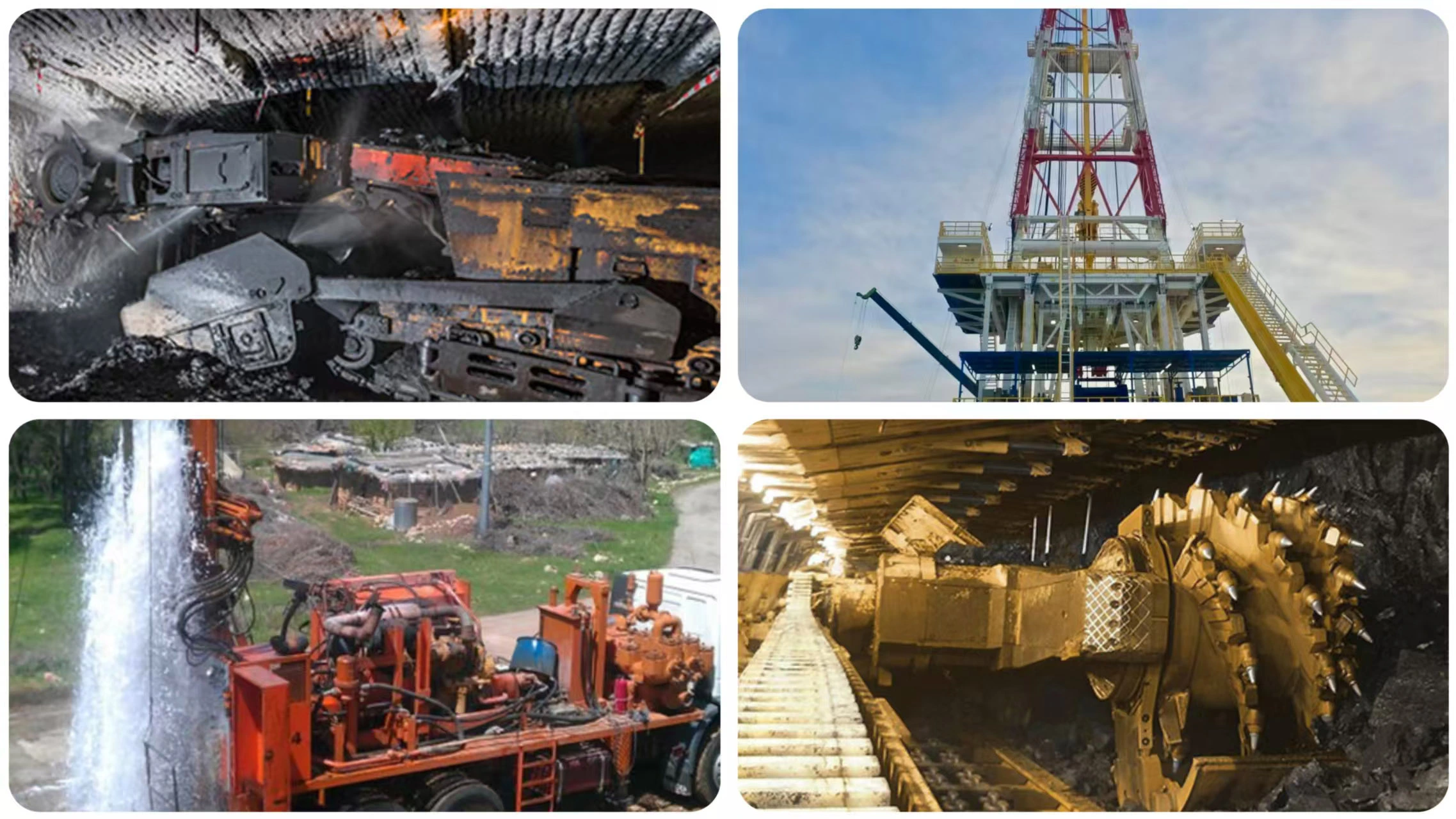

Application Range and Formation Compatibility

This 113mm Three Wing Arc Angle Drill Bit excels in diverse drilling environments. Geological exploration teams utilize it for mineral prospecting and resource assessment. Mining operations rely on its consistent performance for production drilling and development work. Oil and gas applications benefit from its ability to handle transitional formations with varying hardness.

The bit performs optimally in formations graded 1-12, covering soft sedimentary rocks through medium-hard consolidated materials. Your drilling program gains flexibility through this broad formation compatibility, reducing the need for frequent bit changes during multi-formation drilling sequences.

Manufacturing Excellence and Quality Assurance

Produced in our Xi'an facility with modern standard equipment, each drill bit undergoes rigorous quality control protocols. Our 150+ employee workforce, including specialized senior technicians, ensures manufacturing precision and consistency. Independent intellectual property capabilities drive continuous product refinement and technical innovation.

The connection interface accepts 63.5 cone buckle configurations as standard, with customization available to match your specific drilling equipment requirements. This adaptability ensures seamless integration with existing drill strings and operational procedures.

Same-Series Drill Bit Selection Chart

Selection Notes

If working in broken formations with high deviation risk, prioritize three-wing arc angle bits over concave/flat-angle styles for better stability.

If drilling efficiency is a top priority, upgrade to high-grade PDC cutters for further improved speed and service life.

For harder formations (f > 8), consider four-wing arc angle bits to avoid excessive wear.

Material

Our 113mm Three Wing Arc Angle Drill Bits are crafted using premium-grade materials:

• High-strength steel body for durability
• Advanced PDC (Polycrystalline Diamond Compact) cutters for superior wear resistance
• Tungsten carbide matrix for enhanced thermal stability

Quality Control

At SHAANXI HAINAISEN, quality is our top priority. Each product undergoes rigorous testing and inspection:

• Strict raw material selection
• Precision manufacturing processes
• Comprehensive performance testing
• Final quality checks before shipment

Project Case Studies

A coal mining operation in northern China deployed our 113mm Three Wing Arc Angle Drill Bit for underground development drilling. The project required penetration through alternating shale and sandstone layers totaling 850 meters. Our drill bit achieved an average penetration rate 23% faster than previously used tools, completing the drilling program ahead of schedule while maintaining excellent borehole quality.

In a geological exploration project targeting mineral deposits, drilling teams faced challenging mixed formations with unpredictable hardness variations. The three-wing arc design maintained consistent performance across formation transitions, reducing non-productive time by 18% and extending bit life to 420 meters per bit—significantly exceeding project expectations.

Packaging and Transportation

Our products are carefully packaged to ensure safe transportation. We use sturdy wooden crates or custom packaging based on your requirements.

Transaction Feedback

We value customer satisfaction and continuously improve based on feedback. Our clients praise our product quality, timely delivery, and responsive support.

Qualification Certification

SHAANXI HAINAISEN holds relevant industry Certifications, ensuring our products meet international standards.

After-Sales Service

Our commitment doesn't end with the sale. We provide comprehensive after-sales support, including:

• Technical guidance
• Performance analysis
• Troubleshooting assistance
• Warranty support

FAQ

Q1: Which formations are ideal for this drill bit?
A: Sandstone, shale, limestone, and coal seams are examples of soft to medium-hard rocks where the bit works best. It is appropriate for the majority of geological and mining drilling applications since it efficiently manages strata grades 1–12.

Q2: How is drilling efficiency increased by the arc angle design?
A: For better cutting removal, arc angles increase the cutting contact area and provide larger rubbish slots. In comparison to traditional geometries, this allows for faster penetration rates, keeps the bit face clean, and avoids clogging.

Q3: Can you change our equipment's connection type?
A: Yes, although our basic connection is a 63.5 cone buckle, we may customize it to meet the requirements of your drilling equipment. For a thorough consultation, send your requirements to our technical staff.

Q4: What is each bit is anticipated service life?
A: Drilling parameters and formation features affect service life. In mixed formations, performance typically varies from 350 to 500 meters; softer materials may have a longer lifespan. Bit lifespan is maximized by using proper drilling techniques.

Q5: Do you offer drilling optimization technical support?
A: Throughout the course of your project, our skilled technical staff provides complete support, including suggestions for drilling parameters, help with problems, and advice on performance improvement.
