Three Blade Wing Arc Angle Drill Bit

Three Blade Wing Arc Angle Drill Bit: Advanced PDC Drilling Solution for Enhanced Penetration Performance

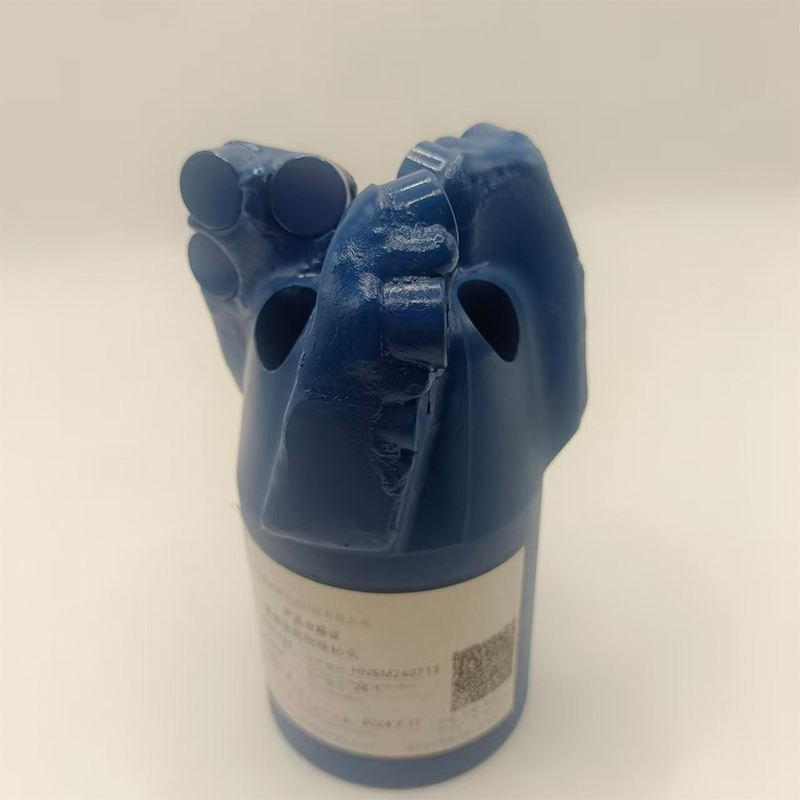

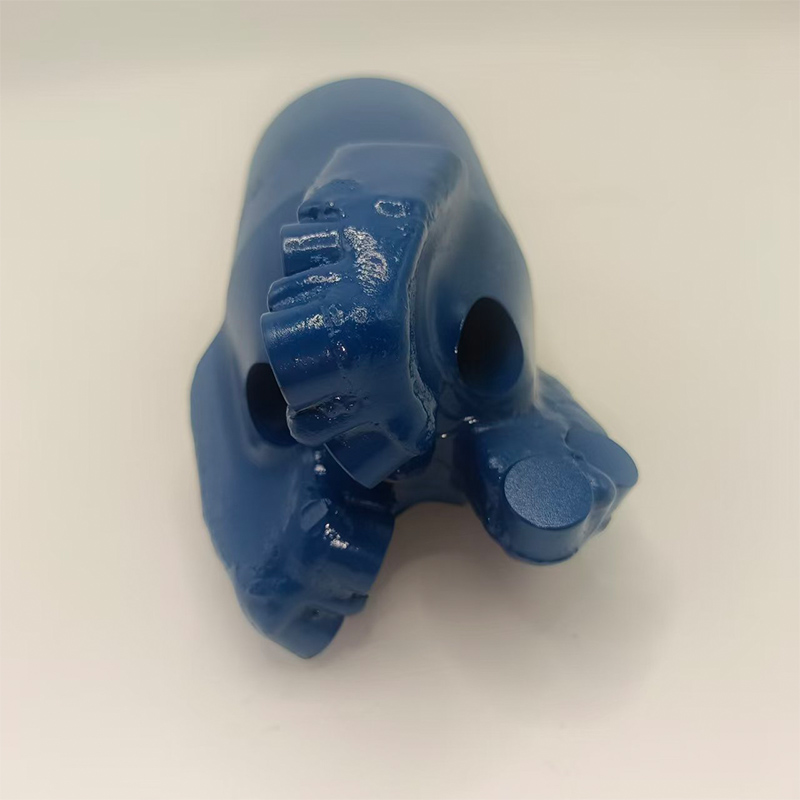

SHAANXI HAINAISEN INTELLIGENT EQUIPMENT MANUFACTURING CO., LTD brings over 10 years of professional drilling technology experience to deliver the Three Blade Wing Arc Angle Drill Bit, engineered for superior penetration efficiency across diverse geological formations. This advanced drilling tool features a parabolic arc structure with three optimized blades, incorporating 1308 PDC cutters and three precisely positioned nozzles. Available in 94mm standard size (customizable from 60-165mm), this drill bit achieves remarkable performance in strata types 1-12, delivering faster drilling speeds while reducing weight on bit requirements by up to 30% compared to conventional designs.

Advanced Design Features

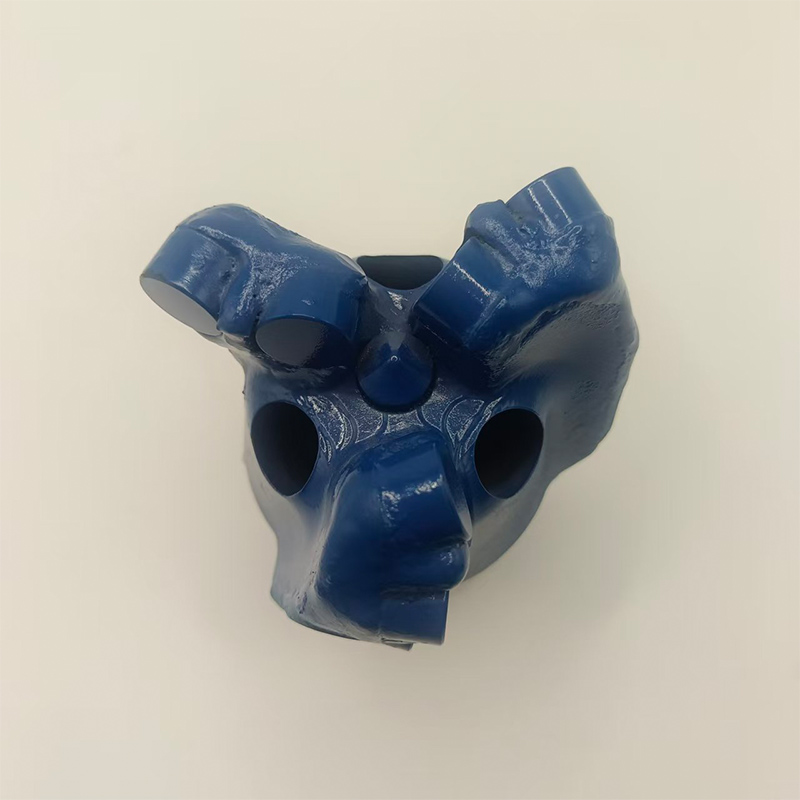

The parabolic arc structure allows cutting teeth to enter rock formations with significantly reduced resistance. This streamlined crown design creates multiple cutting tracks, minimizing broken rock volume and energy consumption during operations.

Our three-blade configuration provides exceptional balance between cutting efficiency and directional stability. Each blade incorporates high-strength welding technology, ensuring robust performance even in challenging drilling conditions. The layered tooth arrangement enables simultaneous multi-track cutting, distributing stress evenly across the bit face.

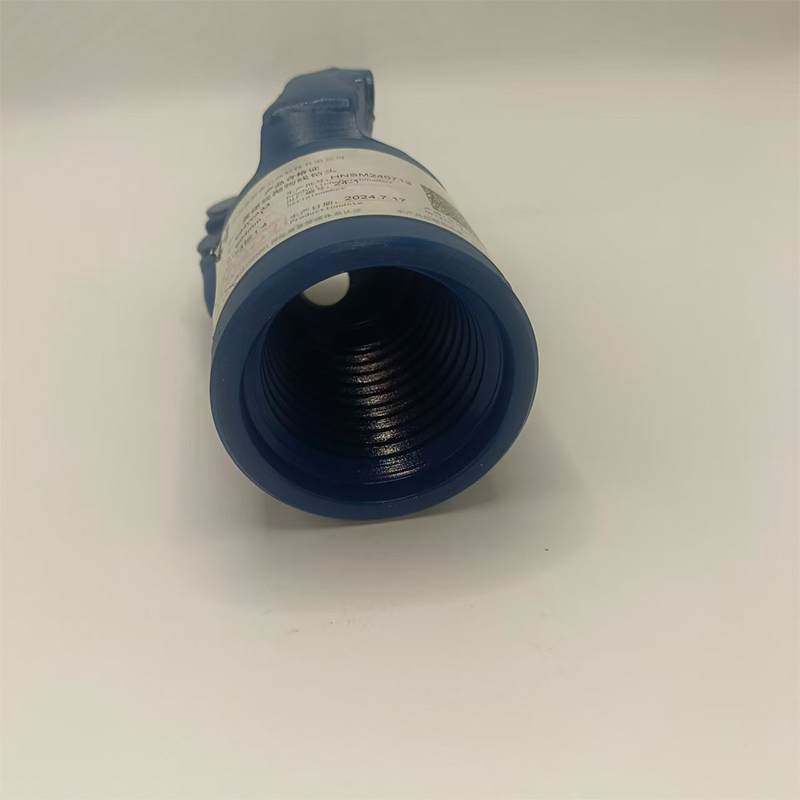

The 63.5 cone buckle connection type ensures reliable torque transmission, while custom connection options accommodate your specific drilling equipment requirements.

Selection Guide

Quick Selection Tips

• For harder formations, choose larger PDC cutters and reinforced blades to enhance impact resistance.
• For water-rich or clay formations, prioritize bits with large nozzles to avoid cuttings clogging.
• If you’re unsure about formation conditions, share your construction parameters and we’ll help you select the optimal model for free.

Superior Performance Advantages

Polycrystalline Diamond Compact cutters deliver unmatched cutting power and durability. Your drilling operations benefit from extended bit lifespan, reducing non-productive time associated with frequent bit changes.

The optimized wing arc angle significantly improves chip evacuation. Debris clears efficiently from the cutting zone, preventing bit balling and maintaining consistent penetration rates throughout operations.

Lower weight on bit requirements translate to reduced equipment stress and operational costs. You'll experience faster drilling with less force application, extending the service life of your entire drilling assembly.

Versatile Application Solutions

This Three Blade Wing Arc Angle Drill Bit excels across multiple industry sectors. Oil and gas exploration projects benefit from precise directional control and rapid penetration through varied formations.

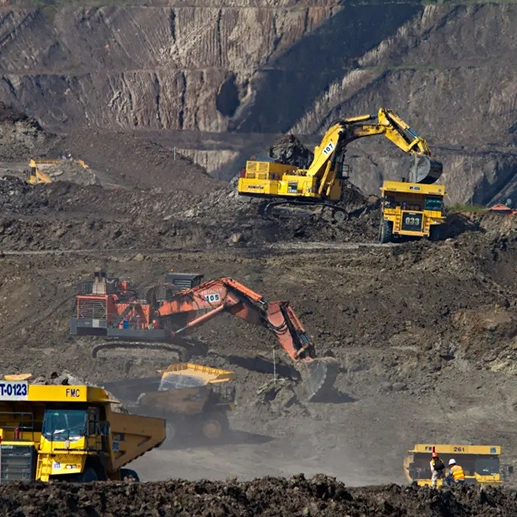

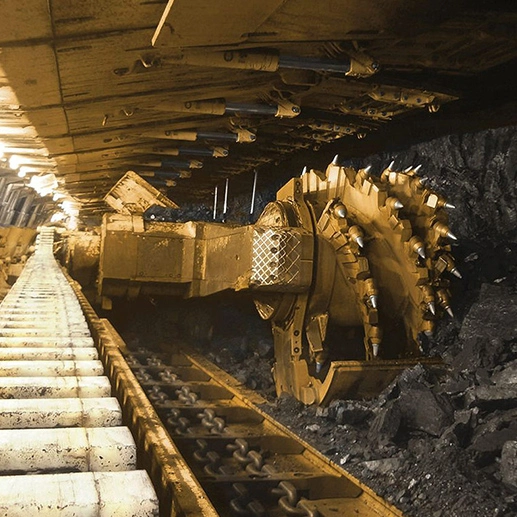

Coal mining operations achieve enhanced productivity in soft to medium-hard strata. The bit's robust construction withstands abrasive conditions while maintaining cutting efficiency.

Water well drilling and geothermal projects leverage the superior chip evacuation capabilities. Consistent performance across extended drilling depths ensures project timelines remain on schedule.

Geotechnical investigations utilize the precise steering capabilities for accurate sample collection and site assessment.

Project Case Studies

Mining engineering projects in Shaanxi Province demonstrated 40% improvement in penetration rates when switching to our three-blade design. The operation reduced bit replacement frequency from every 200 meters to every 320 meters, significantly lowering operational costs.

A coal bed methane exploration project in Shanxi Province successfully drilled through complex geological transitions using our 94mm Three Blade Wing Arc Angle Drill Bit. The improved debris clearance maintained stable torque values throughout 15-degree directional drilling sections.

Quality Assurance and Support

Our manufacturing facility spans 6,000 square meters in Xi'an's Jing Wei Industrial Park, equipped with modern production equipment and quality control systems. More than 20 senior technicians oversee every production stage, ensuring each bit meets rigorous performance standards.

As a high-tech enterprise with independent intellectual property rights, we invest continuously in drilling technology innovation. Our R&D team develops solutions specifically addressing the challenges you face in complex drilling environments.

We follow strict quality protocols established through years of PDC cutting technology expertise. Each Three Blade Wing Arc Angle Drill Bit undergoes comprehensive testing before leaving our facility, guaranteeing reliability when you need it most.

Why Choose HAINAISEN

• Over 10 years of industry experience
• State-of-the-art manufacturing facility
• Dedicated R&D team for continuous innovation
• ISO 9001:2015 certified quality management system

Packaging and Transportation

Our products are securely packaged to ensure safe transportation:

• Custom-designed protective cases
• Shock-absorbing materials for delicate components
• Worldwide shipping options available

Transaction Feedback

We value customer satisfaction and welcome feedback on all transactions. Your input helps us continually improve our products and services.

After-Sales Service

HAINAISEN provides comprehensive after-sales support:

• Technical consultation and troubleshooting
• On-site training for proper bit selection and operation
• Wear analysis and performance optimization

Qualification Certification

HAINAISEN holds various industry Certifications, including:

• ISO 9001:2015 Quality Management System
• API (American Petroleum Institute) Certification

FAQ

Q1: What formations work best with this drill bit?
A: This bit performs optimally in strata types 1-12, covering soft to medium-hard formations including sandstone, shale, limestone, and coal seams.

Q2: Can you customize the bit size and connection type?
A: Absolutely. We offer sizes ranging from 60mm to 165mm with various connection types tailored to your drilling equipment specifications.

Q3: How does the three-blade design improve directional drilling?
A: The balanced blade configuration reduces lateral vibration while providing responsive steering characteristics, essential for maintaining planned wellbore trajectories.

Q4: What maintenance extends bit lifespan?
A: Regular inspection of cutter wear, proper nozzle cleaning, and appropriate RPM settings based on formation hardness maximize operational life.

Q5: What's your typical production capacity?
A: Our facility produces consistent quantities with 5-7 business day delivery for standard orders of 10 pieces or more.
