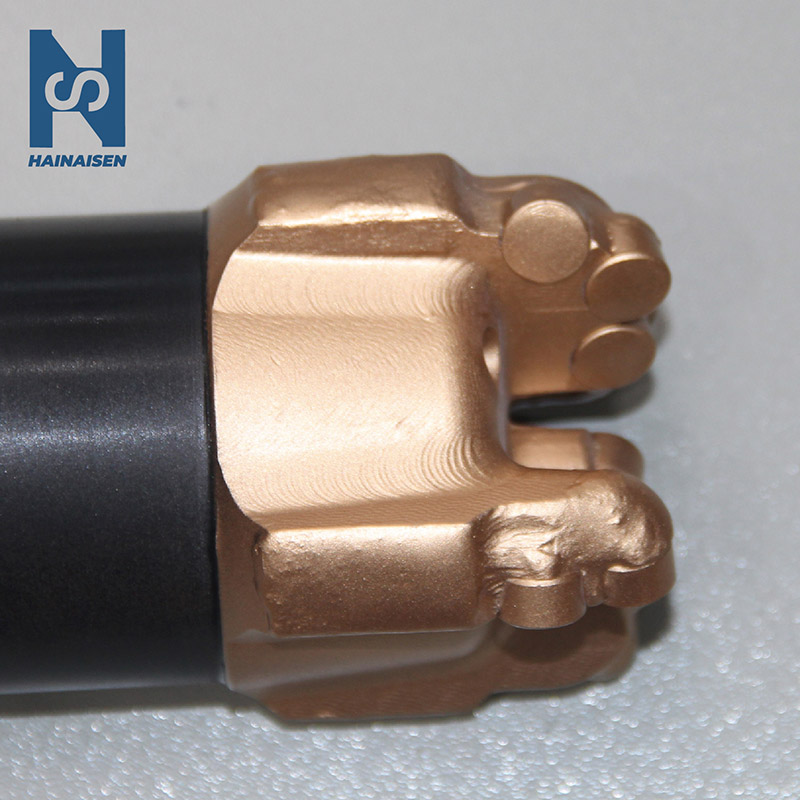

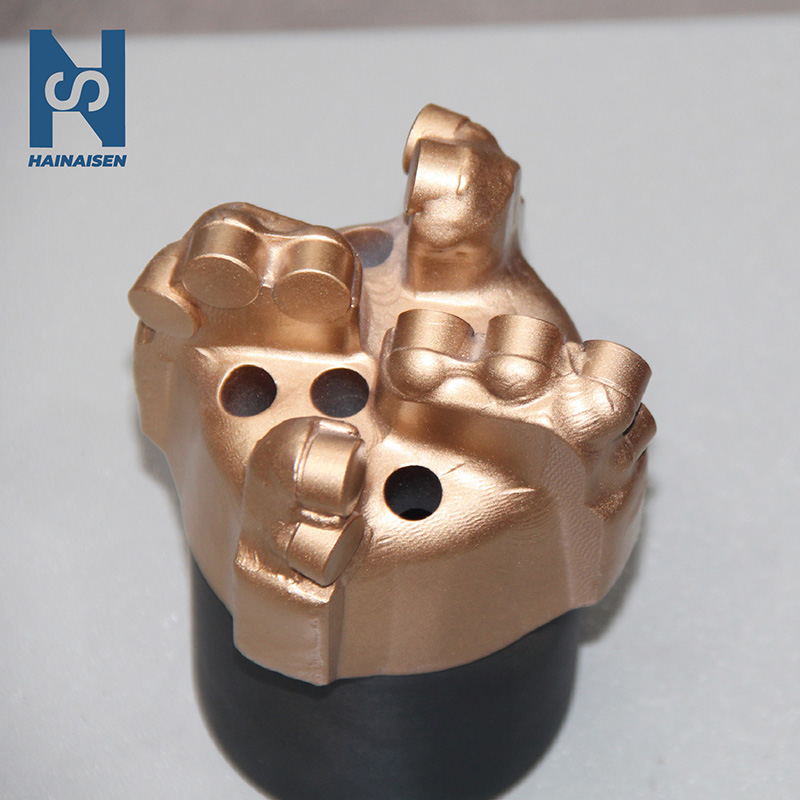

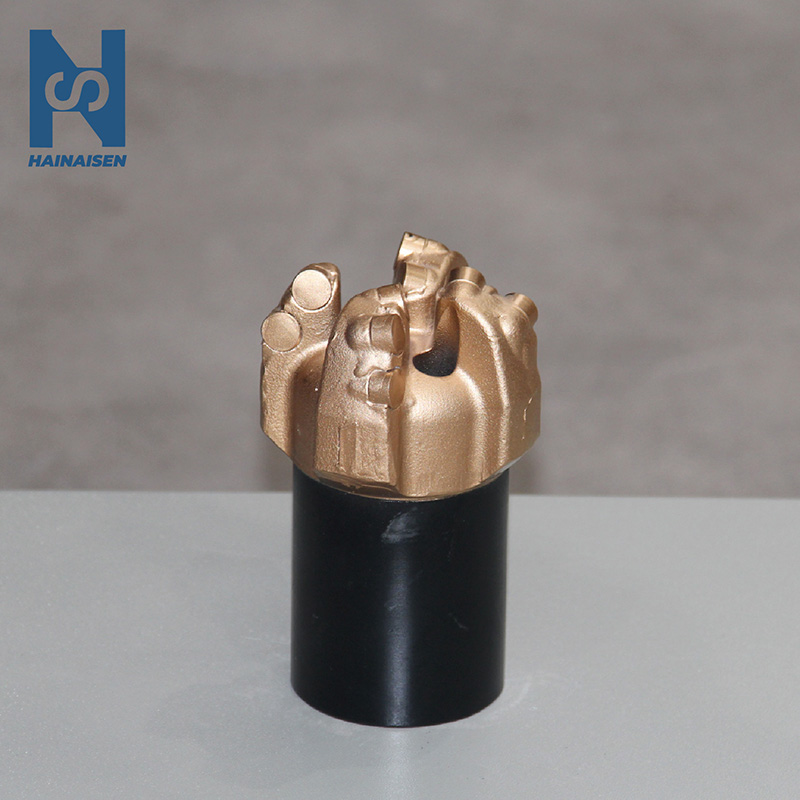

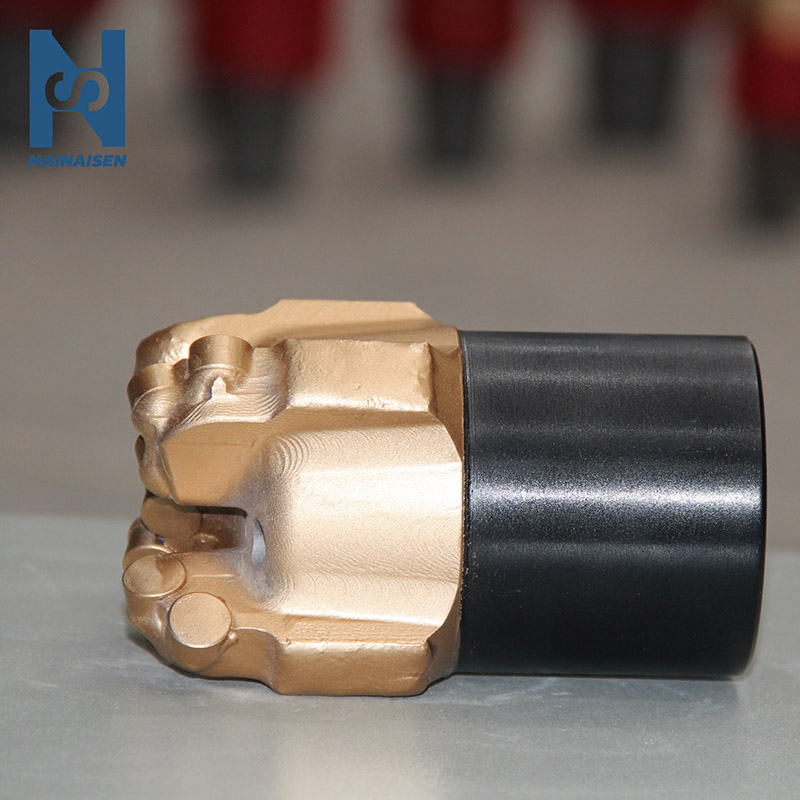

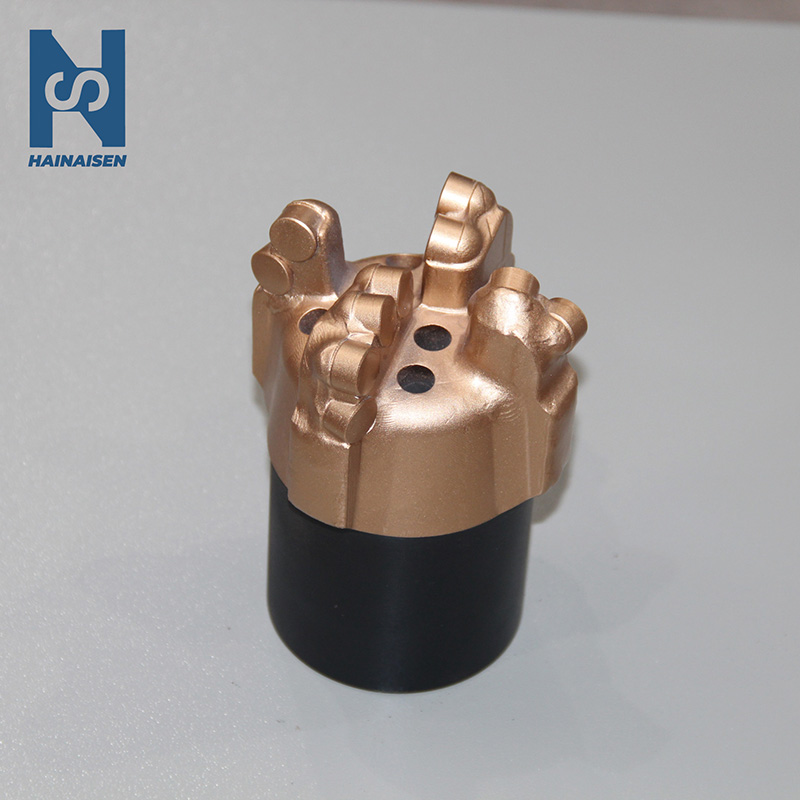

113mm Four Wing Arc Angle Drill Bit
Bit size: 113mm(60-165mm)
Number of Blade: 4
Number of Nozzle: 3
PDC cutter :1308
Connection type: 63.5cone buckle（customized）
Package Details: customized
Applicable strata:1-12
Minimum Order Quantity : 10 pieces
Price : To be negotiable
Delivery Time : 5-7 business days
Payment Terms : T/T, L/C
- Product Description
SHAANXI HAINAISEN: Your Trusted 113mm Four Wing Arc Angle Drill Bit Manufacturer
At SHAANXI HAINAISEN INTELLIGENT EQUIPMENT MANUFACTURING CO.,LTD, we're proud to be a leading manufacturer and supplier of high-quality 113mm Four Wing Arc Angle Drill Bits. Our advanced manufacturing techniques and rigorous quality control ensure that our drill bits deliver exceptional performance in demanding drilling environments. With over a decade of industry experience, we've become a trusted name in the oil, gas, and mining sectors.
Why Choose Our 113mm Four Wing Arc Angle Drill Bit?
- Superior durability: Engineered to withstand harsh drilling conditions
- Enhanced cutting efficiency: Four-wing design for faster penetration rates
- Optimal heat resistance: Specially formulated materials for extended bit life
- Precise arc angle: Ensures stability and reduces vibration during operation
- Cost-effective: Long-lasting performance for improved drilling economics
Product Differentiation Advantages (Direct Competitor Comparison)
| Comparison Dimension | 113mm Four-Wing Arc-Angle Bit | Standard 3-Wing Flat-Angle Bit | Standard 4-Wing Flat-Angle Bit |
|---|---|---|---|
| Structural Stability | Balanced 4-wing force, zero deviation in hard rock | Unbalanced 3-wing force, high deviation & hole angle error in hard rock | Stable 4-wing force, but no impact buffer |
| Impact Resistance | Arc-angle absorbs impact, no chipping/breakage in hard rock/gangue | Flat angle causes stress concentration, high chipping/failure rate in hard rock | No impact buffer, high vibration & chipping risk in hard rock |
| Drilling Efficiency | Large cutter coverage, smooth flushing, 30%+ efficiency boost in hard rock | Small cutter coverage, poor flushing, low efficiency in hard rock | Better efficiency than 3-wing, but high resistance & energy consumption |
| Service Life | High single-bit footage, 20%+ reduction in overall consumable cost | Short service life, frequent bit changes, high total cost | Longer life than 3-wing, but shorter than arc-angle model |
| Borehole Quality | Smooth, round borehole from arc-angle, zero jamming during casing/support | Rough borehole with steps, frequent casing jamming | Average borehole smoothness, inferior to arc-angle model |
| Rig Load | Smooth arc-angle penetration, low drilling resistance & energy consumption | High drilling resistance in hard rock, heavy rig load | Hard flat-angle penetration, high rig load & wear |
Usage Advantages
- High drilling efficiency in hard rock, far higher single-bit footage than industry standard products
- Stable structure, low underground failure rate, reduces downtime and maintenance, boosts operational efficiency
- Wide compatibility, universal for all mining scenarios, no special debugging required, ready to use
- Superior borehole quality, smooth subsequent casing and support operations, reduces construction risks
Cost Advantages
- Long service life, lower cost per meter drilled, cuts your drilling consumable expenses
- Low failure rate, reduces extra costs for bit replacement and maintenance
- Customized solutions, match the optimal spec for your project, no unnecessary spending
- Exclusive discounts for bulk orders, stable supply and pricing for long-term partners
Selection Guide
| Working Condition / Requirement | Recommended Selection | Core Reason |
|---|---|---|
| Hard rock formation, heavy-duty long-term drilling | 113mm Four-Wing Arc-Angle Bit (Standard) | Dual benefits of 4-wing + arc-angle, no chipping, maximum service life in hard rock |
| Medium-hard rock routine drilling, cost-effectiveness focus | 113mm Four-Wing Arc-Angle Bit (Standard) | Optimal balance of efficiency, service life and cost, fits most mining scenarios |
| Soft/medium-hard rock, shallow hole fast drilling | 3-Wing Flat-Angle Bit (available upon request) | Lower drilling resistance in soft rock, lower cost, higher efficiency for shallow holes |
| Fractured rock, high-impact complex formation | 113mm Four-Wing Arc-Angle Bit (Custom High-Impact Cutters) | Reinforced impact-resistant structure, prevents cutter loss and wing breakage in fractured formations |
| Non-standard bore size / special rig connection | Custom Four-Wing Arc-Angle Bit | Customizable diameter, thread, cooling structure, 100% fit for your on-site conditions |

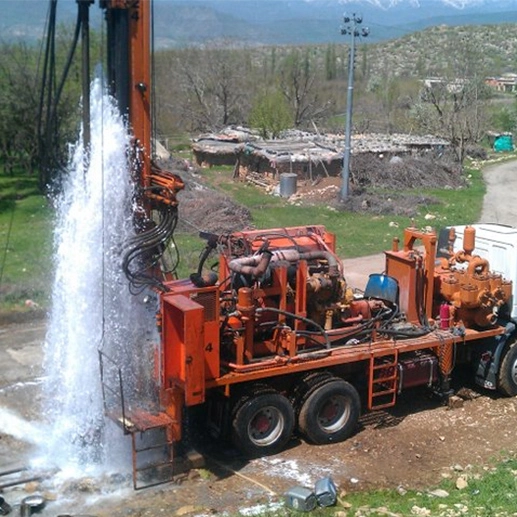

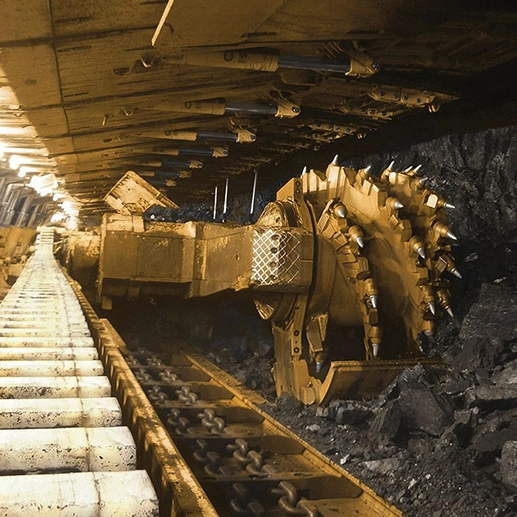

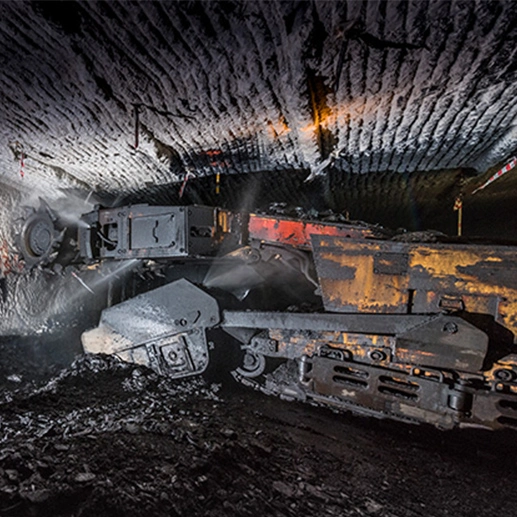

Applications
Our 113mm Four Wing Arc Angle Drill Bit excels in various drilling applications:
- Oil and gas exploration: Ideal for both onshore and offshore drilling operations
- Coal mining: Efficient for coal seam drilling and exploration
- Water well drilling: Perfect for deep well construction projects
- Geothermal drilling: Suitable for high-temperature environments
- Hard rock mining: Capable of penetrating tough geological formations
- Tunneling and construction: Effective for large-scale infrastructure projects
Customization
- Custom PDC cutter specifications based on formation hardness
- Custom non-standard diameters, special thread connections for all rig types
- Custom internal/external cooling structures for different drilling processes
Delivery & Supply
- Sufficient stock for standard 113mm four-wing arc-angle bits, fast shipping after order
- On-time delivery for custom products, no project delays
- In-house manufacturing, full-process quality control, strong mass supply capacity
- Global shipping available, supports overseas mining project supply

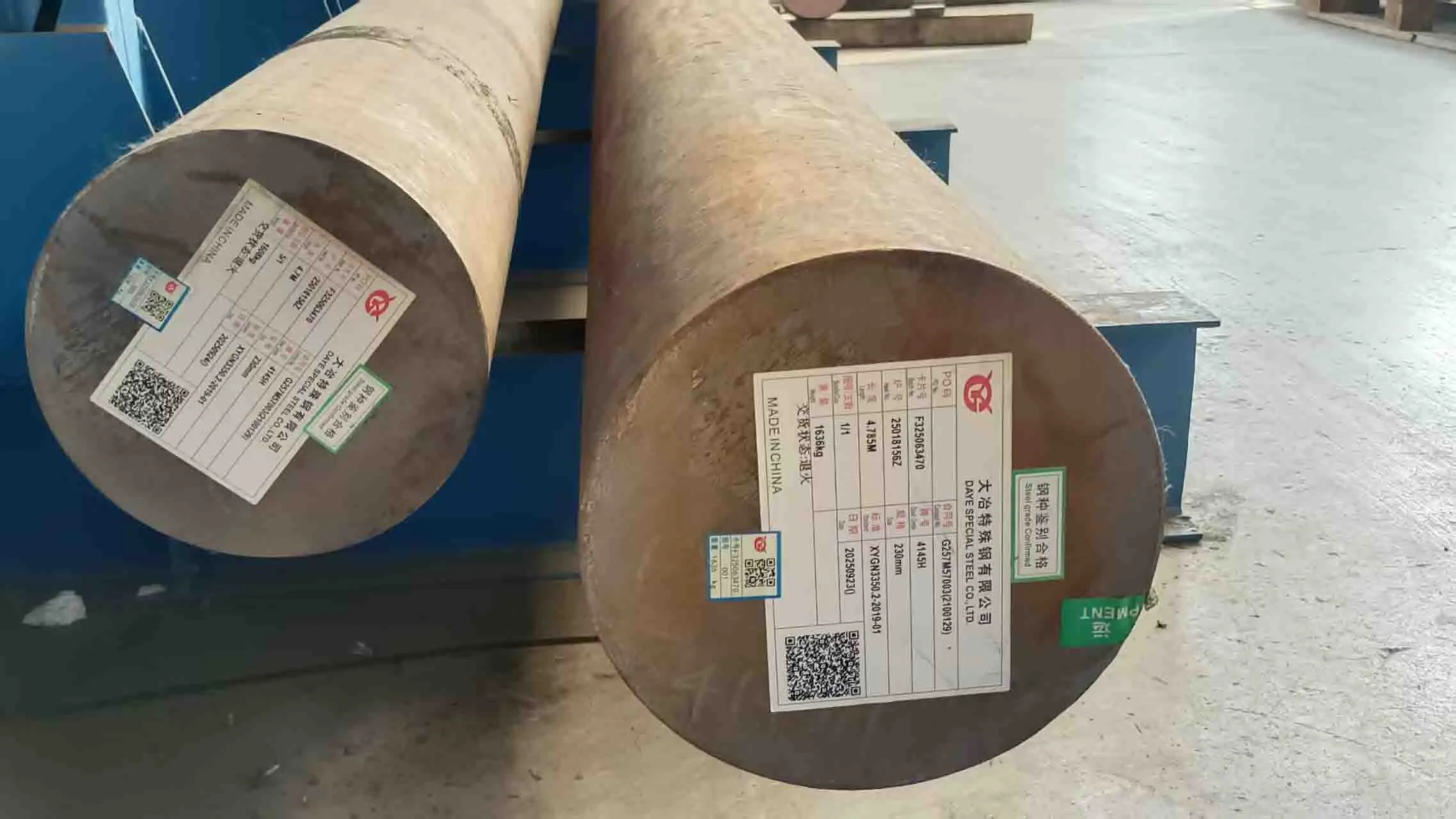

Material
Our drill bits are crafted using premium-grade materials, including:
- High-strength steel body for durability
- Polycrystalline diamond compact (PDC) cutters for superior wear resistance
- Tungsten carbide for enhanced impact resistance
Quality Control
We maintain stringent quality control measures throughout the manufacturing process:
- ISO 9001:2015 certified quality management system
- Rigorous testing at each production stage
- Final inspection before shipment to ensure product excellence
Why Choose HAINAISEN
- Cutting-edge technology and innovation
- Extensive industry experience and expertise
- Commitment to customer satisfaction
- Competitive pricing without compromising quality
- Reliable after-sales support and technical assistance
Shipment and Samples
We offer flexible shipping options to meet your timeline and budget. Sample orders are available for testing and evaluation purposes.
Packaging and Transportation
Our products are carefully packaged to ensure safe transportation. We use sturdy wooden crates and protective materials to prevent damage during transit.
Transaction Feedback
We value your feedback and continuously strive to improve our products and services. Our dedicated team is always ready to address any concerns or questions you may have.
After-Sales Service
Our commitment doesn't end with the sale. We provide comprehensive after-sales support, including:
- Technical consultation
- Troubleshooting assistance
- Performance optimization guidance
Qualification Certification
SHAANXI HAINAISEN holds various industry certifications, demonstrating our commitment to quality and safety standards.
FAQ
Q: What is the average lifespan of your product?
A: The lifespan varies depending on drilling conditions, but our bits typically outperform industry standards.
Q: Do you offer training on proper bit usage?
A: Yes, we provide training and guidance to ensure optimal performance and longevity of our drill bits.
Q: What is your lead time for custom orders?
A: Lead times vary based on specifications, but we strive to meet your project timelines.
Q: Can your drill bits be re-sharpened?
A: In some cases, yes. Our team can advise on the best maintenance practices for your specific application.
Q: Do you offer warranty on your products?
A: We stand behind our products and offer warranties based on specific terms and conditions.
Contact Us
For inquiries or to discuss your drilling needs, please contact us at hainaisen@hnsdrillbit.com. Our team is ready to assist you in finding the perfect 113mm Four Wing Arc Angle Drill Bit solution for your project.
