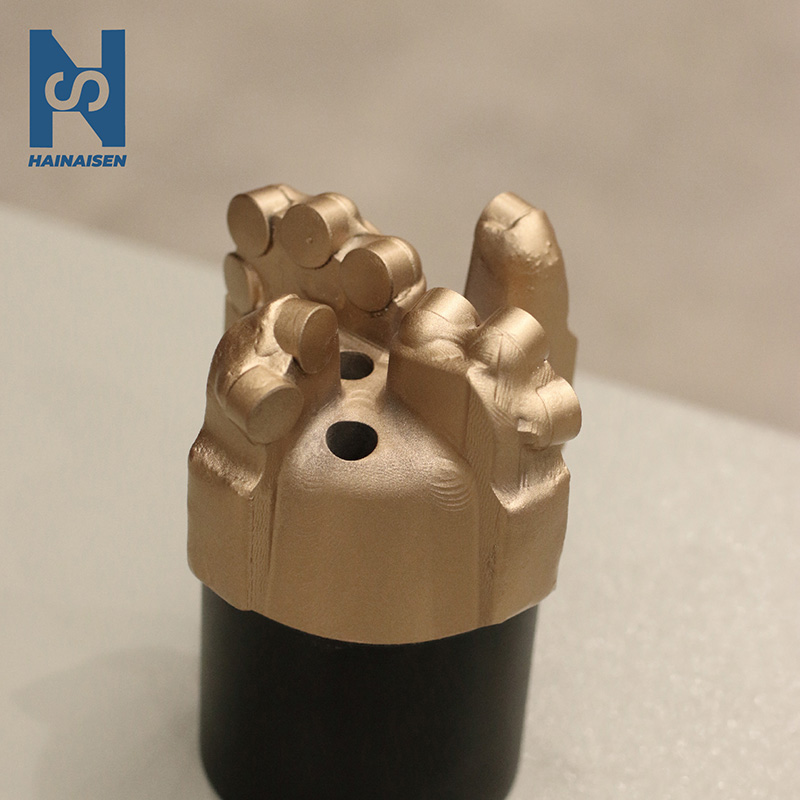

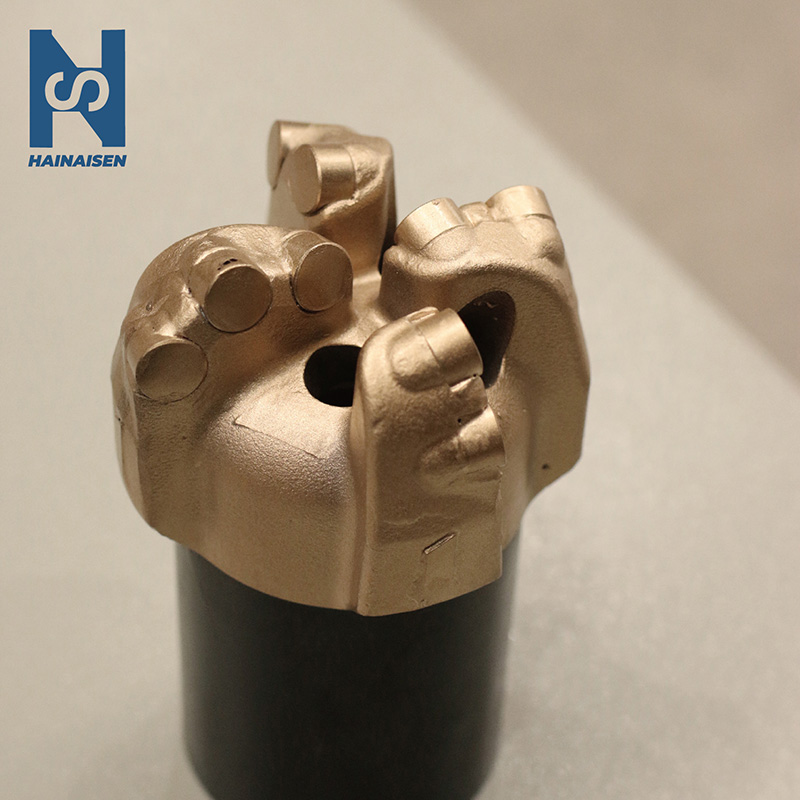

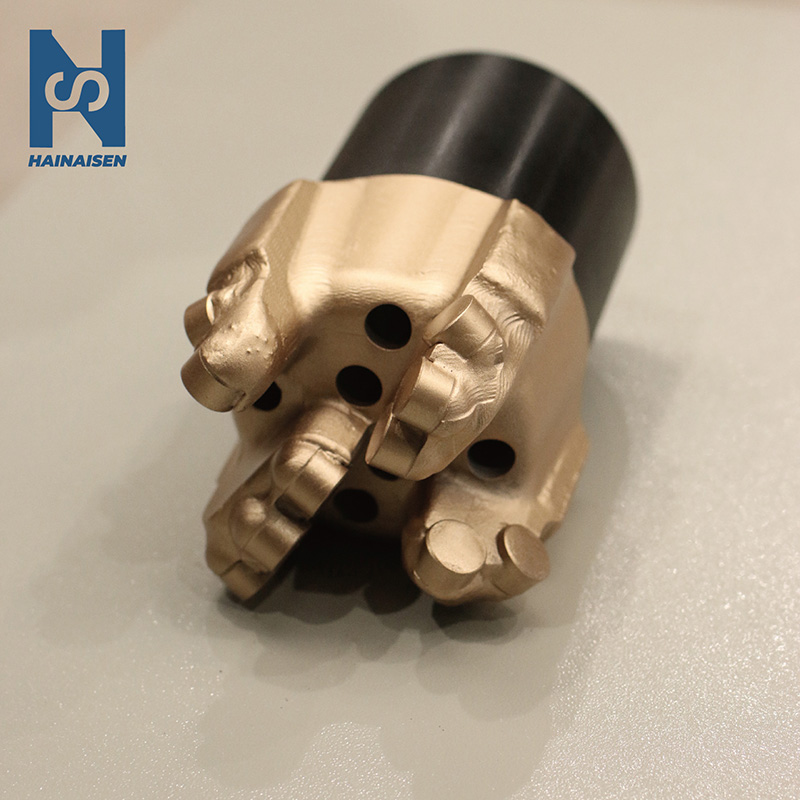

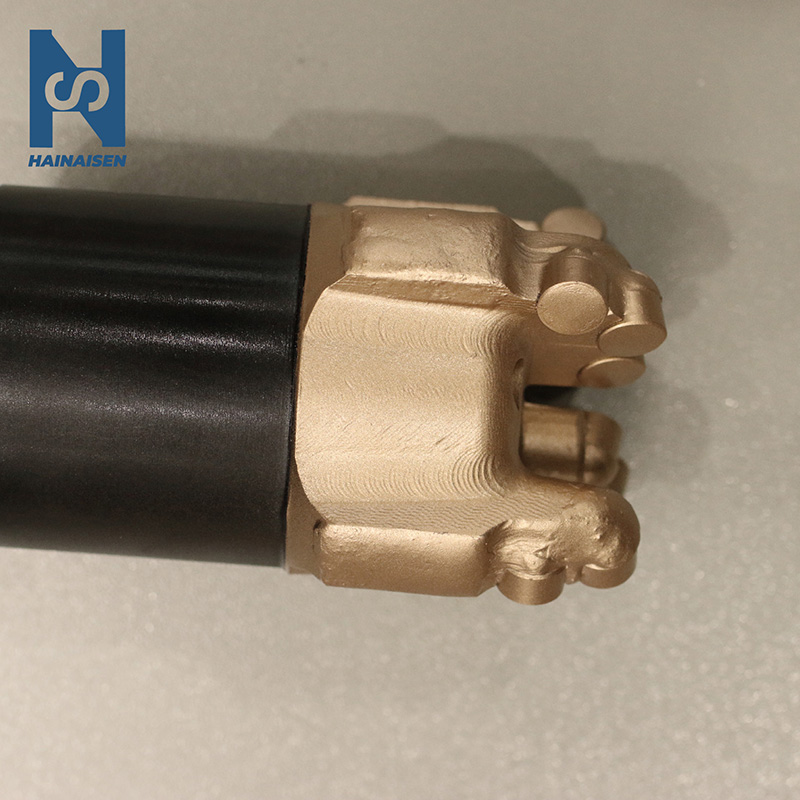

Four Wing Arc Angle PDC Drill Bit
Bit size: 94mm(60-165mm)
Number of Blade: 4
Number of Nozzle: 4
PDC cutter :1308
Connection type: 63.5cone buckle（customized）
Package Details: customized
Applicable strata:1-12
Minimum Order Quantity : 10 pieces
Price : To be negotiable
Delivery Time : 5-7 business days
Payment Terms : T/T, L/C
- Product Description
Four Wing Arc Angle PDC Drill Bit: Precision Engineering for Optimal Drilling Performance
SHAANXI HAINAISEN INTELLIGENT EQUIPMENT MANUFACTURING CO.,LTD is a leading manufacturer and supplier of Four Wing Arc Angle PDC Drill Bits. Our cutting-edge technology and innovative design offer superior drilling performance for various industries. With decades of expertise, we deliver high-quality, durable, and efficient products that meet the demanding needs of oil & gas, mining, and geological exploration sectors.
Why Choose Our Four Wing Arc Angle PDC Drill Bit?
- Advanced arc angle design for improved penetration rates
- Enhanced cutting efficiency and reduced drilling time
- Superior wear resistance for extended bit life
- Optimized hydraulics for better cuttings removal
- Customizable configurations to suit specific formations
Selection Guide
Parameter Name | Standard Configuration | Custom Options | Selection Tips |
Bit Diameter | 94 mm | 60–165 mm | Match the wellbore size accurately |
Number of Blades | 4 Wings | 3/5 Wings | 4 wings balance drilling speed and stability, suitable for most scenarios |
Cutters | 1308 Type PDC | Impact / Abrasion Resistance Grades | High wear-resistant grade is recommended for hard abrasive formations |
Nozzles | 4 Pcs | Customizable Quantity & Layout | Increase nozzle flow for better flushing effect in sticky formations |
Thread Specification | 63.5 Cone Buckle | API Standard / Custom Specifications | Match the thread model of your own drilling rig |
Applicable Strata | Formation 1–12 | Custom Layout According to Strata | Focus on speed for soft formations and reinforcement for hard formations |
Simple Selection Advice
- For conventional hard rock, water well and mining operations: Choose the standard 94 mm 4-wing drill bit.
- For deep / high-temperature drilling: Equip with high-temperature resistant PDC cutters and reinforced bit body.
- For sticky / clay formations: Increase nozzle flow to improve cuttings removal cleanliness.
- For directional drilling: Optimize blade layout to enhance drilling stability.
Cost Advantages
- Long service life reduces the number of bit changes and downtime losses.
- Fast drilling speed shortens the overall drilling period and saves fuel and labor costs.
- The cost per meter of drilling is lower than that of traditional drill bits, with higher cost performance for long-term use.
- Preferential unit prices are available for bulk purchases and long-term supply, reducing unit costs.
- Stable quality reduces maintenance and replacement costs, further controlling investment costs.

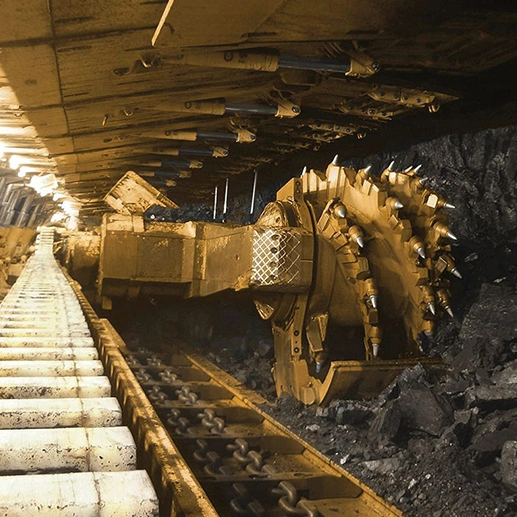

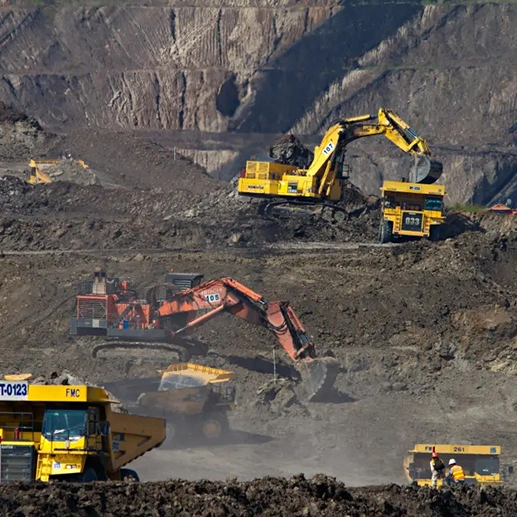

Applications
Our products are versatile tools suitable for various drilling applications:
- Oil and gas exploration and production
- Coal bed methane drilling
- Geothermal well drilling
- Hard rock mining operations
- Water well drilling
- Geological core sampling
- Horizontal directional drilling (HDD)
Customization Service
Our engineering team provides comprehensive customization services to meet your actual construction needs:
- Customization of size, number of blades, cutter model and layout
- Customization of nozzles, thread specifications and bit body structure
- Exclusive design for soft formations, hard formations, abrasive formations and fractured formations
- Customization of special models for high temperature resistance, impact resistance and long-distance drilling
- Custom logos, packaging and labels to meet brand and transportation needs
Supply & Delivery Capacity
- Production Strength: HAINAISEN has its own factory with stable mass production capacity and controllable quality.
- MOQ: 10 pieces for standard products; 5 pieces for custom products, which can be adjusted according to actual needs through negotiation.
- Delivery Time: 5–7 business days for standard products; urgent orders are acceptable, and the specific cycle is determined through negotiation.
- Payment Terms: Support two methods, Telegraphic Transfer (T/T) and Letter of Credit (L/C), which are flexible and convenient.
- Packaging Standard: Adopt custom wooden cases or steel boxes, combined with protective packaging and cushioning materials to prevent damage during transportation.
- Shipping Methods: Provide three shipping methods: sea freight, air freight and land transportation, covering global transportation needs.

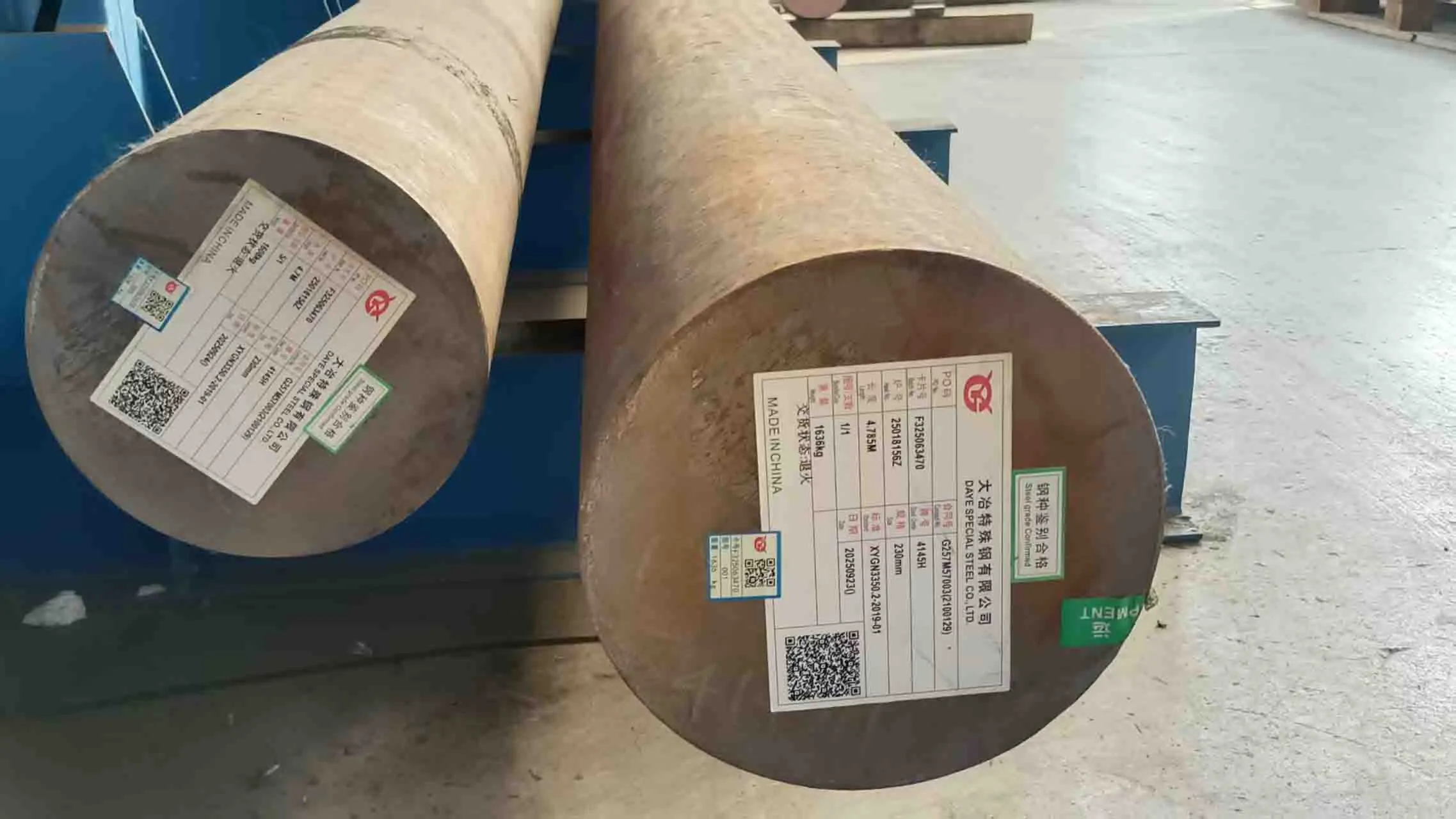

Material
Our bits are crafted using premium-grade materials:
- High-quality steel body for durability
- Advanced polycrystalline diamond compact (PDC) cutters
- Tungsten carbide matrix for enhanced wear resistance
Quality Control
We maintain strict quality control measures throughout the manufacturing process:
- ISO 9001:2015 certified quality management system
- Rigorous testing and inspection protocols
- Compliance with API and IADC standards
Why Choose HAINAISEN
- 10+ years of industry experience
- State-of-the-art manufacturing facility
- Continuous innovation and R&D
- Competitive pricing and flexible terms
- Excellent after-sales support
Shipment Samples
We are delighted to offer sample products specifically designed for your evaluation, allowing you to assess their quality, functionality, and suitability for your needs. To get started, simply contact our dedicated team to thoroughly discuss your unique requirements. We will work closely with you to promptly arrange a sample shipment, ensuring a seamless process that aligns with your timeline and helps you make informed decisions about our offerings.
Packaging and Transportation
Our products are securely packaged to ensure safe transportation:
- Custom wooden crates or steel boxes
- Protective wrapping and cushioning materials
- Flexible shipping options (sea, air, or land)
Transaction Feedback
We value customer satisfaction and continuously improve our products based on user feedback. Our clients consistently report improved drilling efficiency and reduced costs when using our products.
After-Sales Service
Our commitment doesn't end with the sale. We provide comprehensive after-sales support:
- Technical consultation
- Performance analysis
- Troubleshooting assistance
- Maintenance guidelines
Qualification Certification
Our products and processes are certified by recognized industry bodies:
- ISO 9001:2015 Quality Management System
- API (American Petroleum Institute) certification
- CE marking for European market compliance
FAQ
Q: What is the typical lifespan of a product?
A: The lifespan varies depending on formation and operating conditions, but our bits typically last 30-50% longer than conventional designs.
Q: Can these bits be used in high-temperature environments?
A: Yes, our bits are designed to withstand high temperatures commonly encountered in deep drilling operations.
Q: Do you offer rush orders for urgent projects?
A: Yes, we can accommodate rush orders. Please contact us to discuss your timeline and requirements.
Q: What's the minimum order quantity (MOQ) for custom bits?
A: Our MOQ for custom Four Wing Arc Angle PDC Drill Bits is typically 5 units, but this can be negotiated based on your specific needs.
Q: How do I determine the right bit specification for my project?
A: Our technical team can assist you in selecting the optimal bit configuration based on your geological data and operational parameters.
Contact Us
For inquiries, customization requests, or technical support, please email us at hainaisen@hnsdrillbit.com.
