Forging Deep Rock Well Drilling Bits

Forging Deep Rock Well Drilling Bits - High-Performance PDC Drilling Solutions for Demanding Mining and Oil & Gas Applications

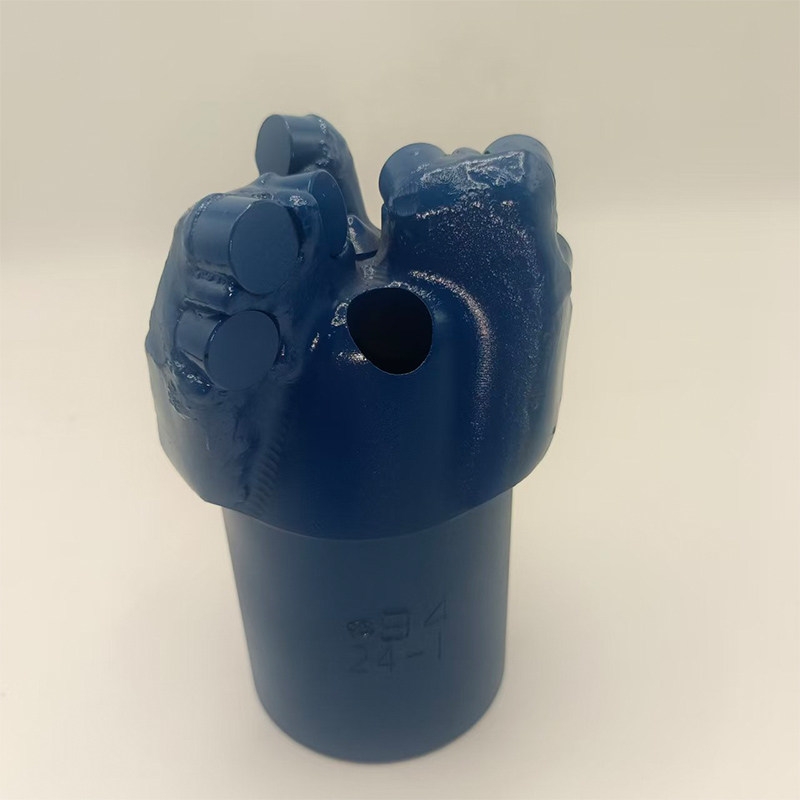

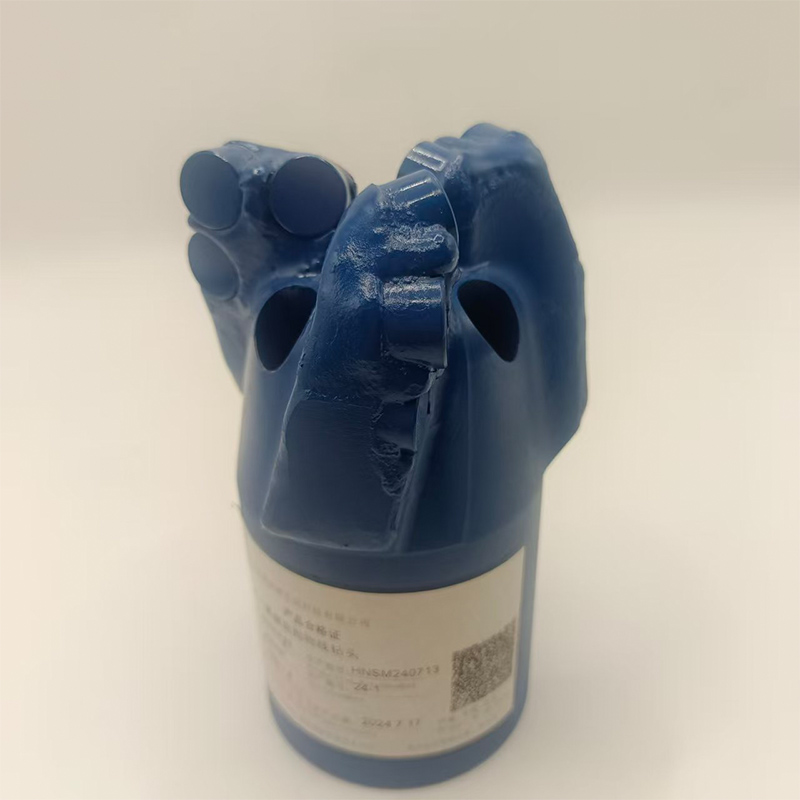

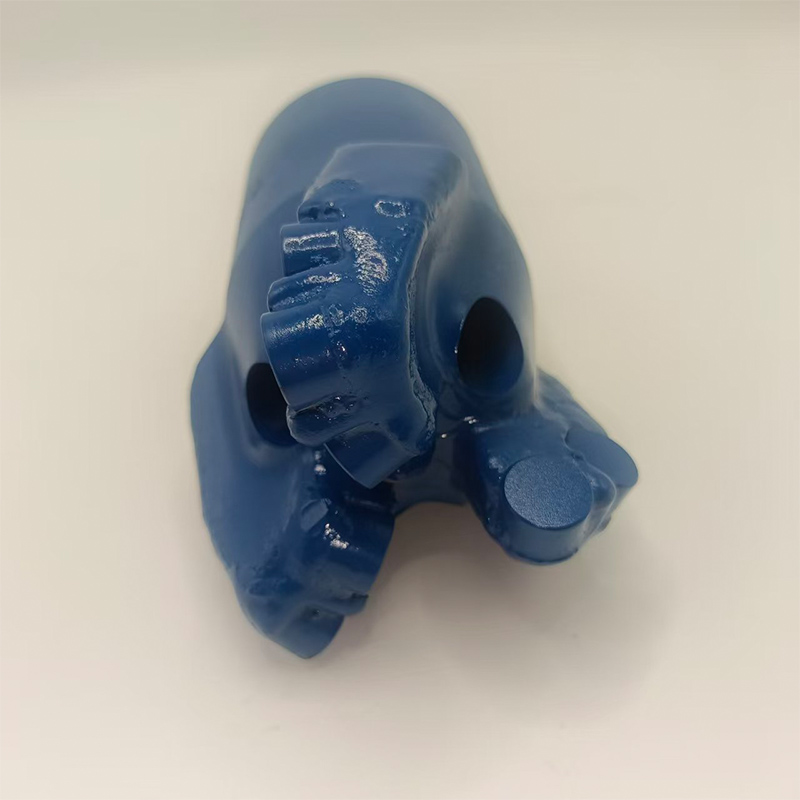

SHAANXI HAINAISEN INTELLIGENT EQUIPMENT MANUFACTURING CO., LTD delivers professional Forging Deep Rock Well Drilling Bits engineered with advanced PDC cutting technology for extreme drilling conditions. Our Arc Angle Drill Bits feature precision-forged bodies with 1308 PDC cutters, covering bit sizes from 60mm to 165mm with standard 75mm configuration.

With over 10 years of drilling technology expertise and a 6,000-square-meter manufacturing facility, our team of 20+ senior technicians produces drilling solutions that serve coal mining, oil and gas exploration, and deep rock penetration projects. Our forging process creates stronger bit structures compared to casting methods, delivering enhanced durability in strata grades 1-12.

Selection Guide

Quick Selection Notes

• Choose the Standard Model for regular working conditions for better cost-performance.
• For hard rock/deep well drilling, go with the Reinforced Model for improved stability and service life.
• Contact us for one-on-one customized solutions if you have complex formations or special equipment requirements.

Superior Forging Technology for Deep Rock Applications

Traditional casting methods often create weak points in drill bit bodies. Our forging process compresses metal under high pressure, aligning grain structures for maximum strength. This manufacturing approach produces Forging Deep Rock Well Drilling Bits that withstand intense percussion forces and rotational stress encountered in deep drilling operations.

The forged body design distributes stress evenly across the bit structure. You'll experience fewer tool failures and extended service life even when drilling through alternating hard and soft formations. Our bits maintain structural integrity under high temperatures and abrasive conditions that would compromise cast alternatives.

Advanced PDC Cutter Integration

Our engineering team integrates premium 1308-grade PDC cutters into each forged bit body. These polycrystalline diamond compact cutters combine synthetic diamond layers with tungsten carbide substrates, creating cutting edges that maintain sharpness through thousands of meters of drilling.

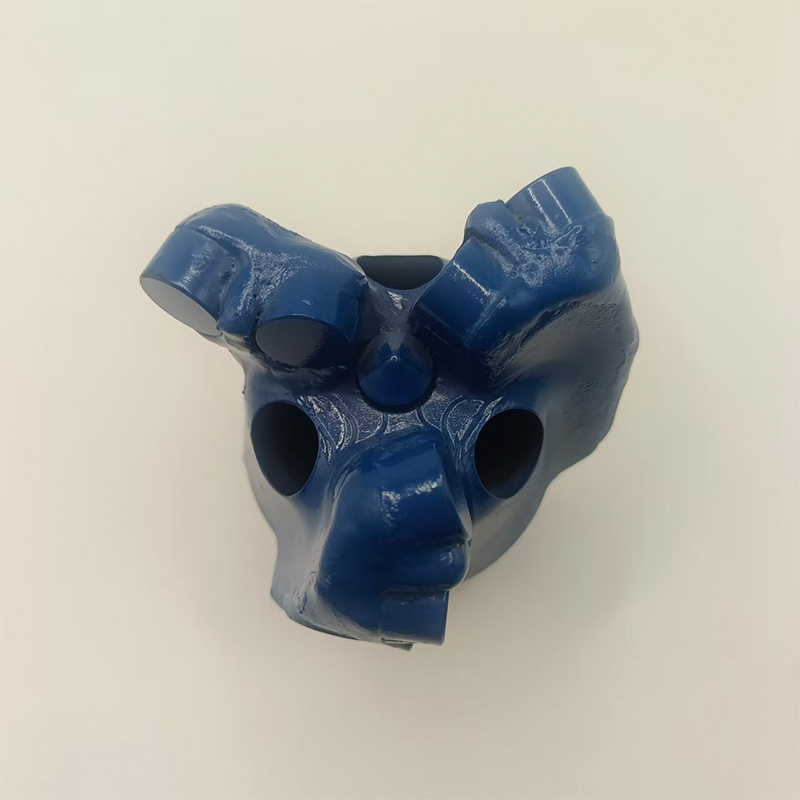

The three-blade configuration optimizes cutting efficiency while providing superior borehole stability. Each blade positions multiple PDC cutters at calculated angles for continuous rock engagement. This design reduces vibration and extends bearing life in your drilling equipment.

You'll notice improved penetration rates in medium to hard rock formations. The diamond cutting surfaces resist wear from abrasive minerals, maintaining consistent performance where conventional tungsten carbide bits degrade rapidly.

Optimized Hydraulic Design

Three strategically positioned nozzles deliver high-pressure fluid directly to cutting zones. This hydraulic system efficiently removes cuttings from the borehole while cooling PDC cutters during operation. Proper debris evacuation prevents bit balling and maintains optimal drilling parameters.

The nozzle configuration creates turbulent flow patterns that clean the bit face and stabilize the cutting structure. You can adjust fluid flow rates based on formation characteristics and drilling depth requirements. This flexibility helps you maintain control in variable geological conditions.

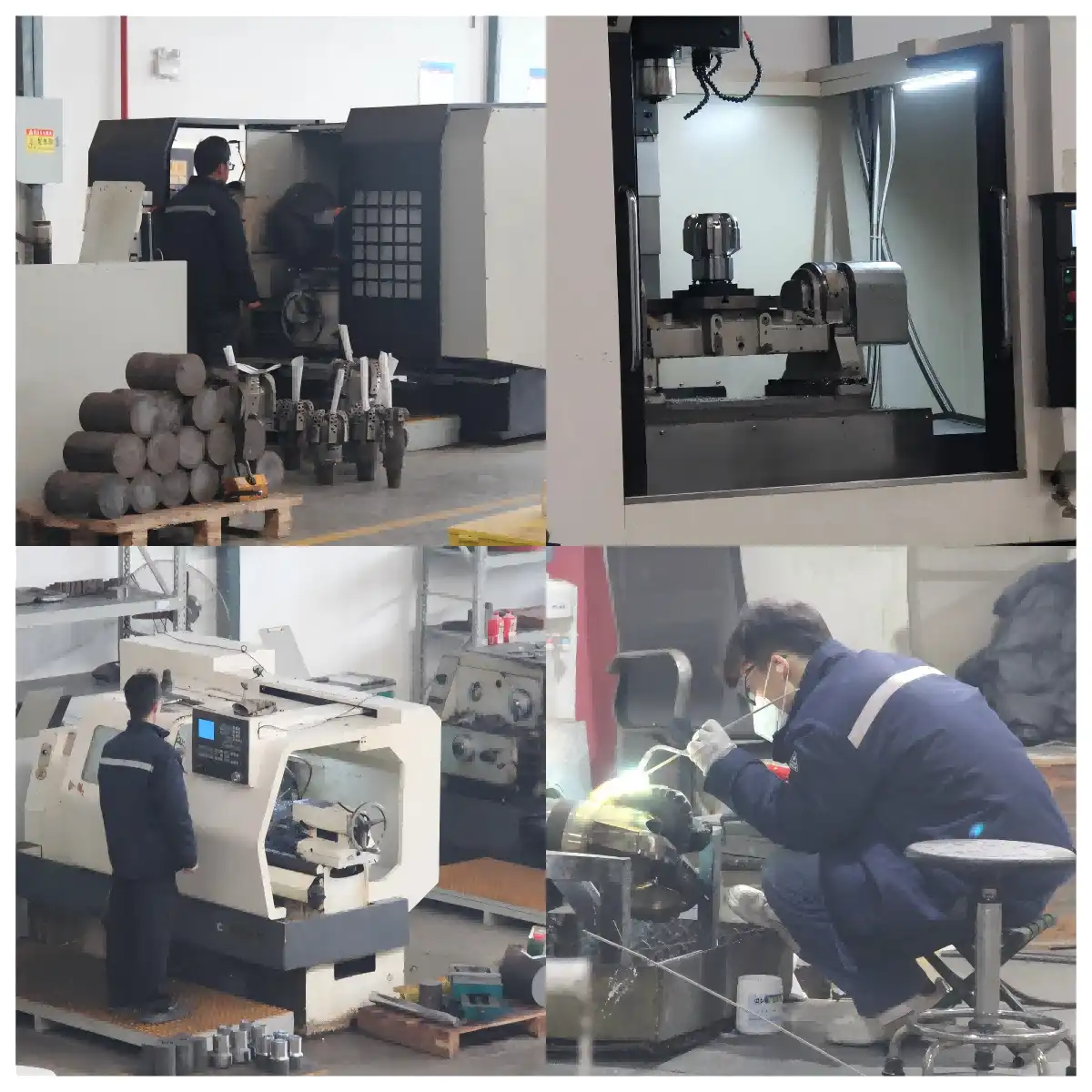

Quality Control

At SHAANXI HAINAISEN, quality is our top priority. We implement rigorous quality control measures throughout the manufacturing process, including:

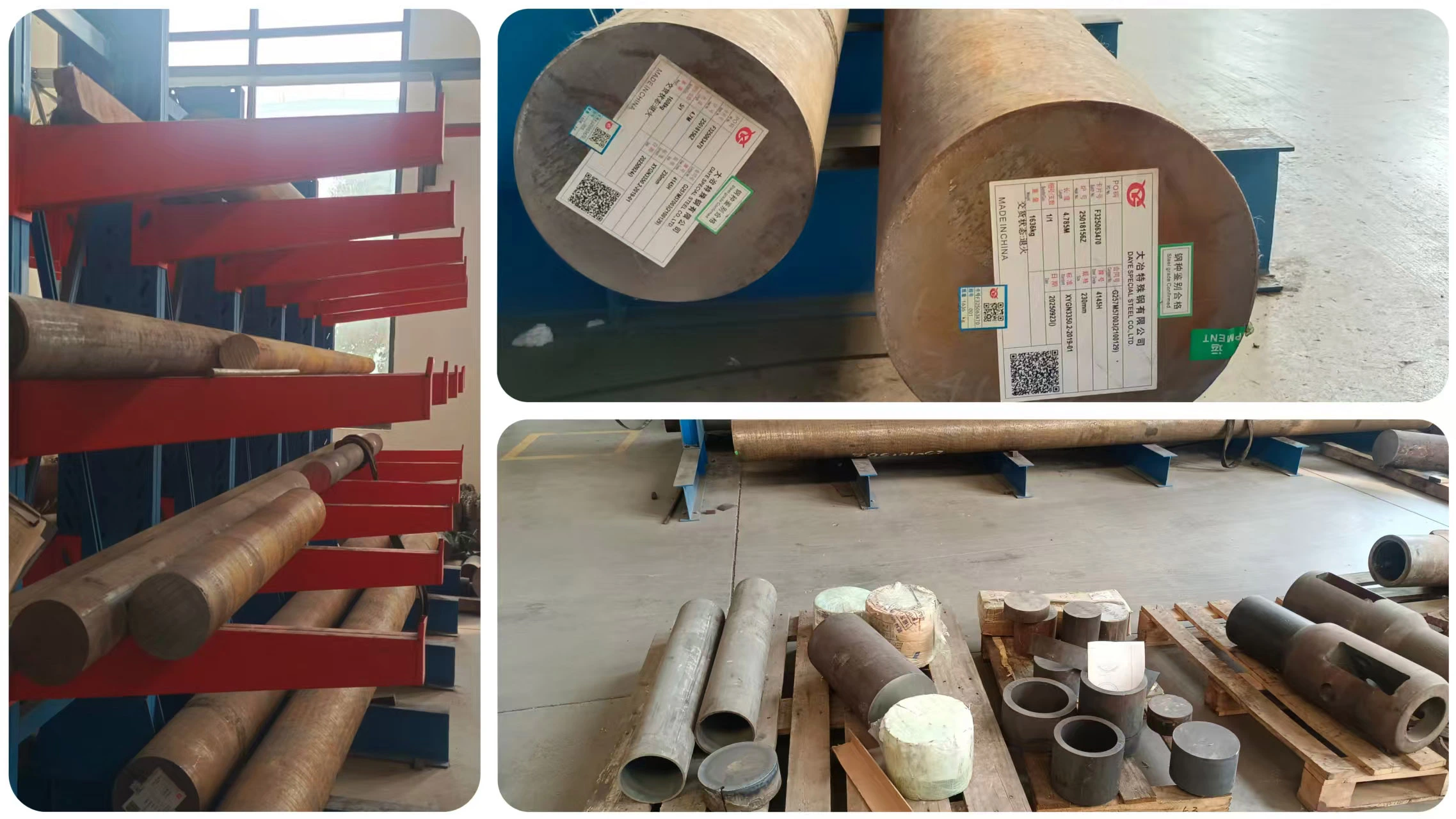

• Strict material testing and selection
• Advanced computer-aided design and simulation
• Precision machining and assembly
• Comprehensive performance testing before shipment

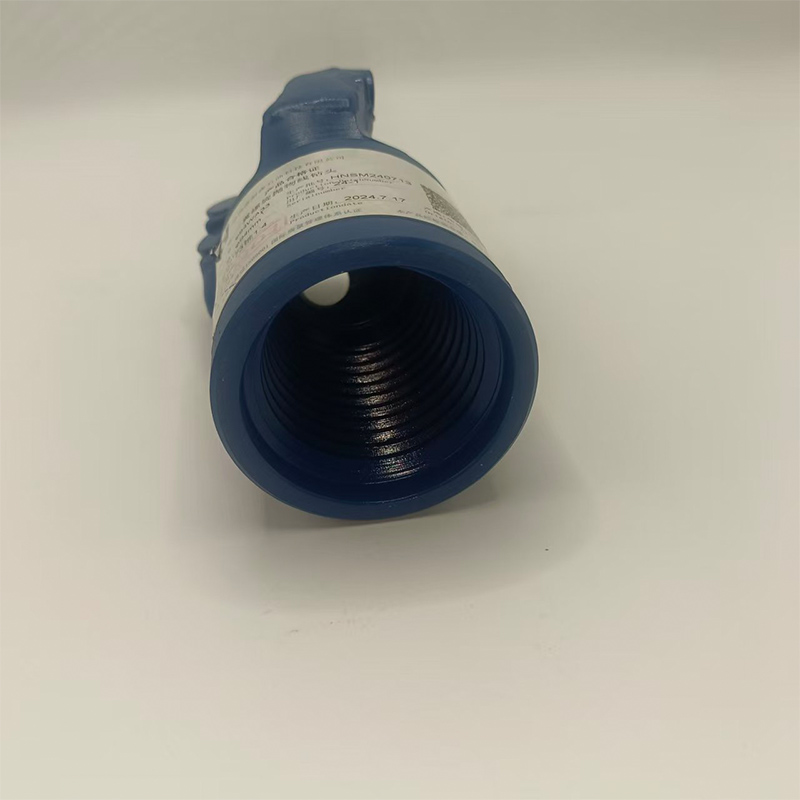

Customizable Connection Options

Every drilling operation uses different equipment configurations. We Manufacture Forging Deep Rock Well Drilling Bits with customizable connection threads to match your specific drilling string requirements. Whether you need API standard connections or proprietary designs, our manufacturing capabilities accommodate your specifications.

Our technical team works directly with you to determine optimal connection geometry. We consider factors like torque transmission, tensile strength, and seal integrity. This collaboration ensures seamless integration with your existing drilling equipment.

Project Case Studies

Coal Mining Operation - Shanxi Province

A coal mining company faced rapid bit wear in mixed strata containing sandstone and coal seams. After switching to our forged PDC Bits, they achieved 40% longer bit life and reduced trip time by 25%. The project drilled 180 roof-bolting support holes with just three bits, significantly lowering operational costs.

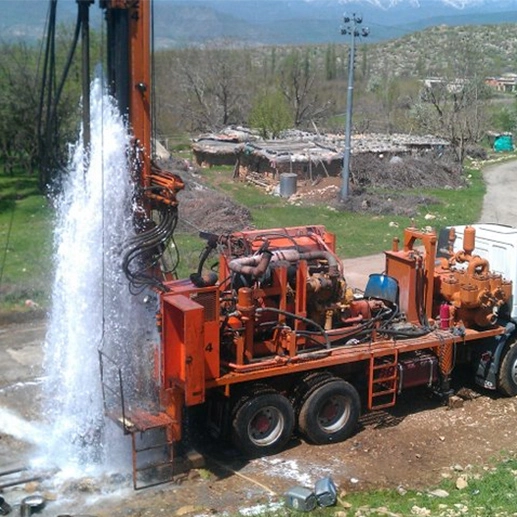

Water Well Drilling - Northwest Region

A water well contractor struggled with fractured limestone formations that caused frequent bit failures. Our Arc Angle Drill Bits with forged bodies maintained structural integrity through 15 wells averaging 120 meters depth. The contractor reported smoother drilling action and improved borehole quality compared to previous cast bit solutions.

Mineral Exploration - Geological Survey Project

An exploration team required consistent core recovery through varied formations ranging from soft clay to hard granite. Our customized 85mm forged bits delivered reliable performance across strata grades 3-10, enabling the team to complete their drilling program ahead of schedule with minimal equipment downtime.

Why Choose Our Forging Deep Rock Well Drilling Bits

You benefit from more than a decade of PDC cutting technology experience. Our core technical team participated in establishing China's first PDC manufacturing operations, bringing unmatched expertise to product development.

We maintain rigorous quality control throughout the forging and assembly process. Each bit undergoes inspection protocols that verify dimensional accuracy, cutter placement, and structural integrity before shipping.

Our 150+ employee workforce includes specialists in metallurgy, diamond cutting technology, and drilling mechanics. This multidisciplinary approach ensures your bits perform reliably in real-world conditions.

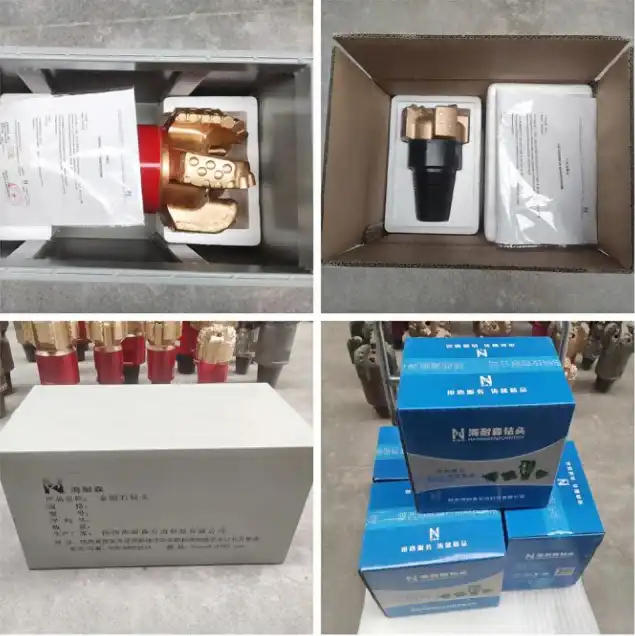

Packaging and Transportation

We recognize that ensuring your products reach you intact is of utmost importance. Our packaging process involves durable materials and careful wrapping, while our diverse shipping options are designed to align with your delivery timeline and financial considerations.

Transaction Feedback

Your feedback is invaluable to us. We attentively consider every comment you provide, using it as a roadmap for enhancing our products and refining our services. Ultimately, your satisfaction remains our top priority in every transaction.

After-Sales Service

Our commitment doesn't end with the sale. We provide comprehensive after-sales support, including:

• Technical consultation
• Performance optimization advice
• Prompt response to inquiries
• Warranty support

Qualification Certification

SHAANXI HAINAISEN proudly holds various industry Certifications, demonstrating our commitment to quality and safety standards.

FAQ

Q1: What formations are best suited for forged PDC bits?
A: Our Drilling Bits excel in strata grades 1-12, including sandstone, limestone, shale, and medium-hardness granite. They perform particularly well in interbedded formations where rock hardness varies significantly.

Q2: How do forged bits compare to cast alternatives?
A: Forging creates uniform grain structures without porosity issues common in casting. You'll see 30-50% improvements in impact resistance and fatigue life, especially important for percussion drilling applications.

Q3: Can I use these bits with my existing drilling equipment?
A: Yes. We customize connection threads to match your drilling string specifications. Our technical team reviews your equipment configuration to ensure proper compatibility before manufacturing.

Q4: What's the expected service life?
A: Service life depends on formation hardness, drilling parameters, and maintenance practices. Typical performance ranges from 500 to 2,000 meters in rated formations. Proper hydraulic parameters and controlled weight-on-bit extend operational life significantly.

Q5: Do you provide technical support for drilling optimization?
A: Our senior technicians offer consultation on drilling parameters, hydraulic design, and bit selection for specific geological conditions. We help you maximize efficiency based on your project requirements.

Contact Us

Ready to enhance your drilling operations with our forging deep rock well drilling bits? Contact Us today at hainaisen@hnsdrillbit.com for more information or to request a quote.
