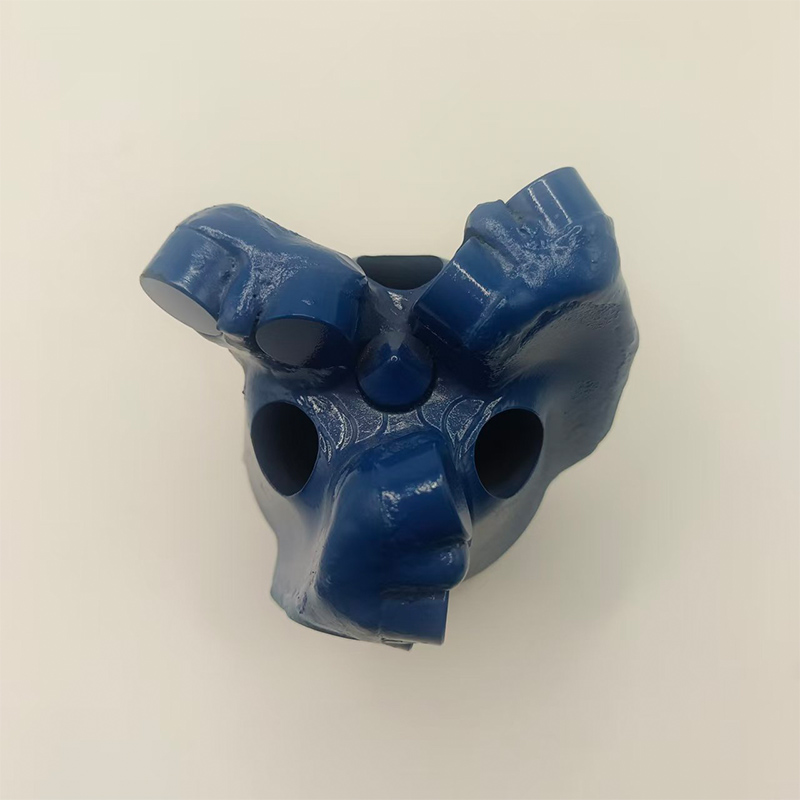

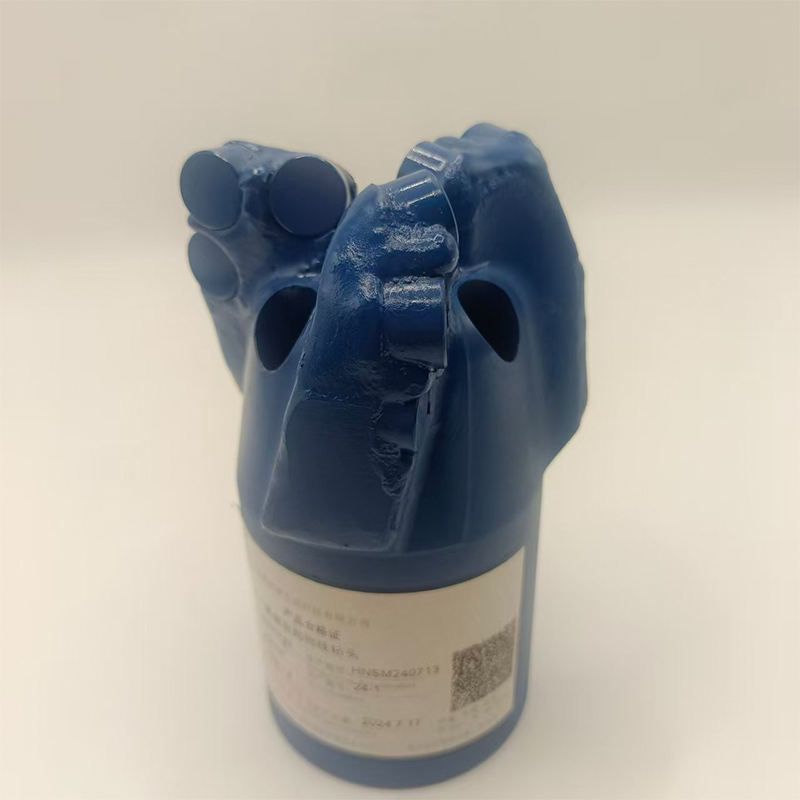

113mm Three Wings PDC Arc Angle Drill Bit
Bit size: 113mm(60-165mm)
Number of Blade: 3
Number of Nozzle: 3
PDC cutter :1308

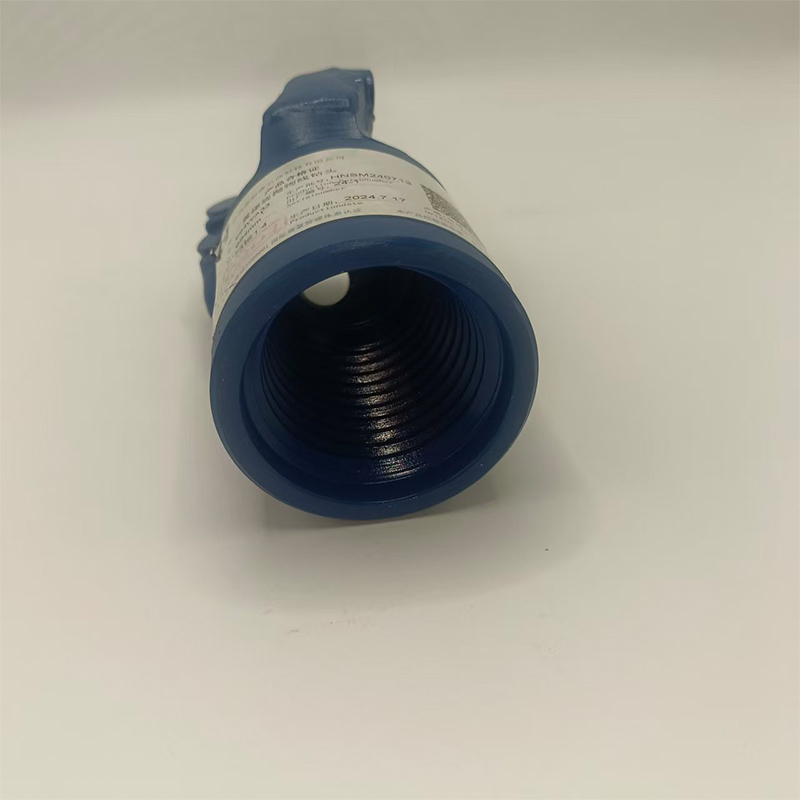

Connection type: 63.5cone buckle（customized）
Package Details: customized
Applicable strata:1-12
Minimum Order Quantity : 10 pieces
Price : To be negotiable
Delivery Time : 5-7 business days
Payment Terms : T/T, L/C
- Product Description
113mm Three Wings PDC Arc Angle Drill Bit – High-Performance Drilling Solution for Complex Geological Formations
Shaanxi Hainaisen Petroleum Technology Co., Ltd presents the 113mm Three Wings PDC Arc Angle Drill Bit, an enterprise-grade drilling solution engineered with 1308 PDC cutters and three-blade configuration. Built on over 10 years of PDC cutting technology expertise, this bit delivers exceptional performance across formation grades 1-12. Our manufacturing facility spans 6,000 square meters, supported by a team of 150+ professionals including 20 senior technicians. With annual sales reaching RMB 60 million, our proven three-wing arc design maximizes cutting efficiency while extending operational life in demanding drilling environments.
Advanced Three-Wing Arc Design Technology
The innovative three-wing arc structure provides superior stability and precise guidance throughout your drilling operations. This engineering approach significantly increases the edge contact area, allowing PDC cutters to engage more effectively with the formation.
Each wing features strategically positioned 1308-grade PDC cutters that optimize cutting capacity. The arc geometry creates larger junk slots between wings, preventing clog formation and ensuring continuous debris evacuation. This design translates directly into faster penetration rates and reduced downtime.
Your drilling operations benefit from enhanced torque distribution across all three wings. The balanced configuration minimizes vibration and wobbling, protecting both the bit and your drilling equipment from premature wear.
Exceptional Performance Across Multiple Formations
The 113mm Three Wings PDC Arc Angle Drill Bit excels in soft to hard geological conditions. Whether you're drilling through sandstone, shale, limestone, or mixed formations, this bit maintains consistent performance.

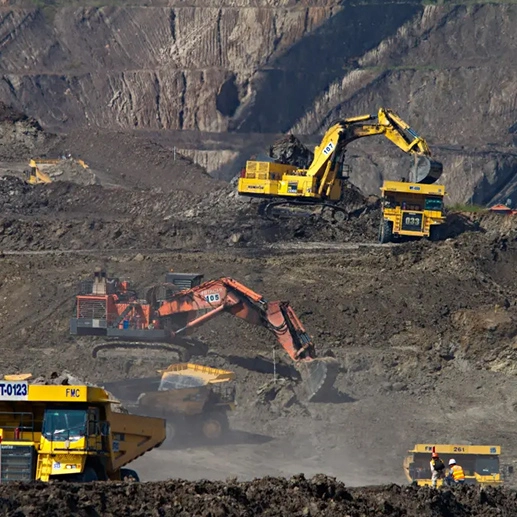

Your projects in coal mining operations benefit from the bit's ability to handle abrasive conditions without sacrificing cutting speed. The arc angle design reduces impact forces, allowing smoother progression through stratified layers.
In oil and gas exploration, penetration rates increase significantly compared to conventional bits. The optimized blade geometry cuts more efficiently while generating less heat, extending your bit life and reducing replacement frequency.

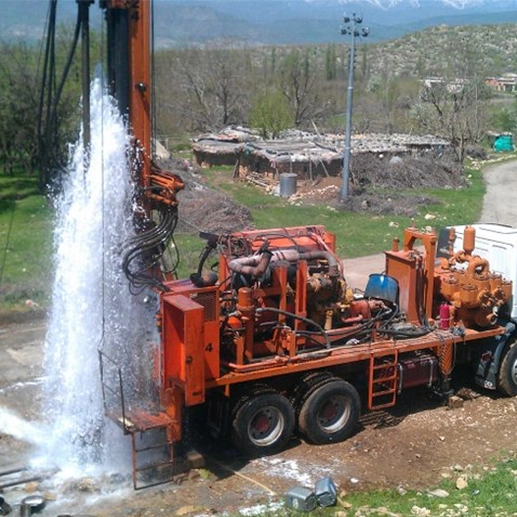

Water well drilling and geothermal applications also see marked improvements. The effective cuttings removal system prevents bit balling, maintaining drilling efficiency even in sticky clay formations.
Superior Durability and Extended Service Life
Our manufacturing process combines advanced materials with precision engineering. Each PDC cutter undergoes rigorous quality control, ensuring consistent hardness and wear resistance.
The arc angle configuration distributes cutting forces evenly across all contact points. This balanced load distribution prevents premature cutter damage and reduces the risk of catastrophic bit failure during operations.
Heat dissipation channels integrated into the blade design keep operating temperatures within optimal ranges. Lower temperatures mean less thermal stress on cutters, directly extending your bit's operational lifespan.
You'll notice reduced maintenance costs and fewer bit changes throughout your drilling program. The robust construction withstands demanding conditions that would compromise standard bits.
Selection Guide (3-Wing vs 4-Wing Arc Bits)
| Feature | 113mm 3-Wing Arc Bit | 113mm 4-Wing Arc Bit |
|---|---|---|
| Primary Strength | High penetration rate, fast cuttings removal | Superior stability, longer service life |
| Ideal Formations | Soft to medium (clay, coal, soft sandstone) | Medium-hard, mixed, or abrasive rock |
| Borehole Deviation Risk | Low (arc angle design helps keep it straight) | Very low (extra wing provides balanced cutting) |
| Bit Life | Good for short-to-medium runs | Longer, better for deep or high-load applications |
| Best For | Fast, cost-effective drilling in uniform soft ground | Long, demanding projects with mixed lithology |
Choose the 113mm three-wing arc bit when speed and cost efficiency are your top priorities.It’s perfect for water wells, shallow mining boreholes, and geological exploration in soft to medium formations.If you’re drilling deeper or into harder, more abrasive rock, the 4-wing design will offer better stability and longer life.But for most standard soft-medium projects, the three-wing arc bit delivers the best balance of speed and value.
Why Choose Hainaisen for Your Drilling Needs
Our company holds independent intellectual property rights, ensuring genuine innovation rather than copied designs. With total investment exceeding CNY 50 million, we've built infrastructure that supports consistent manufacturing quality.
Located in Xi'an's Jing Wei Industrial Park, our facility leverages modern production equipment and strict quality protocols. Every bit undergoes comprehensive testing before shipment, guaranteeing it meets your performance expectations.
Our technical team brings practical field experience to product development. We understand the real-world challenges you face and engineer solutions that address actual drilling conditions, not just theoretical scenarios.
Quality Control:
HAINAISEN maintains strict quality control measures throughout the manufacturing process:

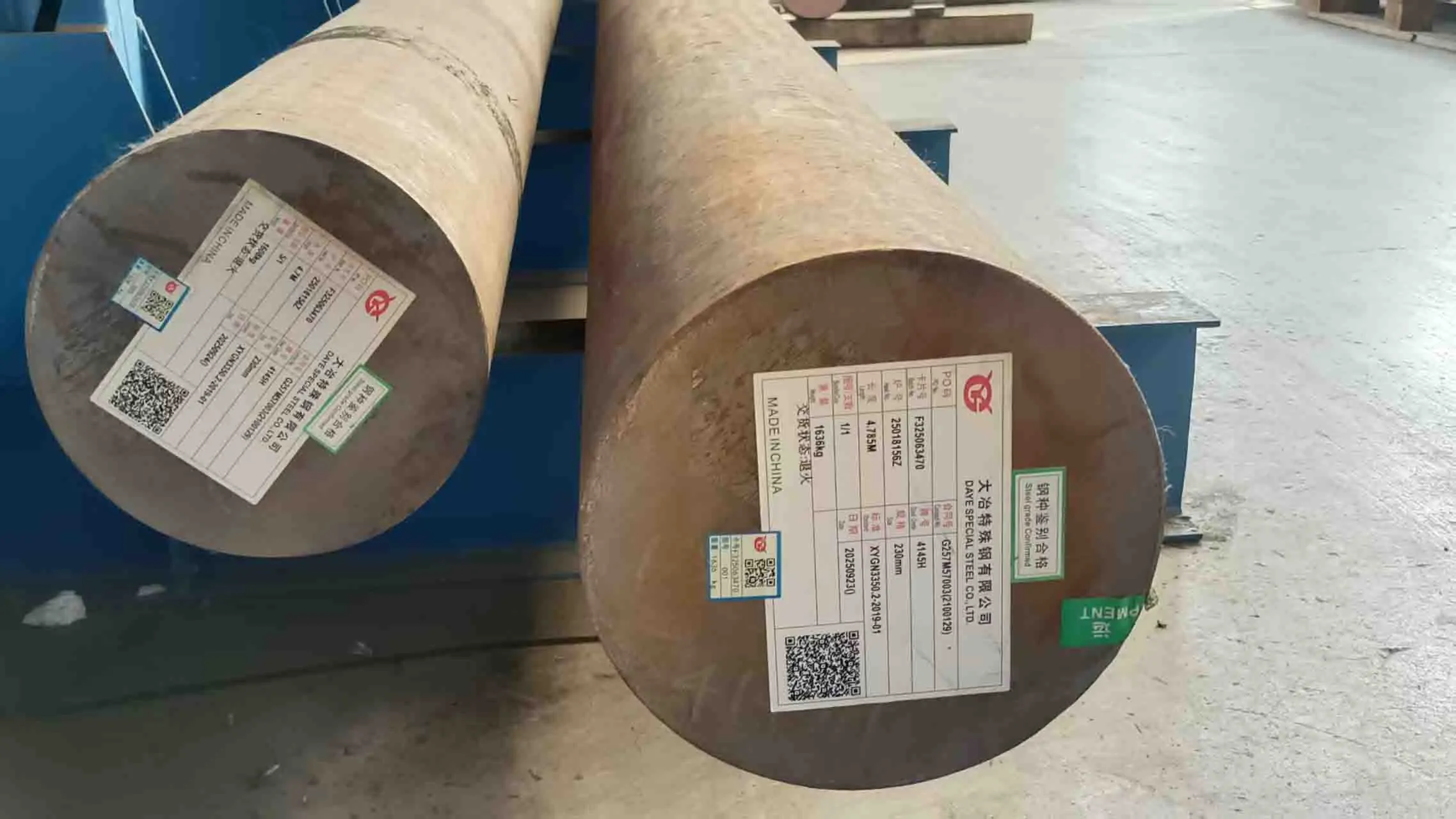

- Rigorous raw material inspection and testing
- Advanced CNC machining for precise component fabrication
- Comprehensive quality checks at each production stage
- Final performance testing to ensure product reliability
Project Case Studies
Coal Mining Operation – Shanxi Province
A major coal mining enterprise replaced their conventional bits with our three-wing PDC design across 15 drilling rigs. Over six months, they documented 28% faster drilling speeds and 40% longer bit life. The improved cuttings removal reduced stuck pipe incidents by half, significantly lowering operational costs.
Geothermal Exploration Project – Northwest China
During a geothermal exploration program drilling to 800 meters, our 113mm bits maintained consistent performance through varied formations. The project completed three weeks ahead of schedule, with bits averaging 320 meters before replacement—nearly double the performance of previously used alternatives.
Water Well Development – Agricultural Region
A water well contractor drilling 50 wells across challenging mixed formations reported substantial improvements. Our bits handled transitions between soft clay and hard limestone without performance degradation, completing wells 25% faster while reducing bit inventory costs.
Packaging and Transportation
Our products are securely packaged in sturdy wooden crates or customized containers to ensure safe transportation. We work with reliable logistics partners to deliver your order efficiently and intact.
Transaction Feedback
We value customer satisfaction and continuously strive to improve our products and services. Your feedback is essential to help us maintain our high standards and meet your evolving needs.
Qualification Certification
Our products are Manufactured in compliance with industry standards and carry relevant Certifications, ensuring quality and reliability.
After-Sales Service
HAINAISEN provides comprehensive after-sales support, including:
- Technical consultation and troubleshooting
- On-site training and product familiarization
- Maintenance and repair services
- Warranty coverage for manufacturing defects
FAQ:
Q1: Which configurations are ideal for the Three Wings PDC Arc Angle Drill Bit?
A: Sandstone, shale, limestone, coal seams, and moderately hard rock are among the formations graded 1–12 where this bit works best. In mixed geological environments with varying formation hardness, the three-wing configuration works effectively.
Q2: How is drilling efficiency increased by the arc angle design?
A: Larger junk slots are produced while the cutting contact area is increased by the arc arrangement. In comparison to flat-face designs, this combination boosts penetration rates by 20–35% while avoiding the buildup of cuttings that impedes drilling progress.
Q3: Can you change the type of connection for the equipment we already have?
A: Absolutely. Although 63.5mm cone buckle connections are part of our standard setup, we can alter thread types and sizes to meet the requirements of your drilling equipment. When placing an order, let us know what you need.
Q4: What is the required minimum order quantity?
A: To guaranty affordable price and efficient production, we uphold a minimum order size of ten pieces. We are able to provide favorable terms and constant quality because to this threshold.
Q5: How fast are you able to complete orders?
A: After payment is confirmed, standard orders ship in 5–7 business days. Get in touch with our team to explore faster production scheduling for greater quantities or urgent projects.
