Introduction

When choosing oil drilling bits, the first question should not be whether PDC or diamond impregnated technology is better in general. The more useful question is: what type of rock will the bit drill, how abrasive is it, and what failure mode caused the previous bit to leave the hole? PDC Bits are normally attractive when the formation can be efficiently sheared and high ROP is required. Diamond impregnated bits become more interesting when severe hardness and abrasion make conventional cutters wear too quickly.

The difference comes from the way each bit breaks rock. PDC cutters use a relatively large diamond cutting surface to shear the formation, while an impregnated bit contains many diamond grains in a matrix. As the matrix wears, new diamond is exposed. This gives impregnated technology a useful self-sharpening characteristic in hard, abrasive formations, although the drilling process is generally more grinding-oriented and may sacrifice instantaneous ROP.

For drilling engineers, the practical decision should therefore combine formation hardness, abrasiveness, compressive strength, lithology changes, cutter wear, expected ROP, WOB, RPM, hydraulic capacity, vibration, and total cost per meter. A bit that looks slower on a footage chart may still be the better choice if it eliminates several trips and survives the abrasive section.

1. Start With the Formation, Not the Bit Catalog

PDC and impregnated bits break rock differently

PDC technology is particularly effective when cutters can maintain an efficient shearing action against the formation. In relatively uniform shale, sandstone, limestone, and many medium-hard intervals, a properly designed PDC bit can deliver high ROP with comparatively smooth drilling.

The situation changes when the rock becomes extremely hard, abrasive, or highly heterogeneous. Research published in the Journal of Petroleum Science and Engineering notes that impregnated diamond technology is particularly relevant to complex, highly abrasive formations where conventional PDC and roller-cone bits can experience rapid failure.

An impregnated bit does not depend on one large cutting edge remaining sharp throughout the run. Diamond grains are distributed through the working matrix. As individual grains become worn or dislodged, matrix wear exposes fresh grains. The process resembles controlled grinding and is one reason impregnated bits are widely used in difficult hard-rock drilling.

Hardness and abrasiveness must be considered separately

A common mistake is to describe a formation simply as “hard.” Hardness and abrasiveness are related, but they are not the same thing.

A formation may have high compressive strength without being extremely abrasive. Conversely, quartz-rich sandstone can be highly abrasive and cause rapid cutter wear even when its overall drilling response is not comparable to the hardest crystalline rock.

Before selecting the bit, review:

• Unconfined or confined compressive strength
• Mineral composition and quartz content
• Abrasiveness
• Formation heterogeneity
• Natural fractures and hard stringers
• Interbedded shale, sandstone, and carbonate
• Expected bottomhole temperature
• Previous bit dull condition

A systematic PDC selection study published through Missouri University of Science and Technology recommends using quantitative selection criteria rather than relying only on supplier proposals or historical preference. The approach considers rock strength, predicted ROP, bit wear, and the operator's drilling objective.

Where PDC normally has the advantage

A PDC bit is usually worth considering first when the formation offers a consistent shearing response and the drilling objective emphasizes ROP.

Typical applications include:

• Shale sections
• Medium-hard sandstone
• Relatively uniform limestone
• Long horizontal intervals
• Directional wells where torque and stability must be controlled
• Vertical sections where high footage per run is required

However, abrasive sandstone, hard carbonate stringers, and other aggressive lithologies can change the calculation. If cutters are heavily worn, chipped, or thermally damaged after a short run, simply increasing WOB is rarely a complete solution.

Where impregnated technology becomes attractive

Diamond impregnated bits are particularly useful when abrasive wear is the dominant limitation. Their working mechanism allows the matrix to progressively expose fresh diamond, making them suitable for many hard and abrasive formations.

This does not mean an impregnated bit is automatically the best choice for every hard formation. Research has also shown that impregnated-bit performance depends strongly on diamond grain characteristics, concentration, matrix behavior, bit structure, and drilling parameters.

That distinction matters in practice. An extremely hard but relatively non-abrasive formation may require a different impregnated formulation from a softer but highly abrasive sandstone.

2. Match the Bit Design and Drilling Parameters to the Rock

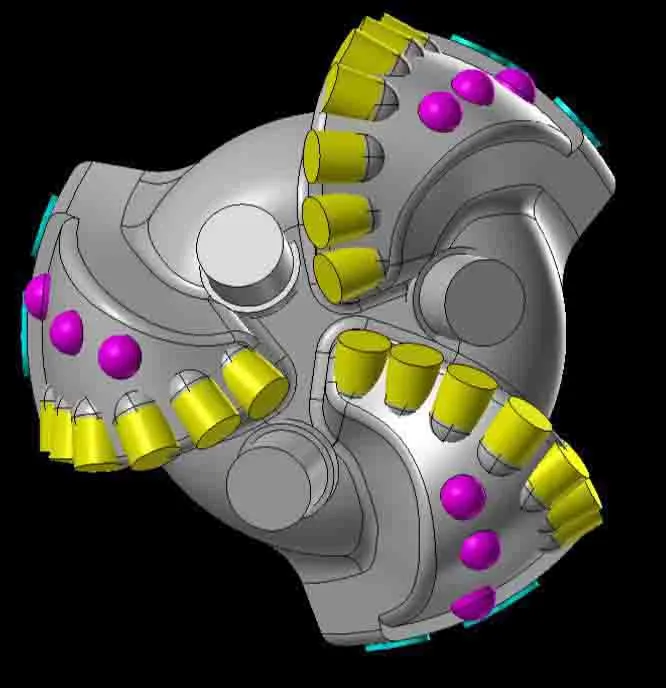

Cutter size and cutter layout

For PDC bits, cutter diameter, exposure, back rake, side rake, cutter density, blade count, and radial layout all affect the balance between aggressiveness and durability.

A highly aggressive cutter arrangement can produce excellent ROP in a drillable formation. The same design may generate excessive torque and vibration in a harder interval. Increasing cutter density can distribute the load across more cutters, while a more aggressive layout may reduce the amount of WOB required to achieve a given depth of cut.

For directional and horizontal drilling, bit stability is just as important as nominal cutter aggressiveness. Excessive lateral forces or torsional vibration can damage cutters even when the formation itself is not exceptionally hard.

WOB, RPM, torque, and ROP

The relationship between WOB and ROP is not linear across all formations.

With a PDC bit, additional WOB can increase depth of cut and ROP until vibration, torque, cutter loading, or other limitations become dominant. Once the bit reaches that point, additional weight may increase damage faster than it increases footage.

RPM also changes cutter engagement. A higher rotational speed can increase cutting frequency and ROP, but it can also increase heat generation and dynamic instability. The correct window depends on the bit design, BHA, motor or rotary system, formation, and hydraulic conditions.

For impregnated bits, operating parameters have another role: they influence how quickly the matrix wears and how effectively fresh diamond is exposed. Recent experimental research indicates that the wear state of an impregnated bit has a measurable relationship with drilling response and that diamond protrusion affects contact among the bit, rock, and cuttings.

The practical objective is therefore controlled wear rather than maximum mechanical loading.

Hydraulics and hole cleaning

Hydraulic design should be reviewed together with the cutting structure.

Poor hole cleaning can create several problems:

• Cuttings remain around the cutters.
• Cutter temperature rises.
• Recutting increases.
• Torque becomes unstable.
• Bit balling becomes more likely in sticky formations.
• Abrasive particles accelerate wear.

For PDC bits, nozzle placement and fluid velocity across the cutting face should support efficient removal of generated cuttings. For impregnated bits, hydraulic passages must also prevent the working surface from becoming overloaded with debris.

This becomes especially important in deep wells and high-angle sections where cuttings transport is already more difficult.

Gauge protection and bit stability

Gauge wear is sometimes overlooked because engineers naturally focus on the cutting structure. Yet excessive gauge wear can change hole diameter, affect directional response, and increase the difficulty of running subsequent tools.

For abrasive formations, gauge protection should be treated as part of the primary bit design, not an afterthought.

A suitable design may combine wear-resistant gauge elements with an appropriate cutter arrangement and hydraulic layout. The objective is to keep the bit cutting efficiently while preserving the intended hole geometry.

A practical comparison

Industry example: an abrasive formation

A useful published example comes from research on the Xujiahe Formation, a complex and highly abrasive drilling environment. Researchers analyzed impregnated-bit failure and found that diamond grain size and concentration had a major influence on cutting efficiency and wear resistance. They then developed a modified impregnated design and reported improvements in footage, ROP, and drilling time compared with a conventional impregnated bit in the adjacent well.

The important lesson is not the exact performance numbers. It is the selection method. The cutting elements, matrix, hydraulic design, and drilling parameters were treated as one system.

A similar principle applies when comparing PDC and impregnated technology. If a PDC fails because cutters are wearing rapidly in quartz-rich sandstone, changing WOB alone may not solve the problem. If an impregnated bit is wearing too slowly and delivering poor ROP in a formation that can be efficiently sheared, a properly engineered PDC may provide better economics.

3. Choose the Bit Based on the Failure Mechanism and Total Drilling Cost

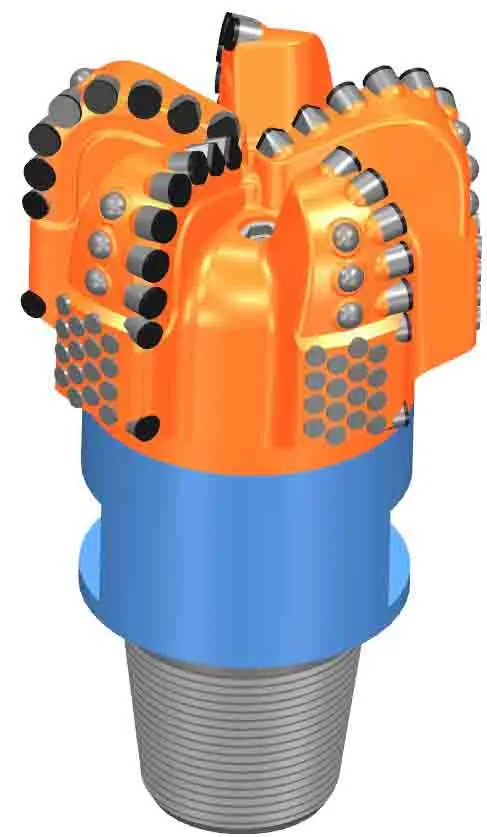

When PDC is the better choice

Choose a PDC design when the formation can be efficiently sheared and the main objective is high footage with stable drilling.

For many oil and gas wells, the advantages include:

• High ROP potential
• Efficient continuous shearing
• Good directional control
• Flexible cutter and blade configurations
• Strong performance in suitable shale, sandstone, and carbonate
• Potentially lower drilling time when the formation is compatible

In a long horizontal well, for example, a stable PDC design can be more valuable than a bit that offers greater theoretical wear resistance but drills too slowly.

When an impregnated bit deserves serious consideration

An impregnated design should move higher on the selection list when the evidence shows that abrasive wear is controlling bit life.

Typical warning signs include:

• Severe PDC cutter wear after short footage
• Repeated cutter chipping in hard stringers
• Rapid gauge wear
• High torque caused by damaged cutters
• Low ROP despite increasing WOB
• Multiple short trips through the same abrasive interval

In these situations, total cost per meter matters more than the purchase price of one bit. A bit that costs more but completes a difficult interval in one run can be economically preferable to several cheaper bits that require repeated trips.

A practical decision process

Before placing the next bit order, a drilling engineer can work through five questions:

• What formation is actually causing the failure?
• Is the dominant problem hardness, abrasion, impact, vibration, or poor cleaning?
• What does the dull condition of the previous bit show?
• Can a PDC design be strengthened enough to solve the problem, or has the application moved into impregnated-bit territory?
• Which option gives the best expected cost per meter, not simply the lowest unit price?

This approach is more reliable than choosing a bit solely because it performed well in another field.

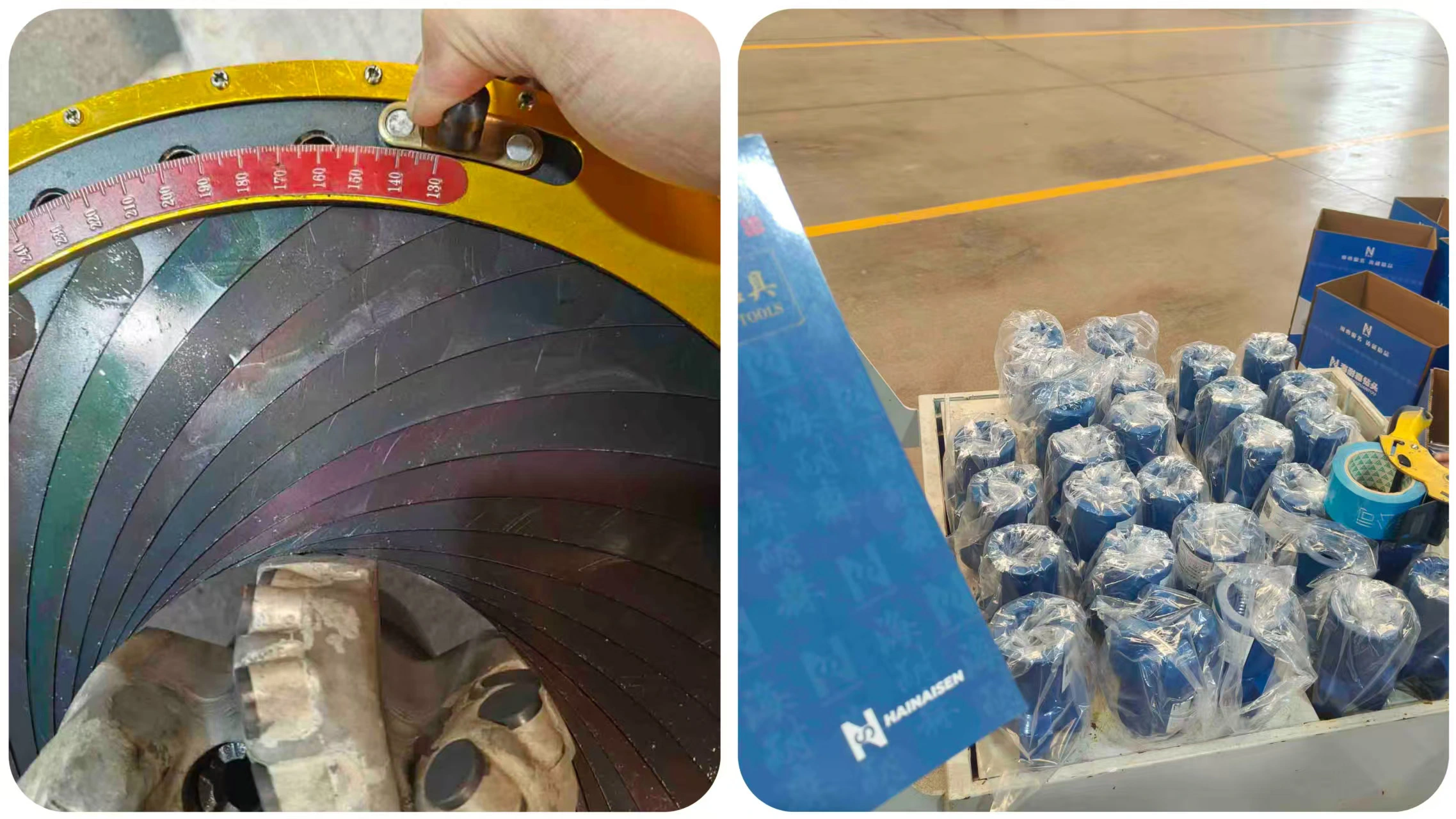

Why Hainaisen is a practical supplier option

For contractors sourcing oil drilling bits, Hainaisen takes a formation-based approach rather than treating every well as a standard application.

The company supplies PDC drill bit solutions for oil and gas, mining, and water well drilling, with attention to PDC cutter technology, stable product quality, strict quality control, customized bit design, and formation-based recommendations.

That is particularly useful when a customer has already experienced premature cutter wear or unstable drilling. Instead of simply recommending another standard model, the engineering discussion can begin with formation type, previous bit performance, WOB, RPM, flow rate, torque, ROP, cutter condition, gauge wear, and the desired drilling objective.

Hainaisen can also support customized PDC configurations for different drilling conditions. Cutter selection, cutter layout, blade configuration, hydraulic design, and gauge protection should be considered together, especially for hard, abrasive, interbedded, or directional applications.

For international drilling contractors, communication speed also matters. Clear technical discussions before production can reduce the risk of selecting a bit based only on diameter and cutter size. Hainaisen's experience serving overseas customers makes this application-oriented communication a useful part of the purchasing process.

The bottom line is straightforward: use PDC when efficient shearing and high ROP are achievable; consider diamond impregnated technology when severe hardness and abrasion make conventional cutter wear the limiting factor. The best decision comes from formation data, previous bit performance, drilling parameters, and expected cost per meter.

FAQ

What type of bit is best for highly abrasive sandstone?

A diamond impregnated bit is often a strong candidate when abrasive wear causes rapid PDC cutter failure. However, an abrasion-resistant PDC design may still work if the formation is sufficiently drillable and the required ROP is high.

How do I choose a PDC bit for a directional well?

Review formation hardness, abrasiveness, expected vibration, BHA configuration, build rate, WOB, RPM, torque, and hydraulic capacity. Stable cutter placement and effective gauge protection are especially important in directional sections.

Can PDC bits be customized for hard formations?

Yes. Cutter type, size, density, back rake, blade configuration, cutter layout, gauge protection, and hydraulic design can be adjusted according to formation conditions and previous drilling results.

What drilling parameters have the biggest effect on bit life?

WOB, RPM, torque, flow rate, ROP, vibration, and temperature all influence cutter loading and wear. The correct operating window depends on both the bit design and formation response.

When should I switch from PDC to an impregnated bit?

Consider switching when repeated PDC runs show severe abrasive wear, short footage, cutter damage, or unacceptable trip frequency. The decision should be based on the failure mechanism and total drilling economics rather than formation hardness alone.
