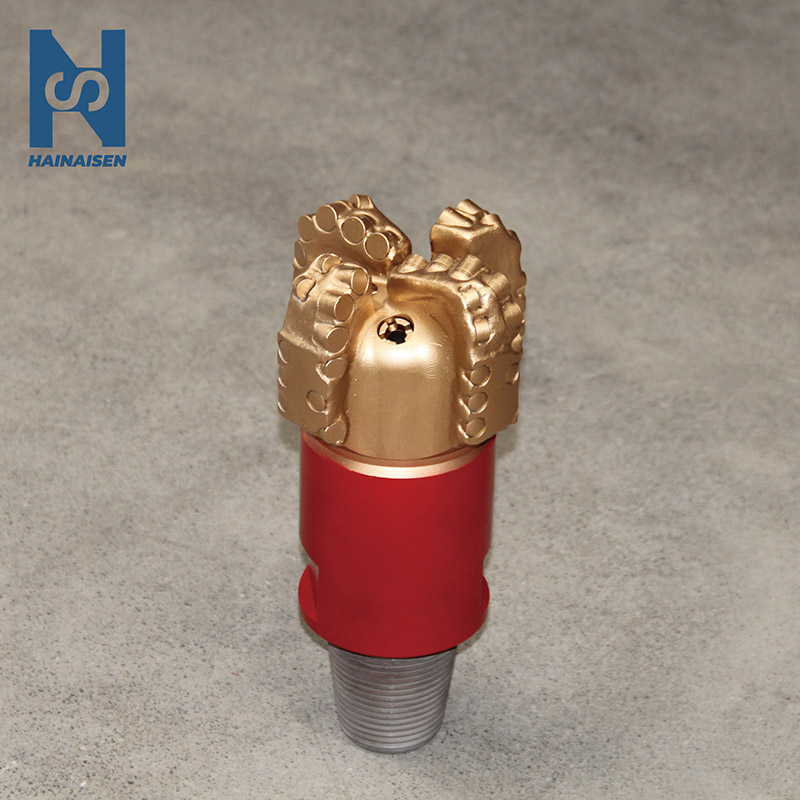

High Quality PDC Drill Bits

High Quality PDC Drill Bits for Oil & Gas and Mining Applications - Advanced Cutting Solutions with Superior Performance

Shaanxi Hainaisen Petroleum Technology Co., Ltd delivers High Quality PDC Drill Bits engineered for demanding drilling operations in oil, gas, and mining sectors. With over 10 years of specialized experience since 2013, our company operates a 6,000-square-meter manufacturing facility staffed by 150+ professionals, including 20 senior technicians. Our PDC Bits feature precision-engineered cutting structures with up to 50 PDC cutters per bit, gauge lengths of 51mm, and proven durability across soft to medium-hard formations. Annual sales reaching RMB 60 million demonstrate our market trust and product reliability in complex drilling environments.

Advanced PDC Cutting Technology and Design Philosophy

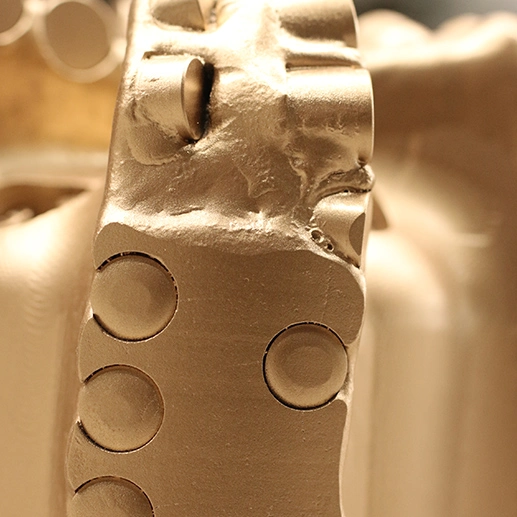

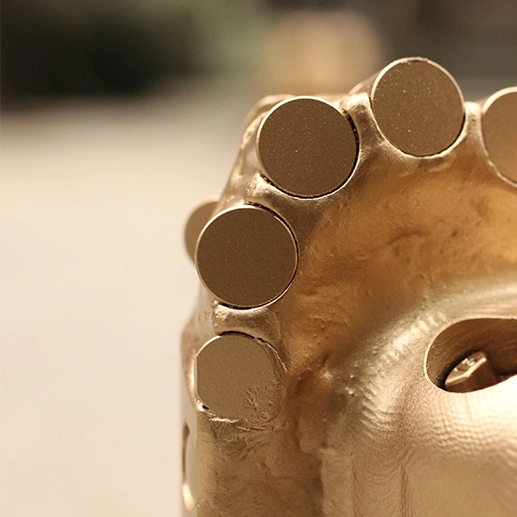

Our High Quality PDC Drill Bits break rock through efficient cutting action rather than crushing. The self-sharpening polycrystalline diamond cutting teeth penetrate formations smoothly under controlled weight, then shear rock layers through rotational torque. This simultaneous multi-tooth engagement creates multiple free surfaces at the rock bottom, dramatically increasing drilling speed and efficiency.

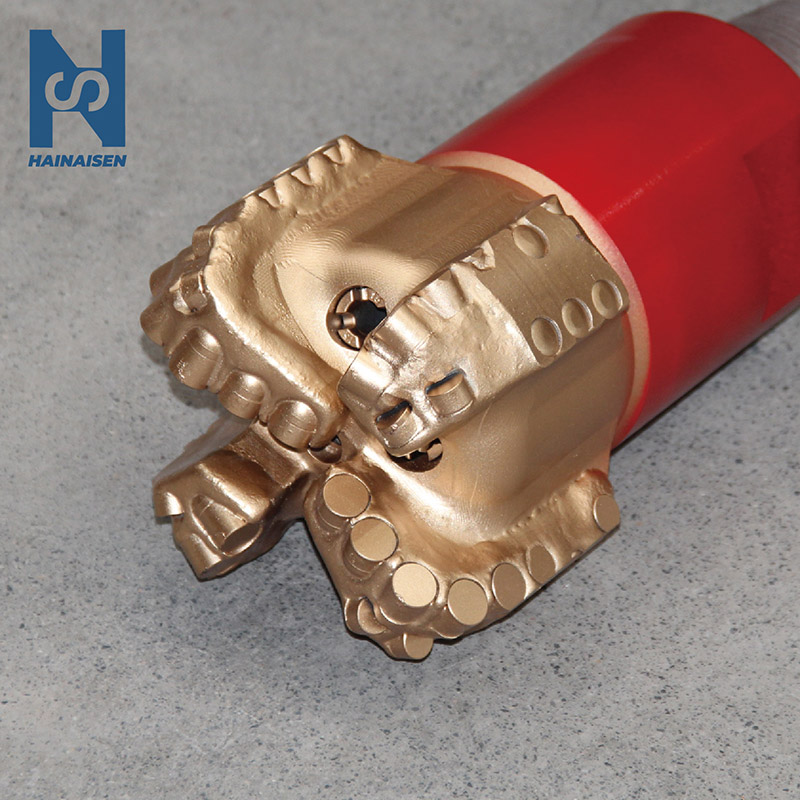

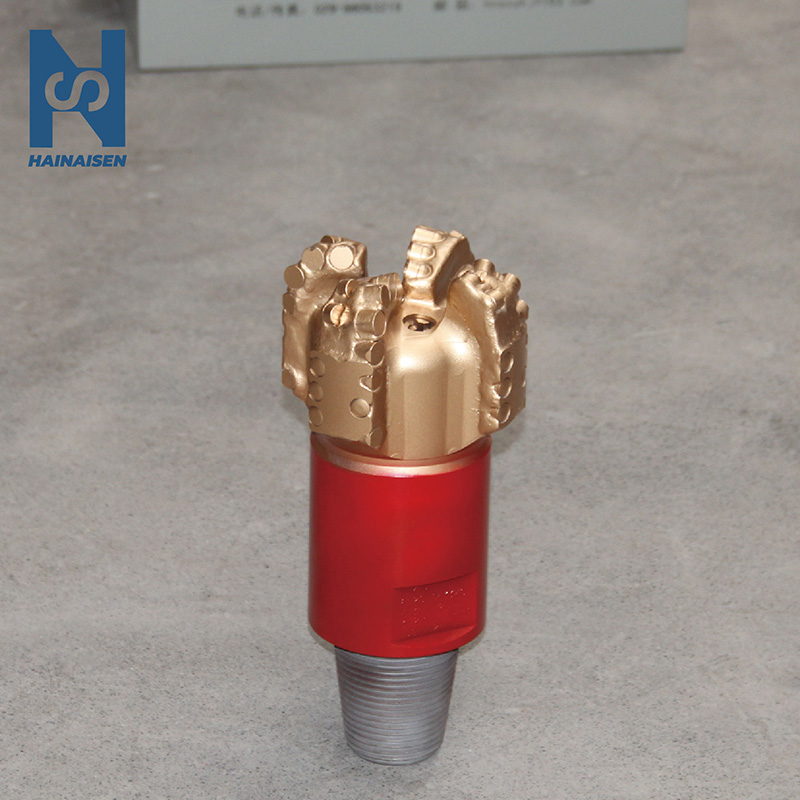

Each bit undergoes rigorous design optimization. We balance blade count, cutter placement, and hydraulic flow to maximize performance. Our four-blade configuration provides excellent stability while maintaining optimal cuttings evacuation through strategically sized junk slots.

The precision manufacturing process ensures consistent quality. Your operations benefit from bits that maintain cutting efficiency longer, reducing trip time and lowering overall drilling costs.

Operating Parameters

PDC Bit Selection Guide

Steel Body vs Matrix Body Construction Options

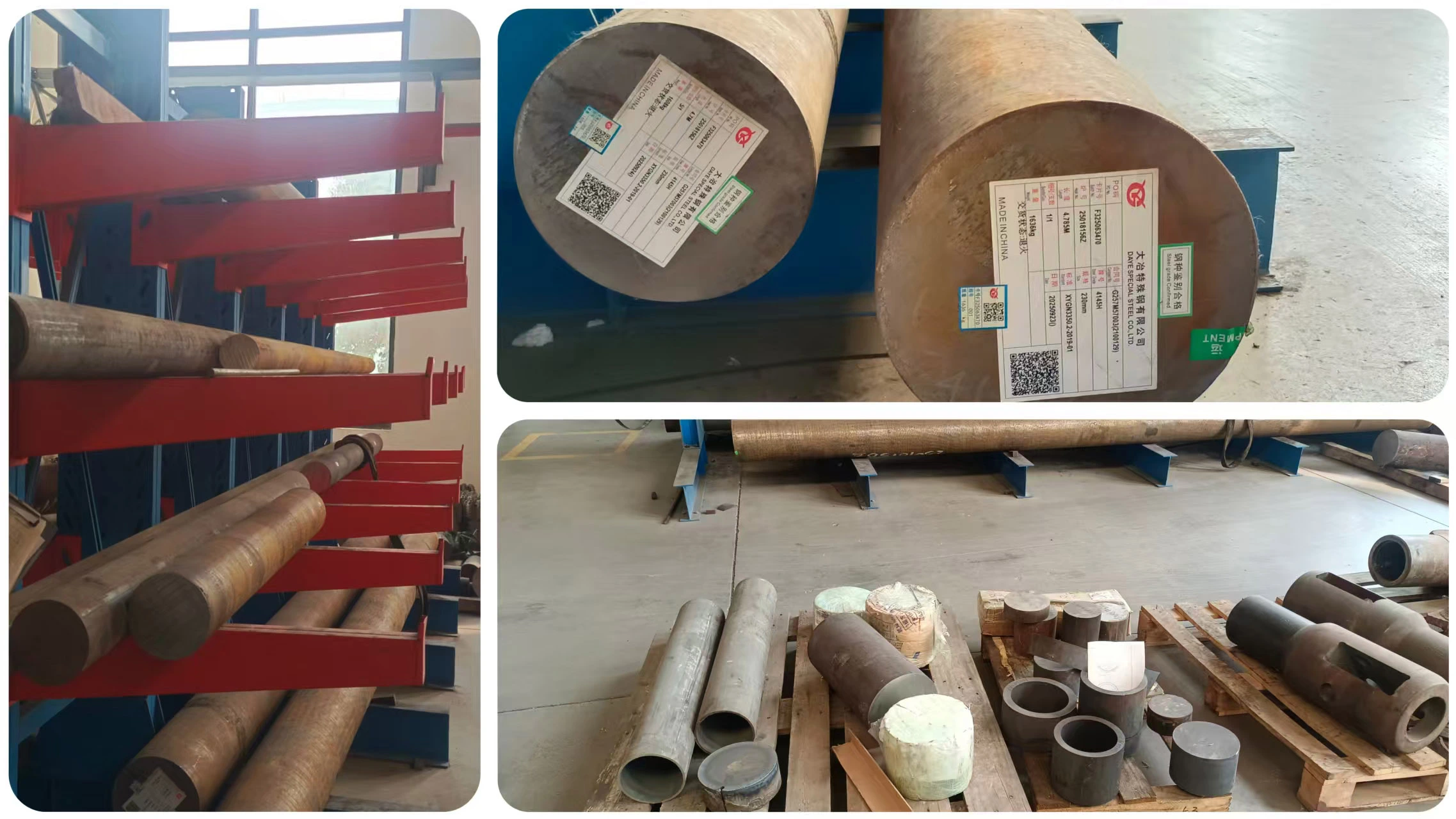

Steel Body PDC Bits offer exceptional impact resistance through high-strength alloy steel construction. The machined profile provides superior ductility against sudden shock loads in fractured formations or interbedded hard stringers. You gain design flexibility with larger junk slots for efficient cuttings removal and aggressive cutting structures. A significant advantage: worn cutters can be replaced and bits refurbished, extending service life while reducing costs.

Matrix Body PDC Bits feature tungsten carbide composite construction with metallic binder. This casting process creates exceptional abrasion and erosion resistance ideal for highly abrasive formations and high-volume fluid environments. Though less impact-resistant than steel body designs, matrix bits deliver extended life through multiple runs when properly matched to formation conditions.

Your formation characteristics determine the optimal choice. We provide technical guidance to match bit construction with your drilling parameters.

Proper Operation and Maintenance Guidelines

Maximizing bit performance requires correct handling from selection through storage.

Pre-Drilling Preparation: Verify bit size, type, and nozzle installation before deployment. Confirm API connection matches your drill string. Check nozzle sizing against hydraulic parameters—oversized holes risk flow channel erosion.

Initial Contact Protocol: After lowering the bit downhole, establish gentle contact with formation. Apply light weight (10-20kN) with slow rotation (60 rpm) for 30 minutes. This break-in period conditions cutters before increasing to normal drilling parameters.

During Operation: Maintain stable drilling practices with consistent weight application. Avoid sudden pressure changes that stress cutters unnecessarily. Smooth bit feeding prevents premature wear and damage.

Storage Requirements: Place bits in wooden boxes with soft material padding during transport and storage. Maintain storage areas at 10-30°C with good ventilation. Protect from direct sunlight and moisture. Under these conditions, bits maintain integrity for five years.

These practices protect your investment and ensure consistent performance across multiple runs.

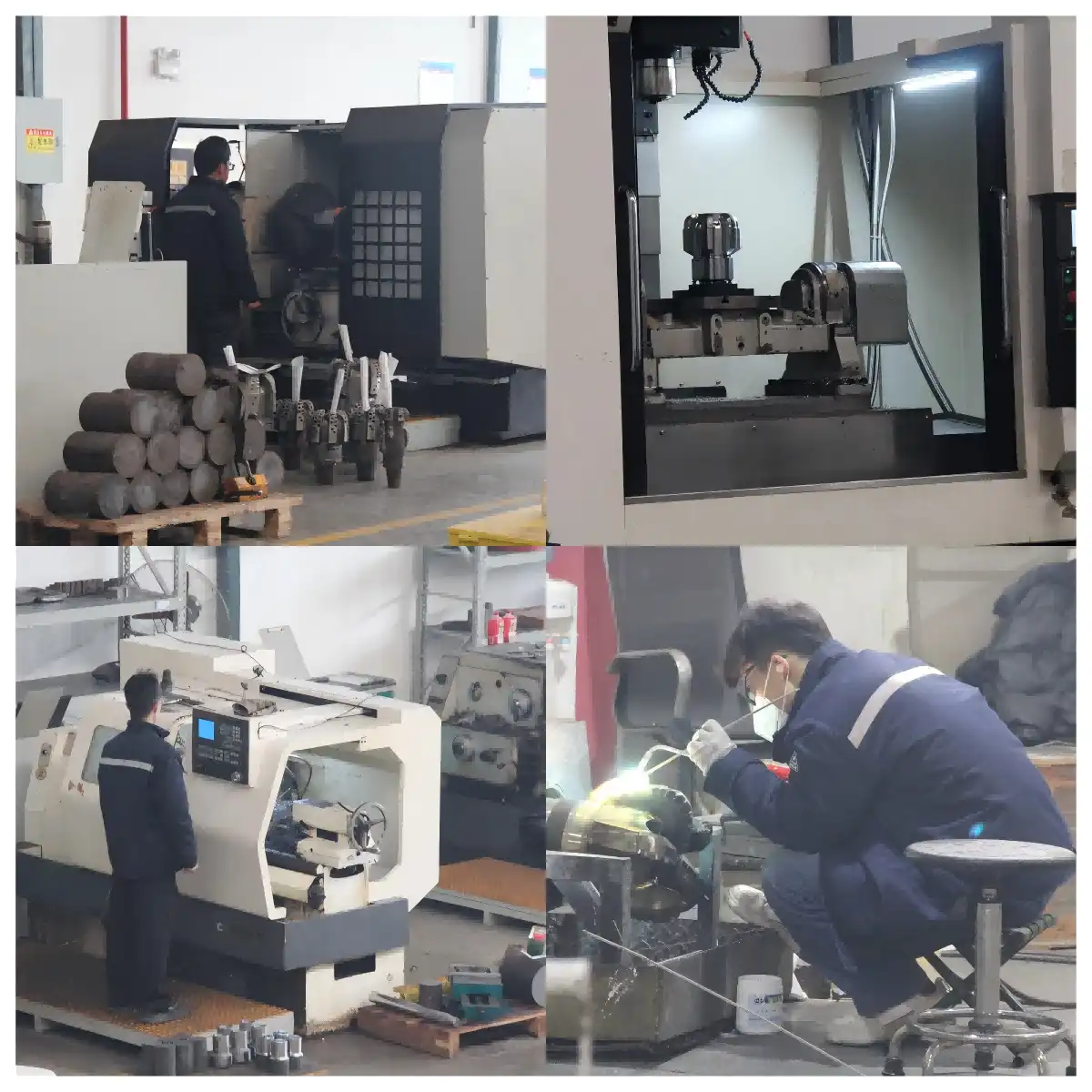

Quality Control

At HAINAISEN, quality is our top priority. Every high quality PDC drill bit undergoes rigorous testing and inspection:

• State-of-the-art manufacturing facilities
• Comprehensive quality management system
• Strict adherence to industry standards
• 100% inspection before shipment

Project Case Studies

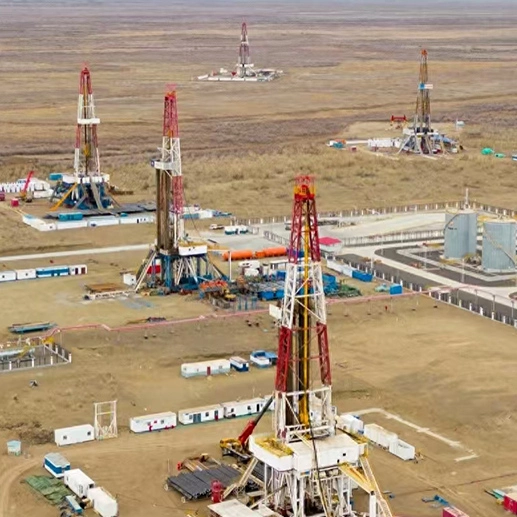

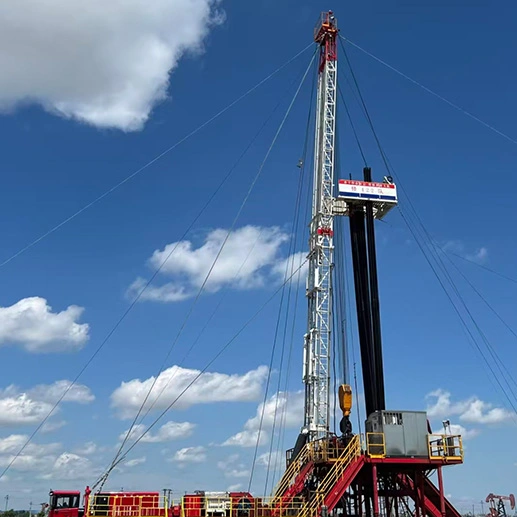

Our High Quality PDC Drill Bits have demonstrated reliable performance across diverse drilling applications. In coal seam gas exploration projects, operators achieved 30% faster penetration rates compared to previous bit selections, reducing overall well costs significantly. The four-blade design maintained stability through variable formation hardness while the 50-cutter configuration ensured continuous cutting efficiency.

Mining engineering applications in fractured rock formations benefited from our steel body construction's impact resistance. Crews completed planned drilling programs with fewer bit trips, improving project timelines. The 51mm gauge length provided excellent hole quality and directional control.

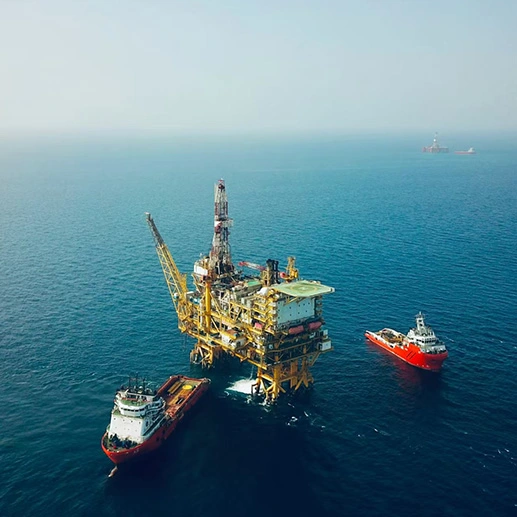

Oil and gas operators drilling through abrasive formations selected matrix body variants for extended bit life. Multiple runs on single bits reduced equipment costs while maintaining target drilling speeds. Proper nozzle selection based on our technical guidance optimized hydraulic cleaning and prevented premature wear.

These real-world applications demonstrate how matching bit specifications to formation conditions delivers measurable operational improvements.

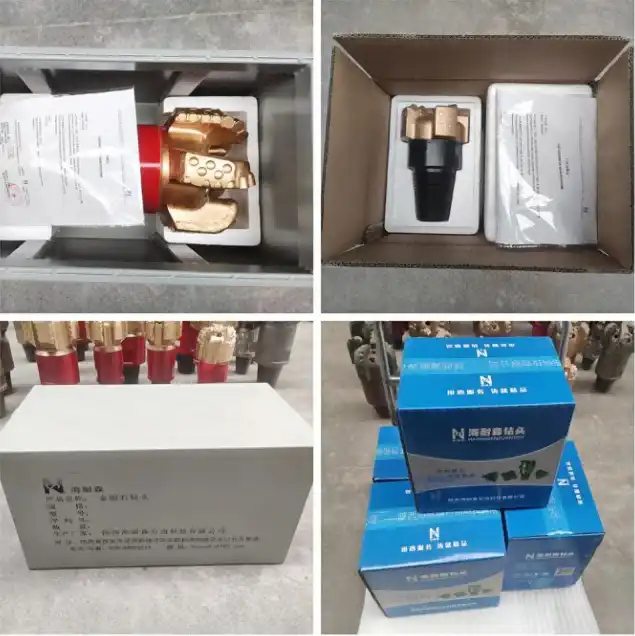

Packaging and Transportation

Our products are securely packaged to ensure safe transportation:

• Custom wooden crates or metal boxes
• Protective wrapping and cushioning
• Clear labeling and documentation
• Flexible shipping options (air, sea, or land)

Transaction Feedback

We place great emphasis on customer satisfaction and are committed to continuous improvement, refining our products based on valuable feedback from clients. Their consistent praise for the outstanding performance and unwavering reliability of our offerings motivates us to uphold the highest standards, ensuring every product not only meets but exceeds expectations while fostering long-term trust and satisfaction.

Qualification Certification

Our commitment to quality is backed by industry Certifications:

• ISO 9001:2015 Quality Management System
• API Spec Q1 Certification
• CE Marking for European markets

After-Sales Service

HAINAISEN provides comprehensive after-sales support:

• Technical consultation
• Performance analysis
• Bit dull grading
• Rerun recommendations
• Field engineering support

FAQ

Q1: What formations are PDC bits suitable for?
A: PDC drill bits excel in soft to medium-hard formations. They're significantly more economical than natural diamond bits while delivering excellent performance in sedimentary rocks, coal seams, and similar formations. Matrix body variants handle abrasive conditions particularly well.

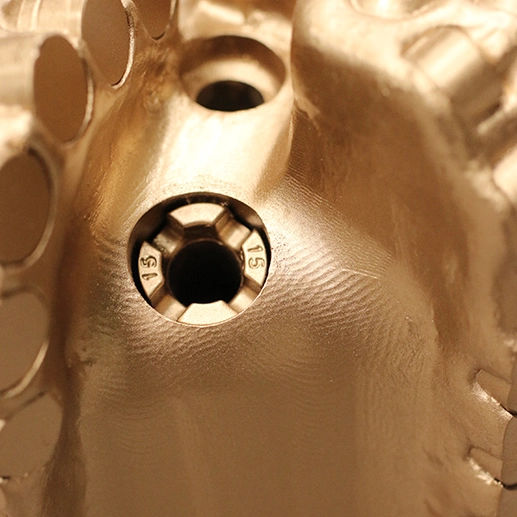

Q2: How do I select the correct nozzle size?
A: Base nozzle selection on your hydraulic parameters and formation characteristics. Avoid oversized nozzles that cause flow channel erosion. Our technical team provides specific recommendations based on your drilling parameters and mud properties.

Q3: Can damaged PDC bits be repaired?
A: Steel body PDC bits offer excellent repairability. Worn or damaged cutters can often be replaced, and the bit refurbished for additional service. This extends useful life and reduces per-foot drilling costs compared to disposal after single use.

Q4: What's the shelf life of PDC drill bits?
A: When stored properly at 10-30°C in dry, ventilated conditions protected from sunlight and moisture, PDC bits maintain full performance capability for five years. Proper storage prevents material degradation and ensures reliability when deployed.

Q5: How does blade count affect performance?
A: Blade count balances stability, cutting efficiency, and cuttings evacuation. Four-blade designs like our standard configuration provide excellent stability with good cleaning characteristics. Higher blade counts suit specific applications—we'll recommend optimal configuration for your conditions.
