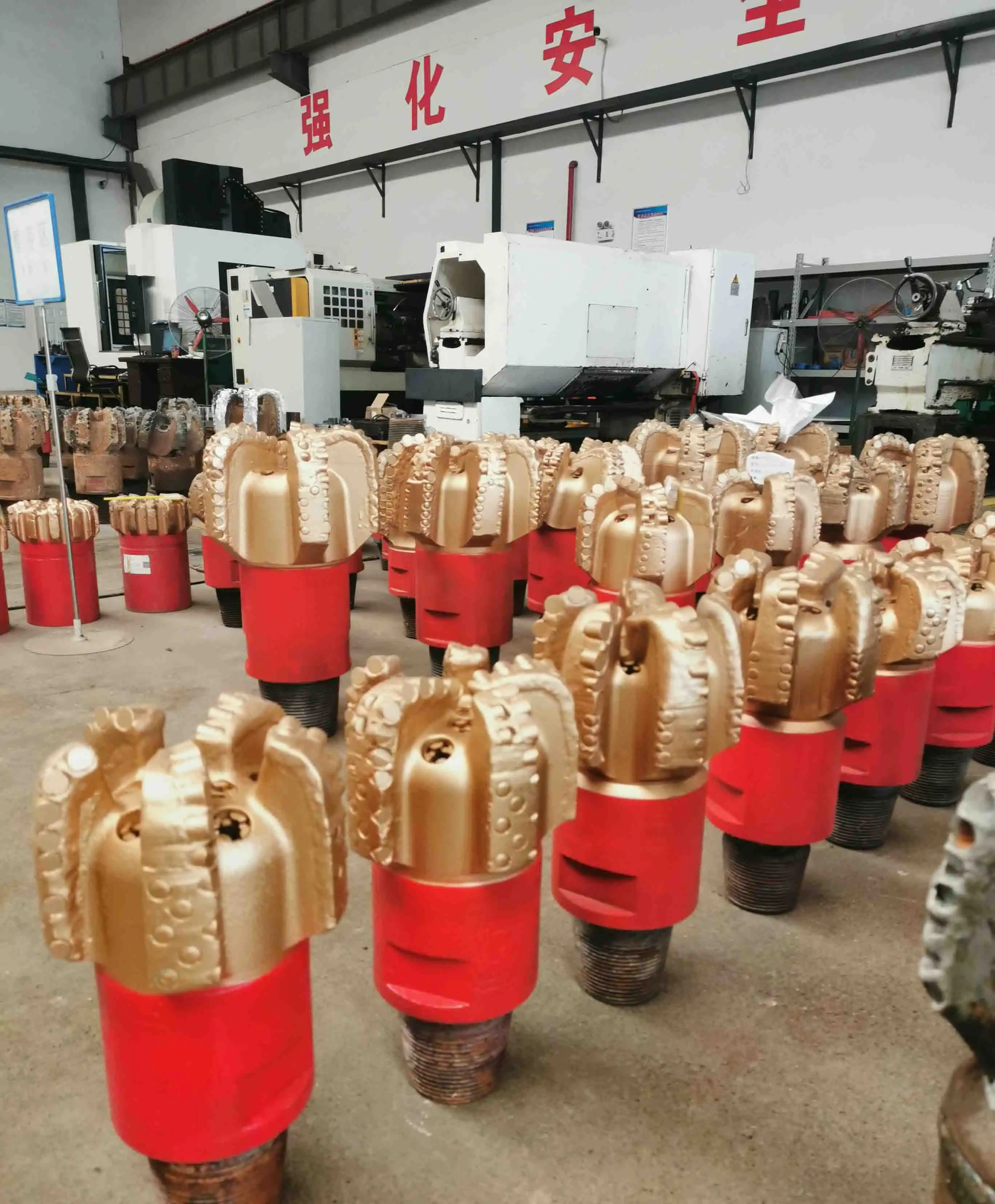

Key design features of a Five Blade Oil Drill Bit in shale drilling

When it comes to shale drilling, the Five Blade Oil Drill Bit is a cutting-edge tool that is made to work better and faster. This new bit design has changed the way drilling is done, especially in hard-to-drill shale formations. For shale drilling, a Five Blade Oil Drill Bit with a special collection of blades, cutting-edge cutter technology, and improved hydraulics are the most important design features. These parts work together to improve bit life, increase entry rates, and make hole cleaning better. The clever placement of five blades makes it easier to cut and remove rocks, and the unique design of the cutter makes it last in rough shale settings. The hydraulic optimization also makes it easier for debris to be removed, which stops bit balling and keeps performance uniform. With these cutting-edge design features, the Five Blade Oil Drill Bit gives drilling workers a powerful way to work with shale formations that aren't easy to drill through. This makes oil and gas exploration projects more productive and cost-effective in the long run.

​​​​​​​

Blade Configuration and Cutting Structure

How well a Five Blade Oil Drill Bit works when digging in shale depends a lot on how its blades are arranged. Unlike most three- or four-blade designs, the five-blade setup has several benefits:

Enhanced Stability and Control

The five-blade design makes the drill more stable while it's working, which lowers noise and makes the process go more smoothly. Better direction control is made possible by this increased steadiness, which is especially helpful in complex shale formations where accuracy is key.

Optimized Cutting Action

Since the bit has five blades, the cutting force can be spread out more evenly across its surface. This improvement makes it easier to remove rocks and keeps individual cutters from wearing out too quickly. This makes the drills work more consistently and increases the bit's life.

Superior Debris Evacuation

The space between the five blades makes the best junk slot area, which makes it easy to get rid of drill cuttings. This trait is very important for shale drilling, where the buildup of cuttings can have a big effect on how well the drilling goes.

A Five Blade Oil Drill Bit is made to work best in shale layers because of the way it cuts. Important parts are:

• Polycrystalline Diamond Compact (PDC) cutters: These high-tech cutters are very good at cutting rock and don't wear down easily.
• Back-up cutters that are put smartly: these extra cutters help with cutting and keep the main cutters from wearing out too quickly.
• Changeable cutter sizes and positions: Manufacturers can make the bit cut better in different types of shale by changing the cutters' sizes and positions across the bit face.

Hydraulic Optimization for Shale Drilling

Hydraulic optimization is a key part of designing a Five Blade Oil Drill Bit, especially for digging in shale. For high penetration rates to stay high in shale rocks, the bit face must be cleaned properly, and drill cuttings must be removed quickly and easily.

Nozzle Configuration

The Five Blade Oil Drill Bit's blades are placed and designed in a way that makes the hydraulic system work as efficiently as possible. Important things to think about are:

• Strategic placement of nozzles: Nozzles are put so that fluid flows across the whole bit face, cleaning and cooling it completely.
• Nozzle sizes that work best: The diameter of the nozzles is calculated to get the best mix between hydraulic horsepower and flow rate at the bit.
• Angled nozzles: Some designs use angled nozzles to make a swirling effect that removes more trash and stops bits from balling up.

Junk Slot Area

The junk slot area is made up of the holes between the blades that let drilling fluid and chips pass through. In Five Blade Oil Drill Bits made for digging in shale:

• Larger junk slots: These give plenty of room for fluid to flow and cuttings to escape, which lowers the risk of bit balling in sticky shale rocks.
• Tapered junk slot profile: This design feature helps keep the fluid speed steady as the cuts move up the bit body.

Fluid Dynamics Modeling

In the design process, advanced computational fluid dynamics (CFD) modeling is used to get the best hydraulic efficiency. This lets the engineers:

• Figure out how the fluid will move across the bit face.
• Find and get rid of places where the hydraulics aren't working well.
• Fine-tune the designs of the nozzles to fit the conditions of shale drilling

Material Selection and Durability Enhancements

A Five Blade Oil Drill Bit for shale drilling needs to be made with the right materials and features that make it last longer. These parts make a big difference in how well the bit works, how long it lasts, and how cost-effective it is generally.

Advanced Materials

Five Blade Oil Drill Bits are made of cutting-edge materials that can handle the rough conditions of shale drilling:

• High-strength steel body: The bit body is usually made of high-quality steel alloys that are strong for their weight and don't wear down easily.
• Polycrystalline Diamond Compact (PDC) cutters: These man-made diamond cutters are very hard and don't wear down easily, which is important for keeping cutting efficiency high in rough shale formations.
• Tungsten carbide matrix: This very hard material is often used in places that are likely to wear away, such as the bit face and blade supports.

Hardfacing and Protective Coatings

Different hardfacing methods and protective coats are put on important parts of the bit to make it last even longer:

• Tungsten carbide hardfacing is used to protect blade surfaces and other places that get a lot of wear from abrasion and erosion.
• diamond-enhanced inserts: put in a way that protects weak spots from too much wear.
• Nanostructured coatings are high-tech coatings that guard against corrosion and wear even more.

Thermal Management

For bit integrity to be maintained during high-temperature shale drilling activities, it is necessary to have good thermal management:

• Heat-resistant cutter surfaces are made specially so they can withstand high temperatures without breaking down.
• Optimized cutter cooling: hydraulic systems that help PDC cutters cool down quickly while they're working.
• Thermally stable diamond composites are used in certain places to keep cutting productivity high in hot areas.

These new materials and improvements to longevity are built into Five Blade Oil Drill Bits to make sure they work well and last a long time in tough shale drilling conditions. These bits can handle the rough conditions of shale drilling thanks to their high-strength materials, wear-resistant coatings, and heat management features. They also cut very well.

Conclusion

The main parts of a Five Blade Oil Drill Bit for shale drilling are the result of many years of research in advanced engineering and material science. Every part is carefully designed to meet the specific needs of shale formations, from the best blade setup and cutting structure to improved hydraulics and the choice of materials that will last. In difficult rock drilling jobs, these new features work together to provide better drilling performance, higher efficiency, and longer bit life.
