How does a 4 Wings Blades PDC Bit improve drilling speed and wear?

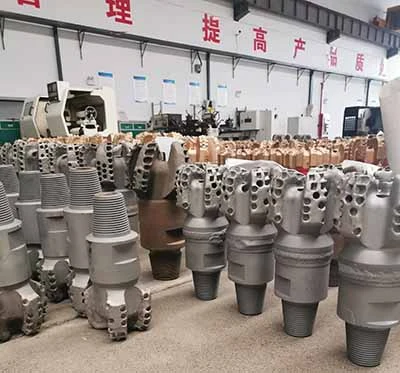

The 4 Wings Blades PDC Bit is a big step forward in drilling technology. It makes drilling faster and lasts longer without wearing out. This unique bit design has four wings that are put in a smart way. Each wing has high-quality polycrystalline diamond compact (PDC) cutters on it. The special shape of these wings makes cutting more effective by making more contact between the bit and the formation. This wider contact makes it easier to remove rocks, which speeds up the penetration rate. The four-wing design also spreads the cutting forces more evenly across the bit face, which lowers sound and makes the whole thing more stable while drilling. The better steadiness not only speeds up the drilling process, but it also keeps the bit from wearing out as quickly. The 4 Wings Blades PDC Bit suffers less stress and abrasion because it reduces harmful vibrations and improves the distribution of cutting forces. This makes the bit last longer and work better in a wider range of drilling applications.

Enhanced Cutting Efficiency and Drilling Speed

The 4 Wings Blades PDC Bit design makes cutting and drilling much faster and more efficient. This new setup takes advantage of a few important factors to deliver top-notch performance:

Increased Cutting Surface Area

The active cutting surface area is much larger with a four-wing blade configuration than with a standard three-wing PDC bit design. The bit can remove more rock more quickly and easily because it has more cutters that work with the formation during each turn. This bigger contact area spreads out the cutting loads more evenly, which makes it easier on each cutter while still engaging the formation aggressively. This makes the bit better at total drilling speed, faster penetration rates, and smoother drilling performance, especially in medium to soft formations where cutting action needs to be continuous.

Optimized Blade Geometry

The shape of the four wings is carefully planned to strike a balance between cutting power and operating stability. Each blade is placed so that it engages the formation at the best angle. This makes sure that the rock is sheared efficiently while reducing friction and pressure. This optimized blade structure lowers vibration and encourages consistent cutter contact, which makes drilling smoother and easier to control. The bit stays more efficient by reducing the amount of energy that is lost during cutting. This lets workers drill faster without affecting the bit's integrity or the accuracy of the hole's direction.

Improved Hydraulics

The four-wing design allows better fluid flow around the 4 Wing Blades PDC Bit, which improves both the removal of cuttings and the cooling of the cutter. Drilling fluid can easily flow across the bit face thanks to strategically placed nozzles and larger junk slots between the wings. This quickly removes cuttings from the cutting zone. This good flow of fluid keeps the blades from building up and keeps the PDC cutters from getting too hot. Better hydraulics help keep the cutting conditions just right, which supports high penetration rates and stable drilling performance throughout the whole process.

Superior Wear Resistance and Extended Bit Life

One of the best things about the 4 Wings Blades PDC Bit is that it doesn't wear down easily. This means that the bit will last longer and you'll have less downtime while you change it. This longer durability is due to several things, including:

Advanced PDC Cutter Technology

The 4 Wings Blades PDC Bit has modern polycrystalline diamond compact (PDC) cutters that are made to be very hard and not wear down quickly. The diamond grain structures in these cutters have been improved, and the gluing methods have been made better. This lets them keep their sharp cutting edges for longer drilling intervals. Their ability to fight wear and damage from impacts makes sure that they always cut well, even in formations that are rough or have embedded materials. This cutting-edge technology makes it much less likely that performance will drop over time. This directly leads to longer bit runs and better drilling efficiency.

Optimized Load Distribution

The four-wing blade shape is very important for spreading cutting forces evenly across the bit face. The design keeps stress on individual PDC cutters to a minimum by increasing the amount of load-bearing contact points. This even spread of force makes it less likely that the cutter will wear out, chip, or break too quickly. Because of this, the bit keeps cutting the same way throughout its lifetime. Getting rid of localized stress not only makes the bit last longer, but it also makes drilling more stable and reliable during long or difficult operations.

Thermal Stability

The 4 Wings Blades PDC Bit has a longer wear life because it is thermally stable. The improved hydraulic design makes it easier for drilling fluid to flow around the bit face, which makes it easier to remove cuttings and keeps the PDC cutters cool. By keeping the cutters from getting too hot, you protect them from thermal damage, which can speed up wear and make cutting less effective. Keeping the working temperature stable helps keep the cutter's integrity, makes it less likely to wear out, and supports consistent performance over long drilling runs.

Improved Stability and Reduced Vibration

The design of the 4 Wings Blades PDC Bit makes it more stable while drilling, which is important for keeping performance high and lowering wear. Several design elements work together to make this more stable:

Balanced Force Distribution

The four-wing blades are set up in a way that makes sure the cutting and rotating forces are spread out properly across the bit face while it is drilling. This even spread of force makes it less likely that harmful vibrations like stick-slip and torsional oscillations will happen. These vibrations can make drilling less effective and speed up bit wear. The bit does a better job of drilling because it keeps the cutters stable in touch with the rock. Less vibration not only saves the cutting structure but also makes the system more stable, which leads to more consistent penetration rates and longer bit life.

Optimized Weight on Bit (WOB) Management

The four-wing design makes it easier to control the bit's weight by making the bit's useful contact area with the formation bigger. This design lets more WOB be used without putting too much stress on individual cuts or making the machine less stable. So, the bit can work more forcefully while still keeping the drilling conditions under control. Better handling of WOB leads to faster penetration rates and better torque response, which lowers mechanical stress on the drill string and helps drilling operations run more smoothly and efficiently.

Reduced Lateral Movement

Adding a fourth wing makes the plane even more stable, which greatly reduces movement to the side and spin off-center during drilling. The design makes the holes straighter and the cutter engagement more even by reducing bit whirl and side-to-side motion. Less horizontal movement improves the consistency of the cut and keeps the 4 Wings Blades PDC Bit face from wearing down unevenly. This better direction stability not only improves drilling speed and accuracy, but it also makes bits last longer by stopping too much mechanical stress and damage to a few spots on the cutter.

Conclusion

With its faster drilling speed, better wear resistance, and generally better performance, the 4 Wings Blades PDC Bit is a big step forward in drilling technology. Its clever design solves some of the biggest problems that come up in modern drilling, which makes it a very useful tool in many fields, including oil and gas, mining, and building.
