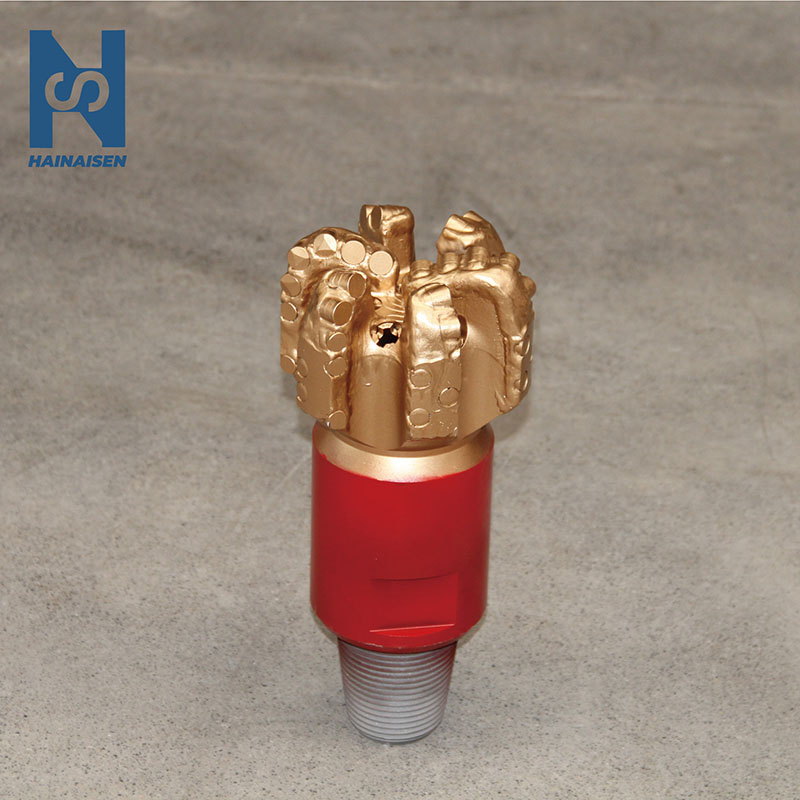

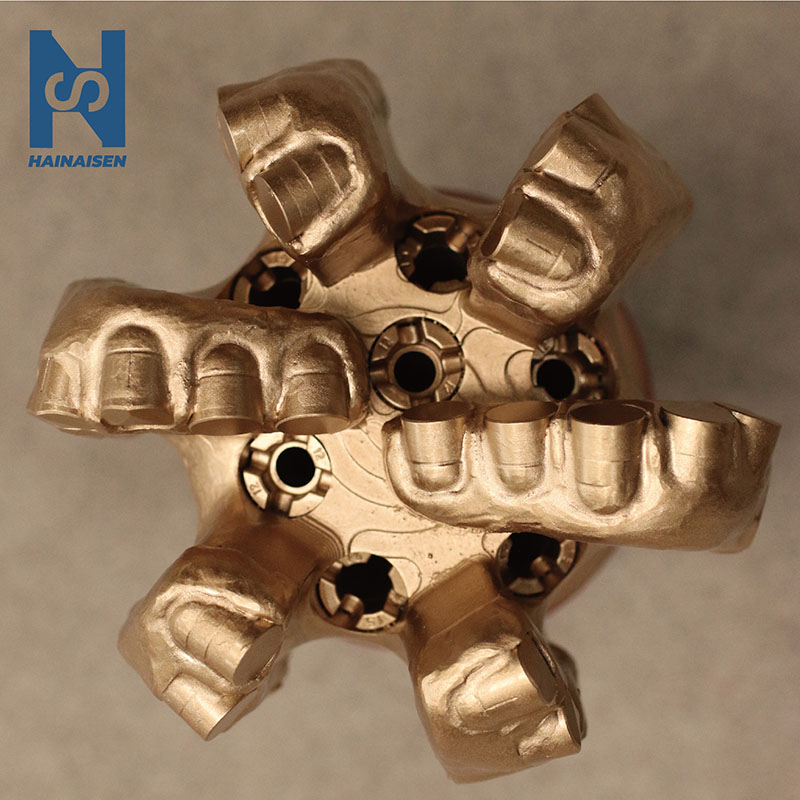

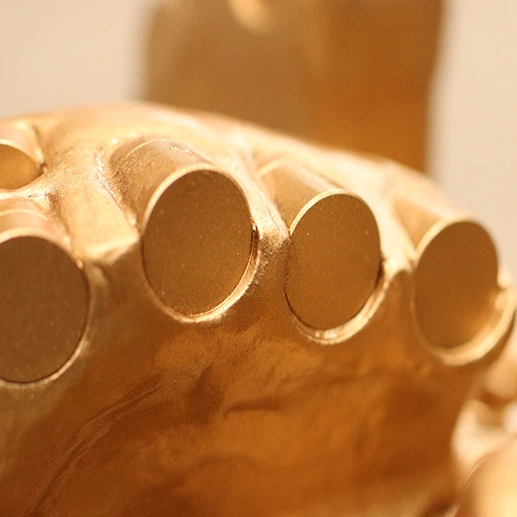

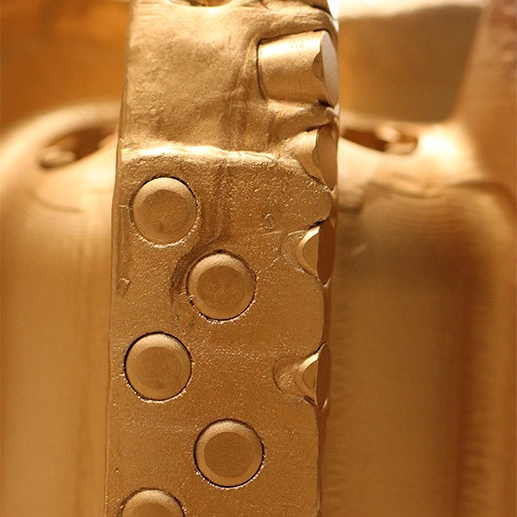

Six Blade Wing Petroleum Drill Bit
Bit size:9.5”(241.3mm)
Number of blade: 6

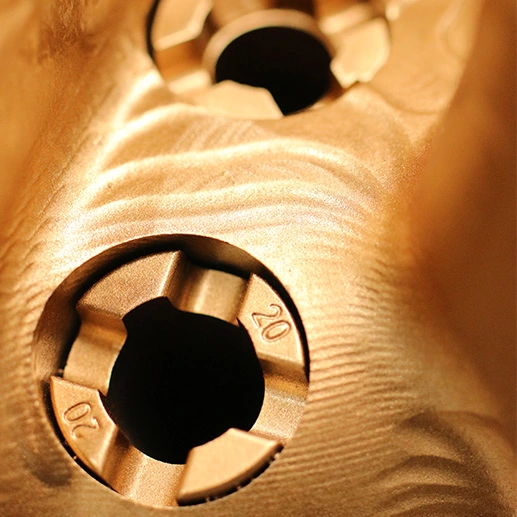

Number of nozzle: 9
PDC cutter size:13mm/16mm
Total number of PDC cutters : 99
Height of bit:460mm
Gauge length: 76mm
API Connection: 6 -5/8 REG.PIN
Net weight: 65KGS
- Product Description
Six Blade Wing Petroleum Drill Bit: High quality manufacturer supplier
SHAANXI HAINAISEN INTELLIGENT EQUIPMENT MANUFACTURING CO.,LTD is a leading manufacturer and supplier of high-quality Six Blade Wing Petroleum Drill Bits. Our advanced drilling tools offer superior performance and reliability for oil and gas exploration. With over a decade of industry expertise, HAINAISEN's product stands out for its innovative design, durability, and cost-effectiveness.
Why Choose Our Six Blade Wing Petroleum Drill Bit?
- Enhanced cutting efficiency with six strategically placed blades
- Improved rock-breaking capabilities for various formations
- Increased rate of penetration (ROP) for faster drilling
- Extended bit life, reducing downtime and replacement costs
- Optimized hydraulics for better cuttings removal
- Customizable design to meet specific drilling requirements
Operating Parameters
| Parameter | Range |
|---|---|
| Speed (R/min) | 60-250 |
| Drilling Pressure (KN) | 20-110 |
| Flow Rate (LPS) | 30-40 |
| Applicable Strata | Medium hardness, low compressive strength (e.g., shale, limestone, sandstone, gypsum) |
Performance Advantages
- Superior directional build/hold capability for higher single-run completion rates
- Outstanding impact and abrasion resistance prevents cutter chipping/failure in complex zones
- Sustained gauge retention maintains consistent hole diameter, minimizing tripping frequency
PDC Bit Selection Guide
Hardness | Low haedness | Medium haedness | High haedness |
Compressive Strength | 0-8000 | 8000-16000 | 16000-32000 |
Formation | Clay,mudstone,marl,rock salt,shale | Shale,sandstone,chalk | Sandstone,limestone,shale anhydrite,dolomite |
Density of Teeth | low | medium | high |
Cutter Size | 19mm | 16-19mm | 13-16mm |
Rear Elevation Angle of the Cutter | 15°/18°/20° | 17°/20°/25° | 20°/25°/30° |
Crown Structure | long profile | medium profile | short profile |
Cost Advantages
- Higher footage per bit cuts overall drilling costs by shortening project timelines
- Reduced tripping and bit change time maximizes operational efficiency
- Formation-matched custom cutter designs eliminate over-specification waste
Full-Service Customization
- Tailored solutions based on your formation data (hardness, abrasiveness, interbedding):
- PDC cutter type, placement, and back rake angle
- Blade profile and gauge length
- Nozzle quantity and flow area
- Thread connection specification
- Free custom drilling program design to match your rig and operation parameters
Reliable Delivery Guarantee
- In-house PDC cutter production + bit manufacturing facility for full supply chain control
- Standard lead time: 7-15 days; custom orders: 15-25 days; rush orders available
- Global shipping (sea/air) with end-to-end logistics tracking
- 24/7 after-sales technical support for on-site drilling issues
Comparison & Selection Recommendations
Core Comparison of 9 1/2" Drill Bits
| Feature | 9 1/2" 6-Blade PDC Bit | 9 1/2" 5-Blade PDC Bit | 9 1/2" Roller Cone Bit |
|---|---|---|---|
| Suitable Formation | Medium-Hard to Hard, Interbedded | Medium-Soft to Medium-Hard | Ultra-Hard, Complex Zones |
| ROP | High | Medium-High | Low |
| Footage per Bit | High | Medium | Low |
| Total Cost | Low | Medium | High |
| Directional Performance | Excellent | Good | Poor |
Selection Guide
- Choose this 6-blade bit if: Your block features medium-hard to hard formations, interbedded zones, or gravel beds, and you prioritize high ROP and long bit life.
- Alternative options: 5-blade bits for soft formations; custom high-wear 6-blade bits for ultra-hard abrasive zones.
- Unsure of selection? Share your formation data and drilling parameters for a free, tailored bit recommendation.

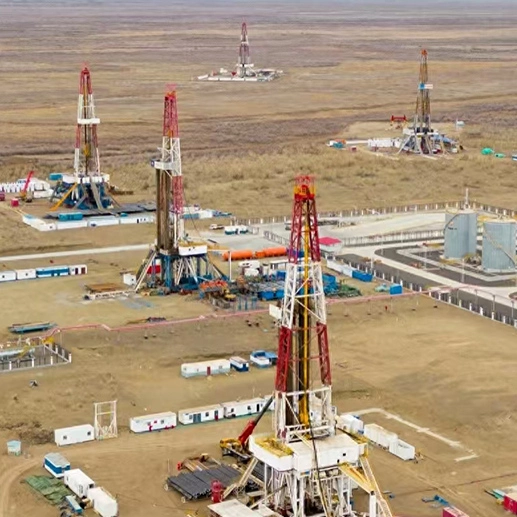

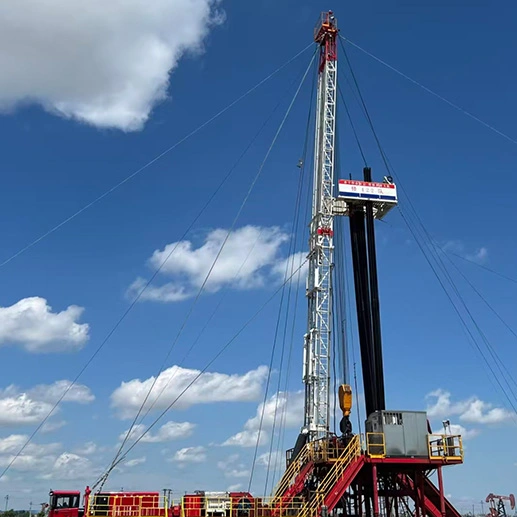

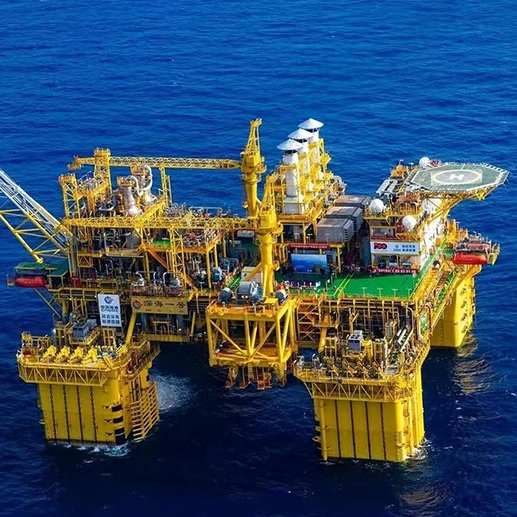

Application
Our Six Blade Wing Petroleum Drill Bit is versatile and suitable for various drilling applications:
- Oil and gas exploration wells
- Geothermal drilling projects
- Coal bed methane extraction
- Shale gas development
- Directional and horizontal drilling
- Water well drilling in medium-hard formations
The unique blade configuration of our drill bit ensures optimal performance across different geological conditions, making it an ideal choice for diverse drilling operations.

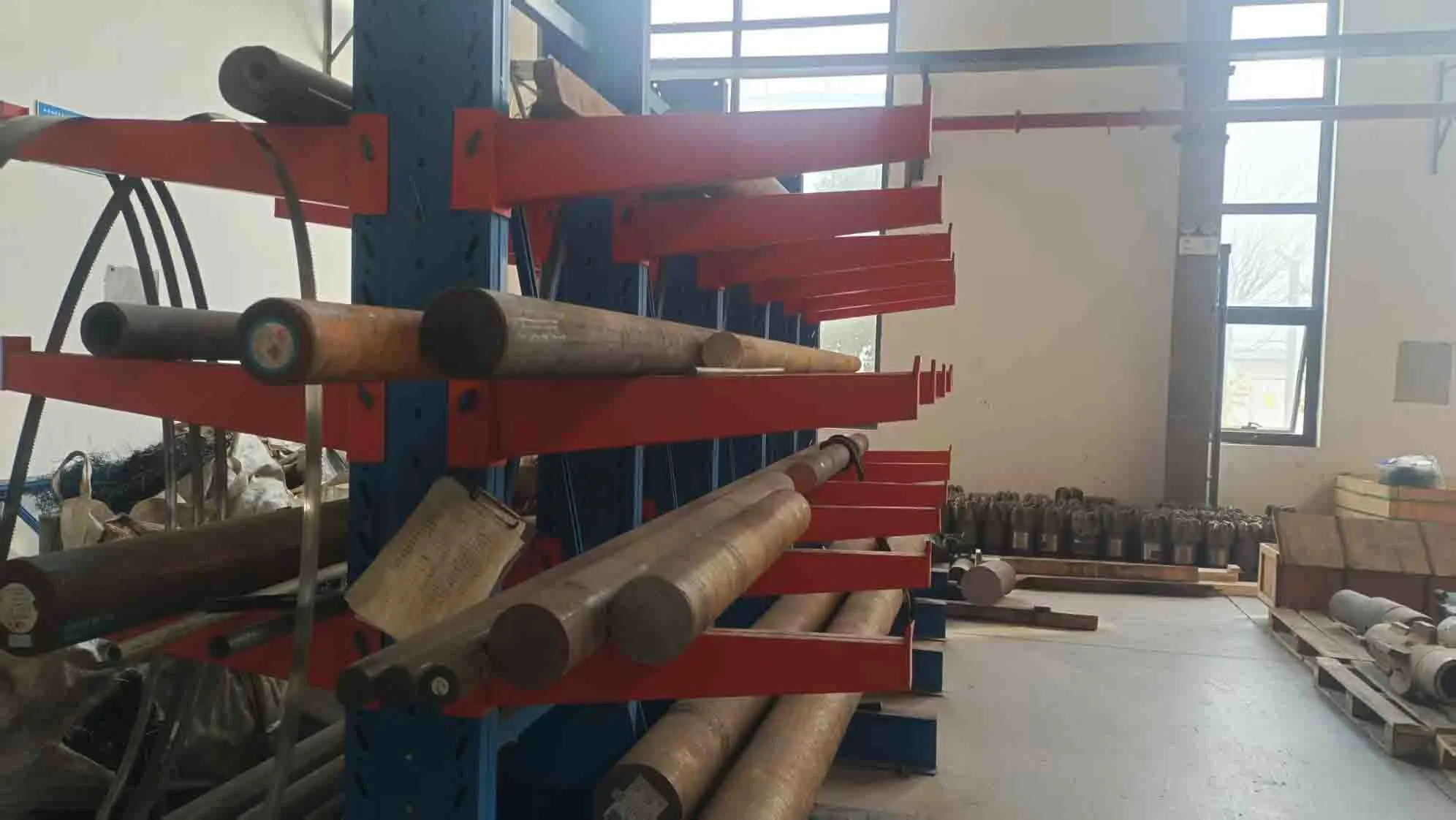

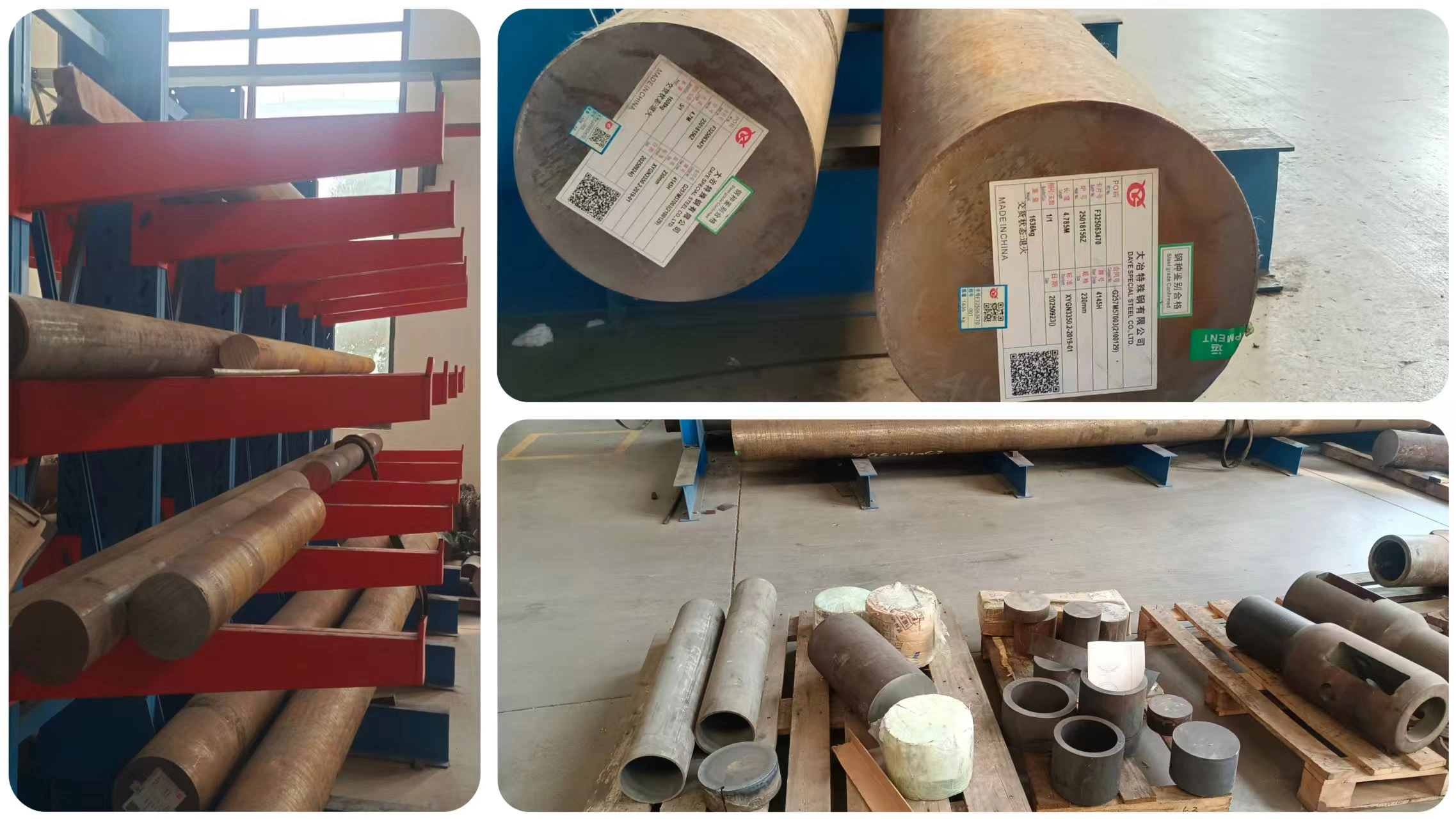

Material
Our products are crafted using premium-grade materials, including:
- High-strength steel body for durability

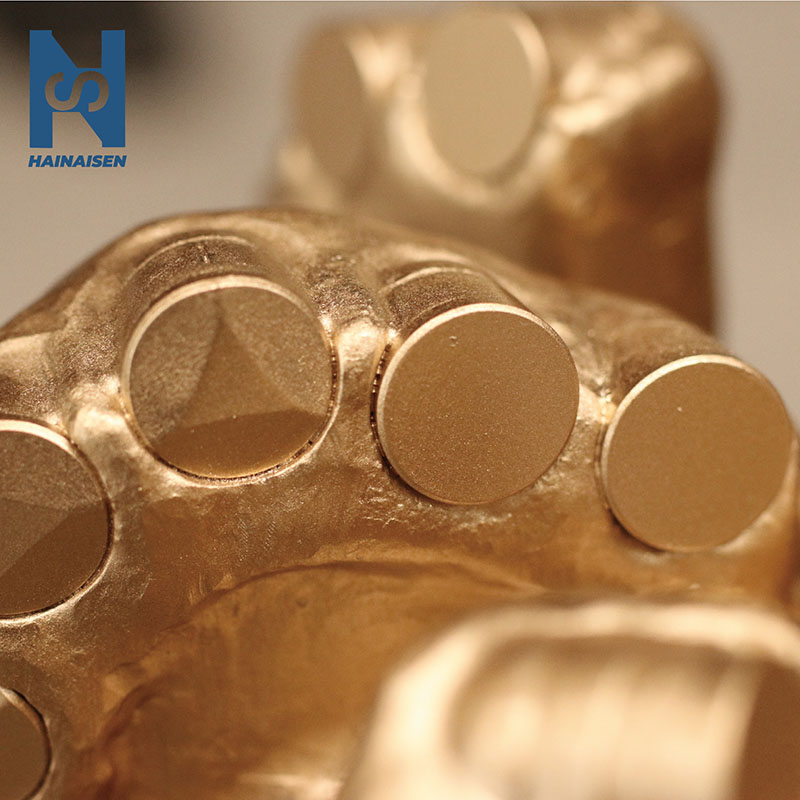

- Polycrystalline Diamond Compact (PDC) cutters for superior wear resistance
- Tungsten carbide matrix for enhanced impact resistance
- Specialized coatings for improved thermal stability

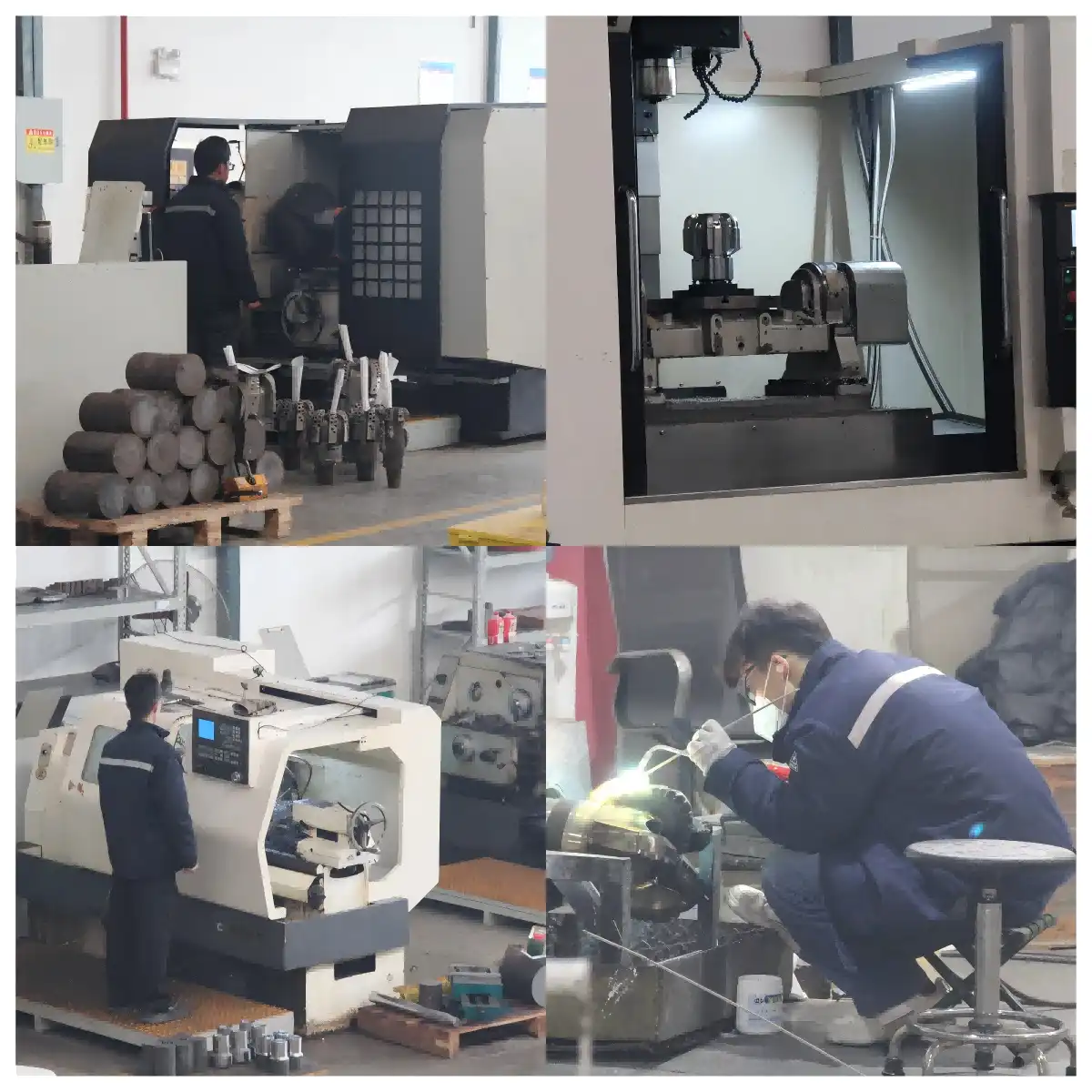

Quality Control
HAINAISEN maintains strict quality control measures throughout the manufacturing process:
- Rigorous material testing and selection
- Advanced CNC machining for precise blade geometry
- Comprehensive quality checks at each production stage
- Final performance testing before shipment
Why Choose HAINAISEN
- Decade-long industry experience
- State-of-the-art manufacturing facility
- Continuous innovation and R&D
- Responsive customer support
- Competitive pricing without compromising quality
Shipment Samples
We offer sample products for evaluation. Contact our sales team to request a sample and experience the HAINAISEN difference firsthand.

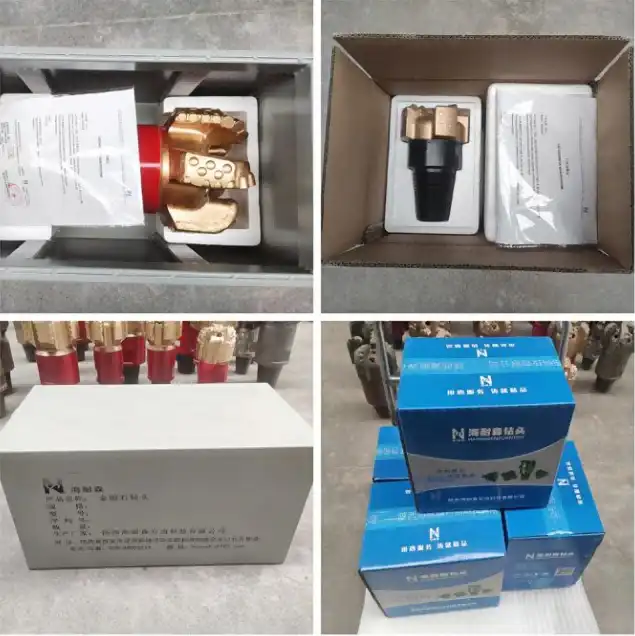

Packaging and Transportation
Our drill bits are carefully packaged to ensure safe transportation:
- Custom-designed protective cases
- Shock-absorbing materials to prevent damage
- Secure palletization for bulk orders
- Flexible shipping options to meet your timeline
Transaction Feedback
We value customer satisfaction and continuously improve our products based on user feedback. Our product has received positive reviews for its performance, durability, and cost-effectiveness.
After-Sales Service
HAINAISEN provides comprehensive after-sales support:
- Technical consultation for optimal bit selection
- On-site training for proper bit usage and maintenance
- Prompt resolution of any quality issues
- Performance analysis and optimization recommendations
Qualification Certification
HAINAISEN holds multiple industry certifications, including:
- ISO 9001:2015 Quality Management System
- API Spec Q1 Certification
- CE Marking for European market compliance
FAQ
Q: What is the average lifespan of a product?
A: The lifespan varies depending on formation and drilling conditions, but typically ranges from 100 to 300 hours of operation.
Q: Can the product be used for hard rock formations?
A: While designed for medium hardness formations, we offer customized versions for harder rock types. Consult our team for specific recommendations.
Q: How does the Six Blade Wing design improve drilling efficiency?
A: The six-blade configuration enhances cutting distribution, improves stability, and increases the rate of penetration compared to traditional designs.
Q: Are repair services available for worn drill bits?
A: Yes, we offer reconditioning services to extend the life of your drill bits. Contact our service department for details.
Q: What is the lead time for custom Six Blade Wing Petroleum Drill Bits?
A: Custom orders typically take 4-6 weeks, depending on specifications and current production volume.
