Three Blades Steel Body PDC Bit

Three Blades Steel Body PDC Bit - High-Performance Directional Drilling Solution with Superior Impact Resistance

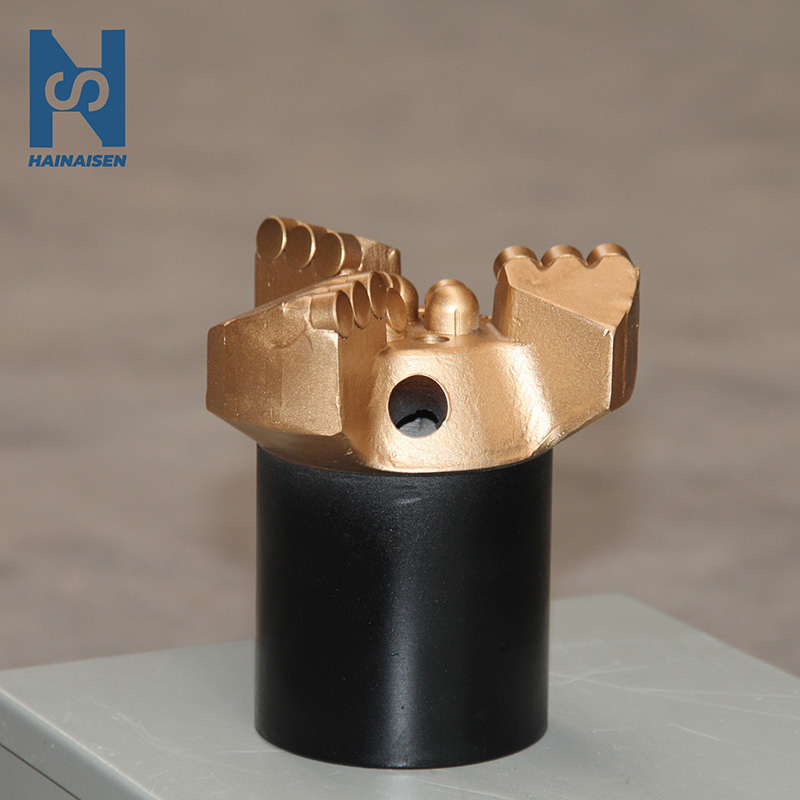

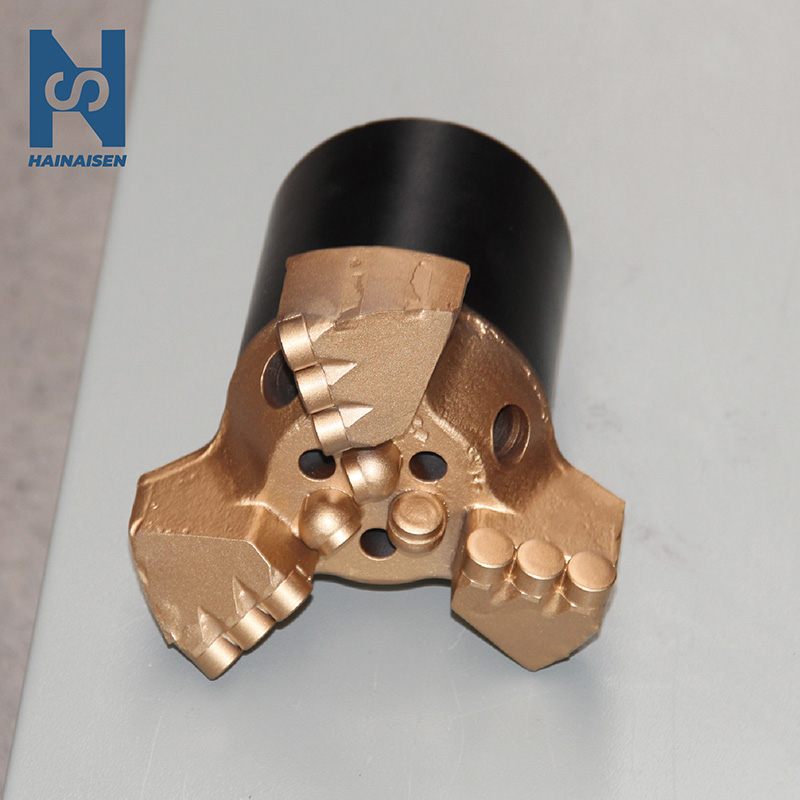

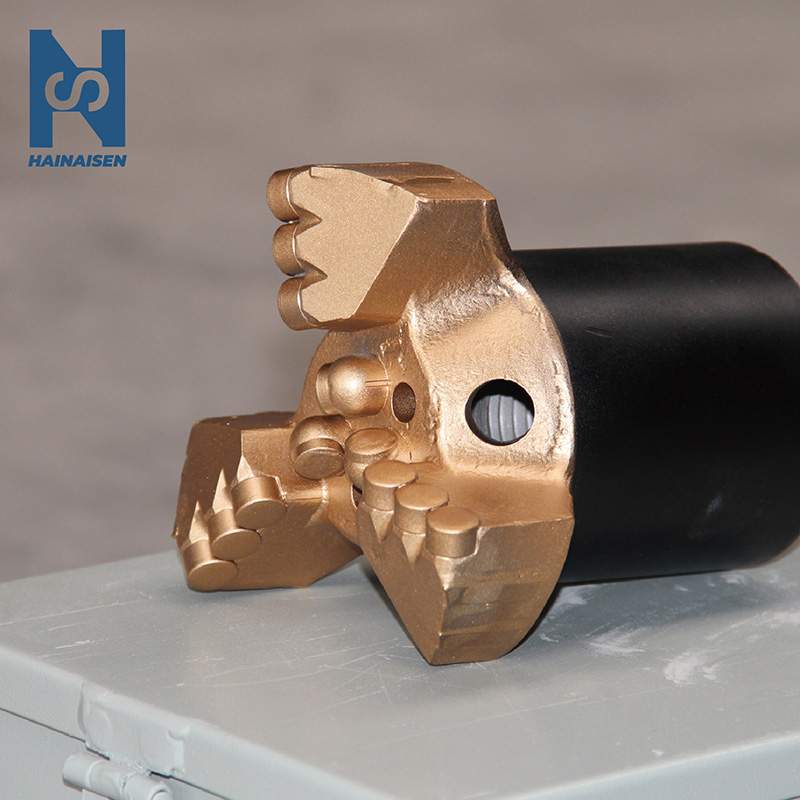

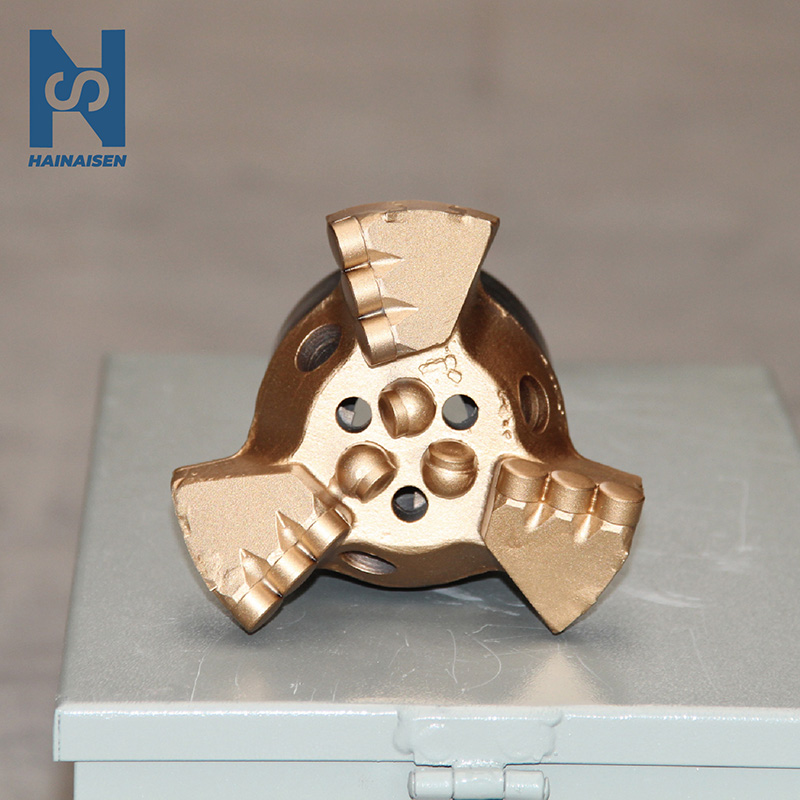

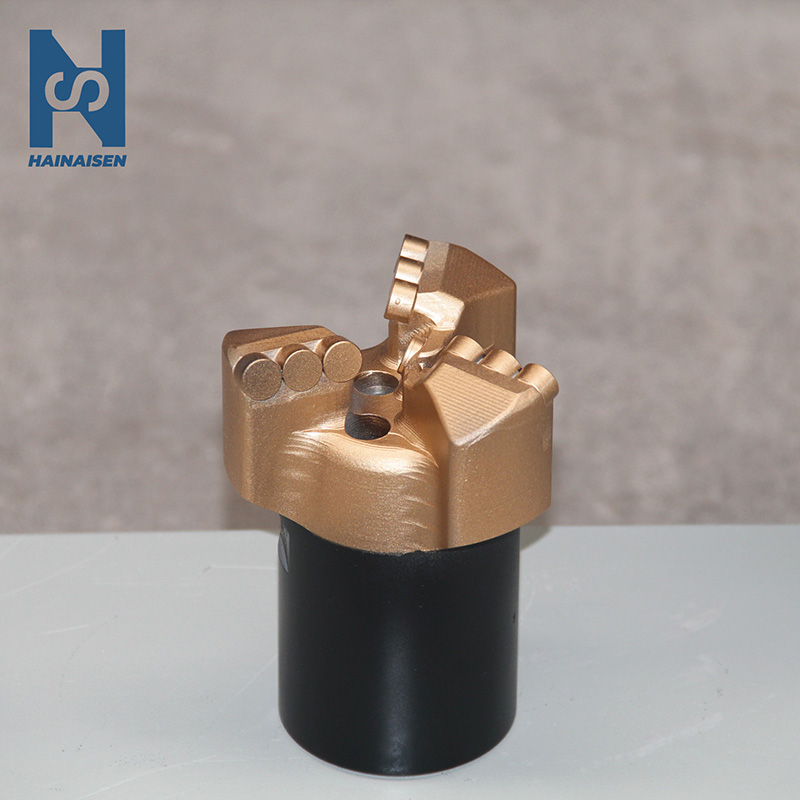

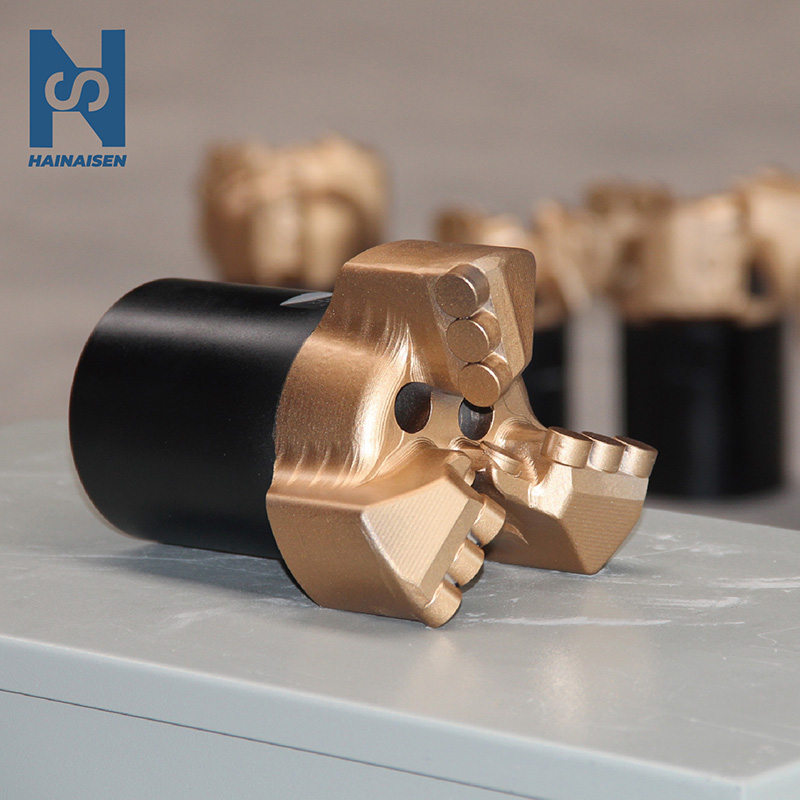

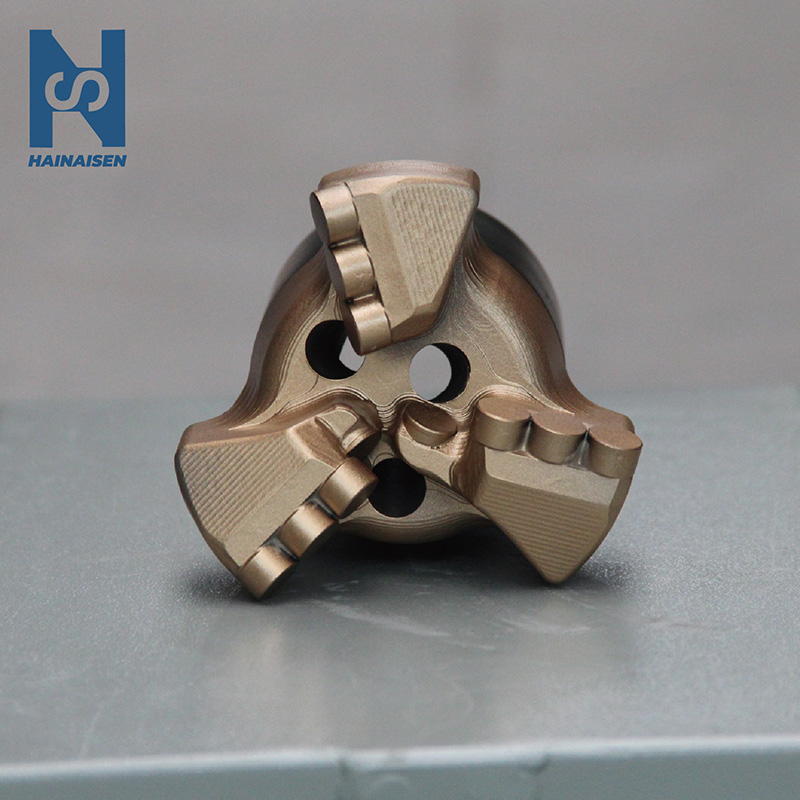

SHAANXI HAINAISEN INTELLIGENT EQUIPMENT MANUFACTURING CO.,LTD brings over 10 years of specialized experience in manufacturing advanced drilling tools. Our Three Blades Steel Body PDC Bit features a robust 113mm design with 1308 PDC cutters strategically positioned across three balanced blades. This configuration delivers exceptional penetration rates while maintaining structural integrity in challenging formations.

With five optimized nozzles and a 63.5 cone buckle connection, this steel body construction provides superior impact resistance compared to matrix alternatives. Our engineering team has designed this bit to handle strata classifications 1-12, making it versatile for oil and gas exploration, mining operations, and water well drilling projects. Production capacity supports delivery within 5-7 business days with a minimum order of 10 pieces.

Why Choose Steel Body Construction Over Matrix Design

Steel body PDC Bits offer distinct advantages in specific drilling environments. The solid steel construction provides exceptional shock absorption, reducing vibration during directional drilling operations. This design choice enhances bit stability and extends service life in formations with varying hardness.

Your drilling projects benefit from the superior weldability of steel bodies. Repair and refurbishment become more cost-effective options when cutters show wear. The manufacturing process allows for precise blade geometry control, ensuring consistent performance across multiple units.

The three-blade configuration strikes an optimal balance between cutting aggression and torque efficiency. Fewer blades mean reduced rotational resistance, which translates to lower energy consumption and decreased wear on your drilling equipment.

Selection & Comparison Guide

Selection Tips:

• For highly abrasive coal seams, choose higher-grade PDC cutters to extend bit life.
• If you need deep hole drilling, select a larger thread size to handle higher torque.
• Contact our technical team with your formation hardness, hole depth, and equipment parameters for a tailored recommendation.

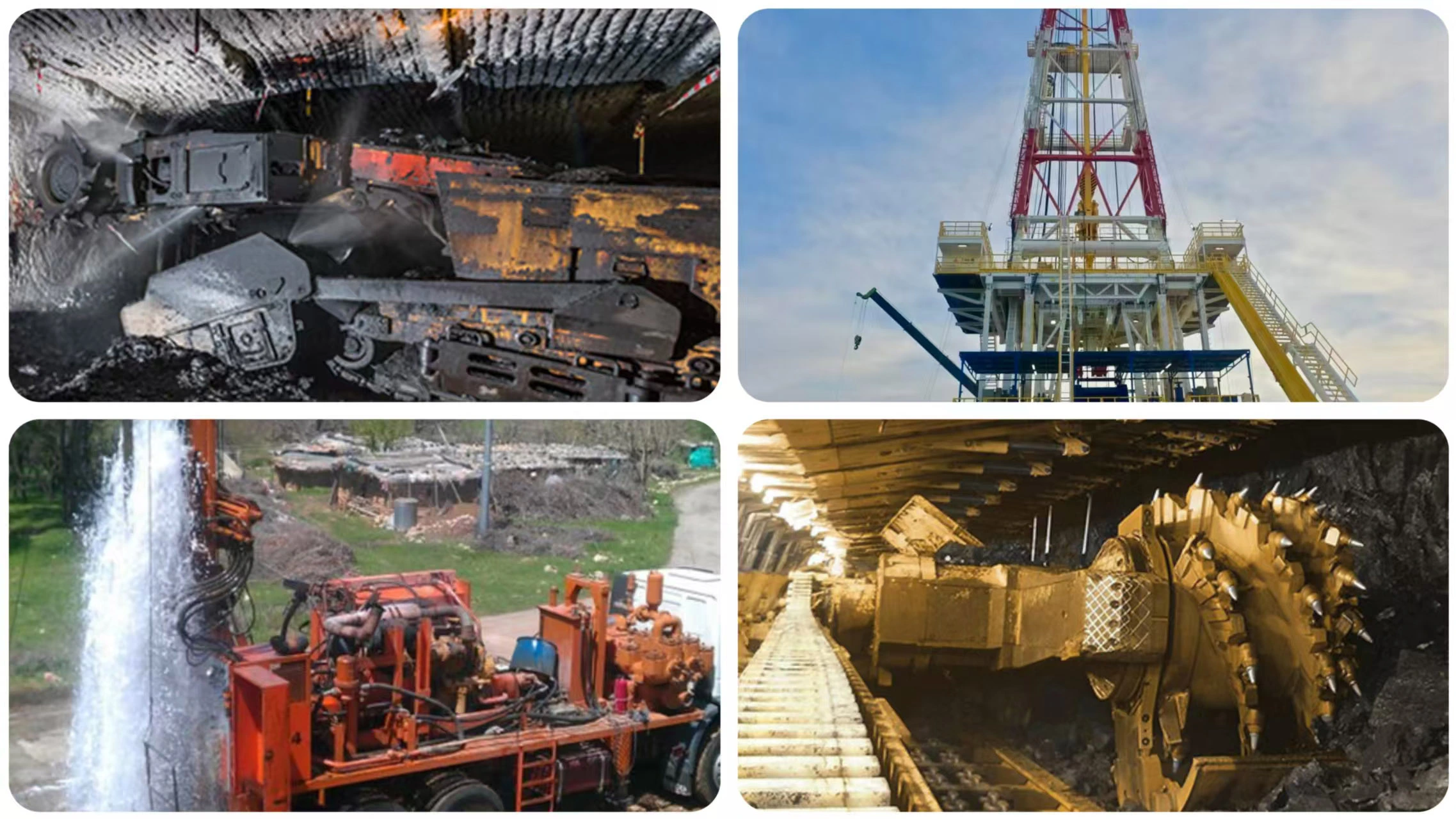

Application Scenarios and Formation Compatibility

Our Three Blades Steel Body PDC Bit excels in soft to medium-hard formations where aggressive cutting action drives productivity. Coal mining operations benefit from the bit's anti-plugging characteristics, particularly in sticky formations that challenge other drill bit designs.

Oil and gas exploration teams utilize this configuration for vertical and directional wells. The balanced blade arrangement minimizes lateral forces, improving borehole quality and reducing the risk of deviation in directional drilling campaigns.

Water well drilling contractors appreciate the versatility across diverse geological conditions. From sedimentary layers to moderately consolidated formations, the bit maintains consistent performance without frequent replacements.

Mining engineering projects involving metal ore exploration find value in the steel body's resilience. Impact loads from fractured rock zones don't compromise the bit's structural integrity, maintaining operational continuity in demanding conditions.

Design Features That Enhance Your Drilling Efficiency

The concave profile optimizes cutter placement for maximum rock contact. This geometry improves cutting efficiency while facilitating effective debris removal through strategically positioned nozzles. Your drilling fluid circulation remains unobstructed, maintaining hydraulic cleaning power at the bit face.

PDC cutter grade 1308 combines thermal stability with abrasion resistance. These synthetic diamond compacts maintain sharpness through extended drilling intervals, reducing your trip time for bit changes. The cutter arrangement across three blades creates overlapping cutting paths, ensuring complete formation coverage.

Connection reliability comes from the 63.5 cone buckle system, though we accommodate custom threading requirements. This flexibility allows integration with your existing drill string components without compatibility concerns.

Quality Control

At HAINAISEN, we take quality seriously at every step of making our products. From choosing materials to the final check, we have strict rules to keep things consistent. Every Three Blades Steel Body PDC Bit goes through tough tests and careful inspections to make sure it works well and you can rely on it—because we don’t compromise on the standards we set for ourselves.

Project Case Studies

case Study 1: Coal Mining Operation in Northern China

A coal exploration project required drilling through alternating layers of sandstone and coal seams. Traditional tricone bits experienced frequent bearing failures due to vibration. After switching to our three-blade steel body design, the operation achieved 40% faster penetration rates with 60% fewer bit replacements over a three-month period.

Case Study 2: Water Well Development in Central Asia

A municipal water well project faced challenges with unpredictable formation transitions. Our bit's strata 1-12 capability allowed continuous drilling through clay, sand, and limestone layers without bit changes. The project completed 15 wells ahead of schedule, reducing overall drilling costs by 25%.

Packaging and Transportation

Our products are carefully packaged to ensure safe transportation. We use sturdy wooden crates or metal boxes, depending on the size and quantity of the order.

Transaction Feedback

We value our customers' opinions and continuously strive to improve our products and services. After your purchase, we welcome your feedback on the performance of our product.

After Sales Service

Our commitment to you doesn't end with the sale. We provide comprehensive after-sales support, including:

• Technical assistance and troubleshooting
• Performance optimization advice
• Maintenance and repair services

Qualification Certification

HAINAISEN is ISO 9001:2015 certified, ensuring our quality management systems meet international standards. We also comply with industry-specific Certifications and standards.

FAQ

Q1: What formations are best suited for three-blade steel body bits?
A: This design performs optimally in soft to medium-hard formations including sandstone, shale, limestone, and coal seams. The steel body construction handles impact loads better than matrix bodies, making it suitable for formations with occasional hard stringers.

Q2: How does blade count affect drilling performance?
A: Three blades provide aggressive cutting action with lower torque requirements compared to multi-blade designs. This configuration increases rate of penetration while reducing stress on your drilling equipment and power systems.

Q3: Can this bit be refurbished after use?
A: Yes, steel body construction allows for professional refurbishment. Worn cutters can be replaced, and blade profiles can be restored, extending the bit's economic life significantly compared to disposable alternatives.

Q4: What maintenance practices extend bit life?
A: Proper hydraulic parameters prevent cutter overheating. Maintain recommended weight-on-bit and rotational speed parameters. Regular inspection of cutter condition allows timely refurbishment before catastrophic failure occurs.

Q5: How quickly can custom specifications be Manufactured?
A: Standard delivery requires 5-7 business days for orders of 10 pieces or more. Custom sizes, connection types, or cutter configurations may require additional engineering time, which our technical team will communicate during order confirmation.

Contact Us

For more information about our Three Blades Steel Body PDC Bit or to place an order, please Contact Us at hainaisen@hnsdrillbit.com.
