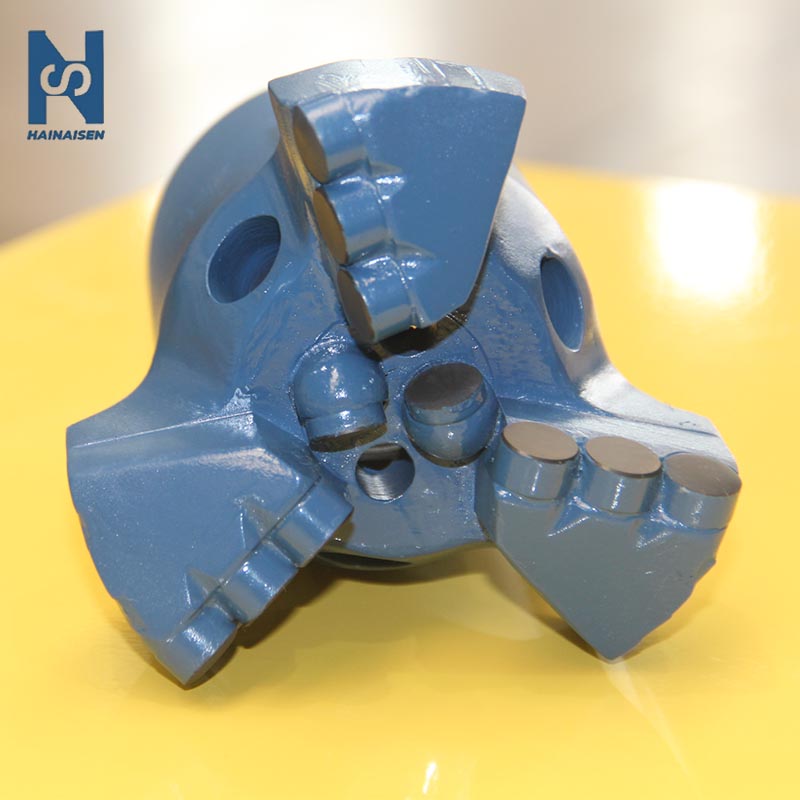

3 Blades Steel Body PDC Bit

High-Performance 3 Blades Steel Body PDC Bit for Directional Drilling Excellence

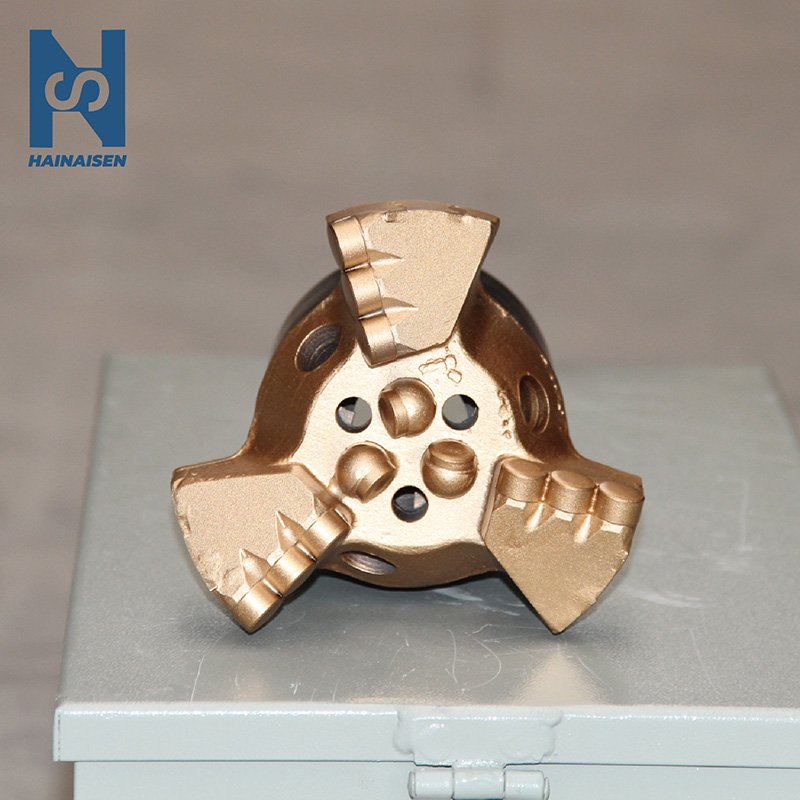

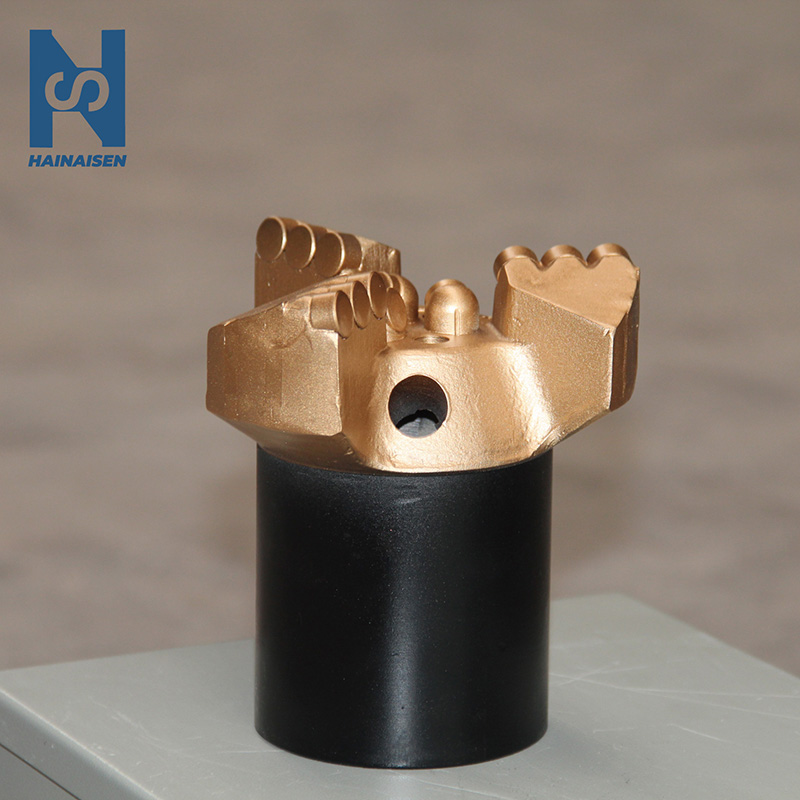

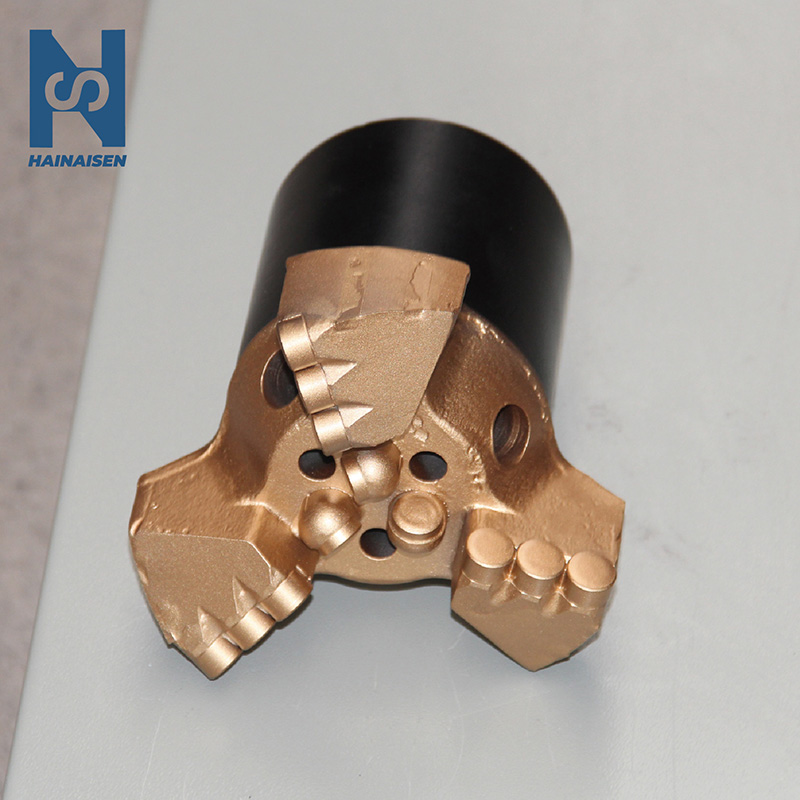

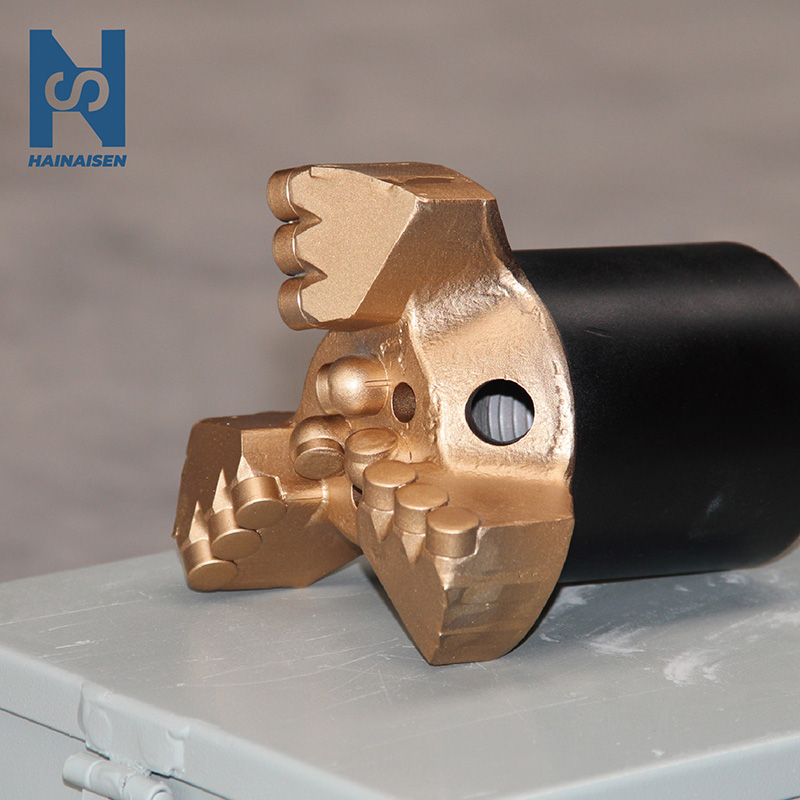

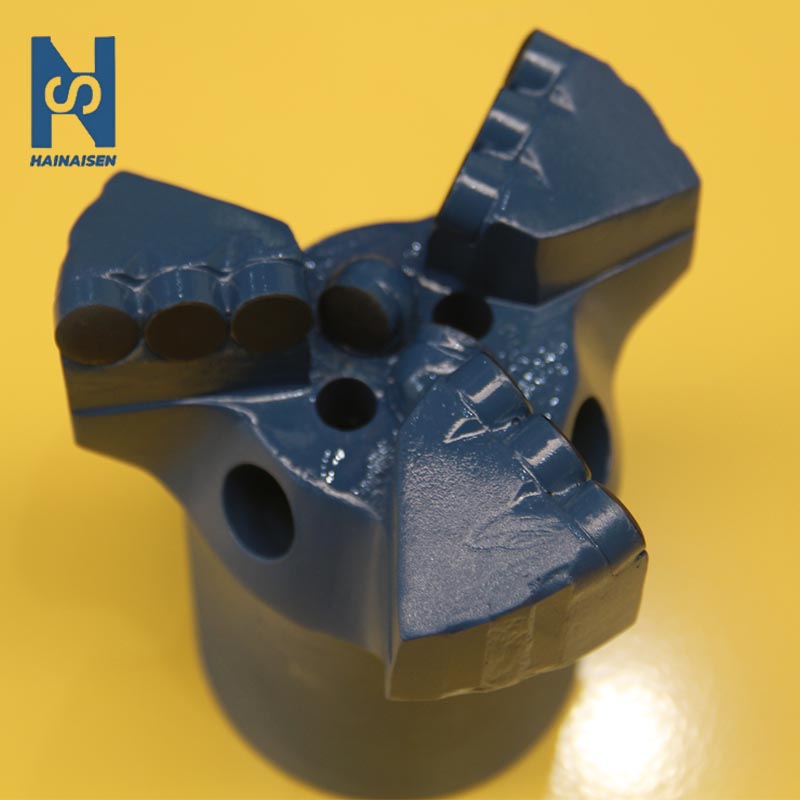

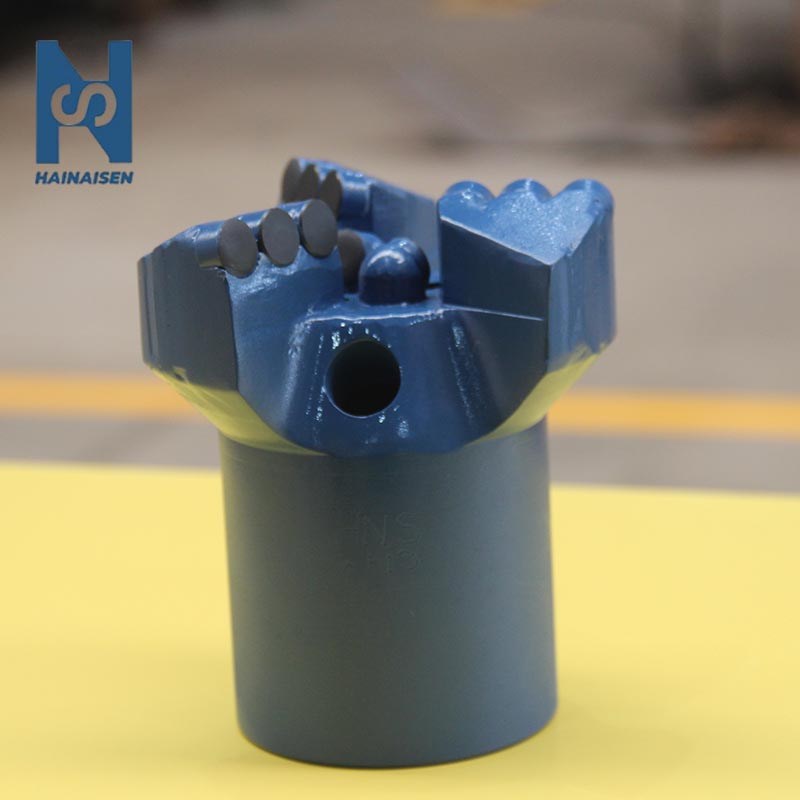

Shaanxi Hainaisen Petroleum Technology Co., Ltd delivers the 3 Blades Steel Body PDC Bit with proven engineering for demanding drilling operations. This advanced drilling tool features a robust steel body construction measuring 113mm in diameter, equipped with three strategically positioned blades and five optimized nozzles. The design integrates 1308 series PDC cutters and accommodates 63.5 cone buckle connections with customization options. Engineered for formations rated 1-12 on hardness scales, this bit combines aggressive cutting performance with exceptional stability. With over 10 years of PDC cutting technology expertise and a dedicated team of 20 senior technicians, Hainaisen Manufactures drilling solutions backed by independent intellectual property rights and rigorous quality standards.

Superior Steel Body Construction

The steel body design provides unmatched impact resistance compared to matrix alternatives. Your drilling operations benefit from enhanced durability when encountering unexpected formation changes or challenging downhole conditions.

Steel construction allows for easier customization and repair options. The material composition ensures consistent performance across varying temperature ranges while maintaining structural integrity under high torque applications.

Size Selection Table

Three-Blade Configuration Advantages

The three-blade layout distributes cutting forces evenly across the drilling face. This balanced weight distribution reduces vibration levels significantly, leading to smoother operations and extended equipment lifespan.

Each blade houses precision-engineered PDC cutters arranged in optimized patterns. The configuration maximizes rock removal efficiency while providing directional stability crucial for horizontal and angled wellbore trajectories.

The design minimizes stick-slip phenomena that commonly plague drilling operations. You experience improved rate of penetration with reduced mechanical stress on drill string components.

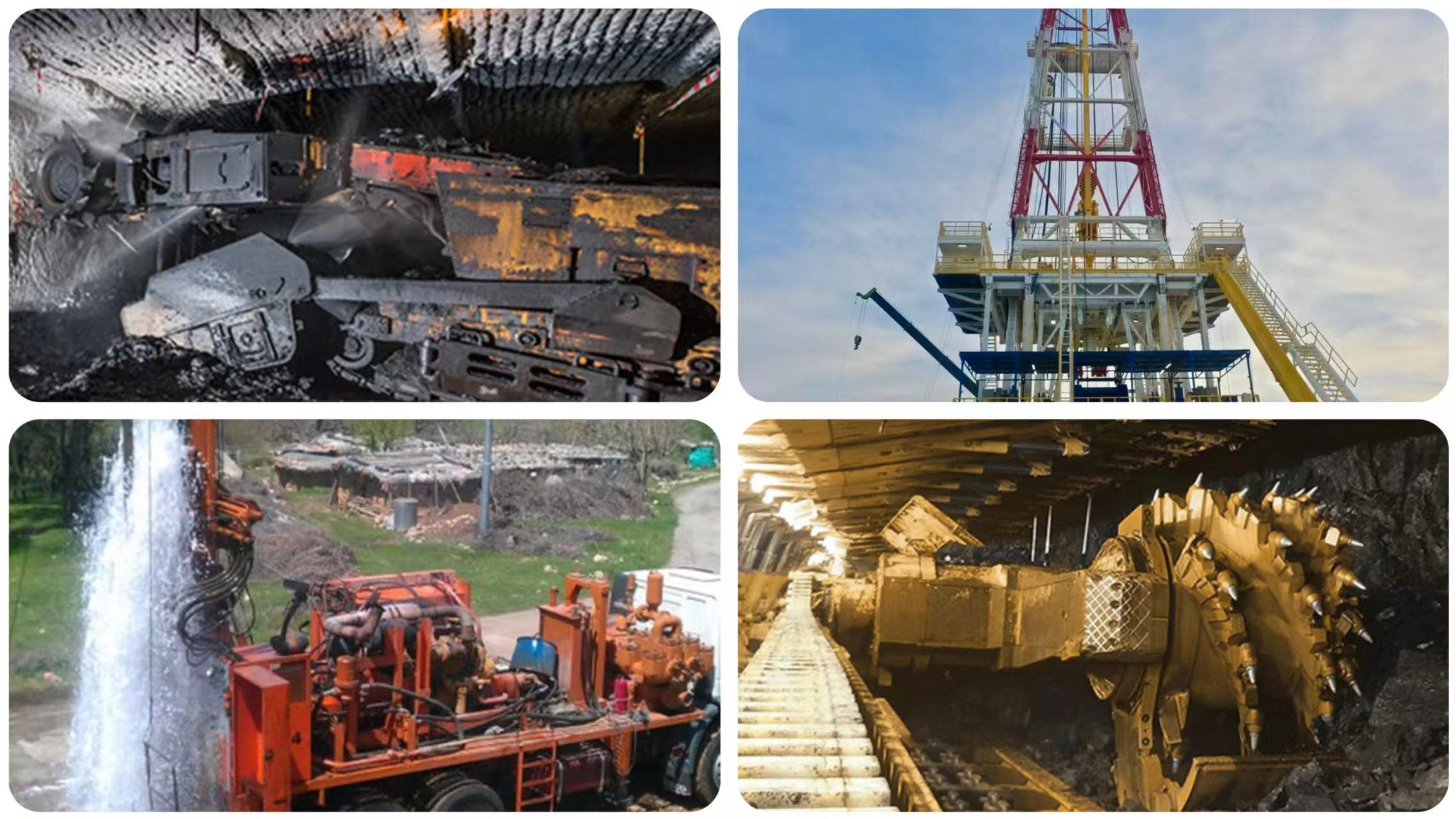

Application Environments

This 3 Blades Steel Body PDC Bit excels in soft to medium-hard formations commonly found in oil and gas exploration projects. The polycrystalline diamond cutters maintain sharpness significantly longer than traditional roller cone alternatives.

Mining operations benefit from the bit's ability to handle coal seams and mineral deposits efficiently. The anti-plugging blade geometry prevents material buildup that reduces cutting effectiveness.

Water well drilling projects achieve faster completion times with consistent performance. The bit handles interbedded formations where rock properties change frequently without requiring immediate replacement.

Geological exploration programs utilize this tool for core sampling operations. The stability provided by the three-blade design ensures accurate borehole placement essential for mapping subsurface structures.

Performance Optimization Features

Five strategically positioned nozzles deliver optimal hydraulic cleaning. This configuration removes cuttings efficiently from the bit face, preventing regrinding that wastes energy and accelerates wear.

The concave profile enhances cutting aggressiveness in targeted formation types. This design characteristic works synergistically with PDC cutter placement to maximize penetration rates while maintaining bit stability.

High-temperature adaptability ensures reliable operation in deep well conditions. Your drilling program maintains productivity even when bottom hole temperatures exceed standard operating ranges.

The fixed cutter design eliminates moving parts that typically require maintenance. You reduce operational complexity and minimize downtime associated with component failures.

Project Case Studies

case Study 1: Horizontal Shale Drilling Operation

A regional energy company utilized our 3 Blades Steel Body PDC Bit for horizontal sections in shale formations. The project required precise directional control across 1,200 meters of lateral drilling.

The bit delivered consistent performance throughout the operation, maintaining trajectory accuracy within specified tolerances. Drilling personnel reported 25% faster penetration rates compared to previous tools used in similar formations.

Reduced vibration levels protected downhole measurement equipment, ensuring continuous data transmission. The project completed ahead of schedule with zero bit-related delays.

Case Study 2: Coal Mining Exploration Program

A mining contractor employed our bits for exploratory drilling in coal-bearing strata with interbedded sandstone layers. Formation hardness varied between ratings 4-9 throughout the drilling depth.

The steel body construction withstood impact loading from transitional zones between soft and hard layers. Operators completed 15 boreholes averaging 200 meters depth using only three bits.

The anti-plugging blade design prevented coal fines accumulation that had plagued previous drilling attempts. Sample quality improved significantly, providing better geological data for mine planning.

Quality Control

HAINAISEN maintains rigorous quality control standards throughout the manufacturing process:

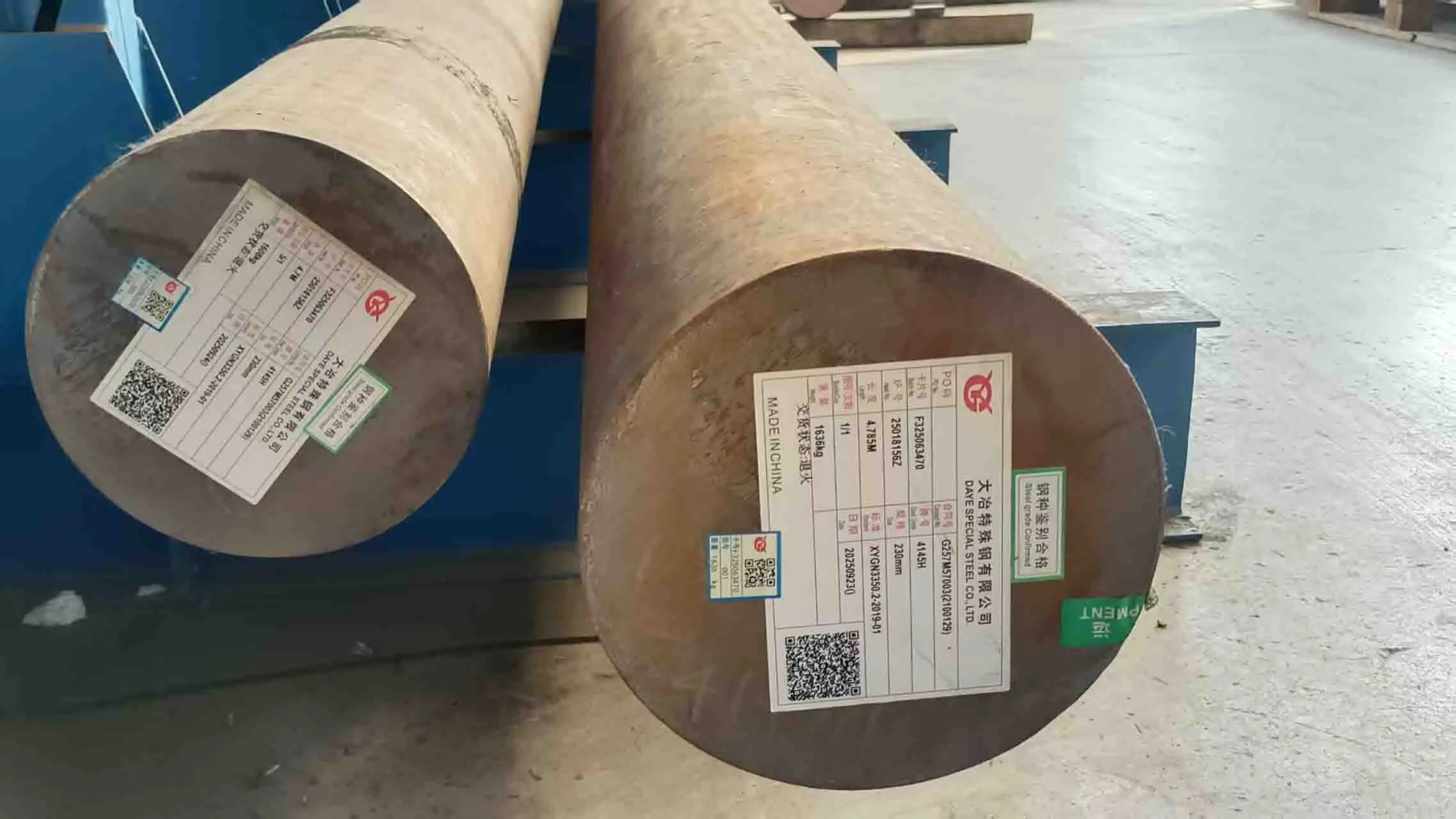

• Strict material selection and testing
• Advanced CNC machining for precise fabrication
• Comprehensive inspection at every production stage
• Final performance testing before shipment

Why Choose HAINAISEN

• Over 10 years of industry experience and expertise
• State-of-the-art manufacturing facility in Xi'an
• Continuous innovation and R&D investments
• Commitment to customer satisfaction and support
• Competitive pricing and flexible solutions

Packaging and Transportation

Our products are carefully packaged to ensure safe transportation:

• Sturdy wooden crates or steel boxes for protection
• Custom packaging options available for specific needs
• Reliable shipping partners for domestic and international delivery

Transaction Feedback

We value customer feedback and continuously strive to improve our products and services. Our team follows up after each transaction to ensure complete satisfaction and address any concerns promptly.

Qualification Certification

HAINAISEN is proud to hold the following Certifications:

• ISO 9001:2015 Quality Management System
• API Spec Q1 Certification
• High-Tech Enterprise Certification

After-Sales Service

HAINAISEN provides comprehensive after-sales support:

Technical consultation and troubleshooting

Performance analysis and optimization recommendations

Warranty coverage for manufacturing defects

Repair and maintenance services

FAQ

Q1: What formations are best suited for this bit design?
A: The PDC Bit performs optimally in soft to medium-hard formations rated 1-12 on hardness scales. This includes sandstone, shale, limestone, coal seams, and clay formations. The steel body provides impact resistance for interbedded layers where hardness varies.

Q2: How does blade count affect drilling performance?
A: Three blades balance aggressive cutting with operational stability. This configuration reduces vibration compared to single or dual blade designs while maintaining higher penetration rates than four or five blade alternatives. The design particularly benefits directional drilling requiring precise trajectory control.

Q3: Can connection types be customized for existing equipment?
A: Yes, while standard configuration features 63.5 cone buckle connections, we accommodate custom connection requirements. Our engineering team works with your specifications to ensure compatibility with existing drill string components.

Q4: What maintenance practices extend bit lifespan?
A: Proper hydraulic flow rates prevent cutter overheating and ensure efficient cutting removal. Avoid excessive weight-on-bit that can damage cutters prematurely. Regular inspection of cutter condition helps determine optimal pull points before significant wear occurs.

Q5: How quickly can orders be fulfilled?
A: Standard orders ship within 5-7 business days from order confirmation. Customized specifications may require additional production time depending on modification complexity. Our manufacturing facility maintains production capacity to meet urgent project timelines.

Contact Us

For inquiries about our 3 Blades Steel Body PDC Bits or to discuss your specific drilling needs, please Contact Us at hainaisen@hnsdrillbit.com.
