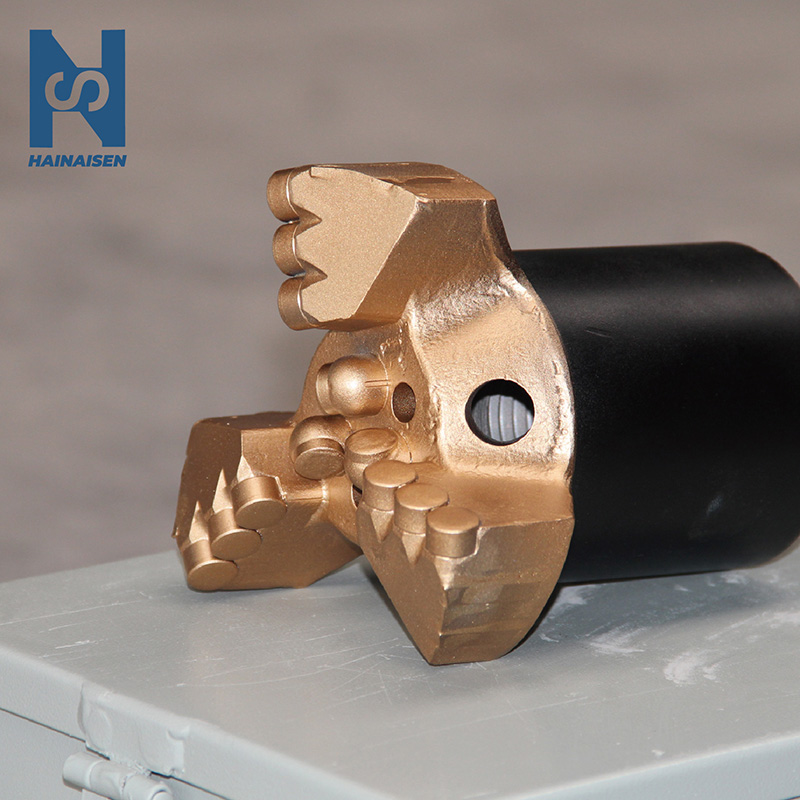

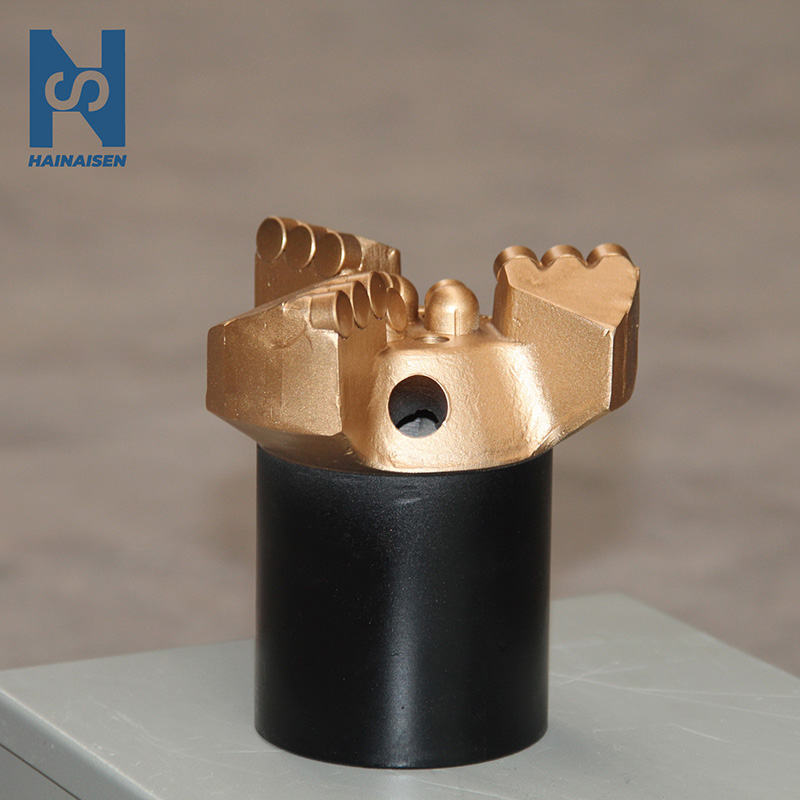

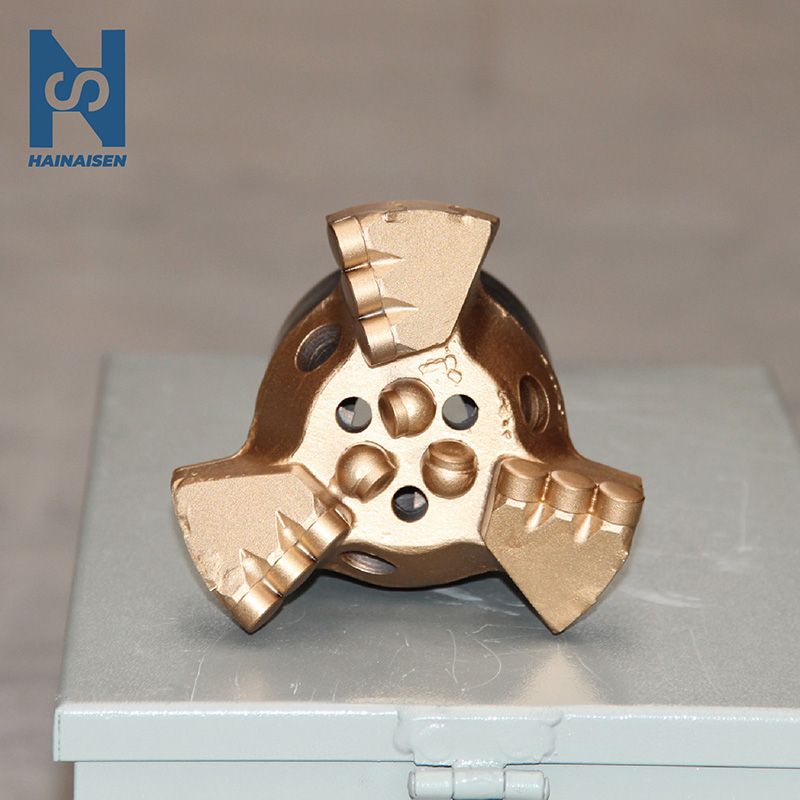

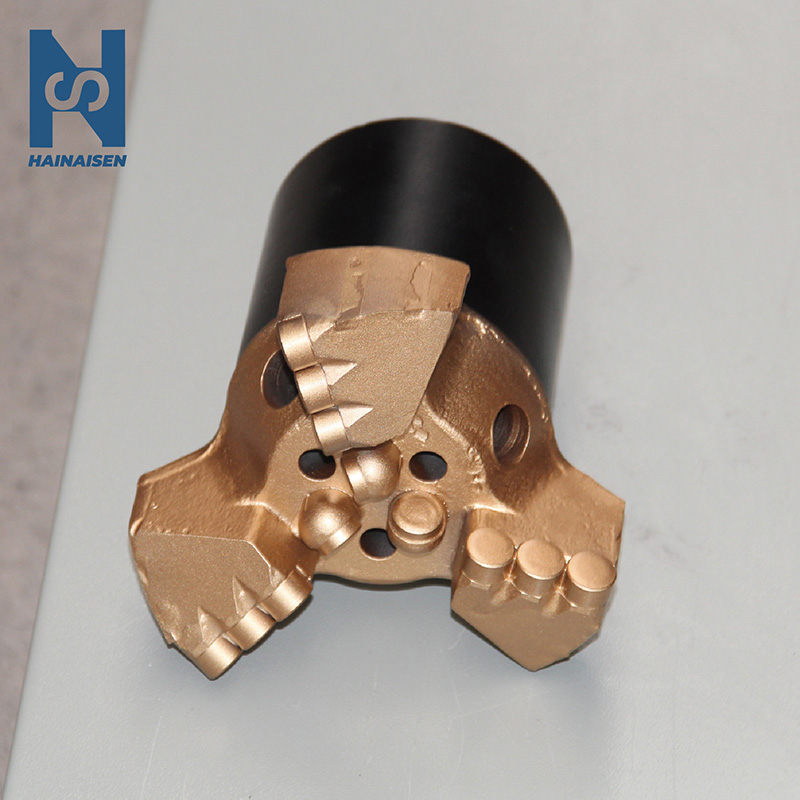

Three Blade Concave Drill Bit Api For Manganese Coal Mines
Bit size: 133mm(50-150mm)
Number of Blade: 3
Number of Nozzle: 5
PDC cutter :1308
Connection type: 63.5cone buckle（customized）
Package Details: customized
Applicable strata:1-12
Minimum Order Quantity : 10 pieces
Price : To be negotiable
Delivery Time : 5-7 business days
Payment Terms : T/T, L/C
- Product Description
Three Blade Concave Drill Bit API For Manganese Coal Mines | Advanced PDC Mining Solution
SHAANXI HAINAISEN INTELLIGENT EQUIPMENT MANUFACTURING CO., LTD delivers the Three Blade concave drill bit API For Manganese Coal Mines, engineered specifically for high-performance drilling operations in challenging manganese-containing coal formations. This bit, which has a 133mm diameter design with five carefully placed nozzles and quality 1308 PDC cutters, is made with Polycrystalline Diamond Compact (PDC) technology and is supported by more than ten years of drilling innovation.
With a committed staff of 20 senior technicians, our 6,000-square-meter manufacturing facility guaranties that every bit satisfies exacting quality standards. Your dependable partner for water injection, gas drainage, and anchor support drilling applications, the concave blade geometry offers improved penetration rates while maintaining outstanding stability over strata levels 1–12.
Three-Blade Concave Drill Bit vs. Ordinary Three-Wing Drill Bit
| Item | Hainaisen Three-Blade Concave Drill Bit | Ordinary Three-Wing Drill Bit |
|---|---|---|
| Hole Forming Accuracy | High, low deviation rate in coal/manganese ore layers | Low, prone to bit wandering in loose formations |
| Service Life | 15%-20% longer, less wear | Prone to uneven wear, short replacement cycle |
| Anti-clogging Performance | Concave structure optimizes chip removal, low clogging risk | Easy to accumulate cuttings, frequent bit sticking |
| Applicable Scenarios | Coal mines, manganese ore mines, soft-medium hard rock | Single soft rock formations with low requirements |
Why Choose Our Three-Blade Concave Design
In coal mine drilling, the three-blade arrangement strikes the ideal balance between control and aggression. Compared to multi-blade alternatives, your drilling operations benefit from lower torque needs and faster penetration rates.
In manganese-rich rocks, our concave blade shape produces effective chip evacuation channels that avoid clogging. In order to prolong the PDC cutters' operational lifespan, the design distributes wear uniformly throughout the cutters by ensuring constant contact with the formation face.
Each blade incorporates strategically positioned 1308-grade PDC cutters that resist abrasive wear from manganese compounds. This material selection ensures your Three Blade Concave Drill Bit API For Manganese Coal Mines maintains sharp cutting edges throughout extended drilling campaigns, reducing costly bit trips and downtime.
Superior Performance in Manganese Coal Environments
Manganese content in coal seams presents unique drilling challenges due to increased formation hardness and abrasiveness. Our drill bit addresses these challenges through specialized engineering that combines diamond hardness with optimized hydraulic design.
The five-nozzle configuration delivers targeted cooling to critical cutting zones. This hydraulic system maintains optimal operating temperatures while efficiently removing drill cuttings from the bit face, preventing heat buildup that could damage PDC cutters.
Your directional drilling projects gain precision control through the bit's balanced cutting structure. The three-blade arrangement provides excellent steerability for navigating complex well trajectories common in modern coal mining operations, whether you're drilling horizontal gas drainage holes or precisely positioned water injection wells.

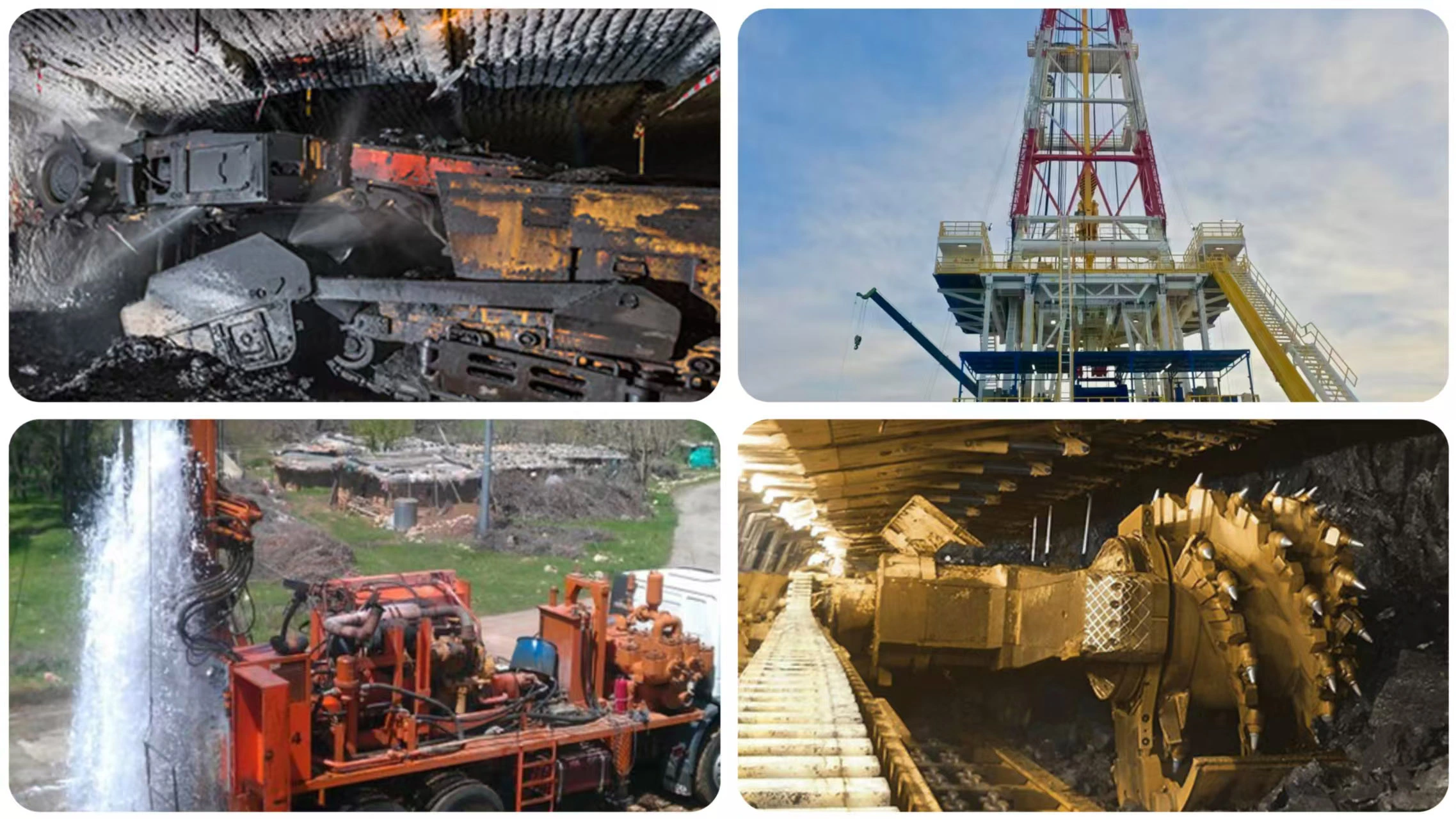

Comprehensive Application Versatility
Beyond manganese coal mining, your Three Blade Concave Drill Bit API For Manganese Coal Mines excels across multiple drilling scenarios. The adaptable design handles geological exploration projects where formation characteristics vary unpredictably.
Water conservancy and construction applications benefit from the bit's ability to maintain consistent performance across changing rock types. Highway, railway, and bridge foundation drilling projects leverage the same durability that coal miners depend on.
The customizable connection type accommodates your existing drilling equipment, whether you operate standard API connections or specialized rig configurations. This flexibility eliminates compatibility concerns and simplifies inventory management across diverse project portfolios.
Quality Control
At HAINAISEN, quality is our top priority. Every Three Blade Concave Drill Bit undergoes rigorous testing:
- Dimensional accuracy checks
- Material composition analysis
- Simulated drilling performance tests
- API compliance verification
Project Case Studies
Coal Mine Gas Drainage Optimization Project
Using traditional tricone bits, a large coal mining operation in Northwest China had to deal with decreasing penetration rates in manganese-enriched seams. They doubled bit life from 280 meters to 560 meters per bit and attained 40% quicker drilling rates after adopting our three-blade concave PDC design.
Lower pump pressures were possible while still effectively removing cuttings because to the enhanced hydraulics, which decreased pressure loss. The project greatly improved mine safety metrics by finishing 85 drainage holes ahead of schedule.
Underground Water Injection Network Expansion
An integrated mining facility required precise horizontal drilling for water injection infrastructure across zones with varying manganese concentrations. Our Three Blade Concave Drill Bit API For Manganese Coal Mines delivered consistent directional control, achieving target intersections within 0.5-meter tolerances.
The project utilized 23 bits to complete 4,200 meters of directional drilling. Average penetration rates reached 8.5 meters per hour, with zero premature bit failures, demonstrating exceptional reliability in demanding conditions.
Packaging and Transportation
To guaranty safe, prompt shipping anywhere in the world, our bits are carefully packaged in protective cases and transported by reputable logistics partners. To prevent damage during transportation, each bit is meticulously packed in sturdy, shock-resistant cases, and our reliable logistics partners guaranty prompt, effective delivery to locations all over the world.
Transaction Feedback
We appreciate your opinions. After every transaction, our staff follows up to get input and make sure you are completely satisfied with our goods and services. Our team actively contacts you after a transaction to hear about your experience, resolve any issues, and make sure all of our offers live up to your expectations because we really believe that feedback is essential to growth.
Manufacturing Excellence Behind Every Bit
Your drilling success depends on manufacturing precision that our Xi'an facility delivers consistently. Each bit undergoes computerized quality inspections that verify cutter placement accuracy, hydraulic flow characteristics, and structural integrity.
Our 150+ employee team includes specialists in PDC cutting technology who pioneered diamond bit manufacturing in China. This expertise translates to superior metallurgical bonding between PDC cutters and matrix material, preventing cutter loss during aggressive drilling.
We maintain rigorous raw material standards, sourcing only premium tungsten carbide and synthetic diamond from certified suppliers. This commitment to quality inputs ensures your bits perform predictably across their entire service life.
Qualification Certification
- ISO 9001:2015 certified
- API Spec 7-1 compliant
- CE marked for European markets
FAQ
Q1: What formations work best with three-blade concave bits?
A: Three-blade designs excel in soft to medium formations including shale, sandstone, and coal seams with PSI ratings between 2,000-8,000. The aggressive cutting action maximizes penetration rates in these conditions while maintaining directional control.
Q2: How does the concave profile improve drilling efficiency?
A: The concave blade shape increases the effective cutting surface area contacting the formation. This geometry reduces localized stress concentrations, distributing loads across more cutters while creating natural pathways for hydraulic fluid flow and cuttings evacuation.
Q3: Can you customize thread connections for my specific rig?
A: Absolutely. While our standard configuration uses 63.5mm cone buckle connections, we Manufacture custom threads matching your drilling equipment specifications. Minimum order quantities apply for specialized connection types to ensure manufacturing efficiency.
Q4: What maintenance extends bit life in abrasive manganese formations?
A: Maintain recommended weight-on-bit parameters to prevent excessive cutter loading. Monitor hydraulic flow rates ensuring adequate cooling and cleaning. Inspect bits regularly for cutter wear patterns that may indicate drilling parameter adjustments needed for optimal performance.
Q5: How quickly can you fulfill urgent project requirements?
A: Standard delivery completes within 5-7 business days for orders meeting our 10-piece minimum. For urgent project needs, contact our technical team to discuss expedited manufacturing options that may accommodate tighter timelines.
Contact Us
Ready to elevate your drilling performance? Contact Us today at hainaisen@hnsdrillbit.com for quotes, technical inquiries, or to discuss your specific Three Blade Concave Drill Bit API For Manganese Coal Mines needs.
