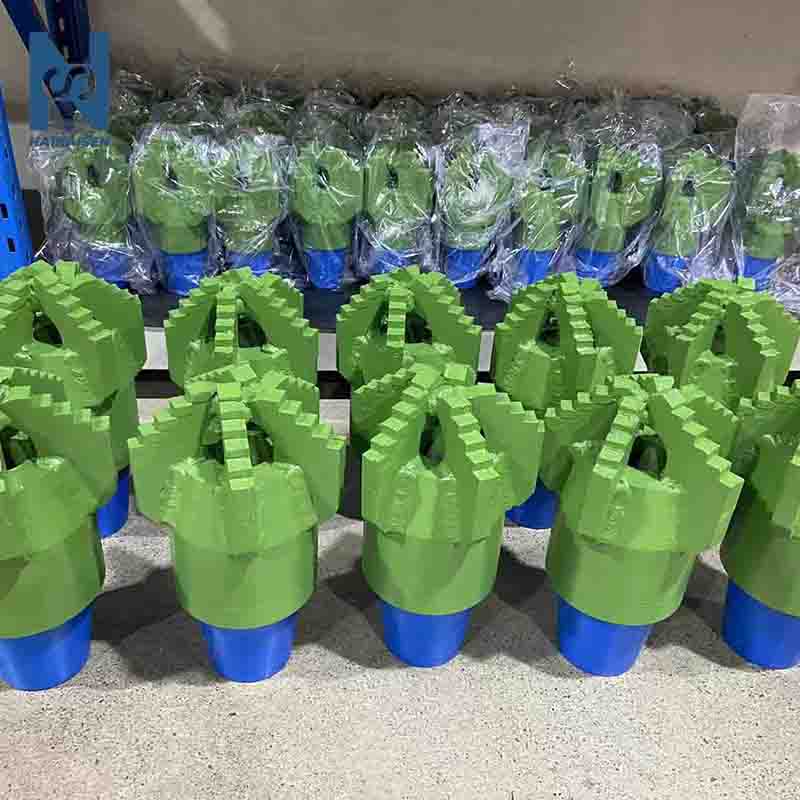

Steel Scraper Drill Bit

Steel Scraper Drill Bit | PDC Drag Bit Series | High-Performance Solution for Complex Formation Drilling

Shaanxi Hainaisen Petroleum Technology Co., Ltd delivers advanced Steel Scraper Drill Bit solutions engineered for demanding drilling operations across oil, gas, and mining sectors. With over 10 years of specialized experience since 2013, our 5-blade PDC drag bit configuration combines precision-engineered steel scraper elements with premium 13mm/16mm PDC cutters. Manufactured in our 6,000-square-meter facility by a team of 20+ senior technicians, this 8-inch drill bit achieves superior performance in formation levels 1-12 with a net weight of 28kg and 4-1/2 REG.PIN connection customization options.

Advanced Engineering Design

The innovative 5-blade design of our Steel Scraper Drill Bit is optimized for effective cutting and debris removal. In order to quickly remove formation materials while preserving structural integrity, each blade incorporates strengthened steel scraper components that complement PDC cutters.

The hydraulic system with five nozzles guaranties the best possible circulation of drilling fluid. This arrangement allows drilled materials to be continuously removed from the borehole while preventing blade overheating. Even in abrasive formations, your drilling operations benefit from longer bit life and less downtime.

Selection Guide (Table + Text)

Selection Table

Selection Tips

1. Formation first: Choose blade hardness and angle based on your drilling formation. Soft formations need sharp blades; medium-hard formations need wear-resistant blades.
2. Rig compatibility: Confirm your rig's connection type and torque capacity before ordering.
3. Project depth: Deeper wells require higher-strength bit bodies and stable connections.
4. Cost balance: For shallow wells, standard scraper bits are the most cost-effective; for complex formations, we recommend custom solutions.

Superior Material Composition

Hardened steel alloys chosen for their remarkable resistance to wear are used in the scraper elements. You get a drilling tool that can handle both soft and medium-hard rocks without premature wear thanks to polycrystalline diamond compact technology.

Every product is guarantyd to be of consistent quality thanks to our exclusive manufacturing technique. To obtain the best hardness ratings, the steel components are subjected to a severe heat treatment. In the meantime, PDC cutters are positioned precisely to optimize cutting efficiency and formation contact.

Traditional bits cannot match the benefits of our dual-material approach. Drilling operations will go more smoothly with less torque needed and a higher penetration rate.

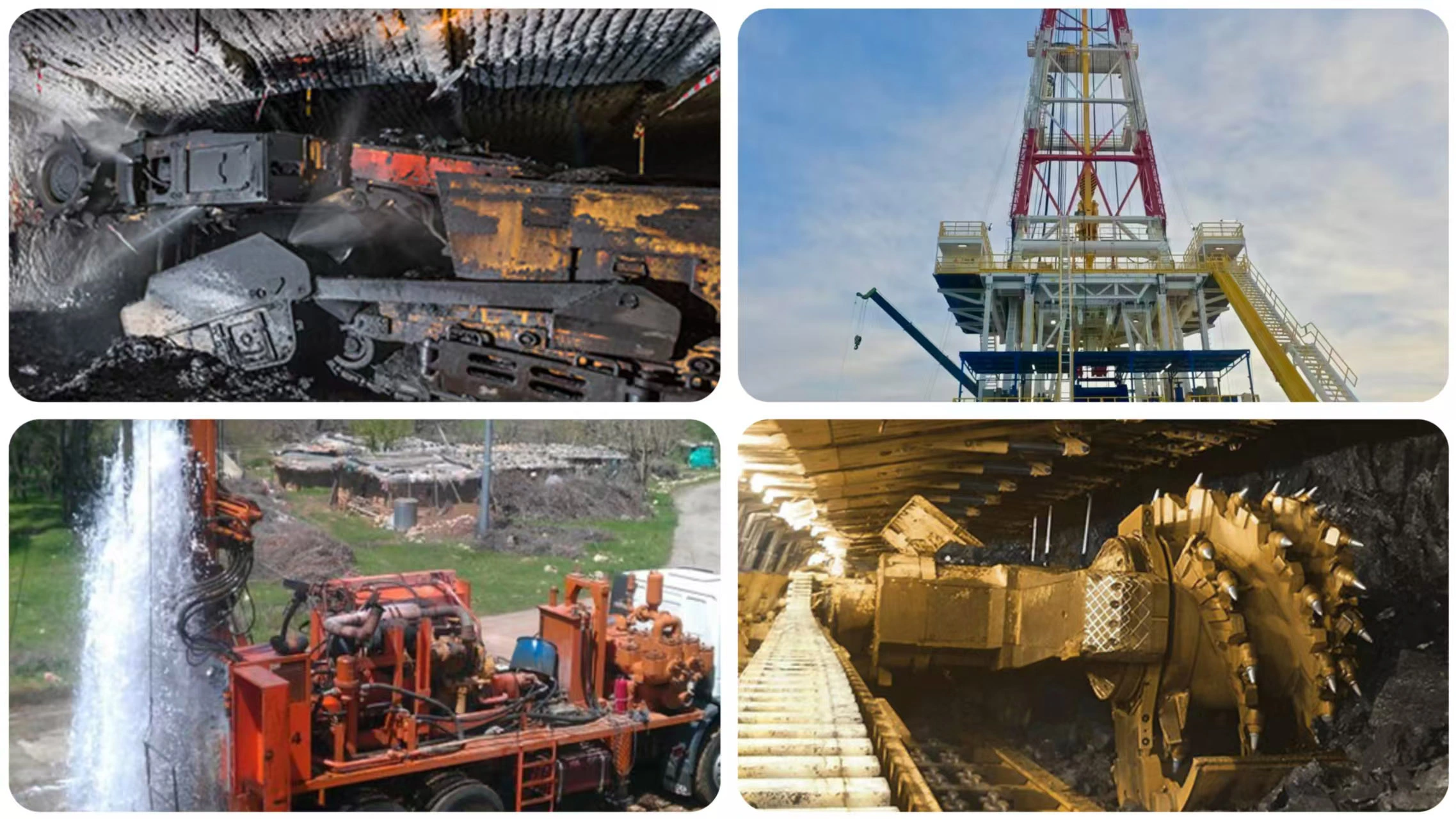

Versatile Formation Applications

This bit adjusts to different geological conditions, whether you are drilling thru sandstone, limestone, shale, or mixed formations. Harder rock layers are handled by PDC cutters, whereas soft to medium formations are best removed by steel scraper components.

You can keep drilling continuity during geological transitions because to the extensive formation compatibility (levels 1–12). This adaptability lowers your inventory needs and makes multi-formation drilling project logistics planning easier.

Flexibility is added to your operations without compromising performance. Regardless of changes in the formation, the bit continues to cut consistently, guaranteeing predictable drilling progress and cost control.

Customization Capabilities

We provide thorough customisation services since we recognize that no two drilling projects are alike. You can customize connection types, blade combinations, cutter diameters, and nozzle layouts to meet your unique operational needs.

Our engineering staff analyzes drilling parameters and formation data in close collaboration with you. This cooperative method guaranties that the finished product precisely satisfies your operating requirements. The same exacting quality requirements that apply to our conventional services also apply to custom solutions.

We preserve flexibility throughout the manufacturing process, from the creation of prototypes to complete production runs. You are given drilling equipment designed especially to meet your needs.

Maintenance and Operational Tips

Proper care extends the operational life of your Steel Scraper Drill Bit significantly. Always inspect blades and cutters before deployment to identify any shipping damage. During operations, monitor weight-on-bit and rotational speed to prevent excessive wear.

Regular cleaning of nozzles prevents blockages that reduce cooling efficiency. After each drilling session, thoroughly clean all bit surfaces to remove formation debris and drilling fluid residues. Store bits in dry environments to prevent corrosion of steel components.

When redeploying previously used bits, verify that all cutters remain securely bonded. Replace any bit showing significant blade wear or cutter damage to maintain drilling efficiency and prevent downtime.

Project Case Studies

A coal mining operation in northern China faced challenges drilling through alternating layers of coal seam and sandstone. Traditional bits required frequent changes between formations, increasing operational costs and project timelines.

After deploying our Steel Scraper Drill Bit, the operation achieved 40% faster penetration rates in transitional zones. The dual-action design eliminated bit changes across formation boundaries, reducing downtime by approximately 25%. The project completed two weeks ahead of schedule with significant cost savings.

Another application involved an oil exploration project requiring precise vertical drilling through 800 meters of mixed sedimentary formations. Our customized 8-inch configuration with optimized scraper placement maintained straight hole trajectory while achieving consistent penetration rates. The operator reported excellent bit durability with minimal maintenance requirements throughout the drilling program.

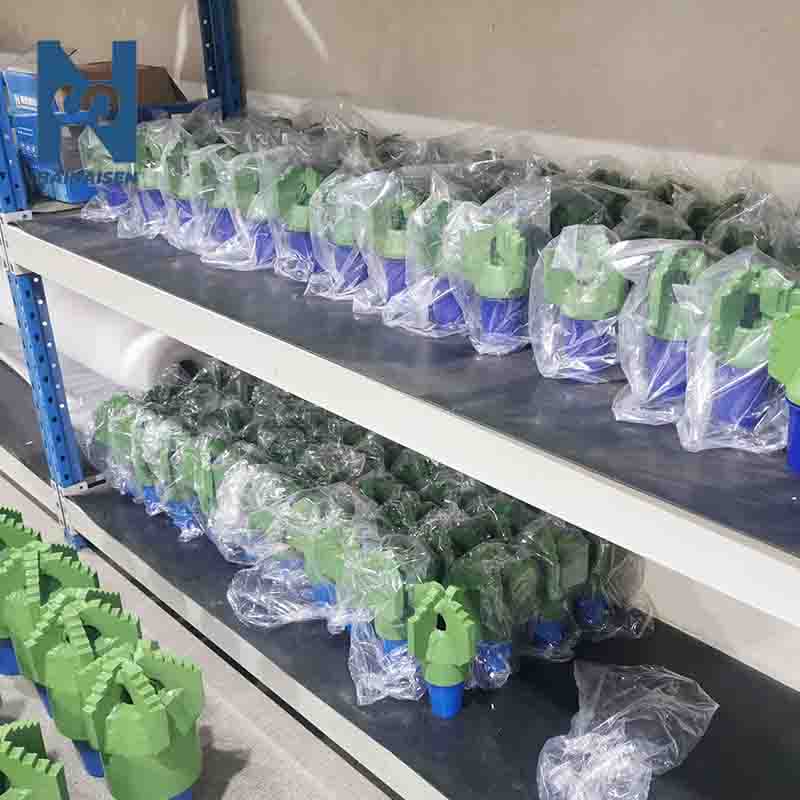

Packaging and Transportation

Our products are carefully packaged to ensure safe transportation:

• Individual protective wrapping for each bit
• Sturdy wooden crates or pallets for bulk orders
• Custom packaging options available upon request

Transaction Feedback

We value customer feedback and continuously strive to improve our products and services. Our team follows up after each transaction to ensure customer satisfaction and address any concerns promptly.

After-Sales Service

Hainaisen offers thorough post-purchase assistance:

• Technical support and troubleshooting
• Best practices and maintenance advice
• Coverage of manufacturing flaws under warranty
• Quick response to questions and requests for assistance

Certification of Qualification

Industry Certifications support our dedication to quality:

API (American Petroleum Institute) Certification ISO 9001:2015 Quality Management System CE Marking for compliance with European markets

FAQ

Q1: What formations work best with this bit design?
A: This bit performs optimally in soft to medium-hard formations ranging from unconsolidated sands to moderately consolidated sedimentary rocks. The steel scraper configuration excels in formations up to level 12 hardness.

Q2: How does delivery time vary with customization?
A: Standard configurations ship within 5-7 business days. Custom orders typically require an additional 3-5 days for engineering modifications and quality verification before shipment.

Q3: Can I order replacement components separately?
A: Yes, we supply replacement PDC cutters and steel scraper elements as spare parts. Contact our technical team with your bit specifications for compatible component recommendations.

Q4: What quality certifications does your manufacturing facility maintain?
A: Our facility operates under comprehensive quality management systems with documented procedures for material sourcing, manufacturing processes, and final inspection protocols ensuring consistent product reliability.

Contact Us

For inquiries about our Steel Scraper Drill Bits or to discuss your specific drilling needs, please email us at postmaster@hnsdrillbit.com.
