Choosing the right drilling tool directly affects drilling speed, operational cost, and project efficiency. When comparing polycrystalline diamond bits with traditional roller cone bits, drilling engineers need to consider formation type, penetration rate, durability, and total drilling cost rather than only the initial purchase price. Hainaisen specializes in high-performance polycrystalline diamond bits designed for oilfield, mining, and geological drilling applications, providing reliable solutions for customers worldwide.

According to international drilling practices, PDC technology has become one of the most important developments in modern drilling because diamond cutters provide continuous shearing action, while roller cone bits mainly rely on crushing and impact forces. Industry studies from IADC and SPE indicate that the correct bit selection can significantly improve ROP and reduce unnecessary trips.

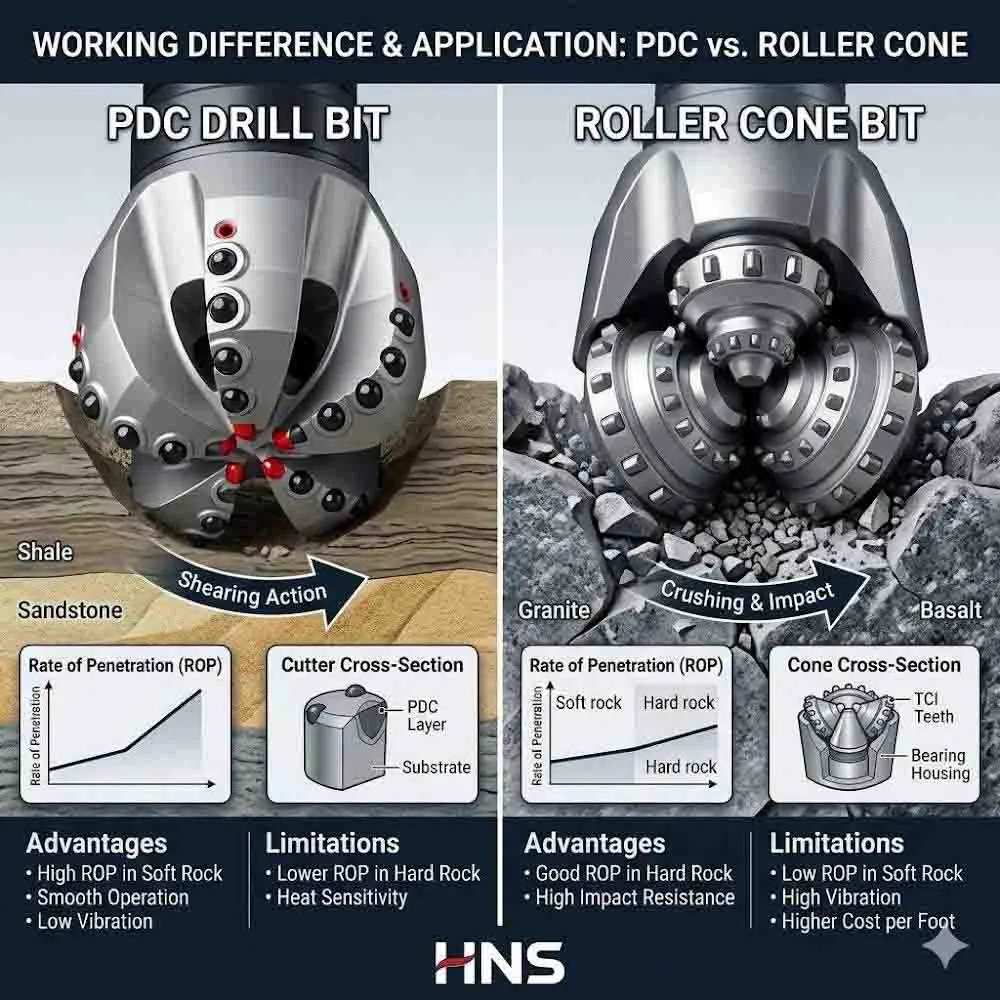

Understanding the Working Difference Between PDC Bits and Roller Cone Bits

PDC Bits and roller cone bits are designed with completely different cutting mechanisms.

A polycrystalline diamond bit uses fixed diamond cutters mounted on blades. These cutters remove rock through a shearing process similar to machining. Because there are no moving components, PDC bits can maintain stable drilling performance for longer periods in suitable formations.

Roller cone bits, also known as tricone bits, use rotating cones equipped with steel teeth or tungsten carbide inserts. The cones crush and break rock through compression and impact. This design provides good adaptability in fractured, extremely hard, or highly variable formations.

Key Comparison:

Modern drilling companies increasingly select PDC solutions because improved cutter technology, optimized blade design, and advanced hydraulics have expanded their application range. Baker Hughes and other international drilling companies have reported that improvements in PDC cutters and bit stability have allowed PDC technology to replace many traditional roller cone applications.

How to Select the Right Bit for Different Drilling Conditions

The best choice between PDC and roller cone depends mainly on geological conditions.

1. Soft to Medium-Hard Formations

For formations such as shale, claystone, sandstone, and limestone, PDC bits are usually the preferred choice.

For example, during a shale drilling project in North America, operators using advanced PDC designs achieved longer drilling intervals with fewer bit trips compared with previous roller cone solutions. The continuous cutting action helped maintain higher penetration rates and reduced downtime.

Hainaisen’s polycrystalline diamond bits are engineered with optimized cutter layouts and hydraulic designs to improve cutting removal and maintain stable drilling performance. Our PDC solutions are especially suitable for customers seeking higher efficiency and lower drilling costs.

2. Hard and Abrasive Rock Applications

Roller cone bits still have advantages in extremely hard and fractured formations because their crushing mechanism can handle impact loading.

However, modern PDC designs have improved significantly. Advanced diamond cutters, stronger substrates, and optimized cutter placement allow high-quality PDC bits to work effectively in many challenging formations.

In mining and hard-rock drilling projects, selecting the correct cutter size, back rake angle, and blade configuration is essential. Hainaisen works closely with customers to provide customized drilling solutions based on rock characteristics.

3. Directional and Long-Hole Drilling Projects

For directional wells, offshore drilling, and deep-hole applications, reducing trips is extremely important because every additional trip increases operational costs.

PDC bits offer advantages because they have no mechanical bearings that can fail during long drilling intervals. SPE/IADC technical studies have shown that specialized PDC designs can successfully improve directional drilling performance when properly matched with drilling parameters.

Hainaisen’s engineering team focuses on:

• Optimized cutter arrangement
• Improved impact resistance
• Stable torque performance
• Customized blade design

These features help customers achieve consistent drilling results in complex environments.

Why Choose Hainaisen Polycrystalline Diamond Bits?

Hainaisen has accumulated extensive experience in designing and manufacturing drilling tools for international customers. Our products are developed according to practical drilling requirements, combining advanced diamond cutter technology with professional engineering support.

Customers choose Hainaisen because our polycrystalline diamond bits offer:

1. High Wear Resistance
Premium diamond cutters provide excellent resistance against abrasive formations.

2. Stable Drilling Performance
Optimized cutter placement reduces vibration and improves drilling stability.

3. Customized Solutions
We can adjust blade numbers, cutter sizes, hydraulic structures, and bit designs according to different projects.

4. Cost Efficiency
Longer service life and fewer bit changes help reduce total drilling expenses.

For example, one overseas drilling contractor working on a limestone formation project required higher footage per bit. After switching to a customized Hainaisen PDC design, the operator improved drilling continuity and reduced replacement frequency, creating better overall project economics.

FAQ About PDC Bits and Roller Cone Bits

Q1: Are PDC bits better than roller cone bits?

There is no universal answer. PDC bits usually perform better in stable formations because they provide higher penetration rates and longer operating time. Roller cone bits remain valuable for highly fractured and extremely hard formations.

Q2: What formations are best for polycrystalline diamond bits?

PDC bits are commonly used in shale, sandstone, limestone, coal formations, and many medium-hard rock applications. Modern designs can also handle more challenging formations with proper cutter selection.

Q3: Why do drilling companies prefer PDC bits for oil and gas wells?

PDC bits reduce the number of moving parts, provide higher ROP, and often allow longer drilling runs. This is especially important in deep wells where tripping operations are expensive.

Q4: Can Hainaisen provide customized PDC bit solutions?

Yes. Hainaisen provides customized designs based on formation analysis, drilling depth, equipment conditions, and customer requirements.

References

1. International Association of Drilling Contractors (IADC) – Technical publications on PDC cutting mechanisms and roller cone drilling technology.

2. Society of Petroleum Engineers (SPE) / IADC Drilling Conference Papers – Research on PDC bit performance improvement in directional drilling applications.
3. Baker Hughes – Drilling Contractor Technical Article: “A Bit of History: Overcoming Early Setbacks, PDC Bits Now Drill 90%-Plus of Worldwide Footage”
   Discussion of PDC technology development and industry adoption.
4. ScienceDirect – Engineering Failure Analysis: Roller Cone and PDC Bit Technology Review
   Research discussing drilling mechanisms and application differences between fixed cutter and roller cone systems.

Author Introduction

Author: Hainaisen Drilling Technology Team

The Hainaisen engineering team focuses on the research, development, and manufacturing of advanced drilling tools for global customers. With professional knowledge in PDC cutter technology and drilling applications, our team provides practical solutions for oil & gas, mining, and geological exploration projects worldwide.
