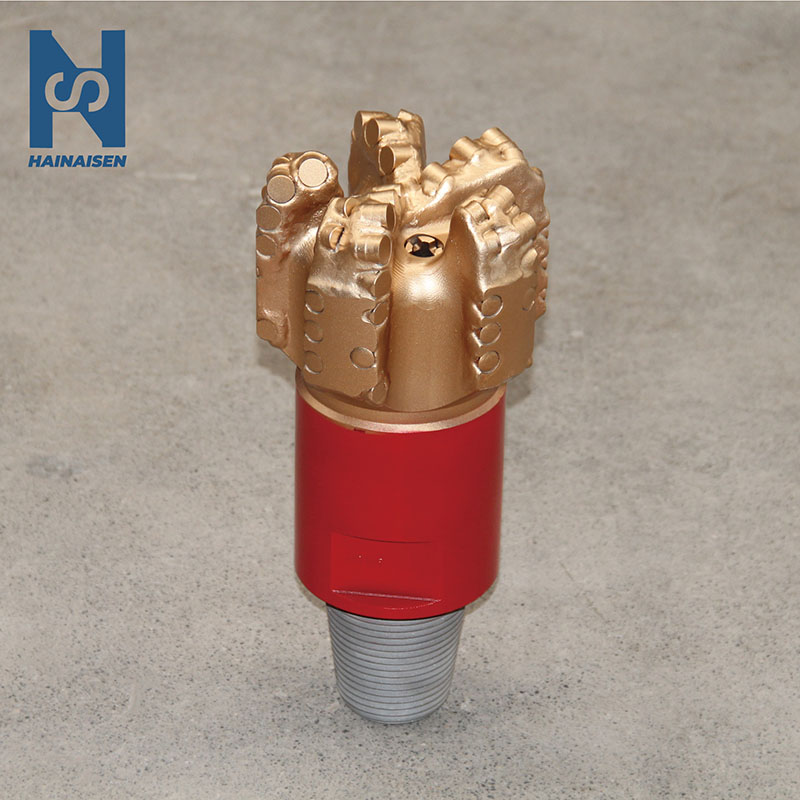

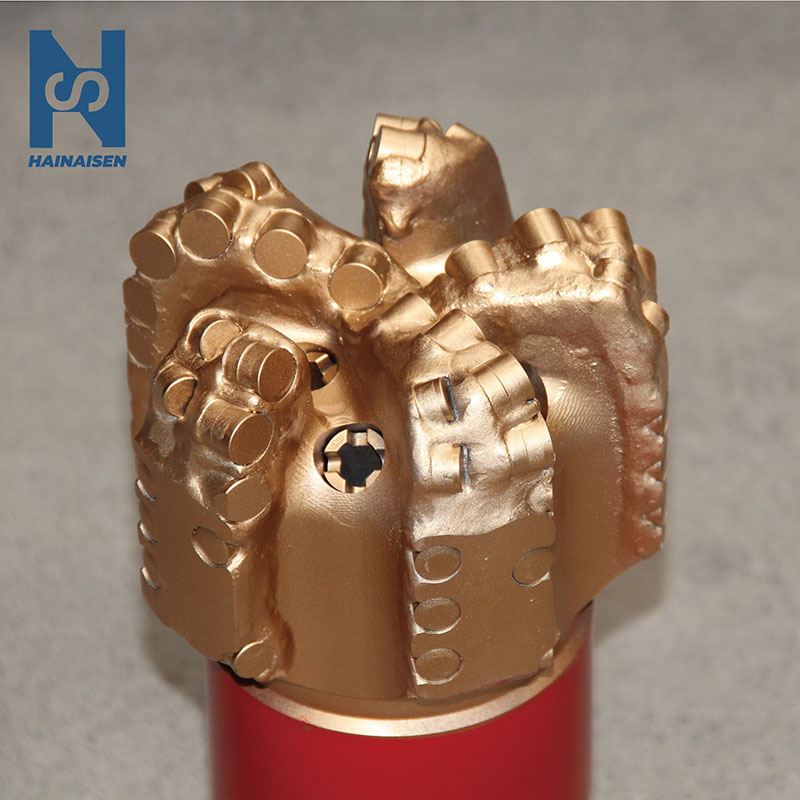

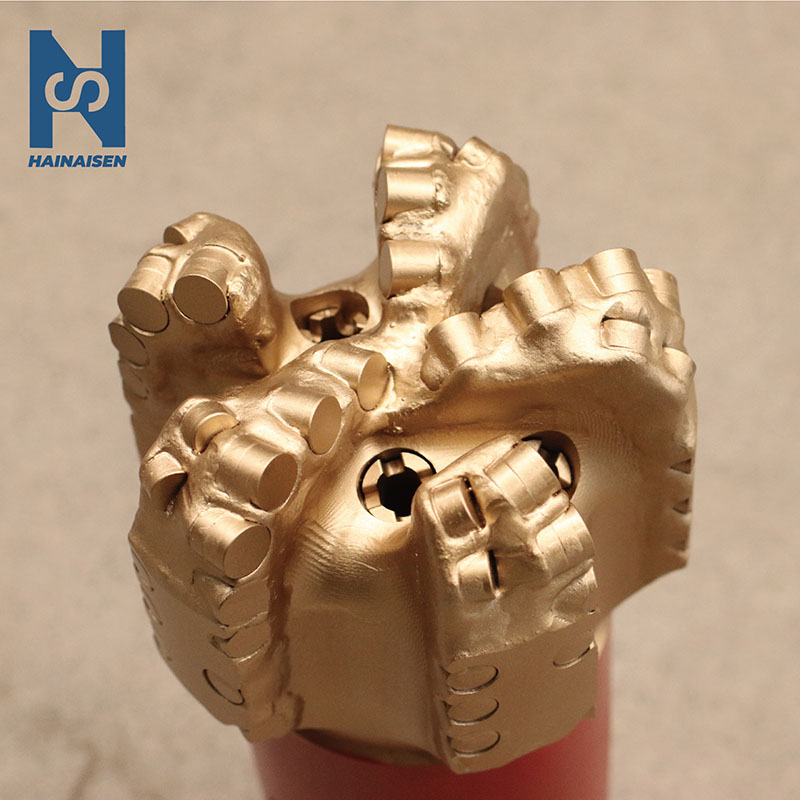

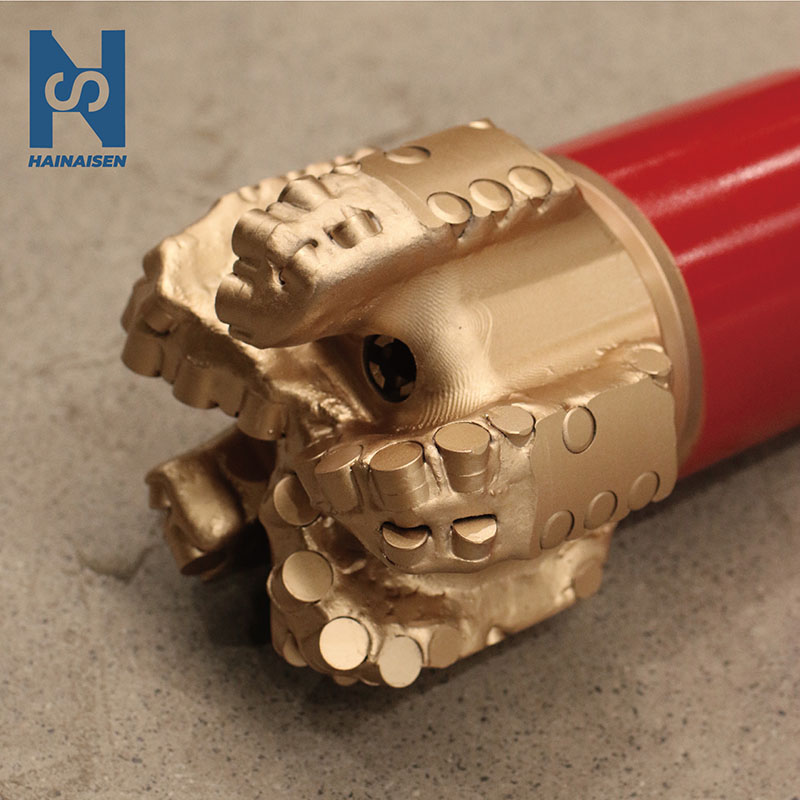

5 Blade Matrix Body PDC Drill Bits

5 Blade Matrix Body PDC Drill Bits - Premium Tungsten Carbide Drilling Solution for Hard Formations

Shaanxi Hainaisen Petroleum Technology Co., Ltd Manufactures high-performance 5 Blade Matrix Body PDC Drill Bits engineered specifically for demanding drilling environments. Our matrix body design incorporates tungsten carbide composite construction, delivering exceptional wear resistance in hard, abrasive formations. With over 10 years of PDC cutting technology expertise and a team of 20+ senior technicians, we produce drill bits featuring 28 precision-placed PDC cutters across five optimized blades. These bits achieve penetration rates 30% faster than conventional designs while maintaining stability across formation levels 1-12. Our 6,000-square-meter manufacturing facility in Xi'an ensures consistent quality backed by independent R&D capabilities and proven field performance.

Advanced Matrix Body Construction Technology

The matrix body composition sets our 5 Blade Matrix Body PDC Drill Bits apart from traditional steel-body alternatives. We utilize tungsten carbide grains metallurgically bonded with copper-based alloy through high-temperature furnace infiltration. This powdered metallurgy approach creates a body structure significantly harder than carbon steel.

Your drilling operations benefit from superior abrasion resistance when encountering granite, quartzite, and hard sandstones. The composite material resists erosion even in high-velocity hydraulic environments where fluid flow can rapidly degrade conventional bits.

The matrix construction also provides enhanced heat dissipation compared to steel bodies. Heat generated in high-impact zones dissipates efficiently through the tungsten carbide matrix, preventing premature cutter failure and extending operational life.

Five-Blade Design for Maximum Efficiency

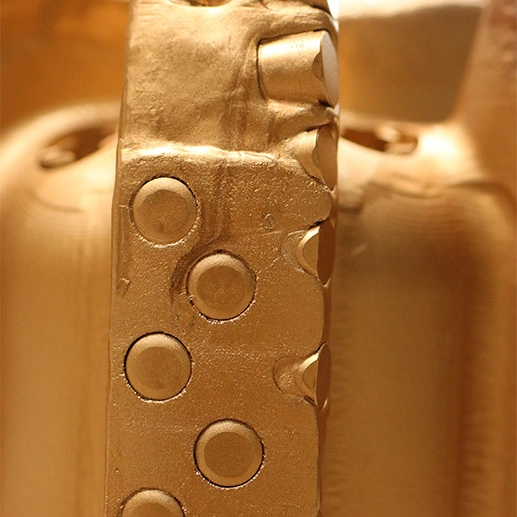

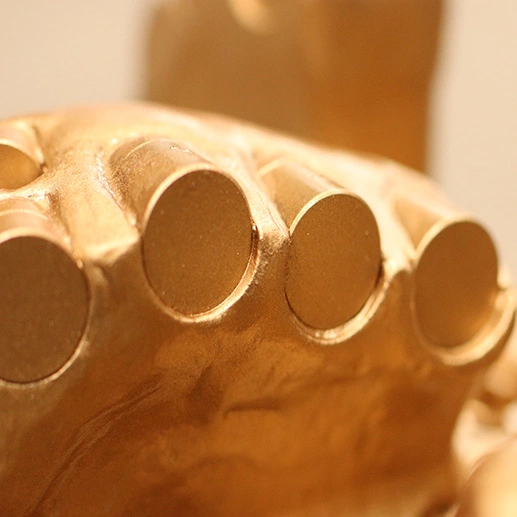

Our five-blade configuration optimizes both penetration rate and drilling stability. Each blade features strategically positioned PDC cutters (13mm and 16mm sizes) that efficiently shear rock formations. The balanced blade geometry minimizes lateral forces during rotation.

This design reduces vibration transmission to your drill string. The matrix body structure absorbs and dampens vibrations that would otherwise damage downhole equipment. You experience smoother drilling operations with less wear on connected components.

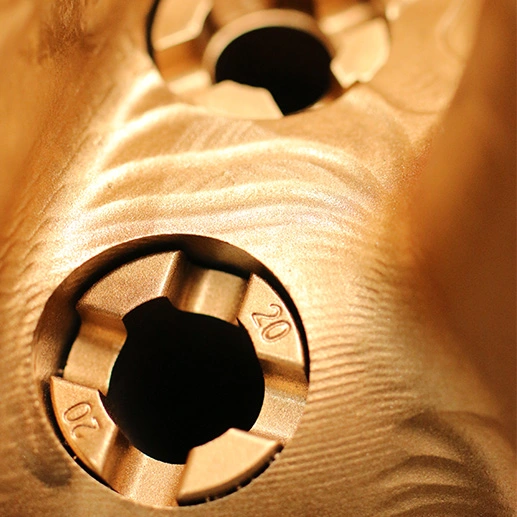

The junk slot geometry between blades ensures efficient cuttings evacuation. Drilled material moves quickly away from the cutting face, preventing regrinding and maintaining optimal penetration rates throughout your drilling operation.

PDC Bit Selection Guide

Operational Advantages You Gain

Your drilling projects achieve measurable cost reductions through extended bit life. The tungsten carbide matrix body withstands abrasive conditions that rapidly wear conventional bits. This durability translates to fewer bit replacements and reduced downtime.

Penetration rates increase significantly with our optimized cutter placement and blade geometry. You complete drilling operations faster, reducing rig time and associated operational expenses.

The 5 Blade Matrix Body PDC Drill Bits maintain performance consistency across variable formation conditions. Whether drilling through soft interbedded layers or transitioning to harder rock, the bit adapts without compromising stability or efficiency.

Chemical resistance proves essential in sour gas environments containing H2S and CO2. Our matrix body composition resists corrosion that degrades steel-body bits in these challenging applications.

Project Case Studies

A mining operation in Northwest China faced rapid bit wear when drilling through quartzite formations containing high silica content. After switching to our 5 Blade Matrix Body PDC Drill Bits, they achieved 40% longer bit life and reduced their drilling cost per meter by 25%.

An oil exploration project in Central Asia required bits capable of handling abrasive sandstone with unpredictable hardness variations. Our matrix body design maintained stable penetration rates across formation transitions, completing wells 15% faster than previous drilling campaigns.

A coal bed methane development utilized our bits for directional drilling through alternating hard and soft formations. The vibration dampening properties of the matrix body protected their downhole motors, reducing equipment failures by 60% compared to their previous bit selection.

6 Comparison with Other Bit Types

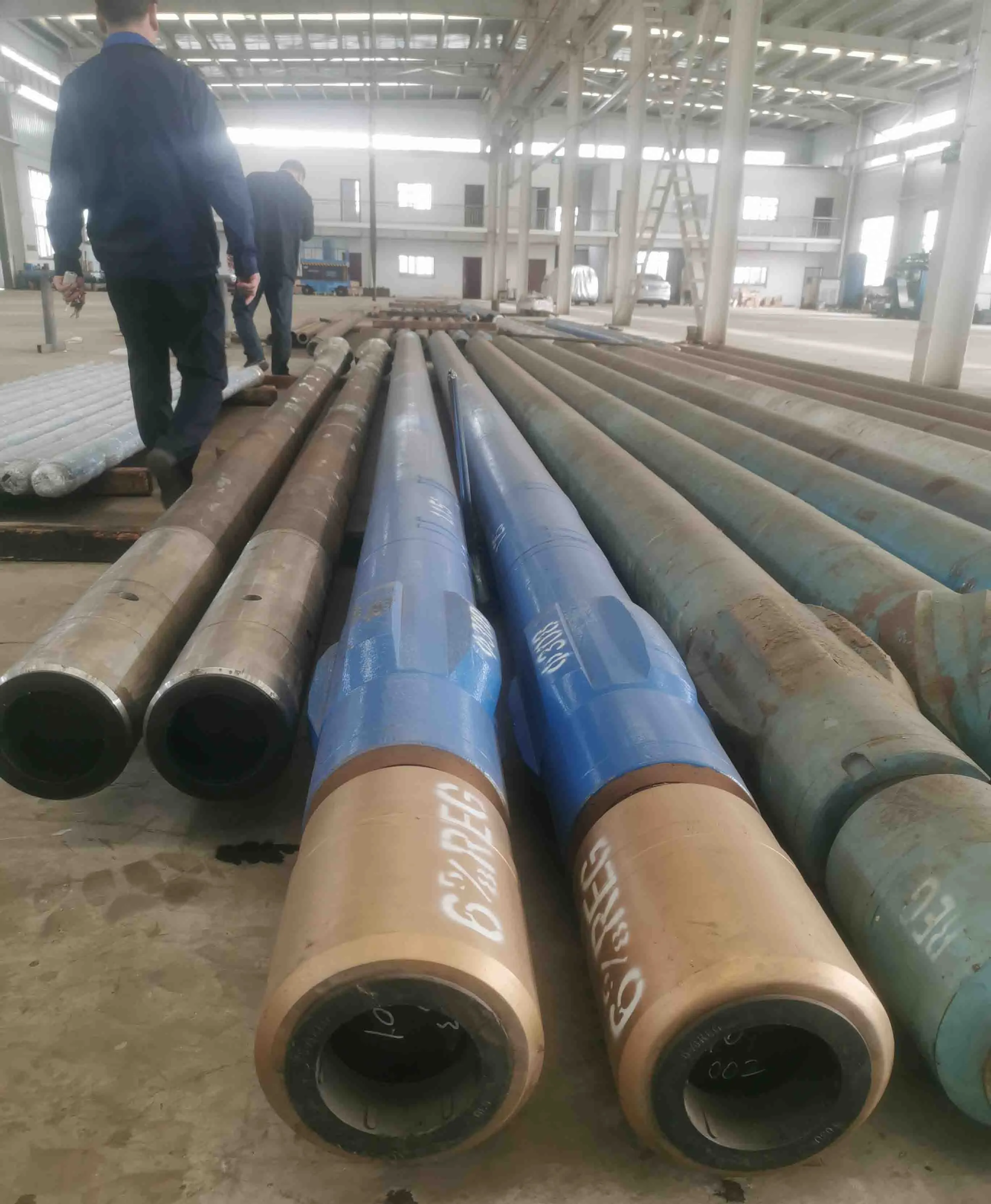

Material

Our products are crafted using premium materials:

• High-grade steel matrix body for superior strength and durability
• Advanced polycrystalline diamond compact (PDC) cutters for optimal cutting efficiency
• Tungsten carbide gauge protection for enhanced wear resistance

Quality Control

At HAINAISEN, quality is our top priority. We implement rigorous quality control measures throughout the manufacturing process:

• Stringent material selection and testing
• Advanced CNC machining for precise component fabrication
• Comprehensive inspection at every production stage
• Final performance testing before shipment

Why Choose HAINAISEN

• Over a decade of industry experience
• State-of-the-art manufacturing facilities
• Dedicated R&D team for continuous innovation
• Commitment to customer satisfaction
• Competitive pricing without compromising quality

Packaging and Transportation

Our products are carefully packaged to ensure safe transportation:

• Custom-designed protective cases
• Shock-absorbing materials to prevent damage
• Clear labeling and documentation
• Flexible shipping options to meet your timeline

Transaction Feedback

We value customer feedback and continuously strive to improve our products and services. Share your experience with us after your purchase.

Qualification Certification

HAINAISEN holds various industry Certifications, demonstrating our commitment to quality and safety standards. Contact Us for specific certification details.

After-Sales Service

Our commitment doesn't end with the sale. We offer comprehensive after-sales support:

• Technical consultation
• Performance optimization advice
• Wear analysis and recommendations
• Prompt response to inquiries and concerns

FAQ

Q1: What formations are best suited for matrix body PDC Bits?
A: These bits excel in hard, abrasive formations including granite, quartzite, hard sandstone, and interbedded lithologies. They perform optimally in levels 1-12 on standard formation hardness scales.

Q2: How does the matrix body improve bit longevity?
A: Tungsten carbide composite material provides hardness ratings significantly higher than steel. This resists erosion from drilling fluid flow and abrasion from cuttings contact, extending operational life substantially.

Q3: Can I customize the connection type?
A: Yes, while our standard configuration uses 3-1/2 REG.PIN connection, we accommodate custom connection requirements to match your specific drill string configuration.

Q4: What makes five blades optimal?
A: Five blades balance aggressive cutting action with structural stability. This configuration provides excellent weight distribution, efficient cuttings removal, and reduced vibration compared to four or six blade alternatives.

Q5: How quickly can you fulfill orders?
A: Standard orders ship within 5-7 business days. Our 6,000-square-meter manufacturing facility maintains production capacity to meet urgent project timelines when needed.

Contact Us

Our technical team stands ready to help you select the optimal bit configuration for your specific geological conditions and drilling parameters, including the 5 Blade Matrix Body PDC Drill Bits. Contact us at hainaisen@hnsdrillbit.com to discuss your requirements and receive detailed technical specifications tailored to your project needs.
