What Are the Best Oilfield PDC Bits for Shale Formation Drilling?

Contact Info:

Email: hainaisen@hnsdrillbit.com

WhatsApp/Tel: +8617791389758

Drilling through shale formations presents a unique set of engineering challenges for oilfield operators worldwide. While shale is softer than granite or quartzite, it is notoriously problematic due to its interbedded nature, high plasticity, and tendency to cause bit balling. To maintain a high Rate of Penetration (ROP) while preventing premature tool failure, choosing the right diamond tipped drill bits for oil rigs is critical.

As standard roller cone bits struggle with the shearing demands of shale, Polycrystalline Diamond Compact (PDC) bits have become the industry benchmark. In this technical guide, we will break down the top 4 specialized diamond tipped drill bits for oil rigs that excel in shale plays, back the science with industry authorities, and show why Hainaisen’s proprietary cutter technology is leading the market in run-life efficiency.

The Core Challenge of Shale: Why Cutter Selection Matters

According to technical papers from the Society of Petroleum Engineers (SPE), drilling shale requires a shearing action rather than a crushing mechanism. When a bit interacts with clay-rich shale, friction creates intense localized heat. If the diamond cutters lack premium thermal stability, they suffer from micro-chipping, leading to catastrophic ring-outs.

This is where Hainaisen steps in. By optimization of diamond grain sizing and ultra-high-pressure sintering, our engineered PDC Bits withstand the exact impact and abrasive profiles found in complex horizontal shale laterals.

Top 4 Diamond Tipped Drill Bits for Oil Rigs in Shale Formations

1. Steel-Body PDC Bits with Non-Planar Cutters

Best For: Fast top-hole intervals and highly plastic, sticky shale.

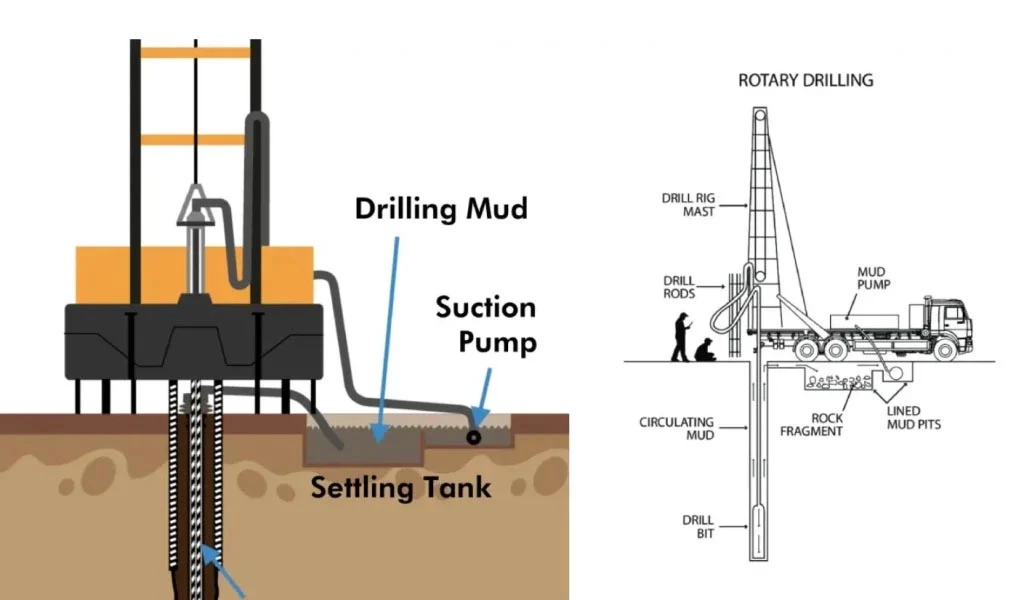

Why It Excels: Steel-body bits offer larger junk slots compared to matrix-body bits, allowing high-volume drilling mud to flush away sticky shale cuttings rapidly. When paired with non-planar (ridged or curved) diamond cutters, the bit pre-fractures the shale, reducing the mechanical energy required to shear the rock.

Hainaisen Advantage: Our Hainaisen Steel-Body Shale Dominator Series features optimized blade geometries that maximize hydraulic cleaning, ensuring your rig avoids the dreaded "bit balling" in active clay zones.

2. Matrix-Body PDC Bits with Thermally Stable Cutters (TSP)

Best For: Deep, high-temperature shale plays interbedded with abrasive sandstone or pyrite strings.

Why It Excels: Matrix-body material resists fluid erosion far better than steel. In deep shale horizons where temperatures soar, premium diamond-tipped cutters treated with deep leaching processes maintain their sharp cutting edges without thermal degradation.

Industry Context: Leading drilling visualizer Schlumberger (SLB) emphasizes that managing thermal wear at the cutter tip is the single most effective way to extend bit life in deep horizontal wells.

3. Multi-Blade (5 to 6 Blades) Medium Cutter PDC Bits

Best For: Transitioning from vertical to directional/horizontal drilling (the curve section).

Why It Excels: A 5 or 6-blade configuration utilizing 13mm or 16mm diamond cutters strikes the perfect balance between ROP and steerability. It provides excellent dynamic stability, preventing the lateral vibrations that break diamond tips when navigating the build section of a shale well.

4. Hybrid PDC/Tricone Bits (Diamond & Carbide Combo)

Best For: Highly fractured, variable shale mixed with hard limestone stringers.

Why It Excels: This design combines the shearing efficiency of diamond-tipped blades with the crushing power of tungsten carbide roller cones. The roller cones crush the hard stringers, while the PDC cutters cleanly shear away the remaining shale.

Real-World Case Study: Hainaisen Cutters in Action

Location: Permian Basin (Wolfcamp Shale Play)
The Challenge: A regional operator was experiencing low ROP (averaging 15 meters/hour) and severe impact damage on their standard 8-1/2" bits due to interbedded abrasive stringers, requiring frequent, costly trips.

The Hainaisen Solution: Our engineering team deployed the Hainaisen 5-Blade Matrix-Body PDC Bit, outfitted with our proprietary custom-leached diamond tipped cutters.

The Result:

• The Hainaisen bit successfully drilled the entire lateral section in a single run.
• Average ROP increased to 28 meters/hour (an 86% improvement).
• Saved the operator an estimated $45,000 USD in rig time and tripping costs.

FAQ

• What causes "bit balling" in shale, and how do you prevent it?

Bit balling occurs when sticky shale cuttings adhere to the bit faces and plug the junk slots, drastically reducing ROP. It is prevented by choosing steel-body bits with large junk slots, using premium hydraulic nozzles, and deploying Hainaisen’s specialized polished PDC cutters which minimize friction so rock cannot stick.

• Why choose Hainaisen over other global drill bit manufacturers?

At Hainaisen, we don’t believe in "one-size-fits-all." We customize the diamond matrix density, cutter grade, and hydraulic nozzle configuration based on your specific well-log data. This gives you Tier-1 performance at highly competitive factory pricing.

• Are matrix-body bits always better than steel-body bits for shale?

Not always. Steel-body bits are preferred for long, high-ROP vertical intervals because they allow for larger junk slots and lighter bit profiles. Matrix-body bits are superior when drilling long horizontal legs where fluid erosion and high abrasive wear are major factors.

References & Technical Literature

[1] Society of Petroleum Engineers (SPE): Paper No. SPE-18023-PA, "Optimizing Cutter Mechanics and Hydraulic Designs for High-Plasticity Shale Formations."

[2] Schlumberger (SLB) Technical Review: "Advanced Diamond Technologies for Directional Drilling Performance in Unconventional Reservoirs."

[3] International Association of Drilling Contractors (IADC): Drill Bit Classification Code System for Fixed Cutter Bits (PDC Application Standards).
