Top companies manufacturing five blade wing oil drilling equipment

When looking at the best companies that Five Blade Wing Oil Drilling make five-blade wing oil drilling tools, buyers should know that this is a very specialised market that needs precise engineering and a history of performance. Five-Blade Wing Oil Drilling technology has changed how well it works and how fast it can drill through medium to hard-rock. Leading makers use advanced PDC cutter placement and strong blade geometry to make drilling more efficient in a way that can be measured. The most reliable suppliers in the industry keep up-to-date quality certifications, offer flexible supply chains, and can make products that are tailored to specific geological problems that come up during research and extraction.

Introduction to Five-Blade Wing Oil Drilling Technology

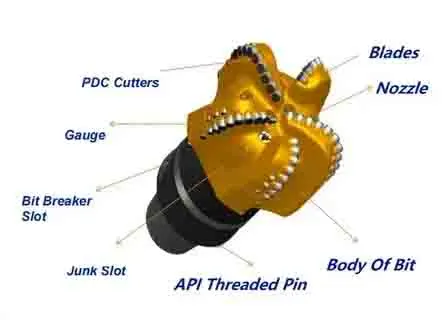

Understanding the Five Blade Configuration

The five-blade wing design represents a thoughtful evolution in bit architecture. Unlike conventional three or four-blade systems, this configuration distributes cutting forces more evenly across the bit face, which reduces individual blade stress and extends operational life. Each blade features strategically positioned PDC cutters that engage rock formations with optimal angle and pressure, creating efficient chip removal pathways that prevent bit balling and maintain consistent torque response.

Enhanced Rock Penetration Mechanics

Drilling performance improves significantly when the blade count increases from traditional designs. The five-blade arrangement creates multiple cutting zones that engage formation material simultaneously, generating higher rates of penetration without requiring excessive weight on bit. This mechanical advantage becomes particularly valuable in interbedded formations where lithology changes rapidly, allowing operators to maintain steady progress without frequent parameter adjustments that consume valuable rig time.

Structural Stability Benefits

Vibration control stands as one of the most critical factors in drilling equipment selection. Five-blade wing bits inherently resist lateral movement and stick-slip phenomena that degrade hole quality and accelerate component wear. The symmetrical blade placement creates balanced radial forces during rotation, which minimizes downhole tool damage and produces smoother boreholes that facilitate casing installation and cementing operations. Technical engineers appreciate this stability when planning complex directional wells.

Environmental and Operational Advantages

Modern drilling operations face increasing pressure to reduce their environmental footprint. Five-blade wing technology addresses these concerns through improved mechanical efficiency that translates directly to lower fuel consumption and reduced carbon emissions per foot drilled. The optimized cutting action generates less fine particulate in drilling mud systems, simplifying solids control processes and reducing disposal volumes. These operational improvements align with corporate sustainability goals while delivering measurable cost reductions.

Top Companies Leading in Five-Blade Wing Oil Drilling Equipment Manufacturing

Selection Criteria for Leading Manufacturers

Identifying reputable manufacturers requires examination of oil field drill bits and multiple performance indicators beyond marketing claims. Quality certifications such as API Q1 and ISO 9001 provide baseline assurance of manufacturing consistency. Supply chain robustness becomes critical when project timelines face pressure, making manufacturers with established component sourcing relationships and inventory management systems more reliable partners. R&D investment levels indicate a company's commitment to technological advancement and ability to address emerging drilling challenges.

Shaanxi Hainaisen Petroleum Technology Co., Ltd.

Established in Xi'an in 2013, Shaanxi Hainaisen Petroleum Technology Co., Ltd. has built a reputation through focused specialization in diamond drill bits, PDC drill bits, and integrated drilling solutions. The company operates a 3,500-square-meter facility equipped with five-axis machining centers and CNC machine tools that ensure precision manufacturing tolerances. Their dedicated R&D team collaborates with customers to develop custom bit designs that address specific formation challenges, a capability particularly valued by medium and large oil service companies requiring tailored solutions.

HNS maintains comprehensive technical documentation for their five blade wing series, including the IADC S123 classified bit available in 12.25-inch diameter. This model incorporates 109 PDC cutters in 13mm and 16mm sizes, strategically distributed across five blades to optimize cutting efficiency. The 510mm bit height and 90mm gauge length provide excellent borehole stability, while the 6-5/8 REG.PIN connection ensures compatibility with standard drill string components. At 95 kilograms, the bit offers substantial durability without creating handling difficulties during tripping operations.

Global Industry Leaders

International manufacturers with decades of operational history continue to dominate large-scale projects in established oil basins. These organizations invest heavily in field testing programs that generate performance data across diverse geological settings. Their global service networks provide technical support and rapid replacement delivery that minimizes non-productive time. Procurement managers at major oil service companies often maintain approved vendor lists that prioritize these established players due to their extensive qualification documentation and proven track records.

Emerging Innovative Manufacturers

The competitive landscape increasingly includes specialized manufacturers that focus on specific formation types or regional markets. These companies bring fresh perspectives to bit design, often incorporating insights from adjacent industries or novel materials science research. Water well drilling teams and smaller coal mining operations frequently benefit from these manufacturers' flexible minimum order quantities and responsive technical support. Their pricing structures typically offer advantages over larger competitors while maintaining acceptable quality standards for less demanding applications.

Comparison of Five-Blade Wing Oil Drilling Equipment Among Leading Brands

Performance Metrics Analysis

Drilling efficiency metrics vary significantly across manufacturers based on blade geometry, cutter quality, and hydraulic design. Rate of penetration measurements in standardized rock formations provide objective comparison data, though field performance depends heavily on proper parameter selection and formation characteristics. Bits engineered for medium-hard formations like limestone and dolomite may achieve 30-40% faster penetration than traditional designs when applied appropriately, translating to substantial time savings over extended drilling programs.

Material Quality and Durability Assessment

The longevity of five-blade wing bits depends primarily on PDC cutter grade and blade substrate material. Premium manufacturers utilize diamond cutters with carefully controlled grain structure that resists thermal degradation and impact damage. Matrix body materials require sufficient hardness to protect gauge integrity while maintaining adequate toughness to absorb vibration without cracking. Bits incorporating these high-grade materials demonstrate 50-75% longer operational life in abrasive formations, though they command higher initial investment.

Total Cost of Ownership Considerations

Purchase price represents only one component of drilling equipment economics. Maintenance requirements, replacement frequency, and performance consistency across bit life significantly impact overall project costs. A moderately priced bit that requires replacement after 500 feet may prove more expensive than a premium unit achieving 1,200 feet before reaching wear tolerance limits. Warranty provisions and manufacturer support during operational issues further influence total ownership costs, particularly oil field drill bits for critical path drilling operations, where delays generate substantial expense.

Here are additional factors that influence equipment value assessment:

• Operational Efficiency: Bits maintaining consistent performance throughout their service life reduce the need for drilling parameter adjustments that slow penetration rates. Stable torque response and predictable weight-on-bit requirements allow automated drilling systems to optimize performance without continuous oversight.
• Safety Compliance Features: Modern bits incorporate design elements that reduce downhole failure risks, including reinforced blade trailing edges and enhanced gauge protection. These features prevent catastrophic failures that could damage expensive bottomhole assemblies or create wellbore stability issues requiring costly remedial operations.
• Environmental Performance: Low-vibration designs reduce noise transmission through drill strings and minimize formation damage that could complicate completion operations. Efficient hydraulics reduce pump pressure requirements, lowering energy consumption and extending surface equipment life.

These comparative factors help technical engineers justify equipment selections to purchasing managers who balance performance requirements against budget constraints. The optimal choice depends on specific project parameters rather than the absolute superiority of any single manufacturer.

User Feedback and Field Performance

Documented field results provide the most reliable basis for manufacturer comparison. Case studies demonstrating successful application in formations similar to planned drilling operations offer valuable predictive information. Operators frequently share performance data through industry conferences and technical publications, creating knowledge bases that inform equipment selection decisions. Purchasing managers should request references from manufacturers and contact existing customers to verify claimed performance capabilities before committing to large-volume orders.

Procurement Considerations for Five-Blade Wing Oil Drilling Equipment

Supplier Reliability and Delivery Performance

Equipment availability directly impacts project schedules and revenue realization. Manufacturers maintaining adequate inventory levels and efficient order processing systems minimize lead times that could delay drilling commencement. For urgent replacement needs, suppliers with strategically positioned distribution centers or expedited shipping arrangements provide critical value. Coal mining companies and water well drilling teams, which often operate on compressed schedules, particularly benefit from suppliers offering rapid fulfillment capabilities.

Customization and OEM Services

Standard catalog items rarely address all drilling requirements perfectly. Manufacturers offering design modification services enable optimization for specific formation characteristics, directional drilling requirements, or integration with particular bottomhole assembly configurations. The ability to adjust blade profile, cutter size distribution, or hydraulic flow patterns can substantially improve performance in challenging applications. HNS maintains a dedicated engineering staff who collaborate with customers to develop modified designs that address unique operational requirements, a capability that differentiates full-service manufacturers from basic suppliers.

Pricing Structures and Negotiation Strategies

Understanding industry pricing frameworks helps procurement professionals secure favorable terms. Volume commitments typically generate tiered discounting, with breaks occurring at quantities that align with manufacturer production batch sizes. Annual purchasing agreements provide price stability that simplifies budgeting while offering suppliers demand visibility that supports inventory planning. Small water well drilling operations might negotiate consignment arrangements or extended payment terms that improve cash flow management, though these accommodations usually require established business relationships.

Warranty Terms and After-Sales Support

Comprehensive warranty coverage demonstrates manufacturer confidence in product quality. Standard warranties typically address manufacturing defects but exclude damage from misapplication or excessive wear. Progressive manufacturers offer performance guarantees specifying minimum footage expectations under defined operating parameters, providing buyers with recourse if equipment fails to meet specifications. After-sales technical support proves equally important, particularly when troubleshooting unexpected performance issues or optimizing drilling parameters for changing formation conditions.

Future Trends and Innovations in Five-Blade Wing Oil Drilling Equipment

Smart Drilling Integration

Sensor technology integration represents Five Blade Wing Oil Drilling, the next frontier in bit design evolution. Embedded monitoring systems can track real-time parameters, including downhole temperature, vibration frequency, and cutting structure wear. This data transmission enables surface operators to optimize drilling parameters dynamically, preventing damage before it occurs and maximizing bit life. As IoT connectivity becomes standard in drilling operations, bits equipped with compatible sensor packages will command premium positioning.

Advanced Materials Development

Materials science keeps making compounds that are better for drilling because they have better qualities. Diamond blades that are thermally stable stay sharp at higher temperatures than regular PDC elements. This means that they can be used in deeper wells where the temperatures below the wellbore make it hard for regular materials to work. Nano-structured carbides make blade substrates tougher, which lowers the risk of catastrophic failure in forms that are likely to be hit hard. As manufacturing processes get better and cost structures become more reasonable, these new materials move from being tested in labs to being used in market products.

Growing Demand in Unconventional Formations

The need for specialised bit designs is driven by shale growth and hard rock mineral exploration. Five-blade designs work especially well in interbedded shale sequences where the hardness of the formation changes a lot. They keep the drilling mechanics stable across changes that are hard for regular bits. In order to drill through crystalline basement rock for geothermal energy projects, the tools need to be very resistant to wear and tear. The load distribution benefits of the five-blade design make this possible. When manufacturers put money into application-specific designs for these growing market segments, they put themselves in a good situation.

Sustainability and Green Technology Adoption

Environmental laws are having a bigger impact on how equipment is chosen. Bits with high mechanical efficiency cut down on diesel use and the pollution that comes with it, which helps owners meet their carbon reduction goals. Design features that make bits last longer lower the need for manufacturing and disposal, which is in line with the principles of the circular economy. Manufacturers who show verified environmental performance metrics through lifecycle analysis and third-party certification will appeal to operators who are under pressure from stakeholders to improve their sustainability performance.

Conclusion

To choose the right five-blade wing oil drilling equipment, you have to balance performance needs, price limits, and the supplier's abilities. In a wide range of situations, from offshore oil exploration to water well development, the technology makes drilling more efficient, operations more stable, and tools last longer. Leading makers set themselves apart by having quality certifications, the ability to customise products, and full support services that last after the equipment is sold. Investing in modern five-blade wing technology puts operators in a better position to compete as geological problems and environmental concerns become more complicated. When making sourcing choices, procurement professionals should look at the total cost of ownership instead of just the purchase price. They should think about things like bit life expectancy, warranty terms, and how reliable the supplier is.

FAQ

1. What makes five-blade wing bits different from traditional three-blade designs?

Five-blade wing bits distribute cutting forces across additional contact points, reducing individual blade stress and improving overall stability. The increased blade count creates more cutting zones that engage formation material simultaneously, typically generating 20-35% faster penetration rates in medium-hard formations compared to three-blade alternatives. The symmetrical geometry minimizes vibration and lateral movement, producing straighter boreholes with better gauge retention.

2. What are typical lead times for custom five-blade wing bit orders?

Standard configuration bits from established manufacturers typically ship within two to four weeks after order confirmation. Custom designs requiring modified blade geometry, specialized cutter placement, or non-standard connections generally require six to ten weeks for engineering review, prototype production, and final manufacturing. Expedited production may be available for urgent requirements, though rush orders often carry premium pricing. Discussing project timelines early in the procurement process allows manufacturers to accommodate scheduling requirements.

3. What warranty coverage should buyers expect from reputable manufacturers?

Industry-standard warranties cover manufacturing defects in materials and workmanship for 90 days from delivery or until the bit has drilled 500 feet, whichever occurs first. Premium manufacturers may extend coverage or offer performance guarantees specifying minimum expected footage under defined operating parameters. Warranty terms typically exclude damage from misapplication, excessive operating parameters, or normal wear. Buyers should review warranty documentation carefully and clarify coverage limitations before purchase to avoid misunderstandings regarding claim eligibility.

Partner with HNS for Superior Five-Blade Wing Oil Drilling Solutions

HNS offers comprehensive five-blade wing oil drilling equipment, Five Blade Wing Oil Drilling, backed by over a decade of manufacturing expertise and continuous innovation. Our IADC S123 classified bits deliver proven performance across offshore oil exploration, coal mining, and water well drilling applications. As an experienced Five Blade Wing Oil Drilling supplier, we maintain modern production facilities with five-axis machining capabilities that ensure precision manufacturing and consistent quality. Our dedicated R&D team provides custom design services tailored to your specific formation challenges and operational requirements. Contact our technical specialists at hainaisen@hnsdrillbit.com to discuss how our certified product range can improve your drilling efficiency and reduce operational costs.
