Wear Resistance in 5 Blade Matrix Body PDC Drill Bits Explained

Wear resistance in 5-blade matrix body PDC drill bits represents a critical performance factor that directly impacts drilling efficiency and operational costs. These specialized drilling tools feature a tungsten carbide composite matrix body combined with five strategically positioned polycrystalline diamond compact cutters, delivering exceptional durability in challenging geological formations. The enhanced wear resistance stems from the matrix body's superior erosion and abrasion resistance compared to steel alternatives, making these bits ideal for hard rock drilling applications where conventional tools fail prematurely.

Introduction

It is necessary for modern drilling activities to use tools that can work consistently even in harsh situations. The 5-blade matrix body PDC drill bits are a big step forward in drilling technology. They have a special structure that works well in tough rocks. These new tools blend the cutting power of polycrystalline diamond compact technology with the long-lasting properties of tungsten carbide matrix bodies.

Wear resistance is an important part of drilling operations because it affects project timelines, tool prices, and how well operations run. Companies benefit from less downtime, lower repair costs, and better penetration rates when drill bits keep their structural stability and cutting ability for longer periods of time. This means that oil service companies, coal mines, and water well drilling teams that depend on steady performance to meet project schedules will save a lot of money.

This article is tailored to the needs of buying managers and technical engineers who judge drilling equipment by its performance, dependability, and overall cost-effectiveness. When you know about the technical side of wear resistance, you can make smart choices about what to buy that meet operating needs and your budget.

Understanding Wear Resistance in 5-Blade Matrix Body PDC Drill Bits

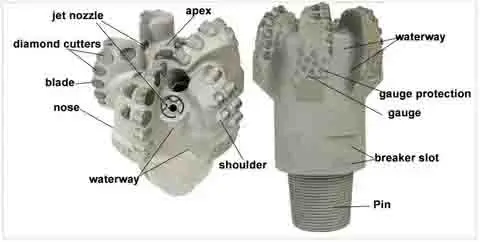

5 blade matrix body PDC drill bits are different from other drilling tools because they are made of modern materials and have a balanced shape. The five-blade arrangement strikes the perfect balance between penetration rate and directional stability. This is in contrast to three-blade setups that may have stability problems or seven-blade designs that may not cut as aggressively.

Matrix Body Composition and Wear Mechanisms

The pieces of tungsten carbide are mixed with a metal binder in matrix bodies. This makes a composite material that wears better than steel options. The three main types of wear that happen during drilling are abrasive wear, impact damage, and heat degradation. This makeup is very resistant to all of them.

When hard particles in the formation rub against the bit surface, they remove material slowly through friction. Because it is almost as hard as the formation materials, the tungsten carbide matrix successfully fights this wear mode. Impact damage happens when quick loads are applied when cutting through rocks of different hardness, and thermal degradation happens when too much heat breaks down the properties of a material.

Diamond Cutter Positioning and Design Factors

The clever placement of PDC cutters on the five-blade design makes cutting go faster and more smoothly while spreading wear evenly across the bit face. At each cutting position, things like back rake angle, side rake angle, and exposure height are taken into account to get rid of as much rock as possible while reducing stress levels that could cause the machine to break too soon.

Spiral designs on advanced blade shapes help chips escape and keep the drill cool while it's working. The 5 Blade Matrix Body PDC Drill Bits’ matrix material that surrounds each cutter provides strong support while still allowing enough heat to escape during high-speed operations.

Technical Advantages and Applications of 5-Blade Matrix Body PDC Drill Bits

This means that better wear resistance directly leads to better performance, which helps drilling processes in many industries. Because the matrix body design is more durable, it can be used for long-term drilling in rocks where regular steel body bits would break quickly.

Performance Benefits in Challenging Formations

The high level of wear resistance allows for faster penetration rates by maintaining a uniform cutting action over longer drilling gaps. According to operations, the entry rate is 20–40% better than with regular roller cone bits, and these rates stay the same for the whole bit's service life.

Matrix body design is better at getting rid of heat than steel options, which is important when cutting through hard rocks where friction creates a lot of heat. The better thermal control keeps the cutters working well even during long boring runs and stops them from breaking down too soon.

Cutting down on vibration transfer is another big benefit. This is because the matrix body structure absorbs and dampens harmful waves that can damage both the bit and the drill string. This feature comes in handy when drilling in a specific direction, where exact control of the path needs stable drilling circumstances.

Industry Applications and Comparative Analysis

These high-tech drill bits are great for a wide range of drilling jobs, and the better wear resistance helps each one in its own way. These tools are used by oil and gas development companies to drill through hard rocks in shale plays and deep drilling projects. The longer bit life cuts down on trip time and costs while keeping the quality of the hole, which is important for finishing operations.

These bits are a good mix between price and performance for coal mining companies because they last longer than other choices and don't cost as much, which is good for their operational budgets. Teams that drill water wells like how often the parts don't have to be replaced as much because it cuts down on project delays and equipment costs.

When compared to regular diamond bits, matrix body PDC bits are more resistant to contact and cut more aggressively. While real diamond bits can break when hit hard, the PDC cutters stay together, and the matrix body offers a strong support structure.

Manufacturing Process and Maintenance for Optimal Wear Resistance

To make high-quality 5 Blade Matrix Body PDC Drill Bits, you need to use complex manufacturing methods that make sure the material properties stay the same and the parts fit together perfectly. When buyers understand these steps, they can better judge the skills of suppliers and the quality of the products they sell.

Matrix Body Fabrication and Quality Control

Powder metallurgy processes are used to start making matrix bodies. In these processes, tungsten carbide particles are mixed with metal bonds in exact amounts. The mixture goes through hot pressing or infiltration methods that make a thick, uniform composite material whose wear properties can be predicted.

Strict testing procedures that check a material's hardness, density, and heat conductivity are part of modern quality control measures. Coordinate measuring tools are used to check the sizes of each matrix body to make sure they have the right shape to support the PDC cuts during drilling operations.

Cutter integration is a very important part of the manufacturing process. This is where the polycrystalline diamond compact blades are placed and held in place inside the matrix body. Strong metallic ties must be made during the brazing process, but the diamond cuts must not be damaged by the heat.

Maintenance Best Practices and Troubleshooting

When bits are properly maintained, they last longer and fight wear better throughout the repair interval. Cutter state, matrix wear patterns, and hydraulic flow lines should all be checked for signs of damage or too much wear on a regular basis.

Professional repair services and reconditioning programs can bring worn-out parts back to almost their original performance levels. These programs replace worn-out cuts, fix matrix damage, and bring back hydraulic features, so you don't have to buy new bits.

Finding wear trends early on lets repair professionals make smart choices that keep big problems from happening. If you see wear patterns that aren't normal, it could mean that you need to change the bit design or adjust the cutting parameters.

Selecting and Procuring the Right 5-Blade Matrix Body PDC Drill Bits

For buying to go well, many things that affect bit performance and cost-effectiveness must be carefully considered. During the decision process, technical needs must be balanced with budget limits, and the reliability and support skills of the provider must also be taken into account.

Formation Analysis and Bit Selection Criteria

The main thing that determines the best bit design settings is the formation features. Formations that are hard and rough need aggressive matrix compositions and strong cutter setups. Formations that are softer may benefit from more aggressive cutting structures that increase penetration rates.

For the best performance, drilling factors like bit weight, rotary speed, and fluid flow rates must match the bit's design specs. Compatibility with current rig equipment makes sure that integration goes smoothly without having to make expensive changes or upgrades.

When making a budget, you should think about not only the initial purchase price but also the total cost of ownership, which includes the bit's life, its entry rate, and the digging costs that come with it. Higher-quality bits may be worth the extra cost because they work better and last longer.

Market Analysis and Supplier Evaluation

There are many providers of matrix body PDC drill bits in the world, and their skills and quality standards vary. Manufacturers that have been around for a while usually offer better technical support, stable quality, and reliable shipping schedules that help with planning operations.

Customization lets providers change standard designs to fit specific needs, resulting in better performance for unique drilling problems. Suppliers with good engineering help can suggest changes to the design that make it work better while keeping costs low.

The market is showing that there is a growing need for high-performance drilling tools like 5 Blade Matrix Body PDC Drill Bits that can work with difficult materials and lower costs. Pricing is based on how much the materials cost, how hard the production process is, and how much competition there is in the market.

Conclusion

Wear resistance in 5-blade matrix body PDC drill bits is a major step forward in technology that has a direct effect on how well they drill and how much they cost to run. The tungsten carbide matrix construction makes it last longer than other options, and the five-blade design improves both cutting rates and steadiness in all directions. Knowing the technical details behind wear resistance helps you make smart purchasing choices that meet operating needs and stay within your budget. For execution to go well, suppliers must be carefully evaluated, the right bits must be chosen, and the best upkeep practices must be followed to get the most out of service life and performance consistency.

FAQ

1. What factors most significantly influence wear resistance in matrix body PDC bits?

The main thing that determines wear resistance is the matrix material's makeup. The amount of tungsten carbide and how the particles are distributed directly affect longevity. Quality of the cutter and where it is placed are also very important. This is because the right exposure angles and support can reduce stress concentrations that can speed up wear.

2. How can drilling operations maximize bit life and wear resistance?

Optimal drilling factors, such as the right bit weight, rotating speed, and fluid flow rates, make bits last a lot longer. Proper handling and regular inspections keep things from getting damaged, and keeping an eye on wear trends lets you make choices about reconditioning that restore performance at the right time.

3. Are customized solutions available for specific formation challenges?

Yes, our technical team specializes in making bits that are specifically designed for the rock and the needs of the digging. We look at the features of the formation, the drilling factors, and the operating limits to find the best bit performance for each job.

Partner with HNS for Superior Drilling Performance

HNS makes the best 5 Blade Matrix Body PDC Drill Bits on the market. These bits have great wear resistance and a history of reliable performance. Our advanced production skills and wide range of customization options mean that we can find the best solutions for your unique drilling problems. As a reliable manufacturer and supplier, we offer full expert help, from the first meeting to ongoing support for operations. Email our experts at hainaisen@hnsdrillbit.com to talk about your needs and find out how our high-quality drilling tools can help you run your business more efficiently and cut down on overall drilling costs.
