Optimizing Cutter Placement for Efficiency
The strategic placement of PDC cutters on a mining bit is a critical factor in its overall performance. Engineers employ sophisticated computer modeling and years of field experience to determine the optimal arrangement of these cutting elements. The goal is to achieve a balance between aggressive cutting action and bit stability, ensuring consistent performance throughout the drilling operation.
Cutter Density and Distribution
One key aspect of cutter placement is density. High-performance bits often feature a higher number of cutters, particularly in areas that experience the most wear. This increased density allows for more even distribution of cutting forces and helps maintain the bit's gauge diameter over time. The distribution of cutters across the bit face is carefully calculated to promote a smooth, balanced cutting action that minimizes vibration and enhances drilling efficiency.
Blade Design and Cutter Positioning
The design of the bit's blades plays a crucial role in cutter placement. Modern PDC Mining Bit designs often incorporate spiral or curved blade configurations that optimize the cutting action and improve debris evacuation. Cutters are positioned at varying angles and heights along these blades to create a complex cutting structure that adapts to different formation types. This multi-level cutter arrangement ensures that as the primary cutting elements wear down, secondary cutters are ready to engage, maintaining consistent performance throughout the bit's life.
Back Rake and Side Rake Angles
The angles at which cutters are mounted on the bit face, known as back rake and side rake, are meticulously calculated to balance aggressiveness with durability. These angles influence how the cutter engages with the rock formation, affecting factors such as penetration rate, bit stability, and wear resistance. High-performance bits often feature variable rake angles across different regions of the bit face, optimized for the specific drilling conditions they're designed to encounter.
Hydraulic Design: Cooling & Cuttings Removal
The hydraulic system of a PDC Mining Bit is a critical component that often goes unnoticed but plays a vital role in the bit's overall performance. Proper hydraulic design ensures efficient cooling of the cutters and effective removal of drill cuttings, both of which are essential for maintaining high drilling rates and extending bit life.
Nozzle Configuration and Placement
High-performance bits typically feature multiple nozzles strategically positioned across the bit face. The number, size, and orientation of these nozzles are carefully engineered to create optimal fluid flow patterns. Some advanced designs incorporate interchangeable nozzles, allowing for field adjustments to suit specific drilling conditions. The placement of nozzles is crucial, ensuring that high-velocity fluid jets are directed where they're needed most – cooling the cutters and sweeping away cuttings from the cutting face.
Junk Slot Design
Junk slots, the channels between the blades of the bit, play a critical role in the hydraulic system. These slots are engineered to facilitate the efficient evacuation of cuttings from the bit face. The size, shape, and angle of junk slots are optimized to prevent clogging and maintain a clear path for debris removal. Some advanced PDC Mining Bit designs feature enhanced junk slot geometries that improve fluid dynamics and reduce the risk of bit balling in sticky formations.
Computational Fluid Dynamics (CFD) Optimization
Modern bit designers leverage sophisticated Computational Fluid Dynamics (CFD) software to simulate and optimize hydraulic performance. These simulations allow engineers to visualize fluid flow patterns, identify potential areas of inefficiency, and refine the hydraulic design for maximum effectiveness. CFD analysis helps in balancing the often-competing demands of cutter cooling, hole cleaning, and overall bit stability.
Materials Science: The Key to Performance
The materials used in the construction of a PDC Mining Bit are fundamental to its performance and longevity. Advanced materials science and metallurgy play a crucial role in developing bits that can withstand the extreme conditions encountered in modern drilling operations.
PDC Cutter Technology
At the forefront of PDC Mining Bit technology are the PDC cutters themselves. These synthetic diamond compacts are constantly evolving, with manufacturers developing new formulations and manufacturing processes to enhance their wear resistance and thermal stability. Some of the latest advancements include: - Nano-diamond technology for improved impact resistance - Optimized diamond grain size distribution for enhanced wear characteristics - Advanced cobalt leaching techniques to increase thermal stability - Multi-layer PDC designs that combine toughness with wear resistance

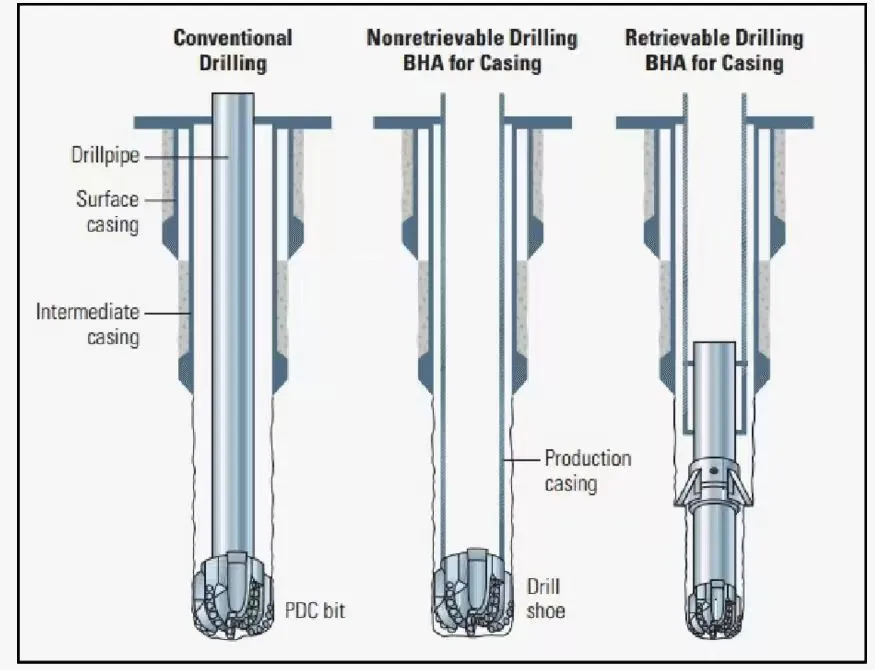

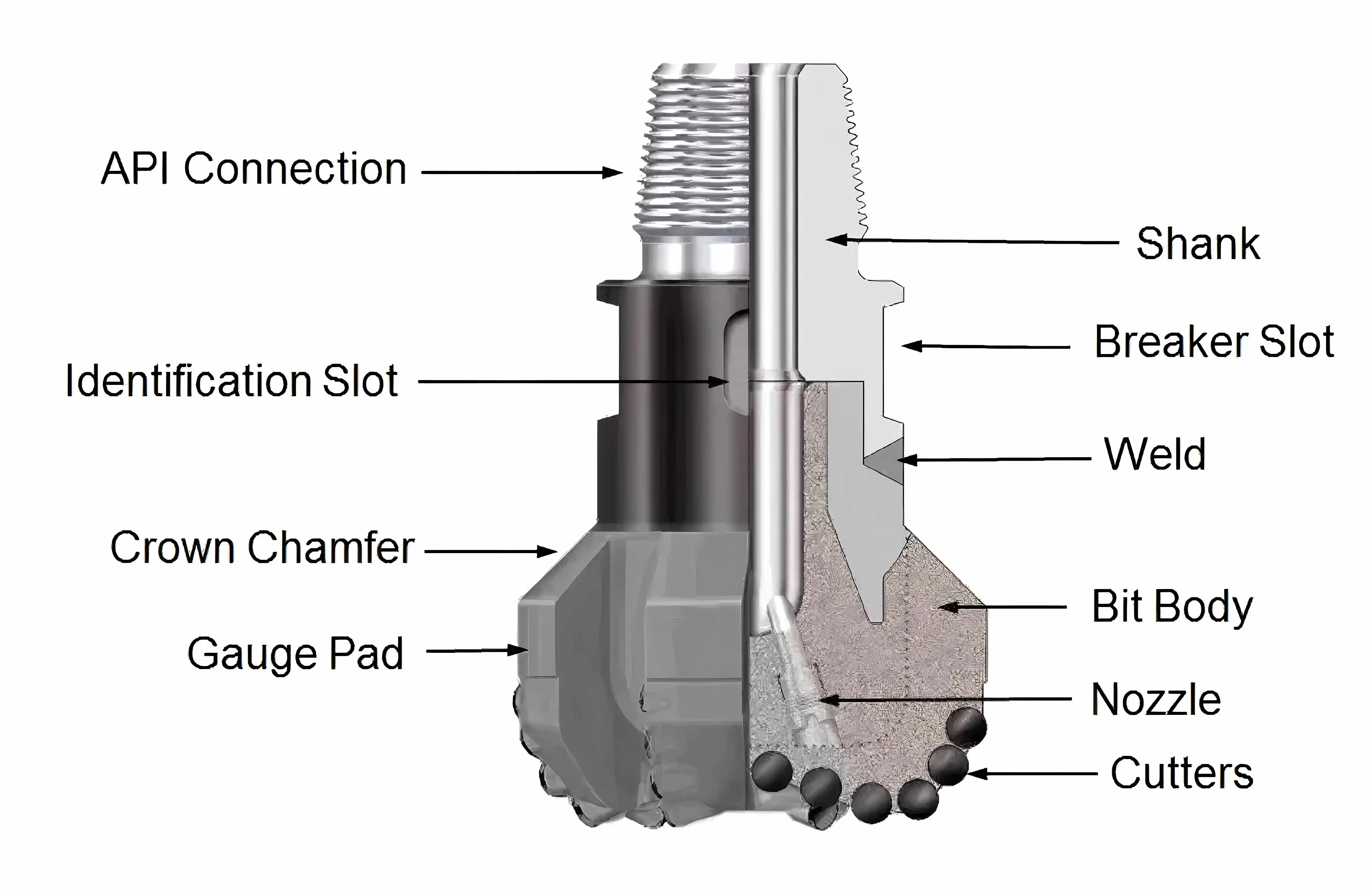

Bit Body Materials
The body of a high-performance PDC bit is typically constructed from one of two main material types: 1. Steel Bodies: High-grade alloy steels are used for their excellent machinability, impact resistance, and ability to be repaired. Advanced heat treatment processes ensure optimal hardness and toughness. 2. Matrix Bodies: Composed of tungsten carbide particles infiltrated with a metallic binder, matrix bodies offer superior erosion resistance and thermal stability. Recent innovations in matrix composition and manufacturing techniques have led to improved toughness and repairability.
Hardfacing and Protective Coatings
To further enhance durability, particularly in abrasive formations, high-performance bits often incorporate hardfacing materials and protective coatings. These may include: - Tungsten carbide hardfacing on blade surfaces and gauge pads - Diamond-enhanced inserts for improved wear resistance in critical areas - Specialized coatings to reduce friction and resist abrasion - Thermal spray technologies for applying wear-resistant materials
Advanced Manufacturing Techniques
The production of high-performance PDC bits leverages cutting-edge manufacturing technologies to ensure precision and quality. These may include: - 5-axis CNC machining for complex geometries - 3D printing for prototyping and manufacturing of intricate components - Electron beam welding for joining dissimilar materials - Advanced brazing techniques for secure cutter attachment
In conclusion, the inner workings of a high-performance PDC Mining Bit represent a culmination of advanced engineering, materials science, and precision manufacturing. From the strategic placement of cutters to the sophisticated hydraulic design and the use of cutting-edge materials, every aspect is meticulously crafted to deliver exceptional drilling performance.
