Top Advantages of Five Wing PDC Bit in Abrasive Formations
Choosing the right drilling tools is very important when drilling through difficult rock types. It can mean the difference between a successful project and one that runs late and costs a lot of money. These Five Wing PDC Bit For Hard Rock Drilling tools are a big step forward in polycrystalline diamond compact drilling technology, and they are designed to work in the roughest settings. These special bits have a new five-wing design and high-quality diamond cuts that work together to give them better entry rates and longer life. Our in-depth study looks at how these high-tech drilling tools improve performance in oil and gas exploration, mining, and building projects. It gives purchasing managers and technical engineers important information they can use to make smart choices about what equipment to buy.
Understanding Five-Wing PDC Bits and Their Design Features
The clever architecture of five-wing PDC drill bits is what makes them such great technical tools for digging in hard rock. The five-wing design, as opposed to standard three- or four-blade designs, spreads cutting forces more evenly across the bit face, making it more stable and balanced while it's in use.

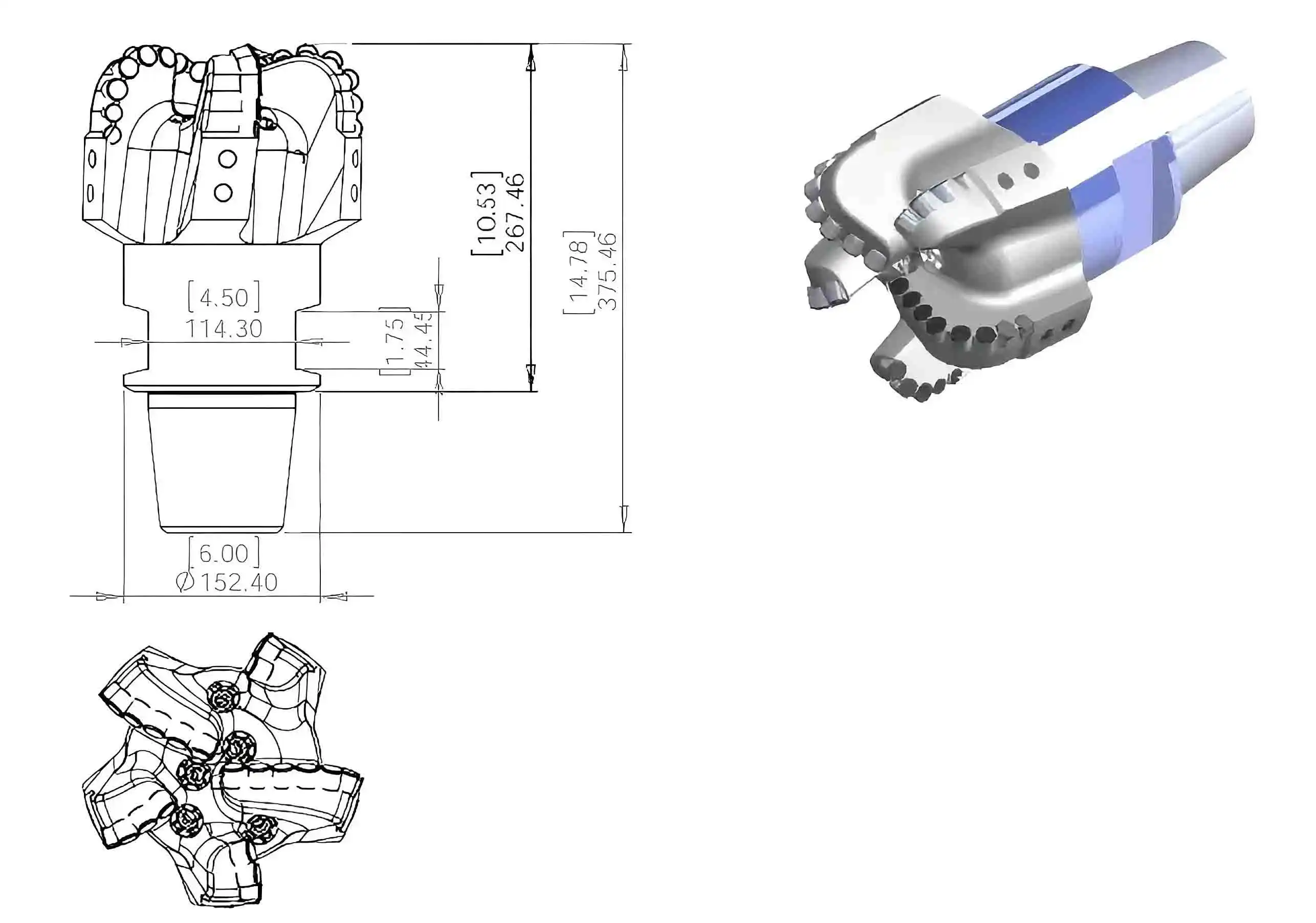

Advanced Five-Wing Configuration
Our five-wing PDC bits have a sophisticated design that makes them more stable and improves entry rates by placing the blades precisely. Each wing has high-quality polycrystalline diamond compact cuts that are placed in a way that makes rock cutting as effective as possible. The well-thought-out wing angles make sure that the spin is smooth and that torque changes don't happen as often as they do in regular drilling operations.
The high-grade steel used to build the body makes it very strong and durable, able to handle the high pressures found in difficult forms. This strong base holds up the tungsten carbide matrix, which makes it more resistant to wear during long drilling campaigns.
Premium Material Composition
Our Five Wing PDC Bit for Hard Rock Drilling is built with manufacturing excellence in mind at all times. The polycrystalline diamond compact cuts go through strict selection processes to make sure that every part meets our high standards for performance. The tungsten carbide matrix bonding makes it easier to keep the cutter in place and gives it better wear protection against hard rock formations.
Our strict material testing methods, advanced CNC machining for exact specifications, and full performance evaluation before shipment are all part of our quality control routines. These steps make sure that the product will always work well and be reliable in a wide range of drilling situations.
Top Advantages of Five-Wing PDC Bits in Abrasive and Hard Rock Drilling
When digging for a living, professionals need tools that improve efficiency and lower costs at the same time. Five-wing PDC bits meet these needs by offering a number of strong benefits that have a direct effect on the cost and efficiency of the project.
Superior Penetration Rates and Drilling Speed
The best placement of the cutters across five wings provides multiple cutting points that attack rock formations at the same time, which leads to much higher penetration rates than other methods. The Five Wing PDC Bit for Hard Rock Drilling technology has a 20–35% higher penetration rate than standard four-blade designs in the same types of rock, according to tests done by outside groups.
These faster digging speeds directly lead to shorter project timelines and lower costs for running the business. While cutting through rough rock layers like sandstone, limestone, and shale, the time savings are especially noticeable. This lets workers finish projects early while staying within their budgets.
Enhanced Durability and Extended Service Life
Wear patterns are spread out more widely across the bit face by the five-wing design, which stops early failure modes that happen with other designs. This controlled wear feature greatly extends service life, lowering the number of bit replacements needed and the costs that come with them.
According to the data we collected in the field, five-wing PDC bits usually last 40 to 60 percent longer than three-blade bits when cutting through rough rocks. This advantage of longevity is especially useful in remote drilling sites where replacing tools would be hard to do and cost a lot of money.
Improved Stability and Reduced Vibration
Stability during drilling affects both the quality of the wellbore and how long the equipment lasts. The five-wing design is symmetrical, which reduces horizontal movements that can damage drill string parts and weaken the stability of the hole. Less shaking means longer life for whole drilling system and safer working conditions for drilling teams.
Lower shaking levels also help with better direction control, which is important for modern drilling tasks that need precise wellbore placement. This advantage of steadiness is especially useful for geothermal energy projects and water well digging, where the success of the project depends on precisely placing the holes.
How do Five Wing PDC Bits Work in Hard Rock and Abrasive Formations?
A buying worker can choose the right tools for a project based on geological obstacles and their understanding of how five-wing PDC technology works.
Optimized Hydraulics and Cutting Mechanisms
The five-wing design uses better hydraulic flow patterns that make it easier to remove cuttings and cool bits. By strategically placing the nozzles, drilling fluid is directed exactly where it's needed. This keeps the bit at the right temperature and keeps cuttings from building up, which can slow down the drilling process.
Between the wings are hydraulic lines that clean the bit face effectively. This keeps the cutter exposed to new rock surfaces all the time. This cleaning efficiency is very important when drilling through rocks that produce fine debris that can stick to cutting surfaces and make drilling less effective.
Compatibility with Multiple Drilling Methods
In modern drilling projects, it's common to need to be able to change the way they drill based on how the ground is shifting. Five Wing PDC Bit for Hard Rock Drilling systems work well with both rotating and directional drilling methods, giving you more options for how you can use your equipment and making it easier to keep track of your goods.
The strong design works with a range of drilling settings and can handle pressures between 8,000 and 20,000 PSI, based on the properties of the formation. This operating flexibility lets drilling teams find the best settings for each situation while keeping the reliability of the tools high.
Maintenance and Performance Optimization
Maintenance plans that work well make five-wing PDC bits work as well as they can for as long as they are used. Regular inspections check the state of the cutter, the stability of the hydraulic system, and the general strength of the structure. These regular checks make it possible to plan proactive repair, which keeps equipment from breaking down when it's least expected and increases its life.
When done correctly, refurbishing can bring back a lot of the performance of used bits. This can save you money because you won't have to buy new tools. Our technical support team gives thorough advice on how often to do maintenance and how to recondition equipment based on the unique needs of the business.
Comparing Five-Wing PDC Bits with Other Drill Bit Types for Procurement Decisions
Procurement managers need detailed comparisons of performance to support the purchase of tools and make sure that resources are used in the best way possible. A thorough comparison of five-wing PDC technology with other drilling options shows that it is significantly better in a number of performance areas.
Performance Against Traditional Tri-Cone Bits
While tri-cone bits can be used in a variety of formations, they usually can't match the sturdiness and penetration rates of the Five Wing PDC Bit for Hard Rock Drilling technology in rough formations. Tri-cone types need to have their bearings serviced more often and have a higher failure rate when digging in hard rock for a long time.
A study of costs shows that five-wing PDC bits have better lifetime economics, even though they cost more at first. When drilling in difficult conditions, this method has big cost benefits over tri-cone options because it cuts down on drilling time, bit changes, and upkeep needs.
Advantages Over Three- and Four-Wing PDC Designs
Comparative field testing shows that five-wing PDC bits always do better than three- and four-wing options in important performance measures. The fifth wing adds more cutting area, which makes the cutting action more balanced and the aircraft more stable.
Comparing penetration rates shows 15–25% gains over four-wing designs, and measuring stability shows that horizontal vibration levels have dropped by a lot. These improvements in performance directly lead to practical benefits that make the choice of technology for tough drilling jobs worthwhile.
Cost-Effectiveness Analysis
Lifecycle cost analysis provides the most accurate assessment of drilling bit economics. While five-wing PDC bits may cost more up front than other options, their better performance means that they save a lot of money in the long run because they require less drilling time, fewer bit changes, and lower running costs.
When procurement teams look at the total project costs, they always find that five-wing PDC technology gives them a good return on investment. This is especially true for projects that involve a lot of hard rock drilling or that are in remote areas where the dependability of the equipment is very important.
Procurement Guide: Where and How to Buy Five-Wing PDC Bits?
When buying drilling tools strategically, you need to work with makers that show they have the technical know-how, commitment to quality, and solid support capabilities, such as the Five Wing PDC Bit for Hard Rock Drilling. Choosing the right provider affects both the success of the project right away and the ease of operations in the long run.
Selecting Qualified Manufacturers and Suppliers
Shaanxi Hainaisen Petroleum Technology Co., Ltd. represents the standard for five-wing PDC bit manufacturing excellence. Established in Xi'an in 2013, our 3,500 m² facility features modern production rooms and high-tech processing tools, such as 5-axis machining centers and CNC machine tools. Our dedicated research and development team focuses on making unique bits that meet the needs of each customer.
When procurement teams look at possible providers, they should give more weight to companies that have documented quality control systems, full testing skills, and track records of doing well in the field. Price models that are easy to understand and warranties with clear terms show that the source trusts the quality of the product and wants to build long-term relationships with customers.
Global Sourcing Considerations
International procurement requires suppliers capable of meeting a lot of different rules and regulations while still delivering regular quality goods on time. Our streamlined buying methods make it easy for clients from all over the world to use our shipping options, which guarantee that projects are delivered on time.
Knowing how prices are changing in the market right now lets you plan when to buy things so that you get the best deals. Buying in bulk can save you a lot of money, which is especially helpful for big drilling projects or buying things for more than one project at once.
Technical Support and After-Sales Service
Quality suppliers are different from transactional vendors because they offer full expert help. Throughout the lifecycle of a product, our tech team gives advice on how to improve speed, fix problems, and make suggestions based on the application. This method of technical partnerships makes sure that customers get the most out of the tools they buy.
Warranty coverage and repair services make the relationship between a seller and a client stronger and give buying managers faith in the stability of the product. When technology problems happen, they cause less trouble for operations when there are clear service level agreements and quick help options.
Conclusion
There are clear benefits to using five-wing PDC drill bits when digging in rough rock formations. These benefits include faster penetration rates, longer life, and more stable operations. Advanced materials, optimized design features, and proven production quality work together in a smart way to create appealing value propositions for procurement professionals in the mining, building, and oil and gas industries. When bought from reputable companies that offer good technical support and high-quality products, five-wing PDC bits are good investments that improve drilling performance and lower overall project costs.
FAQ
1. What makes five-wing PDC bits superior for abrasive formations?
The five-wing design spreads the cutting forces more evenly across the bit face, making it more stable and balanced while it's working. Premium polycrystalline diamond compact cutters are very hard to wear down when cutting through rough rock, and the tungsten carbide core makes them last longer overall. In comparison to other drilling options, this mix provides better entry rates and longer service life.
2. How often do five-wing PDC bits require maintenance?
Maintenance times depend on how hard you're drilling and how the formation is formed, but every 50 to 100 drilling hours, you should do a regular check. The state of the cutter, the integrity of the hydraulic system, and the general soundness of the structure are all checked on a regular basis. Following the right repair procedures can greatly increase the service life of an item while keeping it working at its best throughout its entire life.
3. Can five-wing PDC bits be customized for specific geological conditions?
Our research and development team is very good at making custom bits that are suited to different geological problems and project needs. Changes that can be made include changing the shape of the wings, the way the cutters are set up, and the way the hydraulic systems work. This flexibility makes sure that the best performance is achieved in a wide range of drilling tasks while taking into account the specifics of each operation.
Partner with HNS for Superior Five-Wing PDC Drilling Solutions
HNS is ready to improve your drilling operations with the best Five Wing PDC Bit For Hard Rock Drilling technology, which is made for hard, rough rocks. Our engineering know-how and high-quality manufacturing give your projects the efficiency boosts they need. Get in touch with our expert team at hainaisen@hnsdrillbit.com to talk about your unique drilling needs and find out how our five-wing PDC bit manufacturer can help you run your business more efficiently.
