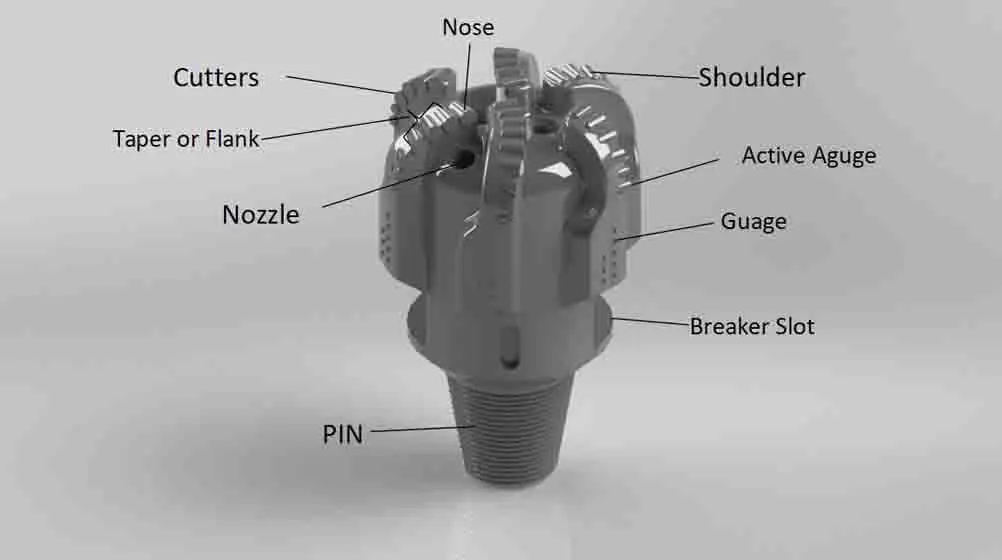

Best PDC Bits for Shale Gas Drilling: Engineering Success in Tight Formations

Choosing the right drill bit is the single most critical factor in maximizing Rate of Penetration (ROP) and minimizing Cost Per Foot (CPF) in unconventional reservoirs. Shale gas drilling presents harsh challenges: high abrasiveness, alternating hard and soft stringers, and long horizontal intervals that punish substandard cutting structures.

For operators seeking world-class drilling efficiency without the premium price tag, Hainaisen offers a field-proven lineup of high-performance oilfield drill bits.

Contact Us for Factory-Direct Quotes:

Email: hainaisen@hnsdrillbit.com

Phone/WhatsApp: +8617791389758

Website: Contact our engineering team directly to customize your next run.

The Unique Challenges of Drilling Shale Gas

As noted by the Society of Petroleum Engineers (SPE), shale formations are notorious for causing thermal degradation and impact damage to PDC (Polycrystalline Diamond Compact) cutters. The high friction generated during directional and lateral drilling causes standard cutters to overheat, lose their edge, and delaminate.

To overcome this, modern PDC Bits require superior hydraulic design for efficient cuttings removal and next-generation diamond cutter technology to maintain a sharp edge under intense friction.

Top 4 China Diamond Oil Drill Bits for Shale Gas Formations

Below are the 4 premium China Diamond Oil Drill Bits Manufactured by Hainaisen that are specifically optimized to outperform major international competitors in tough shale plays.

1. Hainaisen Steel Body PDC Matrix Drill Bit (5-Blade / 6-Blade Design)

Best For: Fast vertical intervals and top-hole shale sections.

Key Engineering Features: This bit features a rugged steel body that allows for larger junk slots, maximizing hydraulic cleaning. It utilizes premium 3D shaped cutters that reduce the mechanical specific energy (MSE) required to shear through shale.

Why Choose Hainaisen: Our proprietary hardfacing technology protects the steel body against fluid erosion, extending bit life by up to 40% compared to standard steel bits.

2. Hainaisen High-Matrix Body Matrix PDC Drill Bit (MDS Series)

Best For: Highly abrasive shale interbedded with siltstone or limestone stringers.

Key Engineering Features: Built with an ultra-durable tungsten carbide matrix, this bit offers maximum resistance to erosion and abrasion. It incorporates dual-row cutter layouts to stabilize the bit and prevent harmful vibration.

Why Choose Hainaisen: The MDS series integrates our thermally stable diamond technology, ensuring the cutters can withstand temperatures exceeding 750°C without micro-chipping.

3. Hainaisen Directional Lateral PDC Drill Bit

Best For: Navigating long horizontal curves and lateral sections in shale reservoirs.

Key Engineering Features: Designed with a short gauge length and optimized torque-control components, this bit delivers exceptional steerability on rotary steerable systems (RSS) and downhole motors.

Why Choose Hainaisen: Hainaisen's directional bits minimize toolface stick-slip, allowing operators to maintain a perfectly straight lateral path while maintaining high ROP.

4. Hainaisen Hybrid Diamond & TCI Roller Cone Bit

Best For: Transitional zones where shale alternates sharply with extremely hard, un-drillable carbonate rock.

Key Engineering Features: Combining the continuous shearing action of PDC cutters with the crushing power of Tungsten Carbide Inserts (TCI), this bit eliminates the need for frequent trips.

Why Choose Hainaisen: Our hybrid design balances the workload across both cutting structures, extending downhole hours and lowering overall operational risks.

Real-World Success: Hainaisen Case Studies

Case Study 1: Lateral Shale Section Outperformance

Location: Changning-Weiyuan Shale Gas Block

Formation: Longmaxi Shale (Highly abrasive, high stress)

The Challenge: Competitor bits suffered severe cutter delamination and ring-outs after drilling less than 800 meters horizontally.

The Hainaisen Solution: We deployed the Hainaisen 6-Blade Matrix Body PDC Bit equipped with impact-resistant premium cutters.

The Result: The Hainaisen bit drilled 1,450 meters in a single run, breaking the local regional ROP record by 26% and saving the operator two costly trip cycles.

Case Study 2: Vertical Interval ROP Acceleration

Location: Overseas Export Project (Middle East Tight Shale Play)

The Challenge: Low ROP due to balling up of the bit face in sticky shale layers.

The Hainaisen Solution: Customized Hainaisen Steel Body PDC Bit with optimized asymmetric hydraulic nozzles.

The Result: Cuttings were evacuated instantly. The ROP increased from 12 meters/hour to 18.5 meters/hour, achieving total section depth ahead of the drilling schedule.

FAQ

Q: Why should we buy China Diamond Oil Drill Bits from Hainaisen instead of major North American brands?
A: Hainaisen provides equivalent or superior diamond cutter technology at a significantly lower capital cost. We source premium domestic and international diamond powder, utilize strict ISO 9001 manufacturing processes, and offer customizable engineering to match your specific well log profile.

Q: How does Hainaisen prevent PDC cutter breakage in interbedded shale?
A: We use impact-absorbing depth-of-cut control (DOCC) features and finite element analysis (FEA) software to simulate downhole stress. This ensures our cutting structures share the load equally, preventing premature impact fracturing.

Q: Can your directional bits handle high-RPM downhole motors?
A: Yes. Our directional lateral PDC bits are specifically dynamically balanced to handle high RPMs and high weight-on-bit (WOB) without inducing destructive torsional vibrations.

Q: What is the average lead time for a customized batch of drill bits?
A: Depending on the complexity and design changes, standard sizes can be shipped within 15 to 30 days. Emergency requirements can be fast-tracked by our engineering team.

References & Industry Knowledge

Our designs and manufacturing philosophies are anchored in established international standards and cutting-edge technical research paper guidelines:

1. IADC (International Association of Drilling Contractors): All Hainaisen bits are classified and manufactured strictly according to the official IADC Bit Classification System to ensure seamless operational compatibility worldwide.
2. Society of Petroleum Engineers (SPE Paper 180234-MS): "Optimizing PDC Bit Design for Crucial Lateral Drilling in Unconventional Shales" – This paper underscores the necessity of thermal stability in cutters, a concept heavily integrated into Hainaisen's matrix body manufacturing.
3. Baker Hughes & Schlumberger (Smith Bits) Technical Archives: Insights gathered from global field reports emphasize that optimized junk slot geometry prevents shale balling. Hainaisen engineers use these fundamental hydraulic principles to shape our high-flow steel body bits.
