4 Wings Blades PDC Bit manufacturers

A Certified 4 Wings Blades PDC Bit Manufacturers Proven Globally

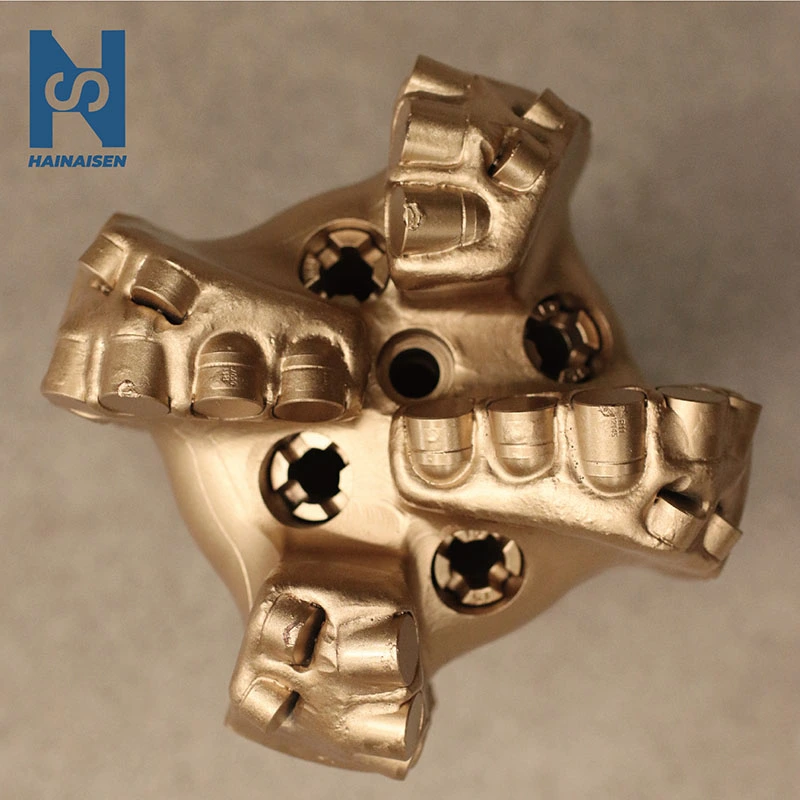

Established in 2013, SHAANXI HAINAISEN INTELLIGENT EQUIPMENT MANUFACTURING CO., LTD. has solidified its position as one of the world‑class 4 Wings Blades PDC Bit Manufacturers and an authority in the drill bit industry, specializing in the precision engineering of 4 Wings Blades PDC Bits. We operate as a verifiable, high‑tech manufacturing entity, delivering high‑performance tools that meet the rigorous demands of global oil, gas, and mining projects. Our 8.5” (215.9mm) bits, featuring IADC code S123 and 57 strategically placed PDC cutters, are the result of over a decade of continuous industrial innovation and production facility expansion.

Our manufacturing strength is anchored by our ISO 9001 certification, ensuring every 4-blade steel body bit undergoes stringent quality checks for structural integrity and cutter durability. With 6 high-flow nozzles and a robust 4-1/2 REG.PIN connection, our products are engineered for stability and high penetration rates (ROP) in soft to medium-hard formations. To date, Hainaisen has successfully exported premium drilling solutions to more than 30 countries, including the USA, Russia, Saudi Arabia, and Brazil, maintaining a reputation for technical transparency and supply chain reliability. Whether you are operating in the shale formations of North America or the complex geological terrains of the Middle East, our facilities provide the industrial-scale output and technical compliance (including CE and RoHS) required to support your large-scale procurement needs. We invite you to verify our manufacturing credentials and request a factory audit or technical consultation with our engineering team today.

✅ ISO 9001 Certified Factory

✅ 10+ Years Manufacturing Expertise

✅ Global Reach in 30+ Countries

✅ Precision IADC S123 Engineering

✅ Verifiable Export Performance

Verified Factory Precision for High-Performance Drilling Success

Choosing a drilling partner involves more than reviewing technical specifications; working with reliable 4 Wings Blades PDC Bit Manufacturers requires ensuring supply chain stability and consistent quality across every bit. Procurement managers often face the risk of downtime caused by inferior blade structures or inconsistent PDC cutter quality. We eliminate these uncertainties through an integrated manufacturing ecosystem that controls every variable from the S123 IADC design to final API‑certified testing, delivering high‑penetration solutions directly from our production floor.

• Advanced Engineering for Optimized S123 Performance

Navigating soft to medium formations requires precise IADC S123 geometry. Specialized R&D software simulates the 4-blade structure to ensure the 57 PDC cutters are positioned for maximum shearing efficiency. By controlling the 13mm and 16mm cutter distribution, these bits provide the ideal balance between aggression and stability needed for shale and sandstone environments.

View Engineering Capabilities

• Precision Manufacturing of 8.5-inch 4-Blade Architectures

Consistency remains paramount for large-scale drilling projects across the United States and the Middle East. Multi-axis CNC machining centers carve the 280mm bit height and 62mm gauge length from premium steel bodies with sub-millimeter accuracy. This automated process ensures every bit meets the exact 8.5” diameter specifications, providing the heat dissipation necessary for high-speed drilling without the risk of bit whirl.

Explore Production Standards

• Rigorous Quality Assurance for API-Standard Reliability

Every 45KG bit undergoes a multi-stage validation process before leaving the factory. Testing the flow dynamics of the 6-nozzle configuration ensures optimal chip removal and cooling during deep-well operations. Each 4-1/2 REG.PIN API connection is verified for thread accuracy, guaranteeing seamless integration with the drill string and minimizing the risk of expensive downhole failures.

Check Testing Protocols

• Scalable Supply Chain for Global Drilling Demands

Managing global logistics for projects in Russia, Kazakhstan, or Brazil requires a Manufacturers with robust capacity. Production lines are optimized for both high-volume orders and specialized customizations, maintaining short lead times even for complex 4-wing designs. A transparent manufacturing timeline allows project managers to plan with confidence, knowing their drilling hardware will arrive according to the mission-critical schedule.

Inquire About Capacity

25,000 m² | State-of-the-Art Manufacturing Facility

35+ | Senior Drilling Tool Design Engineers

120+ | Precision CNC Machining Centers

ISO 9001 | Certified Quality Management System

The 45KG steel body construction provides the necessary structural integrity for demanding geological formations.
