OEM Manufacturing of Five Wing PDC Bit For Hard Rock Drilling
The Five Wing PDC Bit For Hard Rock Drilling represents a revolutionary advancement in drilling technology, specifically engineered to tackle the most challenging geological formations. At HNS, we specialize in manufacturing these sophisticated drilling tools that combine innovative design with superior materials to deliver exceptional performance. Our advanced five-wing configuration provides enhanced stability and penetration rates, making these bits indispensable for oil and gas exploration, mining operations, and water well drilling projects worldwide.
Understanding Five-Wing PDC Bit Technology and Its Advantages
These days, drilling jobs need tools that can work in all kinds of situations and keep doing their job. The five-wing PDC bit design solves these problems by using advanced engineering ideas that make it work better and last longer.

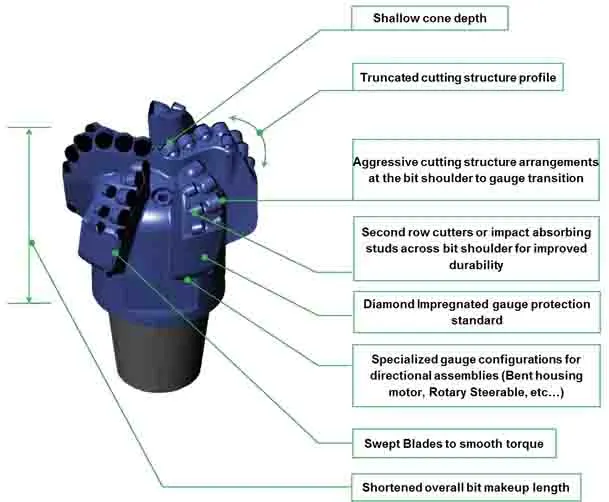

Advanced Design Features and Engineering Principles
Traditional three- or four-wing designs are different from the five-wing layout because the five wings spread the load better across more cutting areas. This new method spreads out the stress on different cutting parts while making the bit more stable while it's working. Each wing has high-quality polycrystalline diamond compact cuts that are placed in a way that makes rock cutting more efficient.
This is because the tungsten carbide material is very resistant to wear, so the bit can keep cutting effectively even after many drilling rounds. Our experts have adjusted the hydraulic flow patterns to make sure that the cuttings are removed quickly and the bit stays cool, which prevents damage from heat during high-intensity drilling operations.
Performance Advantages Over Traditional Bit Designs
When you compare the performance of five-wing PDC bits to other options, you can see that they are much better. The increased steadiness cuts down on shaking and vibration, which makes the wellbores straighter and the digging more accurate. When compared to three-wing designs, penetration rates usually go up by 15 to 25 percent, especially in medium to hard rock formations.
Spreading the cutting load across five wings makes the bit last a lot longer, which means less expensive bit trips and less downtime. This means that drilling contractors and exploration businesses will have lower running costs and be able to finish projects faster.
OEM Manufacturing Process of Five-Wing PDC Bits
Our all-around approach to making sure that every bit meets strict quality standards and meets the unique needs of each customer. The first step is a thorough technical study of the rock types and drilling conditions that will be used.
Custom Design and Engineering Phase
During the first planning process for Five Wing PDC Bit for Hard Rock Drilling, our technical team and customers work together to figure out the specific problems that need to be solved and the performance standards that need to be met. We look at the hardness, abrasiveness, and formation features of the rock to find the best bit shape and cutter placement. Computer-aided design tools make it possible to accurately model how hydraulic fluid flows and how force is distributed across the bit body.
During this step, choosing the right material is very important because different forms need different mixes of steel types and cutter specs. To make sure the best performance, our engineering team looks at things like the expected drilling depth, spinning speeds, and weight-on-bit conditions.
Precision Manufacturing and Quality Assurance
Advanced CNC machining centers make bit shapes very precisely, making sure that the dimensions are accurate within very small ranges. Because there are five wings, the design needs complex code to keep the blade angles and cutter pocket sizes the same on all five wings.
Quality control methods cover every step of the manufacturing process, from checking the raw materials to testing the end product's performance. Before being sent out, each bit goes through a thorough process of measuring, mechanical analysis, and hydraulic flow testing. Our quality control system keeps thorough records that can be traced back to the source. This lets us keep improving and tracking how we're customizing things for each customer.
Selecting the Right Five Wing PDC Bit For Hard Rock Drilling
Choosing the right bit has a big effect on how well you drill and how much it costs to run your business. Understanding the connection between the properties of the bit and the properties of the rock helps buying workers and drilling engineers make smart decisions.
Formation Compatibility and Performance Optimization
Five Wing PDC Bit For Hard Rock Drilling jobs, the bit specs need to be carefully matched to the rock conditions. When cutting hard rocks like limestone, sandstone, and shale, aggressive cutter designs that increase diamond contact work best. To keep wear rates from getting too high, cutter settings may need to be changed for softer shapes.
The abrasiveness of the rock affects the choice of cutting grade. For very abrasive forms, premium diamond compacts are suggested. The five-wing design lets different cutter sizes and grades work on different wings, which makes it better for intermediate formations where rock values change a lot.
Cost-Performance Analysis and Selection Criteria
A good bit choice weighs the initial investment against all the costs of digging, such as the performance of the bit, the cost of the trip, and how well the operation runs. Five-wing PDC bits often have higher starting costs that are justified by lower total drilling costs because they last longer.
Penetration rates, bit life, and drilling quality measures should all be taken into account in performance standards. Our technical support team gives formation-specific advice based on a lot of experience in the field and records of past results from drilling projects that were similar.
Procurement and Supply Chain Considerations for Five Wing PDC Bits
To buy specialized drilling tools around the world, you need to know about the production skills, wait times, and logistics. Our well-established supply chain system makes delivery to drilling sites around the world quick and easy.
Supplier Evaluation and Partnership Development
When looking for dependable OEM manufacturers of Five Wing PDC Bit For Hard Rock Drilling, you need to look at their technical skills, quality systems, and structures for providing help after the sale. HNS keeps up-to-date, detailed technical documents and offers ongoing help for the entire lifecycle of a product. When it comes to special bit creation projects and complicated drilling jobs, our tech team can help.
Lead times depend on how customized the product needs to be and how many orders are placed. Standard setups usually ship within set times, but custom designs may need longer production times because they need to follow different engineering and testing procedures.
Volume Purchasing and Contract Considerations
Large businesses benefit from bulk buying deals for Five Wing PDC Bit For Hard Rock Drilling, which save them money and make sure they always have a stock of goods. The terms of the contract should include standards for quality, delivery times, and technical help. Our procurement specialists work closely with clients to create supply deals that meet their business needs and reduce the overall cost of ownership.
International rules on shipping and packing make sure that precision drilling equipment gets delivered safely. Having the right paperwork and knowing how to handle the product properly protects its purity while it's being shipped to faraway drilling sites.
Practical Drilling Techniques and Case Studies Using Five-Wing PDC Bits
Optimized drilling techniques make the most of the performance of five-wing PDC bits and extend their useful life. Knowing the right operating factors keeps things from wearing out too quickly and ensures that drilling works the same way every time.
Operational Parameters and Best Practices
Rotational speeds between 60 and 120 RPM and weight-on-bit values between 8,000 and 20,000 PSI are usually recommended for uses using the Five Wing PDC Bit For Hard Rock Drilling. The hydraulic flow rates should keep chip removal at a good level and keep the cutting parts cool.
Monitoring the digging factors lets you make changes in real time and find problems early on. Any sudden changes in torque, penetration rate, or sound levels could mean that the bit is wearing out or that the shape is changing, which means that the operations need to be adjusted.
Performance Case Studies and Customer Success Stories
Five-wing PDC bits have been used successfully in difficult drilling conditions in recent field uses. When they switched from traditional designs to our five-wing layout in hard sandstone formations, a big oil service company saw 30% more penetration and 40% longer bit life.
Costs have gone down a lot for water well drilling operations because they are digging more efficiently and replacing bits less often. Five-wing versions are more stable, which is especially useful in directional drilling, where exact wellbore placement is very important.
Conclusion
The Five Wing PDC Bit for Hard Rock Drilling is a big step forward in drilling technology. It has better performance because it was designed in a new way and was made with great care. The mix of better stability, faster penetration rates, and longer operating life makes it very valuable for drilling activities in many fields. Our wide range of OEM production skills ensures consistent quality while meeting the unique needs of each customer for a wide range of uses. The strategic benefits of five-wing PDC bits directly lead to better operating efficiency and lower drilling costs for all of our clients around the world.
FAQ
Q1: What makes five-wing PDC bits superior to traditional designs?
Five-wing PDC bits spread the cutting loads over more areas, which makes the stability and penetration rates better while lowering stress on individual cutters. The improved shape reduces friction and makes bits last longer than three- or four-wing options.
Q2: How do I determine the right specifications for my drilling application?
The choice of bit relies on the features of the formation, the drilling factors, and the performance goals. Our expert team looks at the properties of the rock, the drilling conditions, and the needs of the operation to figure out what the best bit specs are for your job.
Q3: What quality assurance measures ensure consistent bit performance?
Our method for making things includes strict testing of the materials, precise CNC cutting, checking the sizes, and full performance testing. Before being sent out, each bit goes through strict quality control procedures to make sure it always works the same way.
Q4: Can five-wing PDC bits be customized for specific drilling conditions?
Yes, our OEM production lets us make a lot of changes, like changing the cutter grades, bit shapes, and hydraulic designs. We work closely with our customers to make bits that are perfect for their unique formation problems and operating needs.
Partner with HNS for Superior Five Wing PDC Bit Manufacturing
HNS stands ready to support your drilling operations with industry-leading Five Wing PDC Bit For Hard Rock Drilling solutions. Our advanced manufacturing capabilities, technical expertise, and commitment to quality make us the preferred supplier for demanding drilling applications. Contact our engineering team at hainaisen@hnsdrillbit.com to talk about your unique needs and find out how our new five-wing PDC bits can help you do a better job of drilling.
