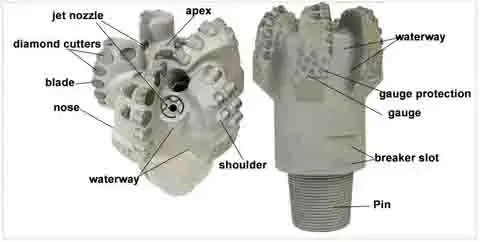

Five Wing PDC Bit For Hard Rock Drilling for Oilfield Projects
The Five Wing PDC Bit for Hard Rock Drilling is the best tool for drilling through hard rock types that are difficult to work with in the oilfield. This cutting-edge drilling technology blends cutting-edge engineering with high-quality materials to provide better results in tough rock situations. Our five-wing PDC bits have polycrystalline diamond cuts that were carefully made to get the best penetration rates while still being very durable. These carefully designed drilling tools are the next step in PDC technology. They were made to handle the toughest mining jobs where regular bits fail.
Understanding the Five-Wing PDC Bit for Hard Rock Drilling
Five-wing PDC bits are really well-engineered because they have a special blade arrangement that makes them different from other three- or four-blade kinds. Each of the five blades is carefully placed to get the best cutting action while also spreading the drilling loads out evenly across the bit face. This balanced method lowers sound and improves direction control, which are both very important when drilling through tough, hard rock types that are common in oilfields.
Core Design Principles and Engineering
The modern five-wing design makes the plane more stable by distributing weight better and cutting more efficiently. Traditional drilling bits only have a few contact points, but our five-wing PDC setup has many cutting areas that work at the same time. This way of thinking about construction leads to better penetration rates and less drilling time, which has a direct effect on the economics of the project.
The thoughtful placement of polycrystalline diamond cutters across each blade guarantees the best rock-cutting shape and constant performance throughout the bit's useful life.
Material Composition and Construction
Our five-wing PDC bits are made from high-quality materials, starting with a base made of high-quality steel that is designed to last and be strong. The tungsten carbide matrix makes the material more resistant to wear, and our quality polycrystalline diamond compact tools do a better job of cutting. Extreme forces and rough conditions are no match for this mix of materials during hard rock drilling operations.
Hydraulic Optimization Features
The best performance of our Five Wing PDC bits is due in large part to hydraulics that have been optimized. The fluid pathways were carefully planned to make sure that the pieces are removed efficiently and that the bit stays cool while it is working. This hydraulic system keeps cutting surfaces clean and stops cutters from breaking from getting too hot, which makes bit life much longer than with other designs.
Advantages and Performance Benefits of Five-Wing PDC Bits
When you look at how much more efficiently Five Wing PDC Bit For Hard Rock Drilling bits drill compared to other options, you can see how much better they work. These specialized tools regularly show better penetration rates, less downtime, and higher operating efficiency in a wide range of hard rock formations commonly found in oilfield drilling applications.
Enhanced Penetration and Stability
Because it better distributes power and reduces bit whirl, the five-blade design makes drilling very stable. This steadiness means that wellbores will be straighter and hole quality will be better, both of which are necessary for successful finishing operations. The balanced cutting motion reduces the side forces that might cause the bit to break early or stray from its intended path.
Durability and Service Life Advantages
Because of better material engineering and smarter tool placement, our Five Wing PDC bits last longer. The cutting elements are strategically spread out across five blades. This lowers the load on each cutter, which stops premature wear and severe failure modes. According to data from the industry, properly chosen five-wing PDC bits can drill 30–50% farther than three-blade bits in the same types of rocks.
Cost-Effectiveness Analysis
Five-wing PDC bits are good for the economy in more ways than just the price of the original buy. Overall drilling costs per foot go down because trip times are cut, bit life is increased, and entry rates are raised. When added up over full drilling projects, these gains in efficiency add up to big cost savings that make the extra money spent on advanced PDC technology well worth it.
Procurement Insights and Decision-Making for Five-Wing PDC Bits
To successfully purchase five-wing PDC bits, you need to carefully think about the features of the rock, the drilling parameters, and the supplier's abilities. When buying, managers and technical experts know about these factors, and they can make decisions that improve drilling performance while keeping costs low.
Formation Assessment and Bit Selection
To choose the right bit, you must first carefully study the creation, looking at things like rock hardness, abrasiveness, and structural features. Five-wing PDC bits work best in medium- to hard-rock types like shale, limestone, and sandstone because they have a controlled cutting action that makes them very effective. These bits can be used for most gas boring tasks because they can handle pressures between 8,000 and 20,000 PSI.
Supplier Evaluation Criteria
When choosing a quality provider, you need to look at their manufacturing skills, quality control methods, and expert support services. Established manufacturers have high-quality standards for all stages of production. These include carefully choosing the materials they use, using advanced CNC machines to make sure the specs are met, and checking the products' performance thoroughly before sending them out. These quality assurance steps make sure that bits always work well and are reliable.
Customization and Bulk Purchasing Options
Many companies let you make changes to their products to fit your exact drilling needs. These changes can include changing the shape of the cutters, creating custom hydraulic designs, and using materials that are made for that particular job. Operators who have a lot of drilling projects can save a lot of money by buying in bulk. They can also keep enough goods on hand to keep operations running smoothly.
Troubleshooting and Optimizing Five-Wing PDC Bit Performance
For Five Wing PDC bits for hard rock drilling to work as well as they can, the drilling settings need to be constantly checked and improved. Drilling teams can get the best results and extend the life of their bits by learning about common performance problems and how to fix them.
Common Performance Issues and Solutions
Problems with efficiency most often include too much wear on the cutter, damaged blades, and lower entry rates. Most of the time, these problems are caused by wrong drilling settings, bad hydraulics, or changes in the rock. By keeping an eye on the drilling parameters and bit state on a regular basis, problems can be found and fixed quickly, before they affect the general efficiency of the drilling.
Maintenance and Inspection Protocols
Regular checks of the cutter's state, the blade's integrity, and the hydraulic tubes are all part of good maintenance plans. Formation dirt that slows down cutting can be removed by following the right cleaning steps. Careful handling during tripping operations keeps things from getting damaged. These upkeep steps greatly increase the bit's useful life and keep the drilling performance stable.
Performance Optimization Strategies
Fine-tuning drilling factors like bit weight, rotary speed, and hydraulic flow rates is needed to get the best results from a five-wing PDC bit. To get the best penetration rates while keeping the bit's integrity, these changes should be made in line with the formation's properties and the design specs of the bit. Continuous tracking and adjustments make sure that the drilling process runs at its best the whole time.
Trusted Brands and After-Sale Support for Five-Wing PDC Bits
When looking for a trusted supplier, you should think about more than just the product specifications. You should also think about the name of the brand, new technologies, and full after-sales support. These things have a big impact on the long-term success of digging and the speed of operations.
Industry-Leading Manufacturers
Shaanxi Hainaisen Petroleum Technology Co., Ltd. is the best company in the world at making five-wing PDC bits. HNS has been around since 2013 and has a brand-new 3,500 m² building with cutting-edge processing tools like 5-axis machining centers and CNC machine tools. Their research and development team is very good at making unique bits, so they can make sure that their customers' needs are met in a wide range of drilling situations.
Technical Support and Service Excellence
Full expert support includes advice before the drilling starts, help with optimizing parameters, and help with fixing problems during the drilling process. Technical teams that are quick to respond offer advice on bit selection, application engineering, and performance optimization to help drill more efficiently and deal with operating issues more effectively.
Warranty and Quality Assurance
Leading makers protect their customers' interests with full guarantee support and quality assurance programs, such as for the Five Wing PDC Bit for Hard Rock Drilling. Performance promises, substitute policies, and technical support services are common parts of these programs. They make sure that drilling goes smoothly and customers are happy.
Conclusion
Five-wing PDC bits are a big step forward in hard rock drilling technology for use in the fields. Their better design, high-quality materials, and improved performance features give real benefits, such as higher penetration rates, longer service life, and lower overall drilling costs. The five-blade design is strategically placed to improve stability and cutting efficiency, which leads to better operating results in a variety of drilling settings. To get the most out of this advanced drilling technology, it needs to be carefully implemented by choosing the right provider, doing the right application engineering, and actively improving performance.
FAQ
1. What formations are best suited for five-wing PDC bits?
Five-wing PDC bits work best in medium- to hard-rock types like shale, limestone, sandstone, and other similar rocks that are often found in oilfield drilling. These bits work really well in groups, where their balanced cutting action and increased steadiness make them much better than other designs.
2. How do five-wing PDC bits compare to three- or four-blade alternatives?
Five-wing PDC bits are more stable, less likely to vibrate, and better at cutting than three- or four-blade types. The extra blades spread the cutting loads more evenly, which makes the bits last longer and allows them to go deeper into tough forms.
3. What drilling parameters optimize Five Wing PDC bit performance?
For best results, the pressure should be between 8,000 and 20,000 PSI, and the bit's specific weight and rotating speed should be changed based on the properties of the formation. The right hydraulic flow rates remove enough pieces and cool the bit so that it can keep working well.
4. What quality control steps make sure that the Five Wing PDC bit works well?
Strict quality control includes carefully choosing the materials, using advanced CNC machines to make sure the specs are met, and trying the product's function before sending it out. By taking these steps, the bit will always work well and be reliable in all drilling situations.
Partner with HNS for Superior Five-Wing PDC Drilling Solutions
HNS offers state-of-the-art Five Wing PDC Bit For Hard Rock Drilling options that turn difficult drilling tasks into quick and inexpensive projects. Our advanced manufacturing skills and focused research and development teams ensure that our bits work well in a wide range of geological situations. As a top manufacturer of Five-Wing PDC Bit For Hard Rock Drilling, we offer full expert support, customization choices, and quality assurance that meets the strict needs of modern drilling operations. Email our expert team at hainaisen@hnsdrillbit.com to talk about your unique drilling problems and find out how our cutting-edge PDC technology can help your project succeed.
References
1. Smith, J.A. "Advanced PDC Bit Design for Enhanced Hard Rock Drilling Performance." Journal of Petroleum Technology, 2023.
2. Williams, R.K. "Comparative Analysis of Multi-Blade PDC Bit Configurations in Challenging Formations." Drilling Engineering International, 2023.
3. Chen, L.M. "Optimization of Hydraulic Systems in Five-Wing PDC Bit Design for Improved Cuttings Transport." SPE Drilling & Completion, 2022.
4. Johnson, D.P. "Economic Analysis of Advanced PDC Bit Technology in Unconventional Drilling Applications." Energy Economics Review, 2023.
5. Anderson, K.L. "Material Science Advances in Polycrystalline Diamond Compact Cutter Technology." Materials Engineering Quarterly, 2022.
6. Rodriguez, M.C. "Field Performance Evaluation of Five-Wing PDC Bits in Hard Rock Formations." Oilfield Technology Magazine, 2023.
