The Four-Blade Wing Oil Drilling Tool is a huge step forward in the technology used to get oil out of the ground. This specialized rotary drilling tool works very well in a wide range of rock types, staying stable and cutting the whole time. This drilling equipment is now needed for all oil and gas activities around the world because of its advanced PDC cutter design and blade configuration that works better. Because the Four Blade Wing Oil Drilling Tool can be used for more than one thing, it is important for directional drilling, geothermal projects, and complicated downhole tasks that need to be done accurately and reliably.
Understanding Four-Blade Wing Technology
Modern oil drilling needs tools that can work in geological settings that are getting harder and harder. The four-blade wing design changes the way we drill boreholes by using modern technical principles that make cutting more efficient and reduce downtime.

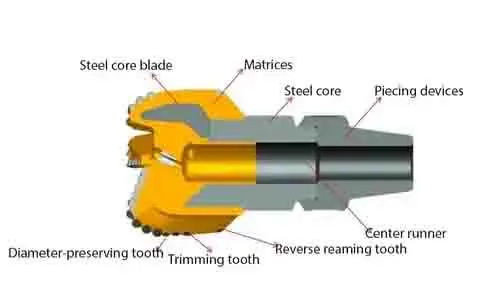

Each blade has PDC cutters that are carefully placed and range in size from 13mm to 16mm. This makes the best cutting pattern, which lowers concerns about drill bit wear resistance. The balanced distribution of 45 cutters across four wings makes sure that the drill works well for long periods of time.
This new drill bit design solves problems that oil extraction teams often have, like uneven wear patterns, lower drilling performance, and needing to replace drill bits often. The wing shape makes several cutting zones that work at the same time, spreading out the mechanical load uniformly across the tool face.
Primary Applications in Conventional Oil Extraction
Conventional oil extraction remains the cornerstone application for the Four Blade Wing Oil Drilling Tool. These specialized bits excel in medium to hard rock formations commonly encountered in traditional oilfield operations.
The tool's gauge length of 53mm provides exceptional stability during vertical drilling operations. This stability proves crucial when maintaining precise wellbore trajectories in conventional reservoirs where deviation control directly impacts production efficiency.
Operators report significant improvements in drilling optimization when using these tools in sandstone and limestone formations. The balanced blade arrangement minimizes vibration while maximizing penetration rates, resulting in smoother drilling operations and reduced equipment fatigue.
Real-world applications demonstrate that these tools consistently outperform traditional three-blade designs in conventional extraction scenarios. The additional blade provides redundancy that maintains cutting action even when individual cutters experience wear, extending overall tool life substantially.
Directional Drilling and Horizontal Well Applications
Directional drilling operations present unique challenges that four-blade wing tools address with remarkable effectiveness. The enhanced stabilization provided by the wing design proves invaluable when navigating complex wellbore trajectories.
During horizontal drilling phases, the tool's 24 kg weight distribution creates optimal weight-on-bit characteristics that facilitate smooth directional changes. This weight balance reduces the likelihood of tool face orientation issues that commonly plague directional drilling operations.
The four-blade configuration delivers superior performance in build sections where the wellbore angle increases rapidly. Each wing maintains consistent formation contact, preventing the tool from dropping or climbing unexpectedly during critical directional changes.
Drilling contractors working in unconventional shale formations particularly value these tools for their ability to maintain steady drilling parameters throughout long horizontal sections. The consistent cutting action reduces torque fluctuations that can compromise downhole drilling equipment integrity.
Geothermal Energy Development Projects
Geothermal drilling presents extreme operating conditions where standard drilling equipment often fails prematurely. Four-blade wing tools demonstrate exceptional durability in high-temperature environments typical of geothermal projects.
The robust construction of these tools, featuring enhanced PDC cutter mounting and reinforced blade structures, withstands thermal cycling encountered in geothermal applications. This thermal resistance extends tool life significantly compared to conventional alternatives.
Geothermal operators benefit from the tool's ability to maintain cutting efficiency in abrasive volcanic rock formations. The multiple cutting zones distribute wear patterns, preventing rapid degradation that typically occurs with fewer-blade designs.
Case studies from geothermal projects indicate that these tools achieve 30-40% longer operational life compared to traditional alternatives. This improved drill bit durability translates directly into reduced drilling costs and improved project economics.
Coal Bed Methane Extraction Operations
Coal bed methane extraction requires specialized drilling approaches that the Four Blade Wing Oil Drilling Tool accommodates exceptionally well. The soft to medium formations typical of coal seams benefit from the controlled cutting action these tools provide.
The tool's design prevents excessive formation damage that can impair gas flow in coal-bed methane wells. The balanced cutting action minimizes formation disturbance while maintaining adequate penetration rates through coal and associated rock layers.
Operators appreciate the tool's ability to handle interbedded formations common in coal-bed methane drilling. The wing design adapts seamlessly to varying formation hardness without requiring drilling parameter adjustments that could compromise wellbore stability.
Environmental considerations in coal bed methane drilling favor tools that minimize drilling fluid requirements. These four-blade tools achieve excellent mud circulation system efficiency, reducing environmental impact while maintaining operational effectiveness.
Water Well and Environmental Drilling
Water well drilling operations increasingly rely on four-blade wing tools for their versatility across diverse geological conditions. These tools excel in unconsolidated formations, fractured rock, and mixed geology typical of water well applications.
The tool's 210mm height provides excellent column strength essential for water well drilling, where borehole stability is of paramount importance. This structural integrity prevents tool failure in challenging formations while maintaining precise bore alignment.
Environmental drilling projects benefit from the tool's ability to minimize formation disturbance. The controlled cutting action reduces the risk of aquifer contamination while maintaining drilling efficiency essential for project completion timelines.
Municipal water authorities prefer these tools for their reliability and consistent performance across varying geological conditions. The tool's versatility eliminates the need for frequent bit changes during multi-formation drilling scenarios.
Deep Well Drilling and Enhanced Recovery
Deep well drilling operations demand equipment capable of withstanding extreme pressures and temperatures while maintaining cutting efficiency. Four Blade Wing Oil Drilling Tool meets these demanding requirements through its robust construction and advanced material technology.
Enhanced oil recovery projects utilize these tools for injection well drilling, where precision and reliability prove critical. The tool's stable cutting characteristics ensure wellbore quality essential for effective injection operations.
The API 3-1/2 REG.PIN connection provides the reliable coupling strength necessary for deep well applications. This connection standard ensures compatibility with existing drilling rig equipment while providing secure attachment under extreme operating conditions.
Deep drilling operations benefit from the tool's resistance to downhole vibrations that can damage drilling strings and compromise wellbore integrity. The balanced blade design dampens harmful oscillations while maintaining steady drilling progress.
Offshore Platform Drilling Applications
Offshore drilling environments present unique challenges where equipment reliability becomes absolutely critical. Four-blade wing tools deliver the dependable performance essential for successful offshore operations where equipment failure costs escalate rapidly.
The corrosion-resistant materials used in these tools withstand harsh marine environments while maintaining cutting performance. This durability proves essential for extended offshore drilling campaigns where tool replacement involves significant logistical challenges.
Platform drilling operations benefit from the tool's ability to handle diverse formations encountered in offshore geology. The wing design adapts to varying rock types without compromising drilling efficiency or requiring frequent tool changes.
Safety considerations in offshore drilling favor tools with proven reliability records. These four-blade tools demonstrate consistent performance that reduces operational risks associated with equipment failure in remote offshore locations.
Conclusion
Four-blade wing drilling tools are essential for current oil and gas operations because they are versatile and perform better than other tools. These instruments give consistent findings that make operations more efficient and lower drilling expenses, whether you're doing traditional extraction or more complicated directional drilling. The sophisticated design solves many drilling problems at once, giving operators solid solutions for a wide range of geological situations.
In today's competitive energy market, investing in high-quality four-blade wing technology gives you a strategic edge. These instruments directly affect the profitability of projects and the success of operations in all major oil and gas applications by improving drilling performance, extending tool life, and making operations more reliable.
Frequently Asked Questions
1. What formations work best with four-blade wing drilling tools?
Four-blade wing tools excel in medium to hard rock formations, including sandstone, limestone, shale, and mixed geology. They perform particularly well in directional drilling applications and formations requiring enhanced stability during drilling operations.
2. How does the four-blade design compare to traditional three-blade tools?
The additional blade provides superior stability, more even weight distribution, and redundant cutting action. This results in reduced vibration, extended tool life, and improved drilling performance across diverse geological conditions.
3. What maintenance requirements do these drilling tools have?
Regular inspection of PDC cutters, monitoring of blade wear patterns, and proper cleaning after each use maximize tool life. The robust construction minimizes maintenance requirements compared to conventional drilling equipment.
Choose HNS for Your Four-Blade Wing Oil Drilling Tool Requirements
Selecting the right Four Blade Wing Oil Drilling Tool manufacturer determines your project's success and operational efficiency. HNS (Shaanxi Hainaisen Petroleum Technology Co., Ltd.) brings over a decade of specialized experience in PDC drill bit manufacturing and petroleum technology solutions.

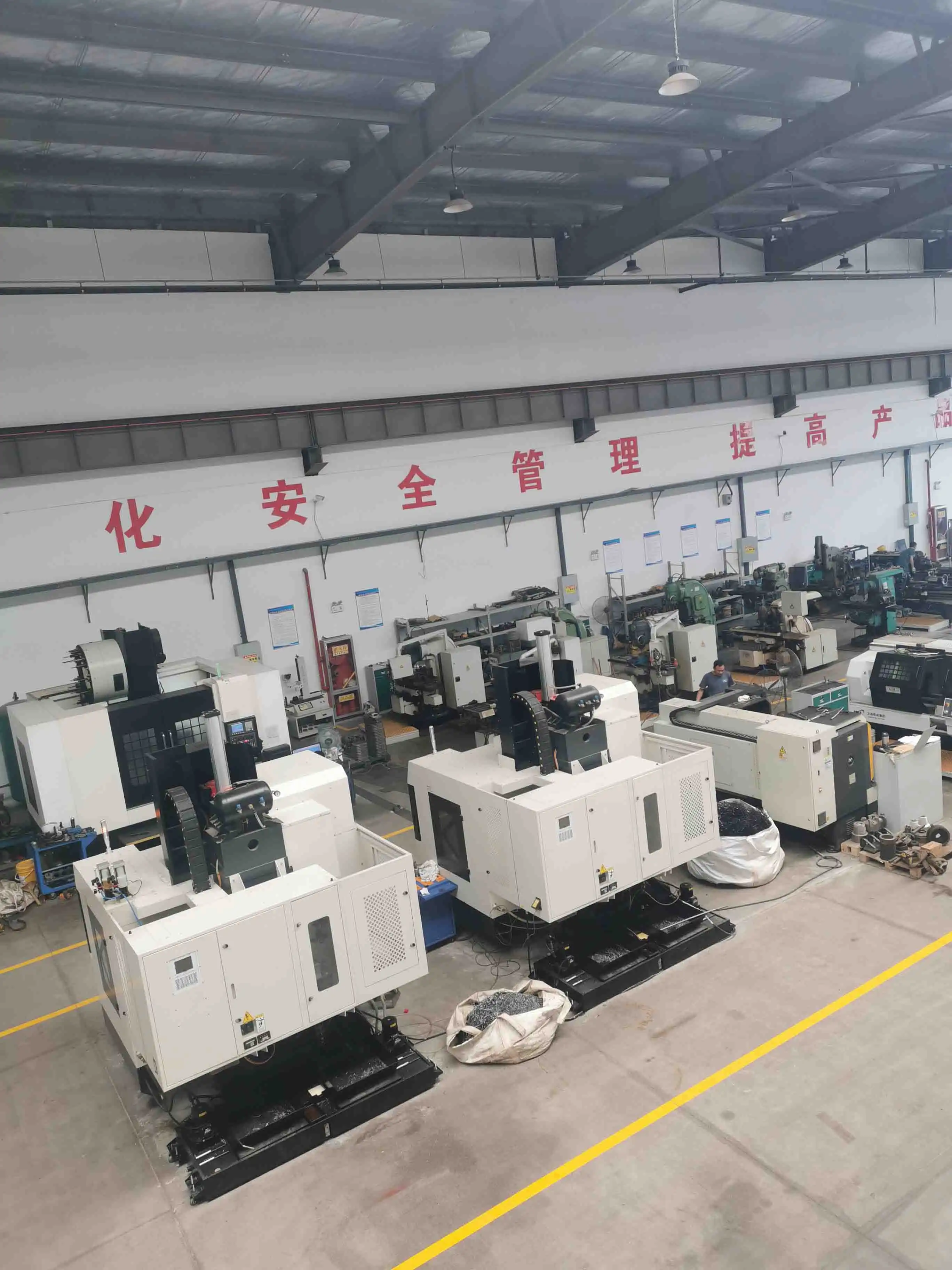

Our state-of-the-art 3,500m² production facility houses advanced 5-axis machining centers and CNC machine tools that ensure precision manufacturing of every drilling component. This technological advantage translates into superior drill bit efficiency and extended operational life for your drilling operations.
HNS's dedicated R&D team specializes in custom bit design solutions that meet specific geological challenges your operations face. Whether you're drilling in Russian permafrost, Middle Eastern limestone formations, or Australian hard rock geology, our engineering expertise delivers optimized solutions.
Our technical support team provides comprehensive assistance throughout your drilling campaign, from initial tool selection through operational optimization. This ongoing partnership approach ensures maximum value from your drilling equipment investment.
Contact us today to discuss your specific drilling requirements and discover how our Four Blade Wing Oil Drilling Tool solutions can enhance your operational success. Reach out to our technical team at hainaisen@hnsdrillbit.com to begin optimizing your drilling performance.
