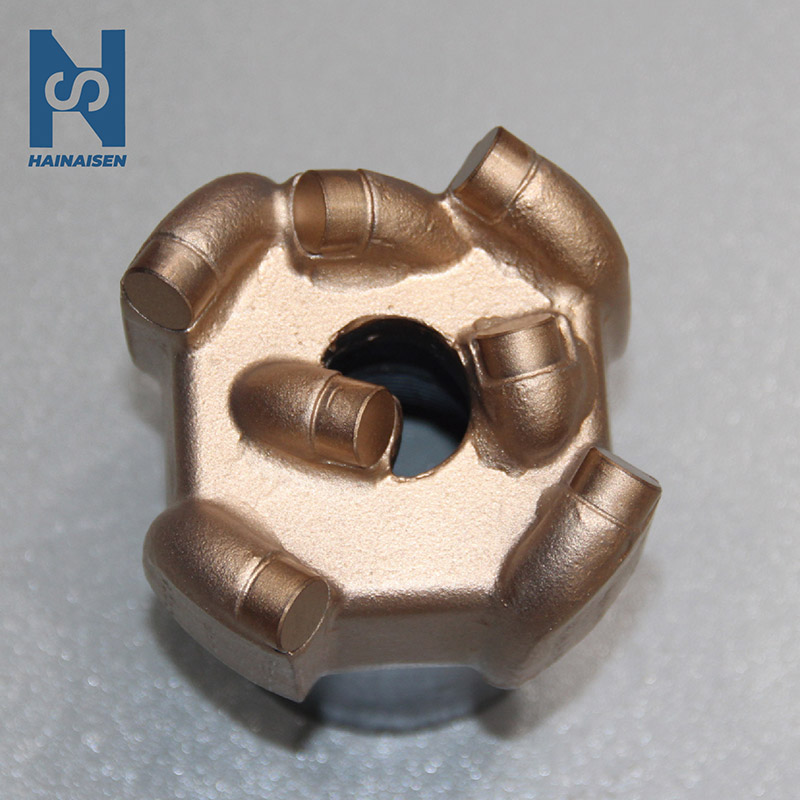

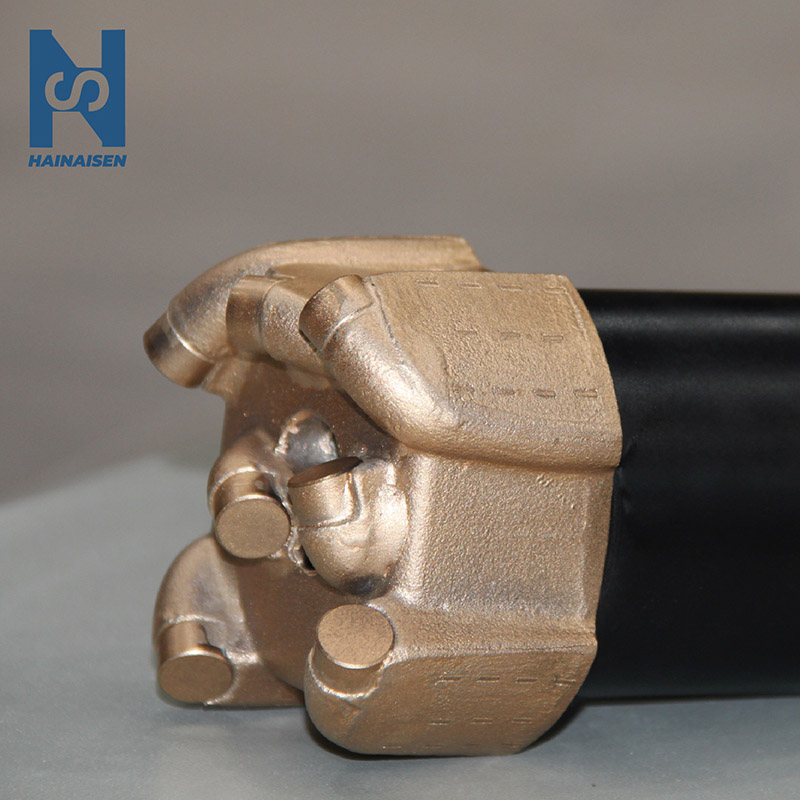

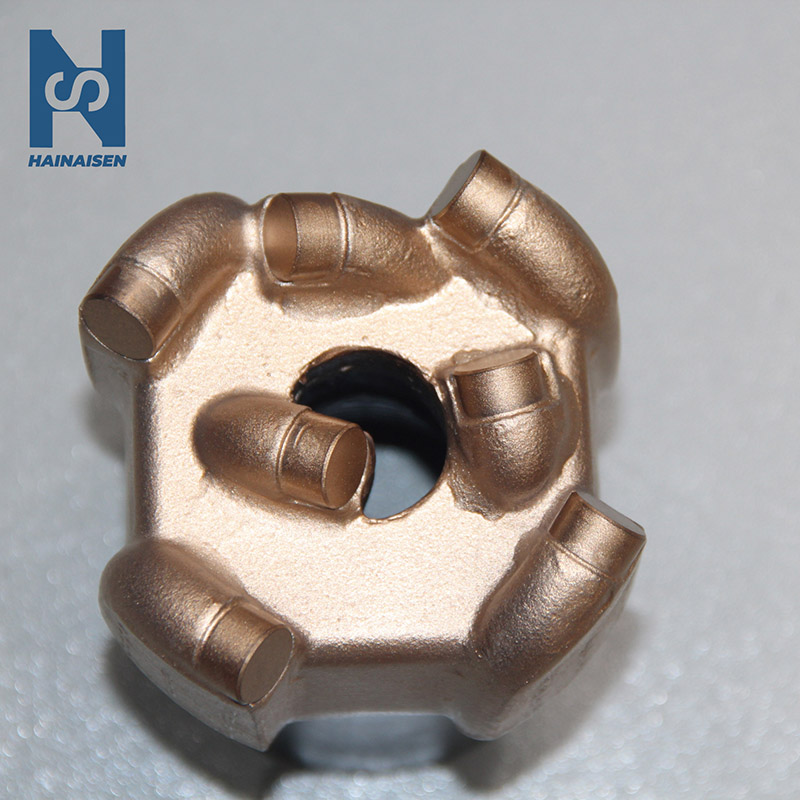

PDC Flat Top Sintered Drill Bit

PDC Flat Top Sintered Drill Bit for High-Speed Penetration in Soft to Medium Formations

Shaanxi Hainaisen Petroleum Technology Co., Ltd Manufactures the PDC Flat Top Sintered Drill Bit, an advanced full-face drilling tool engineered through high-temperature vacuum sintering that integrates premium 1308 PDC cutters into a tungsten carbide matrix body. Available in sizes ranging from 50mm to 160mm with standard 75mm diameter, this sintered drill bit delivers exceptional performance in formations rated 1-12 on hardness scales. With over 10 years of PDC cutting technology expertise and a 6,000-square-meter manufacturing facility staffed by 20+ senior technicians, Hainaisen produces drill bits achieving matrix hardness between 25-35 HRC and maintaining structural integrity at temperatures exceeding 700°C.

What Makes Our Flat Top Sintered Drill Bit Different

Traditional steel-body bits suffer premature erosion in abrasive formations. Our sintered construction eliminates this vulnerability through metallurgical bonding.

The flat-top crown profile maximizes contact area with the formation. This design shears rock efficiently rather than crushing it, reducing stress on your drilling equipment.

Your operations benefit from customizable nozzle configurations and connection types. The single-nozzle standard design optimizes hydraulic flow, preventing bit balling that causes costly downtime.

The tungsten carbide matrix provides uniform hardness distribution across the bit face. This prevents localized wear spots that typically shorten bit life in demanding applications.

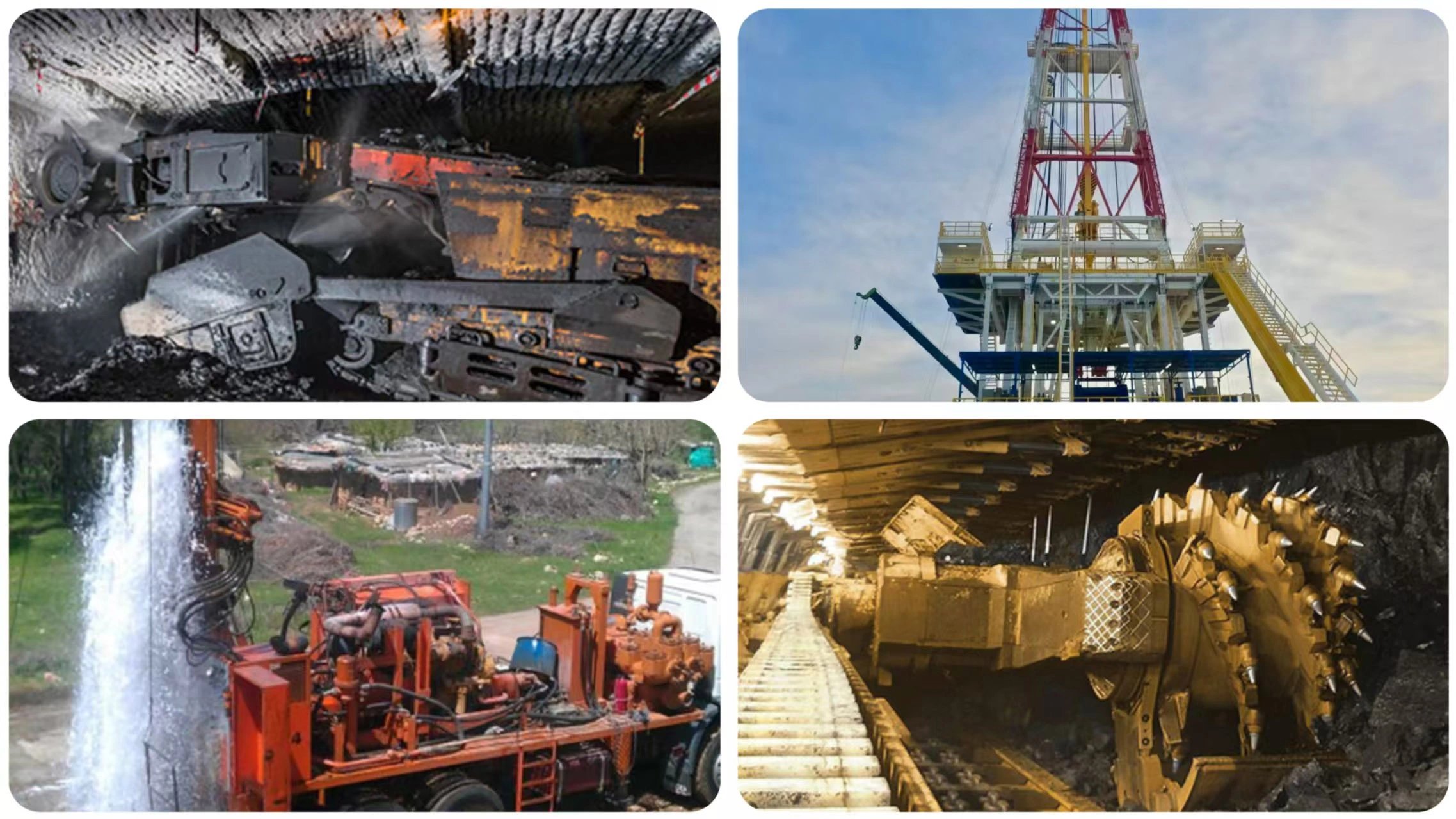

Applications Across Energy and Infrastructure Sectors

Coal Bed Methane Drainage Projects: The PDC Flat Top Sintered Drill Bit navigates alternating layers of soft coal and abrasive sandstone without frequent tripping. Your drilling teams achieve longer runs between bit changes in deep-hole CBM operations.

Horizontal Directional Drilling: Infrastructure projects demand reliability during river crossings and urban utility tunneling. Our sintered matrix construction provides the high-torque stability needed for long-distance endurance, avoiding costly mid-bore bit failures that delay project timelines.

Geothermal Energy Exploration: The tungsten carbide matrix thrives in high-temperature, chemically aggressive geothermal brines. While standard alloy steel bits experience rapid hydrogen embrittlement, our sintered construction maintains gauge diameter even in highly fractured formations.

Mining Engineering Applications: Consistent performance in soft to medium-hard mining formations accelerates your extraction operations. The flat-top design delivers superior rate of penetration compared to older crushing-based technologies.

Selection Guide

Additional Selection Notes:

• For build-up sections, prioritize guided versions with side cutters to improve tool face stability.
• In high coal/mudstone content formations, select anti-balling flow path designs to avoid back pressure and stuck pipe.
• For hard-rock directional operations, customized heavy-duty matrix + high-wear PDC cutters can extend bit life.

Performance Advantages in Your Operations

You'll notice immediate improvements in drilling efficiency. The PDC Flat Top Sintered Drill Bit delivers high rate of penetration by shearing action that requires less weight on bit than conventional tools.

Extended bit life translates directly to your bottom line. Reduced trip frequency means more productive drilling hours and lower cost per meter drilled.

Your drill rigs experience less mechanical stress. The efficient cutting action generates less vibration and torque fluctuation, protecting your investment in drilling equipment.

The advanced hydraulic design prevents cuttings accumulation. Optimized fluid dynamics keep the bit face clean, maintaining cutting efficiency throughout the run.

Quality Assurance Standards

Our quality control process focuses on critical-to-quality parameters that determine field performance.

PDC Cutter Interface Strength: We verify bonding integrity through ultrasonic scanning to detect any voids between cutters and matrix sockets. This ensures no cutter loss during high-vibration operations.

Matrix Density Verification: Using Archimedes' principle, we assess each bit to confirm full densification during the sintering process. Proper density prevents premature body erosion.

Dimensional Accuracy: Coordinate Measuring Machines verify nozzle placement and gauge protection accuracy against API Spec 7-1 standards. Your bits arrive ready for immediate deployment.

Erosion Resistance Testing: Sand-slurry erosion tests simulate long-term exposure to drilling fluids. Only bits passing these rigorous tests reach your operations.

Project Case Studies

Large-Scale CBM Development in Shanxi Province: A coal bed methane operator replaced their steel-body bits with our flat top sintered drill bits across 15 drilling rigs. The result was a 40% reduction in bit changes and 28% improvement in average penetration rate. Project completion accelerated by three weeks, significantly reducing mobilization costs.

Urban Infrastructure Expansion: A horizontal directional drilling contractor working on a major city's utility expansion faced repeated bit failures in mixed geology containing abrasive sand layers. After switching to our sintered drill bits, they completed five consecutive 800-meter bores without a single bit failure, eliminating expensive mid-bore retrievals.

Packaging and Transportation

Our bits are securely packaged in custom-designed crates to ensure safe transportation. We work with reliable logistics partners to deliver your order on time, anywhere in the world.

Transaction Feedback

We value your input and continuously strive to improve our products and services. Your feedback helps us enhance our products and maintain our position as an industry leader.

Qualification Certification

HAINAISEN is proud to hold various industry Certifications, demonstrating our commitment to quality and safety standards.

After-Sales Service

Our commitment to you doesn't end with the sale. We provide comprehensive after-sales support, including:

• Technical guidance for optimal bit performance
• Wear analysis and performance reports
• On-site troubleshooting assistance when needed

FAQ

Q1: What formations work best with flat top sintered drill bits?
A: Flat top designs excel in soft to medium-hard formations rated 1-12 on hardness scales. You'll achieve optimal results in consistent geological conditions including coal, soft sandstone, shale, and mudstone formations.

Q2: How does sintered construction differ from steel-body bits?
A: Sintered bits use high-temperature metallurgical bonding to create a tungsten carbide matrix body. This eliminates the premature erosion common in steel-body bits when drilling abrasive formations, extending your bit life significantly.

Q3: Can you customize connection types for our existing drill string?
A: Yes, we manufacture customized connection types to match your specific drill string requirements. Our engineering team works with you to ensure perfect compatibility with your existing equipment.

Q4: What drilling parameters optimize performance?
A: Maintain adequate drilling fluid flow to prevent bit balling. Use appropriate weight on bit for your formation – the shearing action requires less weight than crushing-type bits. Our technical team provides specific parameter recommendations for your application.

Q5: How quickly can you fulfill orders?
A: Standard delivery is 5-7 business days for orders of 10 pieces or more. For urgent project requirements, contact our team to discuss expedited production schedules.

Q6: What quality certifications do your bits meet?
A: Our manufacturing processes adhere to API Spec 7-1 standards, ensuring thread precision and metallurgical consistency. Each bit undergoes comprehensive quality testing before shipment.

Contact Us

Ready to experience the superior performance of our PDC Flat Top Sintered Drill Bits? Contact Us today at hainaisen@hnsdrillbit.com for inquiries, quotes, or technical support.
