Cutting Mechanics: How Blade Count Affects Performance?
How well and how many blades a PDC bit has are very important to how it cuts and how well it works overall. To figure out what this connection means, we need to look into the basics of bit hydraulics and rock cutting.
Force Distribution and Cutting Aggressiveness

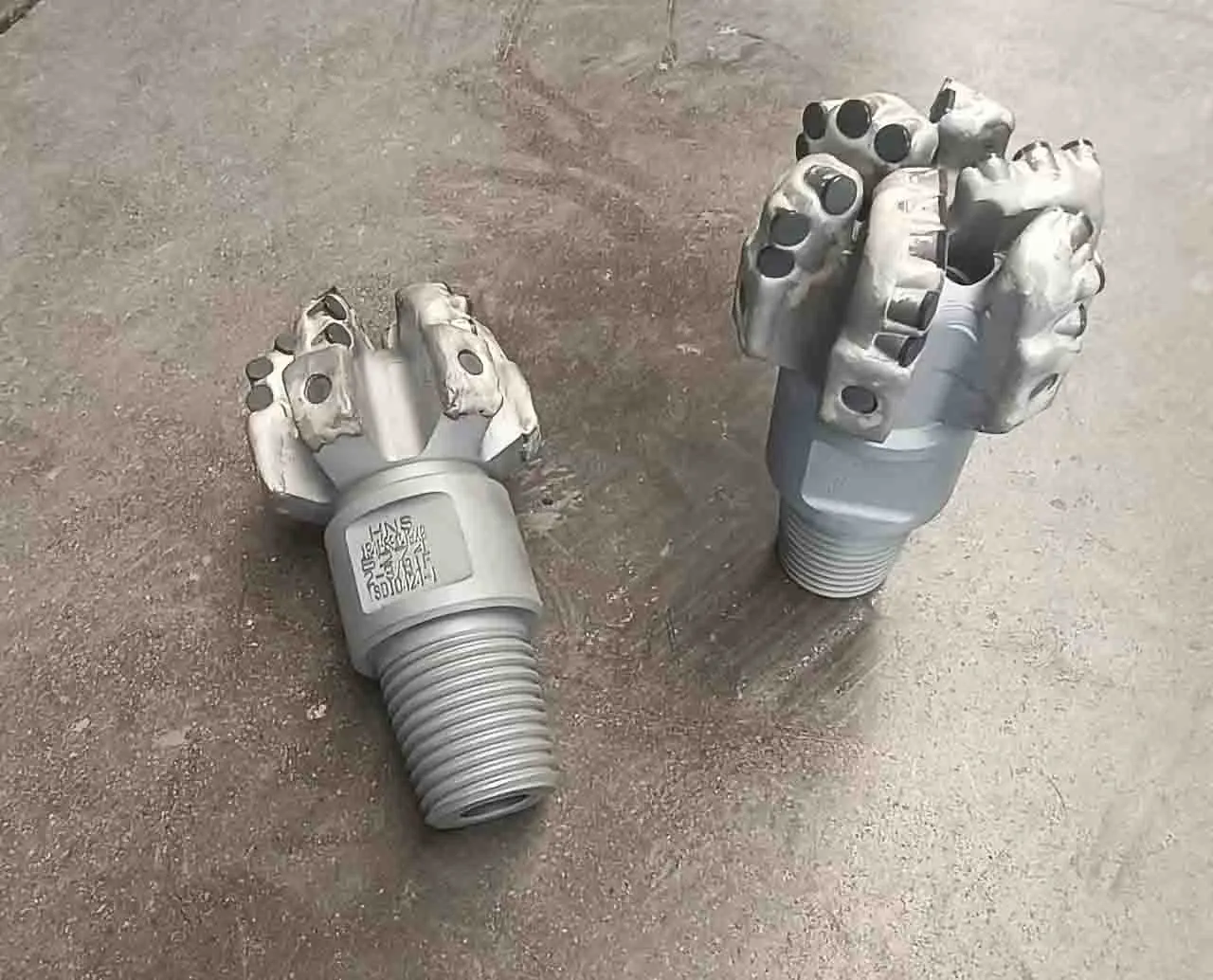

When compared to an 8-blade design, a 6-blade PDC drill bit usually has higher individual blade loads. This extra force on each blade can make the cutting action more violent, which could make penetration rates go faster in some forms. The fewer blades also make the junk holes between the blades bigger, which makes it easier to remove cuts and clean the bit.
Hydraulic Efficiency and Cooling

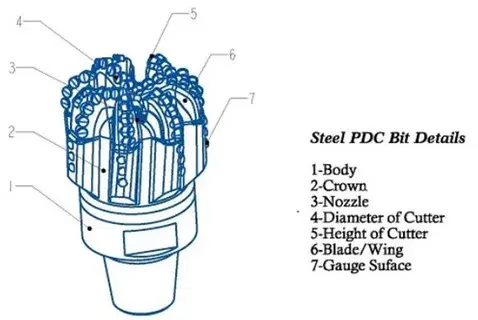

The shape of a PDC bit's blades has a lot to do with how well it works with hydraulics. A 6-blade design often lets the opening be placed better and the flow area grow because it has fewer blades. This can make the hydraulics work better, which can help cool the bit better and get rid of the cuttings more efficiently. Better hydraulics can be especially helpful in rocks that are prone to bit balling or where the temperature is high during drilling.
Stability and Vibration Control
While 8-blade bits are often praised for their stability, advancements in 6-blade designs have significantly narrowed this gap. Modern 6-blade configurations incorporate innovative stabilization features, such as optimized blade spacing and specialized cutter arrangements, to mitigate vibration and maintain directional control. In many cases, the reduced weight-on-bit requirements of 6-blade designs can actually contribute to improved overall stability.
Field Test Results: 6 vs 8 Blades in Various Formations
To truly understand the performance differences between 6-blade and 8-blade PDC bits, it's essential to examine real-world field test results across a range of geological formations.
Soft to Medium Formations
In softer formations, such as shales and unconsolidated sandstones, 6-blade PDC drill bits have consistently demonstrated superior penetration rates. The more aggressive cutting action and larger junk slots allow for efficient removal of cuttings, preventing bit balling and maintaining high ROP (Rate of Penetration). Field tests in the Permian Basin, for example, have shown up to 20% faster drilling speeds with 6-blade configurations in these formation types.
Hard and Abrasive Formations
Traditionally, 8-blade bits have been favored for harder formations due to their perceived stability advantages. However, recent field trials with advanced 6-blade designs have yielded surprising results. In abrasive sandstones and hard limestones, optimized 6-blade bits have achieved comparable, and in some cases superior, footage drilled before reaching wear limits. The key lies in strategic cutter placement and improved hydraulics, which compensate for the reduced blade count.
Interbedded Formations
Perhaps the most striking advantage of 6-blade PDC bits becomes apparent in interbedded formations, where drilling conditions can rapidly change. The versatility of the 6-blade design allows for better adaptation to varying lithologies without the need for bit changes. Field tests in the Eagle Ford Shale, characterized by its interbedded shale and limestone layers, have shown that 6-blade bits can maintain consistent performance across transitions, reducing overall drilling time and costs.
Optimizing Bit Selection: When to Choose 6-Blade PDC?
Selecting the optimal PDC bit configuration requires a nuanced understanding of formation characteristics, drilling objectives, and operational constraints. While 6-blade designs offer compelling advantages in many scenarios, it's crucial to identify the specific conditions where they excel.
Formation-Specific Considerations
When dealing with soft to medium-hard formations, particularly those prone to bit balling, a 6-blade PDC drill bit often emerges as the superior choice. The increased aggressiveness and enhanced hydraulics can maintain high penetration rates while effectively managing cuttings removal. In contrast, extremely hard or highly abrasive formations may still benefit from the added stability of an 8-blade configuration, unless using a specially designed 6-blade bit with reinforced cutters and optimized blade geometry.
Directional Drilling Applications
For directional and horizontal drilling operations, the reduced weight-on-bit requirements of 6-blade designs can offer significant advantages. The ability to maintain high ROP with lower WOB allows for better toolface control and smoother wellbore trajectories. This makes 6-blade bits particularly attractive for extended reach drilling and complex well profiles where precise directional control is paramount.
Economic Considerations
The great flexibility of 6-blade PDC bits might result in significant cost reductions from a business perspective. Trip time and rig expenses are reduced by drilling through various kinds of rock without the need to switch tools. In some rocks, penetration rates may also be faster, which might reduce the overall drilling time and increase project profitability.
Custom Design Opportunities
Adaptability to your demands is one of the finest features of 6-blade PDC bit technology. In close collaboration with bit producers, drilling engineers may create 6-blade designs that fit specific formations or commercial requirements. Changing the cutter size, blade form, or nozzle design may be necessary to provide the optimum results for a particular drilling program.
Conclusion
The decision between a 6-blade PDC drill bit for sale and 8-blade PDC bits cannot be made in a way that is generally applicable. The optimal option will need a thorough analysis of the specific drilling environment and objectives, notwithstanding the obvious advantages of 6-blade designs in terms of adjustability, hydraulic performance, and cutting efficiency. As drilling technology advances, 6-blade designs' potential will likely grow even more, challenging accepted notions about bit selection and pushing the boundaries of drilling performance.
In order to optimize operations, oil and gas firms, service providers, and drilling contractors may find that investigating the possibilities of cutting-edge 6-blade PDC bit technology might result in notable cost and performance reductions. With a focus on developing and producing state-of-the-art PDC drill bits, Shaanxi Hainaisen Petroleum Technology Co., Ltd. offers customized 6-blade designs that are suited to your unique drilling requirements. Using our cutting-edge 3,500m² facilities and sophisticated R&D skills, our team of professionals is prepared to help you choose the perfect bit for your upcoming project. To learn more about how our 6-blade PDC drill bits can revolutionize your drilling performance, please contact us at hainaisen@hnsdrillbit.com. Let's work together to elevate your drilling efficiency to new heights.
