PDC vs. Traditional Bits: Key Differences
There are a number of noticeable distinctions between PDC bits and the more conventional roller cone bits. The growing popularity of PDC technique in the oil drilling business can be attributed to several differences:
Cutting Mechanism
When cutting rock, PDC bits use a shearing action and roller cone bits use a crushing mechanism. There are noticeable performance differences between the two bit types due to this underlying difference in cutting strategy.
Bit Design

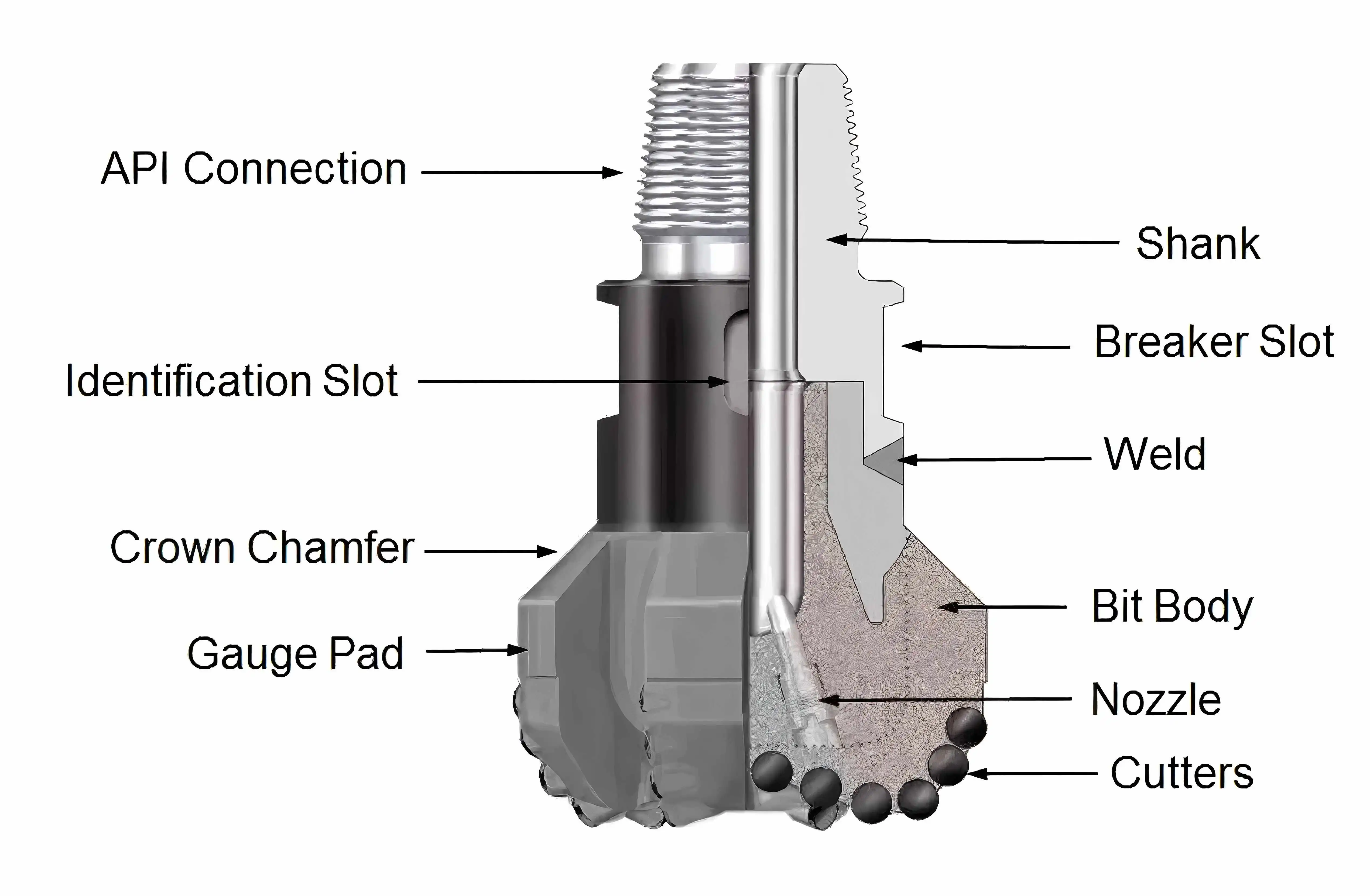

The cutter design of PDC drill bits for oil drilling is static and unmoving, in contrast to roller cone bits, which include revolving cones with teeth or inserts. One reason PDC bits last longer and need less maintenance is because they are simple to build.
Drilling Efficiency
Penetration rates are often greater with PDC bits than with roller cone bits because of their shearing action and continuous cutting surface. The drilling times are lowered and operating expenses are increased as a result of this efficiency boost.
Bit Life
The synthetic diamond cutters used in PDC bits offer superior wear resistance compared to the steel or tungsten carbide inserts found in roller cone bits. As a result, PDC bits typically have a longer operational life, reducing the frequency of bit changes and associated downtime.
Formation Suitability
While PDC bits excel in a wide range of formations, they are particularly effective in soft to medium-hard formations. Roller cone bits, on the other hand, may be preferred in extremely hard or abrasive formations where the crushing action is more suitable.
Shearing versus Crushing as a Cutting Mechanism
The distinction between shearing and crushing as cutting mechanisms is crucial in understanding the performance advantages of PDC bits over traditional roller cone bits:
Shearing Mechanism of PDC Bits
PDC bits employ a shearing action to cut through rock formations. The synthetic diamond cutters mounted on the bit body slice through the rock, removing material in a continuous, efficient manner. This shearing mechanism offers several advantages:
- Higher penetration rates
- Reduced energy consumption
- More consistent hole size and quality
- Lower vibration levels during drilling
Crushing Mechanism of Roller Cone Bits
Traditional roller cone drill bits for oil drilling use a crushing mechanism to break down rock formations. As the bit rotates, the teeth or inserts on the rotating cones impact the rock surface, causing it to fracture and break apart. While effective in certain formations, this crushing mechanism has some limitations:
- Lower penetration rates compared to shearing
- Higher energy consumption
- Increased vibration and potential for bit damage
- Less consistent hole size and quality
Impact on Drilling Performance
The shearing action of PDC bits allows for more efficient rock removal, resulting in faster drilling rates and reduced energy consumption. Additionally, the continuous cutting surface of PDC bits produces a smoother wellbore, which can improve overall drilling stability and reduce the risk of stuck pipe incidents.
Optimizing PDC Bit Performance in Oil Wells
To maximize the performance of PDC drill bits for oil drilling, several factors must be considered and optimized:
Cutter Selection and Placement
The size, shape, and arrangement of PDC cutters on the bit body play a crucial role in determining drilling efficiency. Optimizing cutter selection and placement involves:
- Choosing appropriate cutter sizes for the target formation
- Determining optimal cutter density and distribution
- Implementing advanced cutter geometries for improved durability
Hydraulic Design
Proper hydraulic design is essential for efficient cuttings removal and bit cooling. Optimization strategies include:
- Calculating optimal nozzle sizes and configurations
- Implementing advanced fluid flow simulations
- Designing junk slot areas for improved cuttings evacuation
Bit Profile and Gauge Design
The overall shape and profile of PDC drill bits for oil drilling significantly impact their drilling performance. Considerations for optimization include:
- Selecting appropriate bit profiles for specific formation types
- Optimizing gauge pad design for improved stability and steerability
- Implementing advanced stabilization features to reduce vibration
Drilling Parameters
The key to getting the most out of a PDC bit is making sure you pick and manage the drilling settings correctly. Important things to think about are:
- Weight on bit (WOB) optimization
- Rotary speed (RPM) adjustment
- Hydraulic horsepower management
- Torque and drag analysis
Formation-Specific Customization
Tailoring PDC bit designs to specific formation characteristics can significantly enhance drilling performance. This customization may involve:
- Adjusting cutter types and sizes for different rock hardness
- Modifying bit profiles to match formation abrasiveness
- Implementing specialized cutting structures for interbedded formations
By carefully considering these optimization factors, drilling engineers and bit designers from a drill bits for oil drilling factory can maximize the performance of PDC drill bits for oil drilling, resulting in improved efficiency, reduced costs, and enhanced overall drilling operations.
Conclusion
After extensive testing, PDC drill bits have established themselves as the gold standard for oil drilling. Drilling companies may dramatically improve their operations if they invested the effort to understand how these high-tech tools work and then optimized their construction and operation. Whatever your needs may be—a large oil service company in search of dependable equipment or a small operation excavating water wells for fun—you're sure to find it in our assortment of PDC drill bits for oil drilling.
Our company, Shaanxi Hainaisen Petroleum Technology Co., Ltd., is well-known for its innovative PDC drill bits and other drilling equipment. We can meet your specific drilling needs with our one-of-a-kind solutions since our 3,500m² facility is equipped with cutting-edge processing equipment and a committed R&D staff. Products that surpass your expectations are guaranteed by our knowledge and dedication to quality, regardless of whether you're engaged in geological surveys, coal mining, or oil and gas extraction.
Is your drilling operation prepared to benefit from our high-tech PDC drill bits? If you would like to discuss your unique needs and find out how our creative solutions can drive your success in the field, please contact us immediately at hainaisen@hnsdrillbit.com.
