Formation-specific advantages of each bit type
Understanding the formation-specific advantages of Three blade oil drill bits and PDC bits is crucial for optimizing drilling operations. Let's delve into the unique characteristics that make each bit type suitable for different geological conditions.
Three blade oil drill bits: Excelling in medium-hardness formations
Three blade oil drill bits shine in medium-hardness formations due to their innovative design. The advanced blade configuration allows for:
- Enhanced cutting efficiency
- Improved stability during drilling
- Reduced vibration, leading to smoother operations
- Faster penetration rates in specific formation types
These bits are particularly effective in formations such as:
- Sandstone
- Limestone
- Dolomite
- Shale with moderate hardness
The unique three-blade design allows for optimal cuttings evacuation, preventing bit balling and ensuring consistent performance. This makes them an excellent choice for operators drilling in areas with known medium-hardness formations.

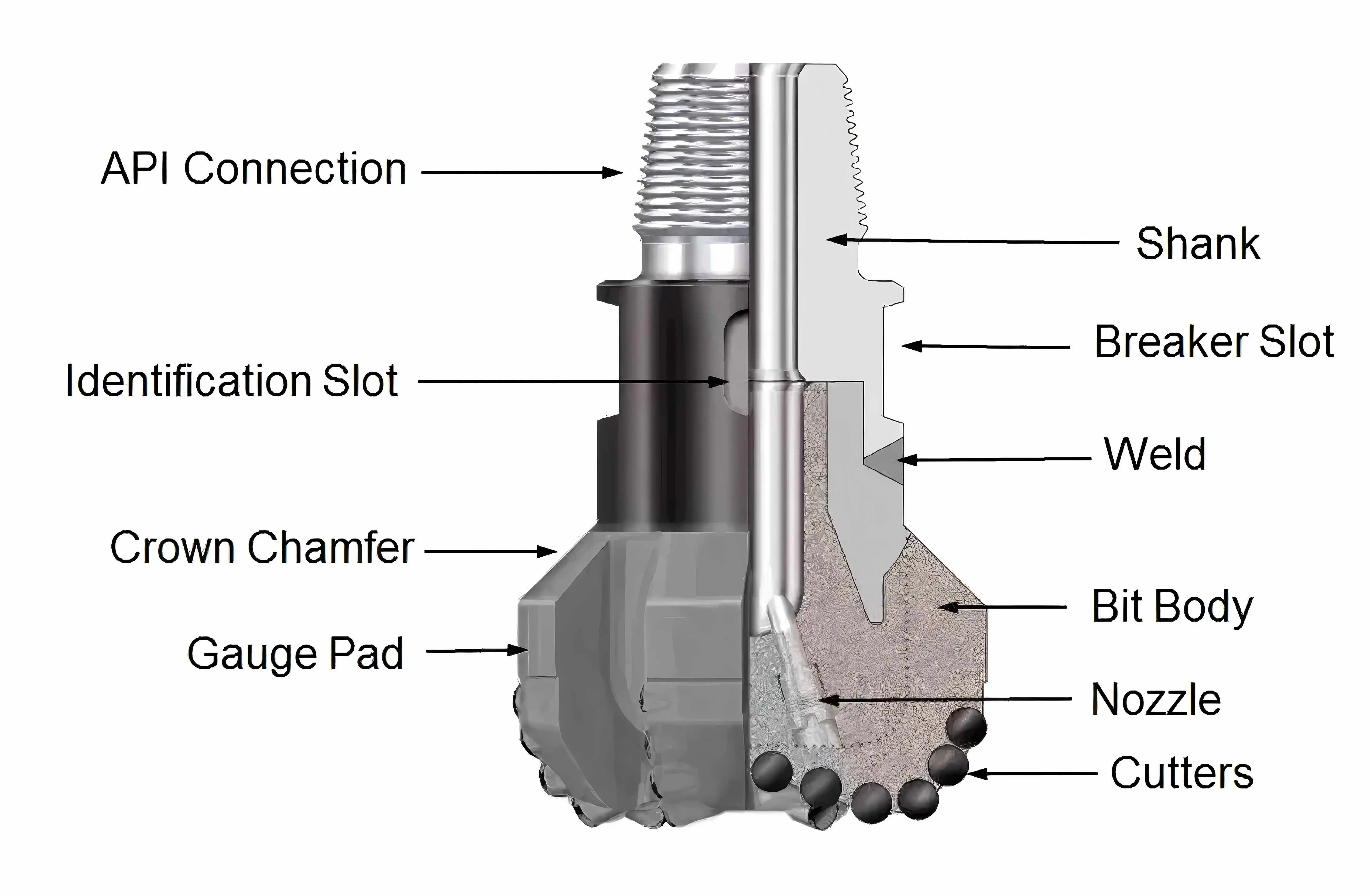

PDC bits: Versatility across a wide range of formations
PDC bits are renowned for their versatility and ability to drill through various formation types efficiently. Their advantages include:
- Exceptional durability in abrasive formations
- High resistance to wear and tear
- Ability to maintain gauge for extended periods
- Excellent performance in both soft and hard formations
PDC bits excel in formations such as:
- Soft to medium-hard sandstone
- Shale
- Limestone
- Dolomite
- Some harder formations when properly designed
The polycrystalline diamond compact cutters on PDC bits provide superior cutting action, allowing them to maintain high penetration rates even in challenging conditions. This versatility makes PDC bits a popular choice for operators dealing with varied or uncertain formation types.
PDC vs. three-blade: Wear rate analysis
A critical factor in determining the effectiveness and cost-efficiency of drill bits is their wear rate. Let's examine how PDC and three-blade bits compare in terms of durability and longevity.
PDC bits: Long-lasting performance
PDC bits are renowned for their exceptional wear resistance, often outlasting other bit types in various drilling conditions. Key factors contributing to their low wear rate include:
- Advanced diamond technology: The polycrystalline diamond compact cutters are incredibly hard and resistant to abrasion.
- Thermal stability: PDC cutters can withstand high temperatures generated during drilling without significant degradation.
- Even weight distribution: The design of PDC bits allows for balanced wear across all cutters, extending overall bit life.
In many scenarios, PDC bits can drill several thousand feet before requiring replacement, making them a cost-effective choice for extended drilling operations.
Three blade oil drill bits: Optimized for specific formations
While Three blade oil drill bits may not match the overall durability of PDC bits in all conditions, they offer unique advantages in wear rate for specific applications:
- Reduced friction: The three-blade design minimizes contact area, potentially reducing overall wear in certain formations.
- Improved hydraulics: Enhanced fluid flow can help cool the bit and remove cuttings more efficiently, reducing wear from heat and debris.
- Formation-specific optimization: When used in their ideal medium-hardness formations, three-blade bits can exhibit excellent wear characteristics.
The wear rate of three-blade bits can be particularly favorable in scenarios where their design matches the formation characteristics perfectly, potentially outperforming PDC bits in these specific conditions.
Comparative analysis
When comparing wear rates, several factors come into play:
- Formation abrasiveness: PDC bits generally perform better in highly abrasive formations.
- Drilling parameters: Proper weight on bit (WOB) and RPM settings can significantly affect wear rates for both bit types.
- Bottom hole assembly design: The overall drill string configuration influences bit wear for both PDC and three-blade bits.
- Formation variability: PDC bits may have an advantage in formations with frequent changes in hardness.
It's important to note that wear rate analysis should be conducted on a case-by-case basis, considering the specific geological conditions and operational parameters of each drilling project.
When to switch from PDC to three-blade bits
Knowing when to transition from PDC to Three blade oil drill bits can significantly impact drilling efficiency and cost-effectiveness. Let's explore the key indicators and scenarios that might warrant this switch.
Formation changes
One of the primary reasons to consider switching from PDC to three-blade bits is a significant change in formation characteristics. Indicators include:
- Transition to medium-hardness formations where three-blade bits excel
- Encountering formations with specific cutting requirements that match three-blade design
- Reduced PDC bit performance in new formation types
Drilling dynamics
Changes in drilling dynamics can also necessitate a switch to three-blade bits:
- Increased vibration or instability with PDC bits
- Need for improved directional control in certain wellbore sections
- Requirement for faster penetration rates in specific intervals
Economic considerations
Cost factors play a crucial role in the decision to switch bit types:
- Lower initial cost of three-blade bits for shorter drilling intervals
- Potential for improved ROP in suitable formations, reducing overall drilling time
- Optimized bit life when drilling through known medium-hardness sections
Operational objectives
Specific drilling objectives may favor the use of three-blade bits:
- Need for enhanced cuttings evacuation in certain wellbore sections
- Requirement for smoother wellbore conditions in preparation for casing runs
- Optimization of hydraulics in specific drilling fluid conditions
Real-time data analysis
Modern drilling operations benefit from real-time data analysis, which can inform bit selection:
- Monitoring of mechanical specific energy (MSE) trends
- Analysis of vibration and shock data
- Evaluation of ROP trends and bit dull condition from previous runs
By carefully considering these factors, drilling engineers can make informed decisions about when to switch from PDC to three-blade bits, optimizing performance and cost-efficiency throughout the drilling process.
Conclusion
In the world of oil drilling, the choice between Three blade oil drill bits and PDC bits is not always straightforward. Both types offer unique advantages depending on the specific drilling conditions and objectives. Three-blade bits excel in medium-hardness formations, offering enhanced stability and faster penetration rates in these scenarios. PDC bits, on the other hand, provide exceptional versatility and durability across a wide range of formations.
The key to successful bit selection lies in thorough analysis of formation characteristics, careful consideration of wear rates, and a deep understanding of when to transition between bit types. By leveraging the strengths of both Three blade oil drill bits and PDC bits, drilling operations can optimize performance, reduce costs, and achieve superior results.
For oil and gas drilling companies, oil service providers, and other entities involved in drilling operations, partnering with a knowledgeable and experienced drill bit manufacturer is crucial. Shaanxi Hainaisen Petroleum Technology Co., Ltd. offers a comprehensive range of high-quality drill bits, including both PDC and three-blade designs, tailored to meet the diverse needs of the industry. With our state-of-the-art 3,500m² facility, advanced production equipment, and dedicated R&D team, we are committed to providing innovative drilling solutions that drive operational excellence.
To learn more about our products and how we can help optimize your drilling operations, please contact us at postmaster@hnsdrillbit.com. Our team of experts is ready to assist you in selecting the perfect drill bit for your specific formation challenges and operational goals.
