Core design elements of PDC bits
The effectiveness of a PDC Diamond Bit largely depends on its core design elements. These elements work in harmony to ensure optimal drilling performance and longevity.
Cutter placement and arrangement
One of the most critical aspects of PDC bit design is the strategic placement and arrangement of cutters. Engineers meticulously position each cutter to maximize cutting efficiency while minimizing wear. The layout considers factors such as formation characteristics, desired rate of penetration, and bit stability. Advanced computer modeling and simulation techniques are employed to optimize cutter placement, ensuring even distribution of forces and reducing the likelihood of premature failure.
Blade configuration
The blade configuration plays a vital role in the bit's performance. PDC bits typically feature multiple blades that house the diamond cutters. The number, shape, and orientation of these blades are carefully designed to enhance drilling efficiency and fluid flow. Blade profiles are engineered to provide optimal formation engagement, facilitate efficient cuttings removal, and maintain bit stability during operation. Some advanced designs incorporate variable blade lengths and heights to improve durability and drilling performance across different formation types.
Gauge protection
Effective gauge protection is essential for maintaining the bit's diameter and ensuring a smooth wellbore. PDC bits incorporate specialized gauge protection features, such as tungsten carbide inserts or diamond-enhanced gauge pads. These elements help preserve the bit's original diameter, reduce sidewall cutting, and improve overall directional control. By protecting the gauge area, PDC bits can maintain their cutting efficiency for longer periods, resulting in more consistent hole size and reduced trips for bit replacement.
Material and cutter selection criteria
The choice of materials and cutters is paramount in determining the performance and longevity of a PDC Diamond Bit. Manufacturers invest significant resources in selecting and developing materials that can withstand the harsh drilling environments encountered in various applications.
Diamond cutter quality
The heart of a PDC bit lies in its diamond cutters. These cutters are made from polycrystalline diamond compact, a synthetic material known for its exceptional hardness and wear resistance. The quality of these cutters is crucial for the bit's overall performance. High-grade PDC cutters feature uniform diamond grain size distribution, optimized diamond-to-cobalt ratios, and advanced sintering processes. These factors contribute to improved thermal stability, impact resistance, and wear characteristics. Manufacturers often employ proprietary cutter technologies to enhance cutting efficiency and durability in specific drilling conditions.
Matrix and body materials
The bit body and matrix materials play a significant role in the overall performance and durability of PDC Diamond Bits. Advanced matrix materials, often composed of tungsten carbide particles in a metallic binder, provide excellent erosion resistance and thermal stability. The composition of the matrix is tailored to suit specific drilling environments, balancing factors such as hardness, toughness, and thermal conductivity. For steel-bodied PDC bits, high-strength alloys are selected to withstand the rigors of drilling while providing the necessary support for the cutters and other bit components.
Cutter size and geometry
The size and geometry of PDC cutters are carefully selected based on the intended drilling application. Larger cutters generally provide higher rates of penetration but may be more susceptible to impact damage in hard, interbedded formations. Smaller cutters offer improved durability and stability, making them suitable for challenging drilling conditions. Cutter geometry, including the back rake and side rake angles, is optimized to balance aggressiveness and durability. Some advanced PDC bits feature variable cutter sizes and geometries across the bit face to optimize performance in specific formation zones.
Hydraulic & structural support features
The hydraulic and structural support features of a PDC Diamond Bit are crucial for ensuring efficient cuttings removal, bit cooling, and overall structural integrity during drilling operations.
Nozzle configuration
The nozzle configuration in a PDC bit plays a vital role in hydraulic efficiency and cleaning effectiveness. Carefully designed nozzle placement and orientation ensure optimal fluid flow across the bit face, facilitating efficient cuttings removal and bit cooling. Advanced PDC bits may incorporate adjustable or interchangeable nozzles, allowing operators to fine-tune hydraulic performance based on specific drilling conditions. Some designs feature specialized nozzle geometries or jet configurations to enhance fluid dynamics and improve overall drilling efficiency.
Junk slot area
Junk slot areas are critical components of PDC bit design, providing pathways for cuttings and drilling fluid to evacuate the bit face. The size, shape, and distribution of junk slots are optimized to enhance fluid flow and prevent bit balling, especially in sticky formations. Engineers employ computational fluid dynamics (CFD) simulations to analyze and refine junk slot designs, ensuring efficient cuttings transport and minimizing the risk of bit failure due to clogging. Some advanced PDC bits feature variable junk slot sizes or asymmetric designs to address specific formation challenges and improve overall drilling performance.
Reinforcement features
Structural reinforcement is essential for maintaining bit integrity under the extreme forces encountered during drilling. PDC Diamond Bits incorporate various reinforcement features to enhance durability and resist damage. These may include diamond-enhanced backup cutters, which provide additional cutting action and protect primary cutters from excessive wear. Tungsten carbide inserts or overlays are strategically placed in high-wear areas to extend bit life. Some designs feature reinforced blade structures or specialized materials in critical stress zones to improve impact resistance and overall bit stability.
Conclusion
The key features of a PDC Diamond Bit encompass a wide range of design elements, material selections, and structural considerations. From optimized cutter placement and advanced blade configurations to carefully selected materials and hydraulic enhancements, each aspect contributes to the bit's overall performance and durability. By understanding and leveraging these features, drilling professionals can select the most appropriate PDC bits for their specific applications, ultimately leading to improved drilling efficiency and reduced operational costs.
FAQ
1. What is the lifespan of a typical PDC Diamond Bit?
The lifespan of a PDC Diamond Bit varies depending on factors such as formation characteristics, drilling parameters, and bit design. Generally, high-quality PDC bits can drill several thousand feet before requiring replacement, with some advanced designs capable of drilling over 10,000 feet in a single run under favorable conditions.
2. How do PDC Diamond Bits compare to traditional roller cone bits?
PDC Diamond Bits typically offer higher rates of penetration, longer bit life, and improved drilling efficiency compared to traditional roller cone bits. They excel in many formations and can drill longer intervals without the need for bit changes, resulting in reduced trip time and overall drilling costs.
3. Can PDC Diamond Bits be repaired or refurbished?
Yes, in many cases, PDC Diamond Bits can be repaired or refurbished to extend their service life. This process may involve replacing worn cutters, repairing damaged blades, or reconditioning the bit body. However, the feasibility and cost-effectiveness of refurbishment depend on the extent of wear and damage to the bit.
4. What factors should be considered when selecting a PDC Diamond Bit for a specific drilling project?
Key factors to consider include formation characteristics, expected drilling conditions, desired rate of penetration, bit stability requirements, and hydraulic considerations. It's also important to evaluate the bit's cutter technology, blade design, and overall construction to ensure it aligns with the project's specific needs and challenges.
PDC Diamond Bit Manufacturers | HNS

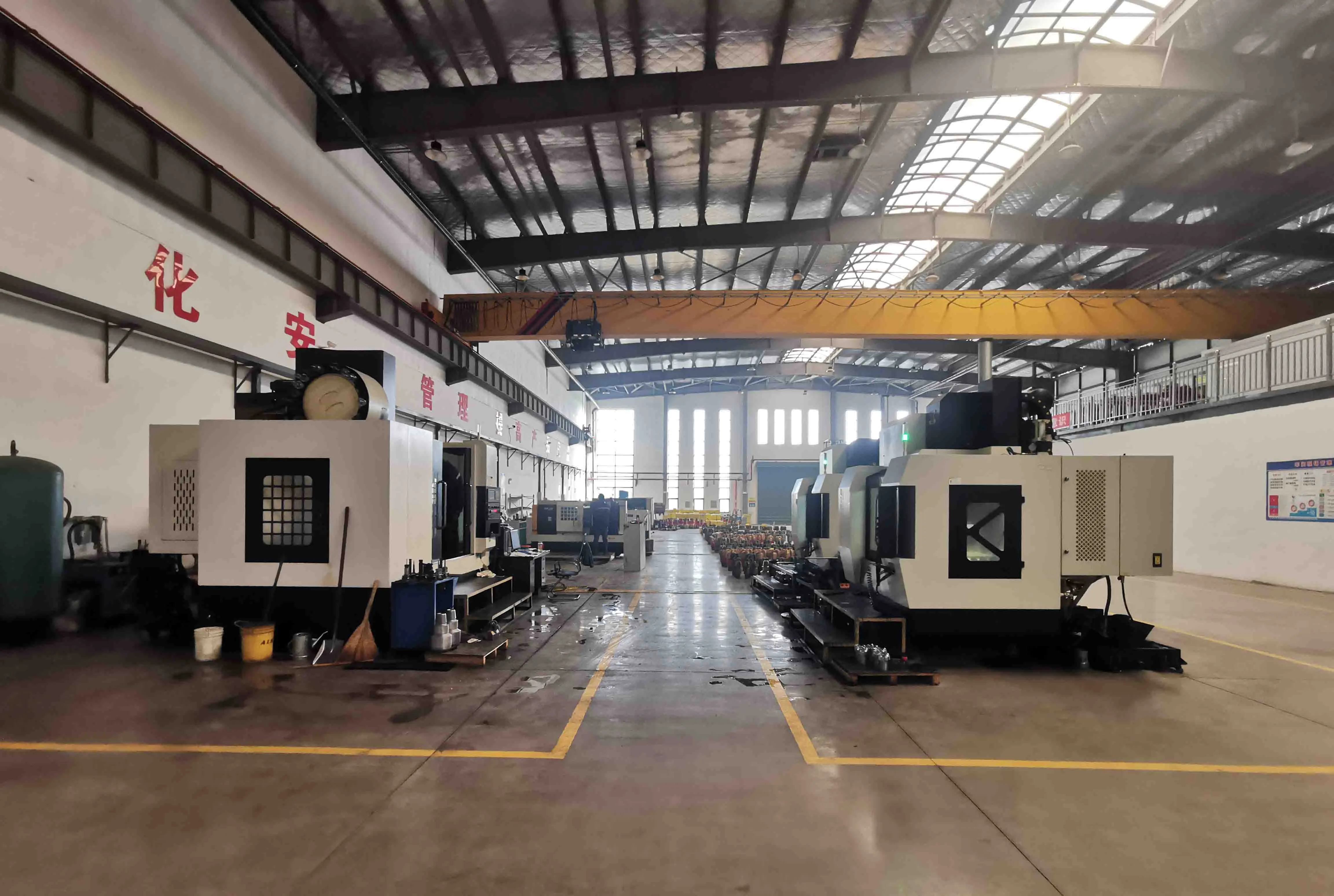

Looking for a reliable PDC Diamond Bit manufacturer? Shaanxi Hainaisen Petroleum Technology Co., Ltd. is your go-to source for high-quality drilling solutions. With our extensive experience in the industry and commitment to innovation, we offer a wide range of PDC Diamond Bits designed to meet the diverse needs of drilling professionals. Our state-of-the-art manufacturing facility and dedicated R&D team ensure that each bit we produce meets the highest standards of quality and performance. Whether you're in oil and gas extraction, coal mining, or water well drilling, we have the expertise to deliver customized solutions that optimize your drilling operations. To learn more about our products or to discuss your specific requirements, please contact us at hainaisen@hnsdrillbit.com. Let us help you enhance your drilling efficiency and productivity with our advanced PDC Diamond Bit technology.
