Nozzle Placement Strategies for Enhanced Cleaning
Effective nozzle placement is critical for optimizing the hydraulic performance of a 6-Blade PDC Drill Bit. The strategic positioning of nozzles ensures efficient cutter cooling and effective removal of drilling debris, contributing to improved overall bit performance. When designing nozzle placement strategies for 6-blade PDC bits, several factors must be considered:
Blade Configuration and Cutter Placement
The one-of-a-kind edge format of a 6-blade PDC bit requires cautious thought when deciding spout positions. Spouts ought to be deliberately set to give satisfactory liquid scope over all cutting components, guaranteeing ideal cooling and cleaning. This may include a combination of center spouts and edge spouts to accomplish comprehensive liquid distribution.
Junk Slot Area Optimization
Proper nozzle placement can significantly impact the efficiency of junk slot areas in removing drilling cuttings. By directing fluid flow towards these areas, drillers can enhance the bit's ability to transport debris away from the cutting face, reducing the risk of bit balling and improving overall drilling performance.
Formation-Specific Considerations
Different formations may require adjustments in nozzle placement to address specific challenges. For instance, in sticky formations prone to bit balling, nozzles may be positioned to provide additional cleaning action on the bit face and gauge area. Conversely, in highly abrasive formations, nozzle placement may prioritize cutter cooling to extend bit life.
Flow Rate Optimization: Balancing Cooling and Debris Removal
Optimizing flow rate is a critical aspect of hydraulic performance for 6-Blade PDC Drill Bit operations. The ideal flow rate strikes a balance between providing adequate cooling for the PDC cutters and ensuring efficient removal of drilling debris. Achieving this balance requires careful consideration of several factors:
Cutter Cooling Requirements
PDC cutters generate significant heat during the drilling process, which can lead to accelerated wear and reduced bit life if not adequately managed. The flow rate must be sufficient to provide effective cooling to all cutters, particularly those in high-wear areas such as the shoulder and gauge of the bit.
Hole Cleaning Efficiency
Proper flow rate is essential for efficient hole cleaning, especially in deviated and horizontal wells where gravity assists less in cuttings transport. The flow rate should be optimized to ensure adequate carrying capacity for removing drilling debris while avoiding excessive erosion of the wellbore.
Formation Considerations
Different formations may require adjustments in flow rate to address specific challenges. For example, drilling through reactive shales may necessitate higher flow rates to prevent bit balling, while drilling in unconsolidated formations may require moderated flow rates to minimize washouts.
Pump Limitations and Surface Equipment
The achievable flow rate is often limited by the capabilities of surface equipment, including mud pumps and surface pressure limitations. Optimizing flow rate within these constraints is crucial for maximizing hydraulic performance without compromising equipment integrity or safety.
Hydraulic Horsepower per Square Inch: Calculating for Efficiency
Hydraulic horsepower per square inch (HSI) is a key metric used to evaluate and optimize the hydraulic performance of 6-Blade PDC Drill Bit systems. This calculation helps drilling engineers determine the most efficient use of available hydraulic power to enhance bit performance. Understanding and applying HSI calculations can lead to significant improvements in drilling efficiency and bit life.
HSI Calculation Methodology
The hydraulic horsepower per square inch is calculated using the following formula:
HSI = (Q × ΔP) / (1714 × A)
Where: Q = Flow rate in gallons per minute (GPM), ΔP = Pressure drop across the bit in pounds per square inch (PSI) A = Bit area in square inches 1714 = Conversion factor
Optimal HSI Ranges
The optimal HSI range for a 6-Blade PDC Drill Bit can vary depending on formation characteristics and drilling conditions. Generally, HSI values between 2.0 and 5.0 are considered effective for most applications. However, specific formations or drilling challenges may require adjustments to this range:
- Soft formations: Lower HSI values (2.0-3.0) may be sufficient
- Medium to hard formations: Higher HSI values (3.0-5.0) may be necessary
- Sticky or reactive formations: Elevated HSI values (4.0-6.0) may be required to prevent bit balling
Balancing HSI with Other Drilling Parameters
While optimizing HSI is important, it must be balanced with other drilling parameters to achieve overall performance improvements. Factors to consider include:
- Weight on bit (WOB)
- Rotary speed (RPM)
- Bit design and cutter layout
- Formation characteristics
- Wellbore stability concerns
By carefully adjusting HSI in conjunction with these parameters, drilling teams can maximize the efficiency and performance of their 6-Blade PDC Drill Bit operations.
Monitoring and Adjusting HSI
Continuous monitoring of HSI during drilling operations is essential for maintaining optimal hydraulic performance. Real-time data acquisition systems can provide valuable insights into hydraulic efficiency, allowing for prompt adjustments to flow rate, nozzle configuration, or other parameters as drilling conditions change.
Conclusion
Optimizing hydraulics for 6-Blade PDC Drill Bit performance is a multifaceted process that requires careful consideration of nozzle placement, flow rate optimization, and hydraulic horsepower calculations. By implementing these strategies, drilling professionals can significantly enhance bit performance, extend bit life, and improve overall drilling efficiency across various applications. Partnering with a reliable 6-Blade PDC Drill Bit supplier ensures access to advanced bit designs, precision engineering, and consistent quality that drive superior results in even the most demanding drilling environments.
Are you looking to revolutionize your penetrating operations with cutting-edge 6-Blade PDC Penetrate Bit innovation? See no assistance than Shaanxi Hainaisen Petroleum Innovation Co., Ltd. Our group of specialists specializes in the inquiry about, advancement, and generation of high-performance PDC penetrate bits custom fitted to your particular needs. Whether you're in oil and gas extraction, coal mining, or water well boring, our progressed 6-blade PDC bits provide predominant cutting effectiveness and durability.

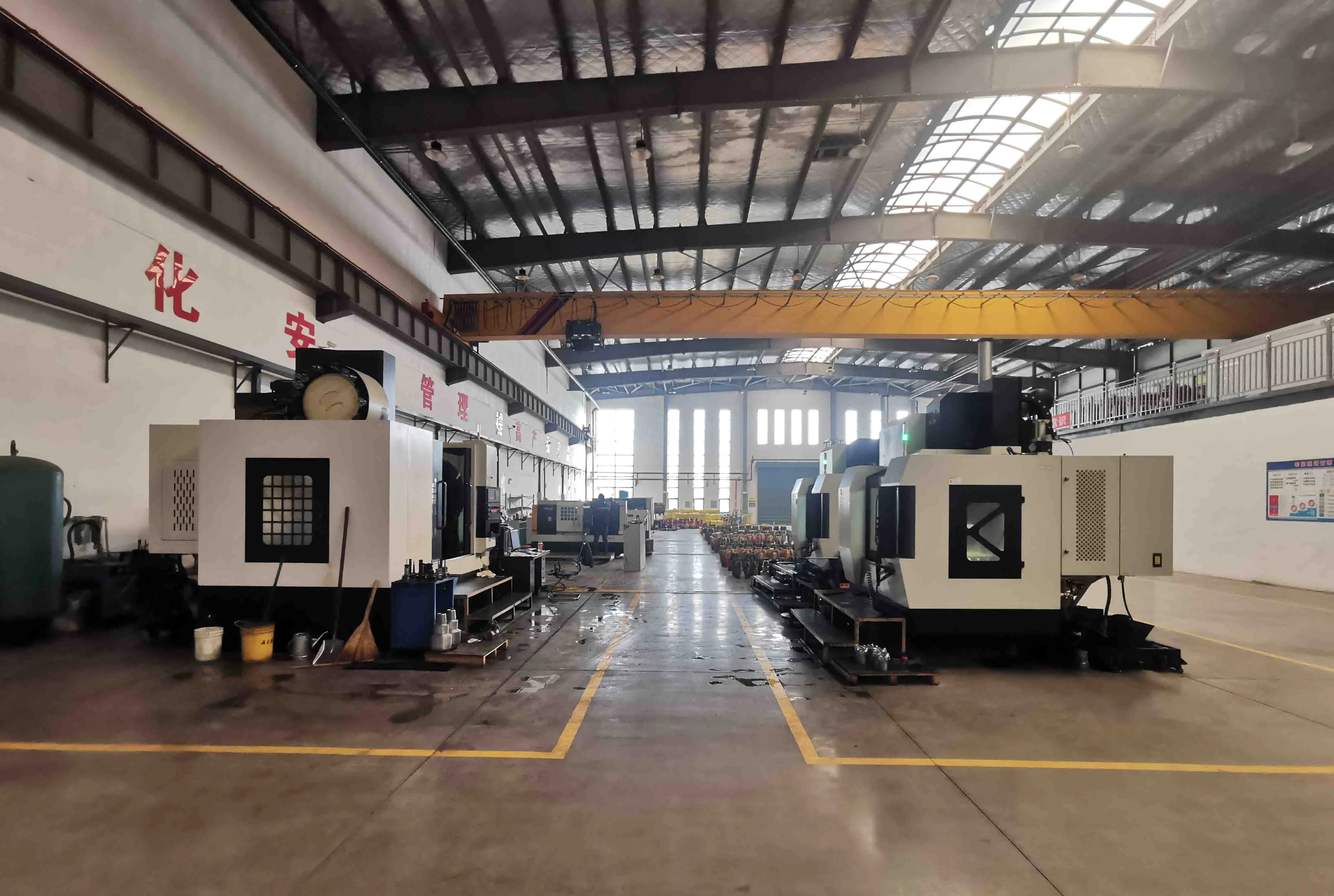

Take advantage of our state-of-the-art 3,500m² office, prepared with present-day generation workshops and progressed handling gear, including 5-axis machining centers and CNC machine tools. Our devoted R&D group is prepared to plan custom bit arrangements that meet your one-of-a-kind boring challenges.
