Steerability and Stability in Deviated Wells
The steerability and stability of three-blade oil drill bits in deviated wells are paramount to their success in directional drilling operations. These bits exhibit exceptional performance in maintaining the desired wellbore trajectory, a critical factor in reaching target formations accurately and efficiently.
Enhanced Directional Control
The curiously geometry of three-blade bits contributes basically to their transcendent directional control. The diminished number of edges, compared to standard plans, licenses for a more commanding cutting structure. This course of action enables the bit to respond more gently to coordinating inputs, empowering correct changes in the wellbore way. The result is a more exact and controlled entering get ready, particularly profitable in complex geological courses of action where precision is crucial.
Improved Stability in Deviated Sections
Stability is a key concern in deviated wells, where the risk of vibration and bit whirl can lead to reduced drilling efficiency and potential damage to the bottomhole assembly. Three blade oil drill bits address this challenge through their balanced design. The evenly spaced blades distribute forces more uniformly across the bit face, minimizing lateral movement and enhancing overall stability. This stability is particularly valuable in maintaining a smooth wellbore trajectory and reducing the likelihood of stuck pipes or other drilling complications.
Optimized Weight on Bit (WOB) Distribution
The design of three-blade bits allows for optimal weight on bit distribution, a crucial factor in directional drilling. The reduced number of blades concentrates the applied force more effectively, resulting in improved penetration rates without compromising stability. This efficient WOB distribution contributes to smoother drilling operations and can lead to reduced drilling time and costs.
Best Blade Configurations for Directional Control
The configuration of blades on a three-blade oil drill bit plays a crucial role in its directional control capabilities. Optimal blade design is essential for achieving the desired balance between aggressiveness and stability in directional drilling operations.
Asymmetric Blade Placement
One of the most compelling edge courses of action for directional control incorporates veered off edge circumstance. This arrange incorporate intentionally positions the edges to make a slight ungainliness in the bit's cutting structure. The asymmetry produces a specific side-cutting slant, which can be saddled to make strides the bit's capacity to begin and keep up a diverged wellbore way. This course of action is particularly important in circumstances where subtle coordinating modifications are required without the require for basic changes in boring parameters.
Blade Profile Optimization
The profile of each edge basically impacts the bit's directional behavior. A carefully arranged edge profile can overhaul the bit's capacity to keep up a specific course though entering. Commonly, a combination of long and brief edges is utilized. The longer edges deliver dauntlessness and offer help keep up the needed course, while the shorter edges offer forcefulness for compelling cutting and the capacity to begin directional changes when required. This balanced approach ensures that the bit can respond reasonably to coordinating inputs though keeping up by and huge stability.
Cutter Placement and Exposure
The imperative course of action and introduction of cutters on each edge are imperative for optimizing directional control. Changing the presentation of cutters over the bit go up against can make differential cutting action, which is invaluable for controlling. For event, extending cutter presentation on one side of the bit can energize turning in that course. Too, the course of action of fortification cutters can make strides the bit's capacity to keep up a straight way when required, giving a fine alter between directional responsiveness and straight-hole entering capability.

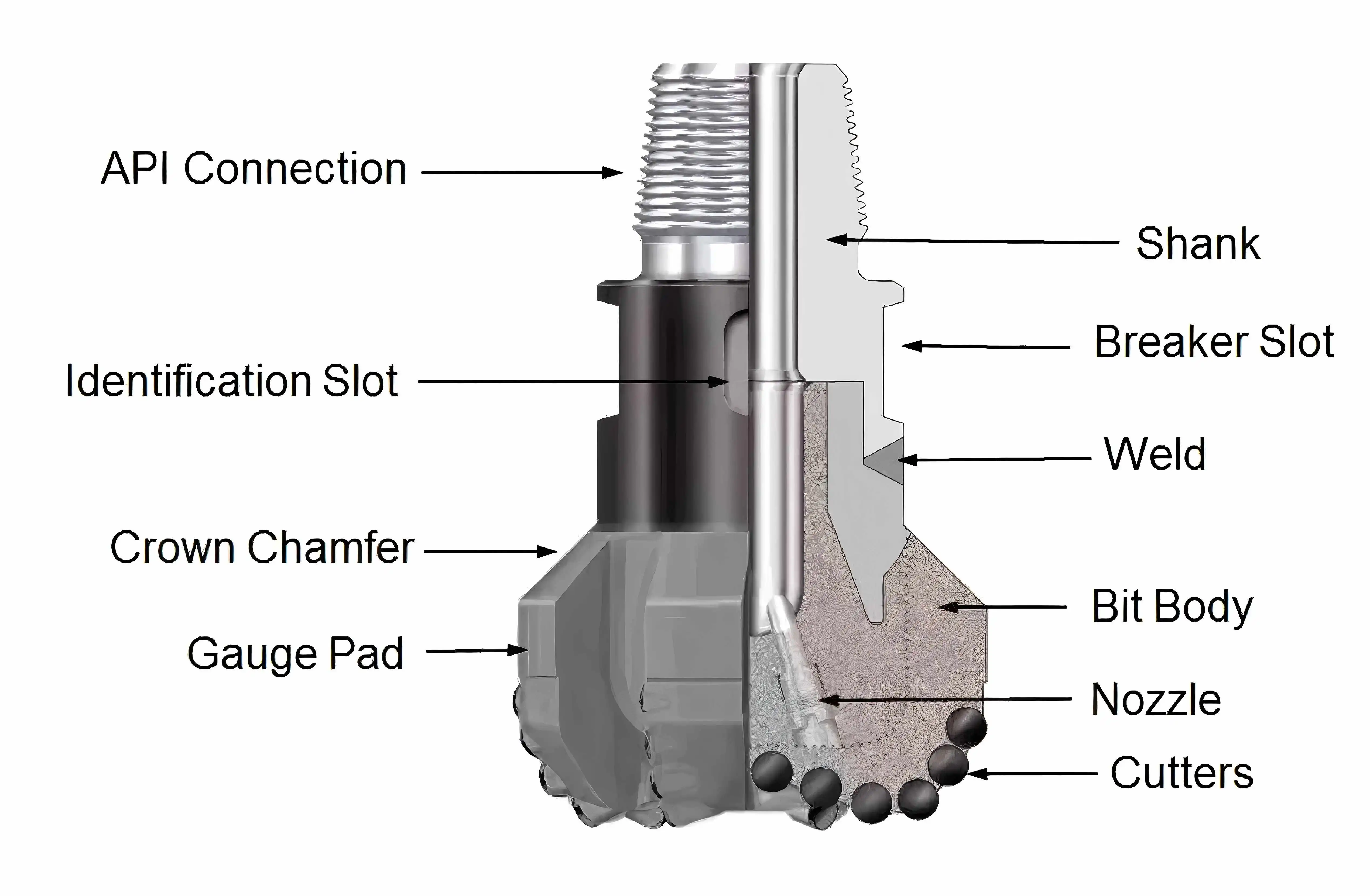

Gauge Pad Design
The design of gauge pads on Three blade oil drill bit is critical for maintaining wellbore diameter and assisting in directional control. Extended gauge pads can provide additional stability and help in maintaining the desired trajectory, especially in softer formations. Some advanced designs incorporate active gauge elements that can be adjusted to fine-tune the bit's directional tendencies during operation, offering enhanced control in complex drilling scenarios.
Torque and Drag Reduction Techniques
Minimizing torque and drag is essential for efficient directional drilling, particularly when using three-blade oil drill bits. These factors can significantly impact drilling performance, energy consumption, and overall operational costs. Implementing effective torque and drag reduction techniques can enhance the performance of three-blade bits in directional drilling applications.
Optimized Bit Hydraulics
One of the primary methods for reducing torque and drag is through optimized bit hydraulics. The strategic placement and design of nozzles on a three-blade bit can significantly improve fluid flow dynamics. This enhancement leads to more efficient cuttings removal, reducing the likelihood of bit balling and minimizing the energy required to rotate the drill string. Advanced hydraulic designs can create a cleaning action that helps prevent the accumulation of cuttings around the bit, further reducing torque and drag.
Low-Friction Coating Technologies
The application of low-friction coatings to three-blade bits has proven effective in reducing torque and drag. These specialized coatings, often made from advanced materials like diamond-like carbon (DLC) or nano-composite materials, significantly decrease the coefficient of friction between the bit and the wellbore. This reduction in friction not only lowers the required torque for drilling but also enhances the bit's ability to slide in directional drilling operations, improving overall steering performance.
Dynamic Bit Design
Innovative dynamic bit designs incorporate features that actively work to reduce torque and drag during operation. This can include specially designed stabilizer pads or rotating elements that help to break up cuttings beds and reduce friction along the wellbore. Some advanced three-blade bits also feature anti-whirl technologies that minimize lateral vibrations, further reducing drag and improving drilling efficiency.
Integrated Tool Design
Considering the entire bottomhole assembly (BHA) in conjunction with the three-blade bit design can lead to significant reductions in torque and drag. This holistic approach ensures that the bit works in harmony with other components of the drilling system, such as rotary steerable systems or measurement-while-drilling (MWD) tools. By optimizing the interaction between these components, operators can achieve smoother drilling operations with reduced torque and drag, particularly in complex directional wells.
Real-Time Monitoring and Adjustment
Implementing real-time monitoring systems can provide valuable data on torque and drag during drilling operations. This information allows operators to make immediate adjustments to drilling parameters, such as weight on bit or rotary speed, to optimize performance and minimize torque and drag. Advanced systems can even automate these adjustments, ensuring that the three-blade bit operates within optimal parameters throughout the drilling process.
Conclusion
Three-blade oil drill bits have proven to be highly effective tools in directional drilling operations. Their unique design offers superior steerability and stability in deviated wells, while advanced blade configurations provide excellent directional control. By implementing effective torque and drag reduction techniques, operators can further enhance the performance of these bits, leading to more efficient and cost-effective drilling operations.
For oil and gas drilling companies, oil service companies, and other organizations involved in directional drilling projects, choosing the right drill bit is crucial for success. At Shaanxi Hainaisen Petroleum Technology Co., Ltd., we specialize in developing and manufacturing high-performance drill bits, including advanced three-blade designs tailored for directional drilling applications. Our expertise in custom bit design and state-of-the-art production facilities enable us to meet the specific needs of your drilling operations.
To learn more about how our three-blade oil drill bits can enhance your directional drilling performance or to discuss custom solutions for your unique drilling challenges, please contact our team of experts. Reach out to us at postmaster@hnsdrillbit.com to explore how we can support your drilling projects with our innovative technology and comprehensive technical solutions.
