Selecting the optimal drilling bit for oil and gas rig operations requires careful consideration of multiple technical factors, geological conditions, and operational parameters. The right Drilling Bit For Oil And Gas Rig significantly impacts drilling efficiency, cost-effectiveness, and project success rates. This comprehensive guide explores essential criteria including bit design, material composition, formation compatibility, and performance characteristics to help procurement managers and technical engineers make informed decisions that maximize drilling performance while minimizing operational downtime and equipment costs.
Understanding Different Types of Drill Bits for Oil and Gas Operations

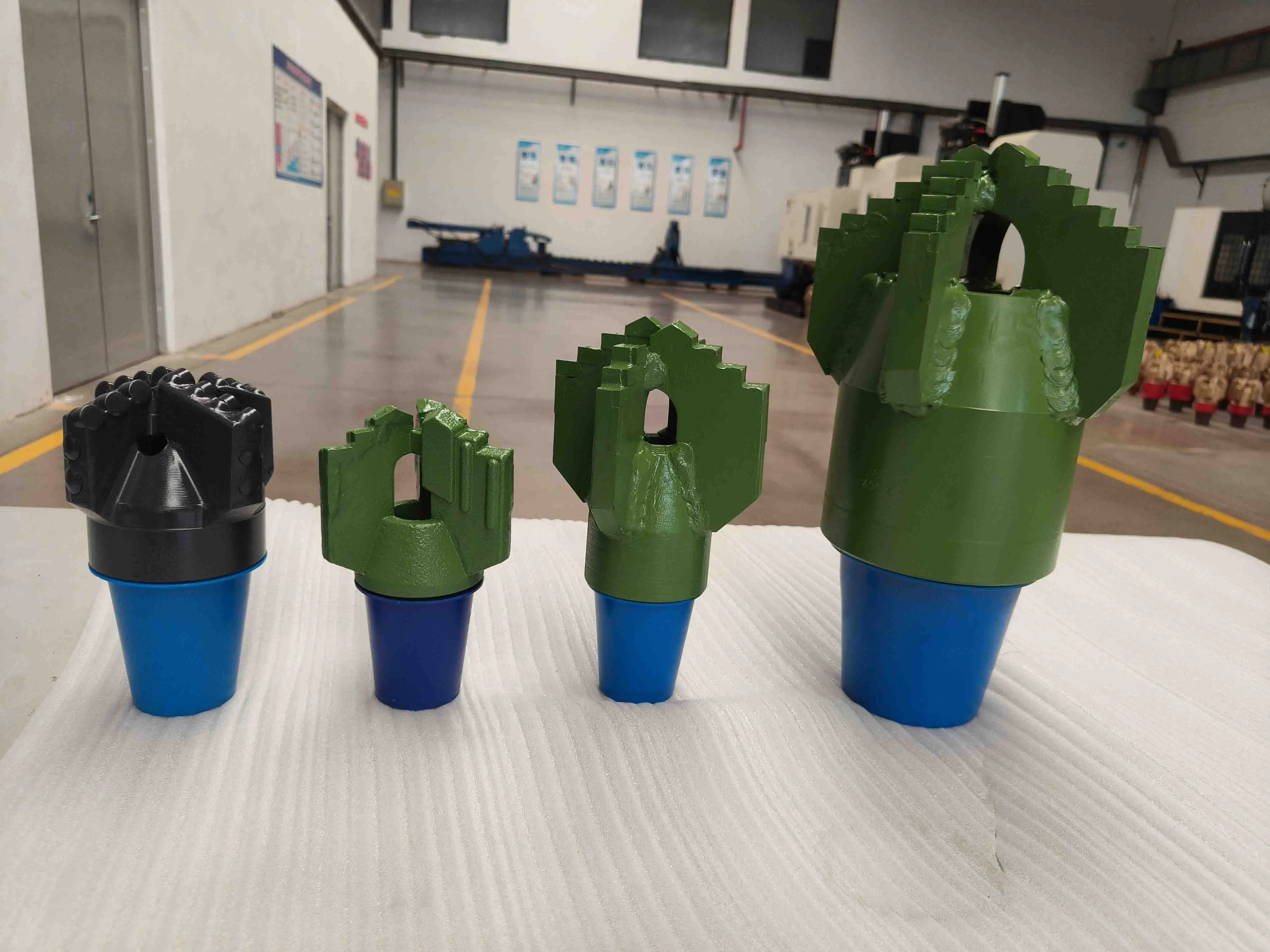

Different types of bits are used in the drilling industry, each designed for a certain type of rock and job. PDC bits are the most common type of drill bit used nowadays because they cut better and last longer. These polycrystalline diamond compact tools work best in softer rocks like shale and sandstone, where they can penetrate quite quickly.
Tricone bits are still useful for drilling into tougher strata where impact drilling works better than shearing action. The cones on their revolving parts smash rock by scraping and gouging it. Specialized diamond bits, on the other hand, can handle the hardest formations, but you need to do a comprehensive cost-benefit analysis before you buy them because they cost more at first.
Understanding the properties of formations helps you choose the right bit. PDC method usually works well with shale strata, while limestone and sandstone deposits could need different cutting structures. When drilling through gypsum layers, you typically need special hydraulic designs to keep the drill bit from balling up and to keep it working at its best.
Critical Performance Parameters for Optimal Drilling Efficiency
Operating parameters directly influence Drilling Bit For Oil And Gas Rig durability and drilling effectiveness. Speed ranges between 80-300 RPM accommodate different formation types, with softer rocks allowing higher rotational speeds. Drilling pressure typically spans 10-100 KN, requiring precise calibration to prevent premature drill bit wear while maintaining adequate penetration rates.
Flow rates of 20 to 35 LPS make sure that the cutting surfaces are cleaned and cooled properly. Poor flow makes it harder to remove debris, which lowers drilling efficiency and speeds up bit wear. The best hydraulic design transfers the most energy to the cutting face while also cleaning it well.
When drilling for a long time, managing the temperature becomes quite important. Advanced drill bit materials keep cutting well even when the temperature is quite high. This is especially significant for deep-water drilling operations, where the temperature downhole might go above normal limits. Thermal stability is strongly related to how long something will last and how much it will cost.
Formation Analysis and Geological Considerations
Geological surveys give important information for choosing a drill bit, such as the hardness, abrasiveness, and structure of the formation. Medium-hard formations with low compressive strength work well with aggressive cutting structures, but extremely abrasive environments need wear-resistant features that are better than average.
Interbedded formations are hard to drill because they have different rock qualities in the same drilling interval. This means that bits need to be able to handle a range of rock types. Directional drilling applications make things more complicated, therefore specific cutting structures are needed to keep the trajectory under control while yet providing consistent performance.
The parameters of the formation fluid affect the design of the cutting structure and the hydraulic needs. Water-sensitive formations may necessitate altered drilling parameters to avert wellbore instability, whilst formations with corrosive constituents require specialist materials and coatings to ensure prolonged operating longevity.
Material Technology and Cutting Structure Innovation
Modern drill bits use sophisticated metallurgy and synthetic diamond technology to make them work better in a wider range of drilling circumstances. Tungsten carbide substrates make cutting elements strong, while specific coatings lower friction and help control heat.
The design of the cutting structure impacts how drilling works and how well debris is removed. The number of blades, the size of the cutter, and the direction of the cutting affect the amount of torque needed and the stability of the drilling. Optimized designs find the right mix between aggressiveness and longevity, which means you may use the same bit for longer periods of time. These new features are necessary for the Drilling Bit For Oil And Gas Rig to work successfully, making sure the bit can handle the tough circumstances that come with deep-well drilling.

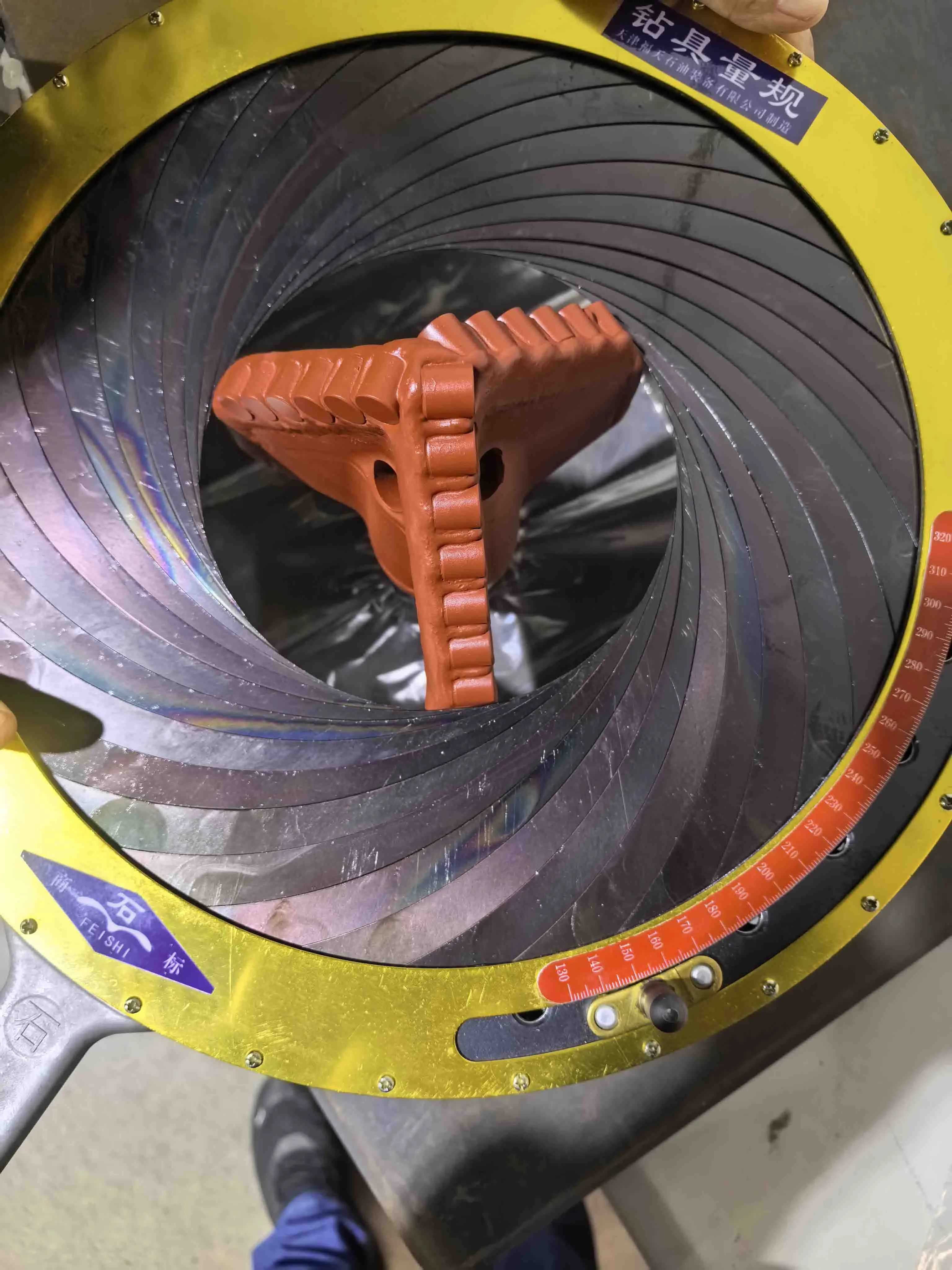

Precision in manufacturing guarantees that performance and operating behavior are always the same. Advanced machining makes it possible to create complex shapes that improve the efficiency of hydraulics and the effectiveness of cutting. Before deployment, quality control processes check if the dimensions are correct and the materials are strong.
Economic Evaluation and Total Cost of Ownership
When making judgments about procurement, you need to do a full cost analysis that goes beyond the initial purchase price. Improved drilling efficiency frequently makes it worth it to buy more expensive bits since they cut down on operational time and increase penetration rates. Longer bit life means fewer trips, which means less time and money spent on things that don't help the business.
Most medium and big oil service firms focus on the total cost of ownership. They look at how well the bit works using a number of different measures, such as drilling rate, durability, and operational reliability. Their strict qualification processes make sure that the bits they choose fulfill high standards for performance and quality.
Coal mining companies try to find a balance between quality and cost, looking for consistent performance at prices that are competitive. When drilling water wells, teams put cost first while yet making sure their tools work well for their needs. Knowing these diverse value propositions helps you make the right bit suggestions.
Maintenance and Operational Best Practices
Taking care of your drill bits properly will make them last longer and keep them working at their best. Regular inspections find wear patterns and other problems before they affect how well drilling works. Keeping track of operational factors and performance indicators makes it possible to keep improving drilling practices.
Procedures for storing and handling safeguard cutting surfaces and keep their shape. Proper ways to move things around keep them from getting damaged, which could affect performance or safety. Training programs make sure that workers know how to handle things correctly and can see signs of too much wear or damage. This is especially important for the Drilling Bit For Oil And Gas Rig, which is essential for keeping it strong and working well.
Operational monitoring systems keep an eye on performance indicators in real time, so they can respond right away to changes in conditions. Vibration analysis helps you find the best drilling parameters and avoid destructive resonance circumstances. Monitoring torque and drag gives you information about the state of the bit and the parameters of the formation.
Conclusion
Choosing the best drilling bit takes a comprehensive look at the geological conditions, the operating factors, and the costs. Knowing about formation characteristics, material technology, and performance requirements lets you make smart choices that make drilling as efficient as possible and keep costs as low as possible. Modern bit technology has advanced solutions for a wide range of uses, from drilling for oil offshore to directional drilling operations. To be successful, you need to work with competent manufacturers who offer full technical support and tailored solutions. Proper evaluation techniques make sure that the chosen parts work reliably and satisfy the project's needs and budget.
Partner with HNS for Superior Drilling Bit Solutions

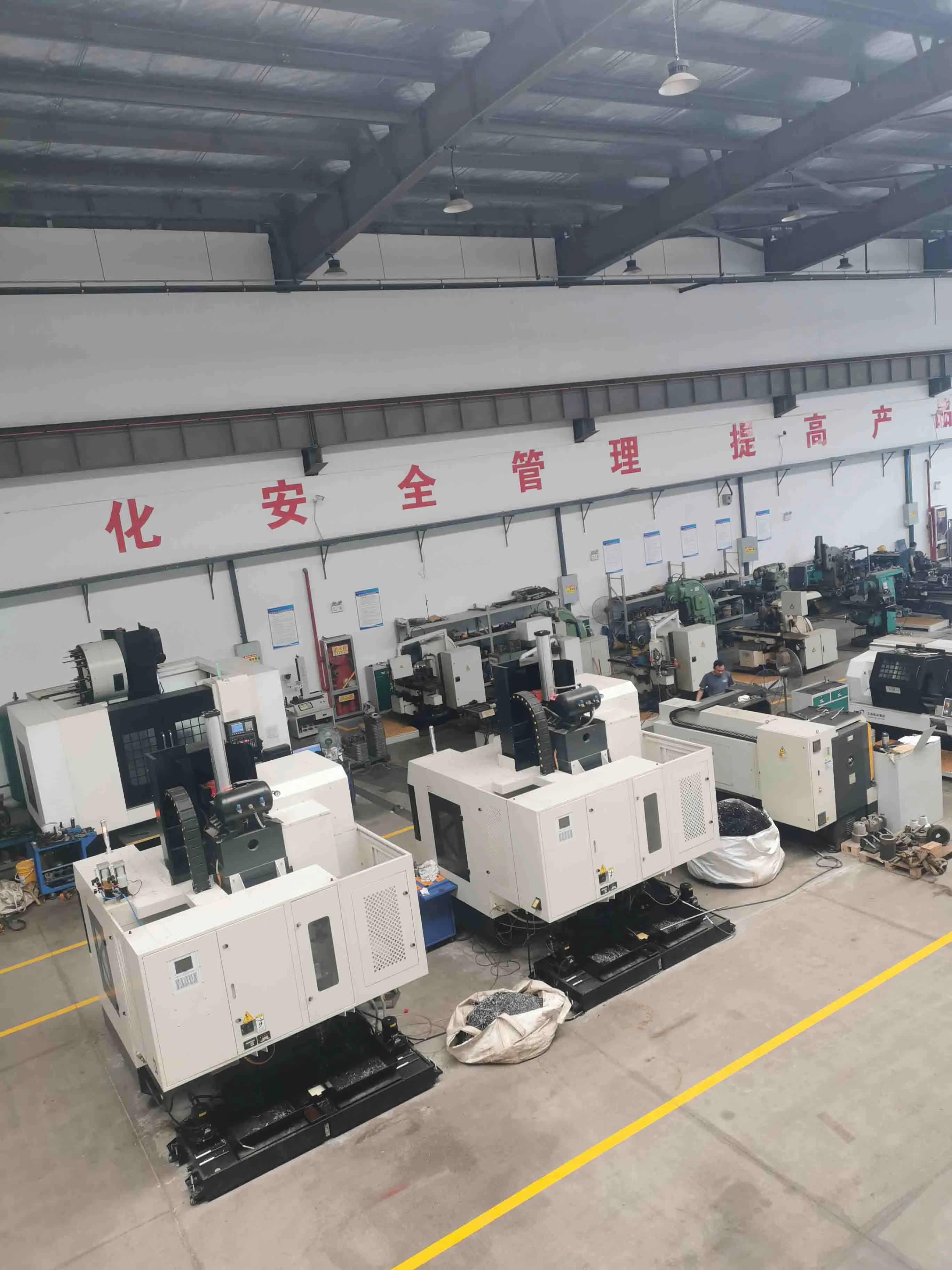

Picking the appropriate manufacturer for your drilling bits has a big effect on how well your business runs and how much money you make in the long run. HNS (Shaanxi Hainaisen Petroleum Technology Co., Ltd.) has more than ten years of expertise making high-performance drilling solutions for a wide range of uses. Our 3,500m² facility has the latest equipment, such as 5-axis machining centers and powerful CNC machine tools, which guarantee precise fabrication.
Our professional research and development team creates custom bit designs that meet your unique geological and operational needs. Our engineering skills give you the best equipment for the job, whether you need PDC bits for offshore exploration or specialized tools for directional drilling. These tools will help you drill more efficiently and save you money on operations.
We know that each market segment has its own needs. For example, significant oil service firms have strict quality criteria, while water well drilling teams need cost-effective solutions. Our thorough testing and quality assurance systems make sure that every partnership with a Drilling Bit For Oil And Gas Rig provider provides consistent, reliable performance.
Are you ready to improve your drilling operations with better bit technology? Our technical experts are here to talk about your needs and suggest the best solutions for your applications. Email us at hainaisen@hnsdrillbit.com to set up a consultation and see how our cutting-edge drilling solutions can help you work more efficiently and lower your drilling costs.
References
1. Smith, J.R. & Johnson, M.K. (2023). "Advanced PDC Bit Design for Enhanced Drilling Performance in Unconventional Formations." Journal of Petroleum Technology, 75(8), 45-52.
2. Williams, A.P. (2022). "Optimization of Drilling Parameters for Maximum Bit Life in Oil and Gas Operations." SPE Drilling & Completion, 37(3), 123-138.
3. Chen, L., Rodriguez, C.M., & Thompson, R.A. (2023). "Material Innovations in Modern Drill Bit Manufacturing." International Journal of Oil, Gas and Coal Technology, 32(4), 289-304.
4. Anderson, K.L. (2022). "Economic Analysis of Drill Bit Selection in Offshore Drilling Operations." Energy Economics Review, 48(12), 78-91.
5. Patel, S.D. & Brown, M.J. (2023). "Hydraulic Design Principles for Enhanced Drilling Efficiency." Drilling Engineering International, 29(6), 34-47.
6. Taylor, R.S., Kumar, A., & Zhang, W. (2022). "Formation-Specific Drill Bit Selection Strategies for Improved Penetration Rates." Petroleum Engineering Quarterly, 54(9), 156-169.
