Case Study: Customized PDC Drill Bit Delivers Superior Performance in Well Su 25-16-37SX, Taiyuan Formation
Company: Shaanxi Hainaisen Petroleum Technology Co., Ltd.Website: https://www.hnsdrillbit.com/
1. Project Overview
This case details the successful application of Shaanxi Hainaisen’s customized PDC drill bit in the Taiyuan Formation of Well Su 25-16-37SX, delivering exceptional drilling efficiency and durability for the 40607 Drilling Crew.
| Project Detail | Specification |
|---|---|
| Well ID | Well Su 25-16-37SX |
| Drilling Formation | Taiyuan Formation |
| Drill Bit Spec No. | 6-1/SD6433 |
| Drill Bit Serial No. | A3728 |
| Drilling Interval | 2820m – 3539m |
| Drilling Crew | 40607 Drilling Crew |
| Application | Onshore Oil & Gas Drilling |
2. Core Drilling Performance Data
All metrics are verified on-site, reflecting the bit’s real-world performance in complex hard strata:
| Key Performance Indicator | Value | Technical Interpretation |
|---|---|---|
| Total Drilling Footage | 719m | Cumulative footage drilled in a single run, proving excellent bit endurance and formation adaptability |
| Net Drilling Time | 41h | Effective drilling time (excluding tripping, circulation, and auxiliary operations), demonstrating uninterrupted, stable performance |
| Average Rate of Penetration (ROP) | 17.53m/h | Core efficiency metric, outperforming the regional average ROP of 12–14m/h in the Taiyuan Formation by 25%–46% |
3. Project Background & Challenges
The Taiyuan Formation in the Ordos Basin is a notoriously difficult drilling stratum, defined by:
- Hard, highly abrasive sandstone and interbedded limestone
- Variable lithology that causes severe bit wear and impact damage
- Low penetration rates and frequent tripping with conventional bits, leading to extended drilling cycles and high costs
The 40607 Drilling Crew required a formation-specific drill bit solution to overcome these challenges and optimize performance in Well Su 25-16-37SX.
4. Customized Solution & Implementation

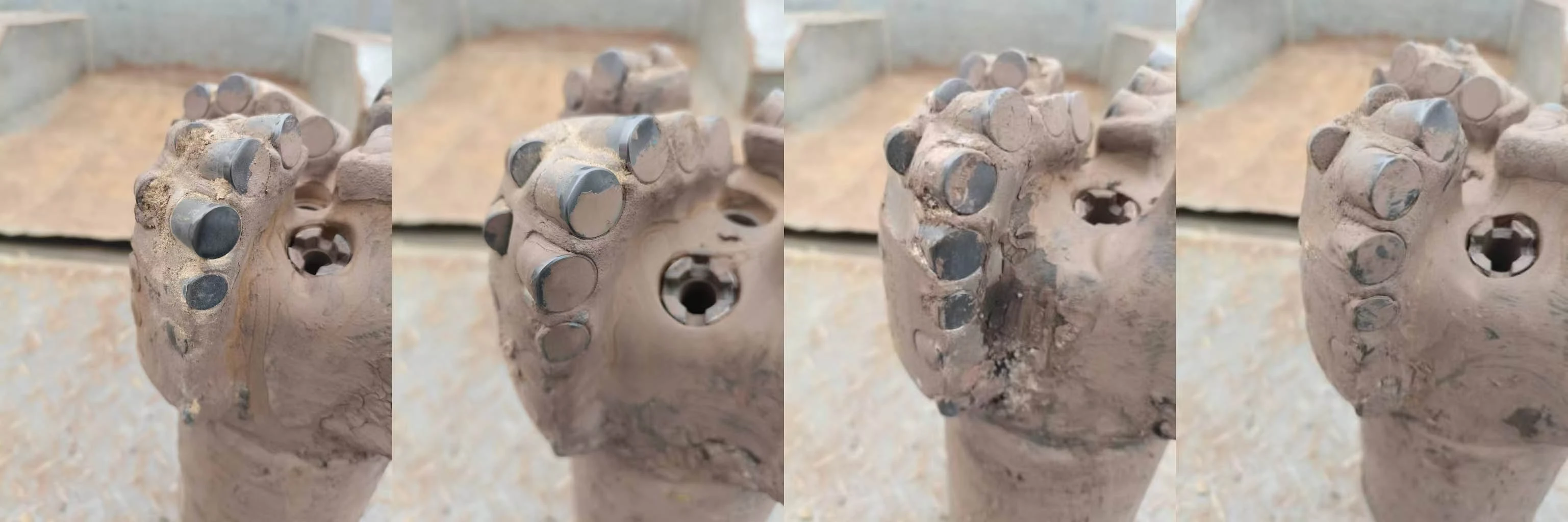

Shaanxi Hainaisen engineered the 6-1/SD6433 PDC drill bit (Serial No. A3728) exclusively for the Taiyuan Formation’s geological properties:
- High-Performance PDC Cutters: Premium impact-resistant, wear-resistant cutters with enhanced edge retention, optimized for hard, abrasive sandstone and limestone
- Advanced Hydraulic Design: Optimized nozzle layout and flow channels to improve cuttings removal, prevent bit balling, and maintain consistent ROP
- Reinforced Bit Body: High-strength matrix material to withstand extreme impact loads from interbedded strata, eliminating premature bit failure
Our in-house technical team provided end-to-end on-site support, including real-time drilling parameter adjustment and bit wear monitoring, to ensure maximum performance throughout the run.
5. Project Results & Client Benefits
The customized drill bit delivered game-changing results in the 2820m–3539m interval:
- Completed 719m of drilling in a single run, eliminating the need for costly intermediate bit changes
- Achieved an average ROP of 17.53m/h in just 41 hours of net drilling time
- Reduced overall drilling time by ~30% compared to conventional bit solutions in the same formation
- Cut operational costs by minimizing non-productive time (NPT) and tripping operations
This performance not only met the client’s efficiency targets but also set a new benchmark for Taiyuan Formation drilling in the block.
6. Conclusion
This case study reinforces Shaanxi Hainaisen Petroleum Technology’s leadership in customized PDC drill bit R&D and formation-specific drilling solutions. Paired with our prior success in the Liujiagou Formation of the same well, we demonstrate consistent, reliable performance across multiple complex strata in a single wellbore.
By combining advanced material science, precision bit design, and end-to-end technical support, we help oil and gas operators worldwide reduce costs, shorten drilling cycles, and unlock maximum value from their operations.
