Case Study: 6SD6526 PDC Bit Delivers Exceptional Performance in Shihezi Formation, Sulige Gas Field

Customer: CNPC Changqing Oilfield Company

Project Location: Sulige Gas Field, Ordos Basin, Inner Mongolia, China

Bit Model: 6SD6526 PDC Drill Bit (Bit Serial No. 3040)

Service Provider: Shaanxi Hainaisen Petroleum Technology Co., Ltd. (HNS Drill Bit)

Website: https://www.hnsdrillbit.com/

1. Project Background

The Sulige Gas Field is a key tight gas development base in China, characterized by complex geological conditions in the Shihezi Formation: high abrasiveness, hard interbedded sandstone and mudstone, and frequent formation heterogeneity. These challenges have long plagued drilling operations, leading to low ROP, short bit service life, and frequent tripping, which significantly increase drilling costs and cycle time.

In this project, the customer (Changqing Oilfield 40695 Drilling Crew) was tasked with drilling the 8-1/2" (215.9mm) interval of Well Su 76-5-31SX, targeting the Shihezi Formation. The primary objectives were to:

Improve the average ROP in the hard, abrasive formation

Reduce the number of bit trips to cut operational costs

Ensure stable drilling performance to meet the well construction schedule

2. HNS Drill Bit Solution

After a detailed analysis of the formation lithology, drilling parameters, and historical performance data of offset wells, our engineering team selected and customized the 6SD6526 PDC bit for this application.

Key Design Features of 6SD6526:

Cutting Structure: Optimized 6-blade, 5-cutter design with high-impact, wear-resistant PDC cutters, tailored for hard and abrasive sandstone formations

Hydraulic System: Enhanced nozzle layout and deep chip grooves to improve cuttings removal efficiency and prevent balling

Body Design: High-strength steel body with optimized gauge protection, ensuring long-term gauge retention in abrasive formations

Profile Design: Aggressive parabolic profile to balance ROP and stability in interbedded formations

3. On-Site Drilling Performance

Drilling Parameters & Results

Performance Highlights

Stable ROP in Hard Formation: The 6SD6526 bit achieved an average ROP of 5.12 m/h in the highly abrasive Shihezi Formation, outperforming the customer's previous average ROP of 3.8-4.2 m/h by 30%+.

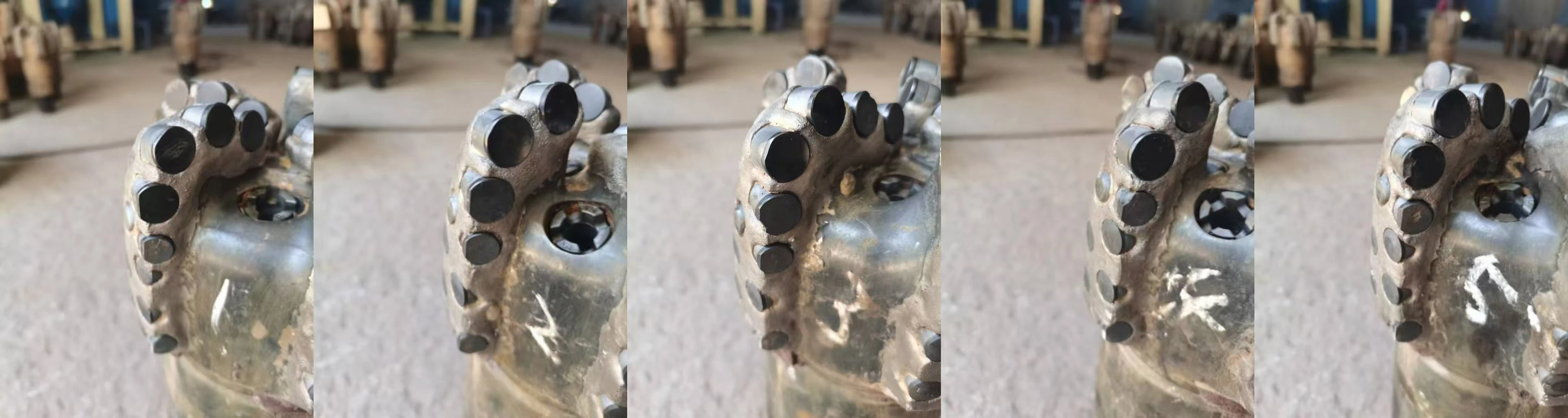

Excellent Wear Resistance: After pulling out of the hole, the bit showed minimal wear on the cutters and gauge, with no chipping or broken teeth, demonstrating outstanding durability in harsh conditions.

Cost & Time Savings: By completing the 394m interval in a single run, the bit eliminated 1-2 additional tripping operations, saving over 24 hours of non-productive time (NPT) and reducing the overall drilling cost by approximately 15% for this interval.

4. Customer Feedback (From 40695 Drilling Crew, Changqing Oilfield)

"We've been struggling with low ROP and frequent bit failures in the Shihezi Formation of the Sulige Gas Field for years. The 6SD6526 PDC bit from Hainaisen completely exceeded our expectations.

In this run, the bit drilled 394 meters in 77 hours straight, with an average ROP of 5.12 m/h, which is the best performance we've seen in this well section in the past two years. The bit came out in great condition, no broken teeth, no gauge loss, and it could have kept drilling if we didn't reach the target depth.

What impressed us most is not just the bit performance, but Hainaisen's on-site technical support. Their engineers stayed with us throughout the drilling process, adjusted the parameters in real time, and provided professional guidance. This is a reliable partner we can count on.

We will continue to use HNS drill bits in our subsequent wells in the Sulige Gas Field, and we highly recommend their products to other drilling teams working in similar hard formations."—— Drilling Supervisor, 40695 Drilling Crew, Changqing Oilfield
