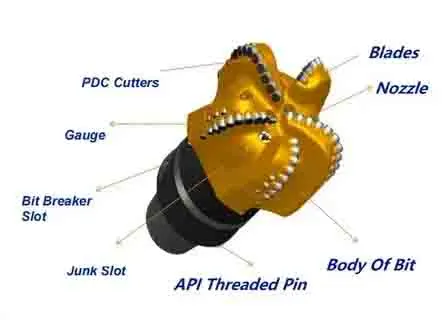

What is the design logic of a 5-blade layout?
The design logic behind a 5-blade layout in PDC drill bits is rooted in a careful balance between cutting efficiency and bit stability. This configuration offers several advantages over traditional 3 or 4-blade designs:
Enhanced Cutting Distribution
With five blades, the cutting load is distributed more evenly across the bit face. This distribution allows for more efficient removal of rock cuttings and helps prevent bit balling, a common issue where debris accumulates on the bit face, reducing drilling efficiency.
Improved Hydraulics
The 5-blade layout creates optimal junk slot areas between the blades. These spaces facilitate better fluid flow, enhancing the bit's ability to clean the bottom of the hole and evacuate cuttings. This improved hydraulic performance contributes to faster penetration rates and extended bit life. For reliable quality and superior drilling efficiency, partner with a trusted 5 Blades Steel Body High Performance PDC Rock Drill Bits supplier that specializes in durable, precision-engineered drilling solutions.
Balance of Aggressiveness and Stability
The 5-blade design strikes an ideal balance between aggressiveness and stability. While more blades generally provide greater stability, they can also reduce the bit's aggressiveness. The 5-blade configuration maintains an aggressive cutting action while still offering sufficient stability for various formation types.
Optimized Cutter Placement
With five blades, engineers have more flexibility in cutter placement. This allows for optimized cutter overlap, ensuring complete coverage of the bottom hole pattern and reducing the likelihood of tracking or skipping during drilling operations.
Role of blades in stability and cut rate
The blades of a PDC drill bit play a crucial role in determining both the stability of the drilling operation and the rate at which the bit can cut through rock formations. Understanding this dual function is key to appreciating the performance of 5 Blades Steel Body High Performance PDC Rock Drill Bits.
Stability Enhancement
The blades contribute significantly to the bit's stability during operation. They act as stabilizing elements, reducing lateral movement and vibration. This stability is crucial for maintaining a straight borehole and preventing unwanted deviations. The five-blade configuration provides an optimal balance, offering enough contact points with the borehole wall to ensure stability without overly restricting the bit's ability to cut efficiently.
Impact on Cut Rate
While stability is crucial, the primary function of the blades is to support the PDC cutters that do the actual cutting. The number and arrangement of blades directly impact the cut rate:
- Cutter Density: More blades allow for a higher density of cutters, potentially increasing the cut rate.
- Force Distribution: The 5-blade design distributes the cutting force more evenly, allowing for higher weight-on-bit (WOB) without overloading individual cutters.
- Hydraulic Efficiency: The spaces between blades (junk slots) facilitate efficient cuttings removal, preventing regrinding and maintaining a high cut rate.
Balancing Act
The 5-blade design represents a carefully engineered balance between stability and cut rate. It provides enough stability to drill efficiently in various formations while maintaining an aggressive cutting action. This balance makes these bits versatile tools suitable for a wide range of drilling conditions.
Suitable rock types for 5-blade bits
5 Blades Steel Body High Performance PDC Rock Drill Bits are versatile tools designed to perform effectively across a spectrum of rock formations. However, their unique design characteristics make them particularly well-suited for certain types of rocks:
Soft to Medium-Hard Formations
The 5-blade configuration excels in soft to medium-hard formations. These may include:
- Shale
- Sandstone
- Limestone
- Dolomite
In these formations, the bit can maintain high penetration rates while the 5-blade design ensures stability and efficient cuttings removal.
Interbedded Formations
The versatility of 5-blade bits makes them excellent choices for interbedded formations where rock hardness varies. The balance between aggressiveness and stability allows the bit to adapt to changing formation characteristics without significant loss of performance.
Abrasive Formations
While not specifically designed for highly abrasive formations, modern 5-blade PDC bits with advanced cutter technology can perform well in moderately abrasive environments. The steel body construction provides the durability needed to withstand the wear associated with these formations.
Limitations in Ultra-Hard Formations
It's important to note that while 5-blade PDC bits are versatile, they may face limitations in ultra-hard or highly fractured formations. In these extreme conditions, specialized bits or hybrid designs might be more appropriate.
Formation-Specific Customization
One of the strengths of the 5-blade design is its adaptability. Manufacturers can customize various aspects of the bit, such as blade profile, cutter size, and placement, to optimize performance for specific formation types. This customization potential makes 5-blade bits valuable tools across a wide range of drilling projects.
Conclusion
The structure and function of 5-blade steel body PDC drill bits represent a significant advancement in drilling technology. Their design logic, balancing stability with cutting efficiency, makes them versatile tools suitable for a wide range of rock formations. The strategic arrangement of five blades not only enhances cutting distribution and hydraulics but also optimizes cutter placement for superior performance.
These bits excel in maintaining stability while delivering high cut rates, making them ideal for soft to medium-hard formations and interbedded layers. Their adaptability to various drilling conditions, coupled with the potential for customization, positions them as valuable assets in the drilling industry.
For oil and gas companies, coal mining operations, and water well drilling teams seeking to optimize their drilling operations, 5 Blades Steel Body High Performance PDC Rock Drill Bits offer a compelling solution. Their ability to reduce vibration, improve stability, and maintain consistent performance across diverse geological conditions can significantly enhance drilling efficiency and reduce overall project costs.

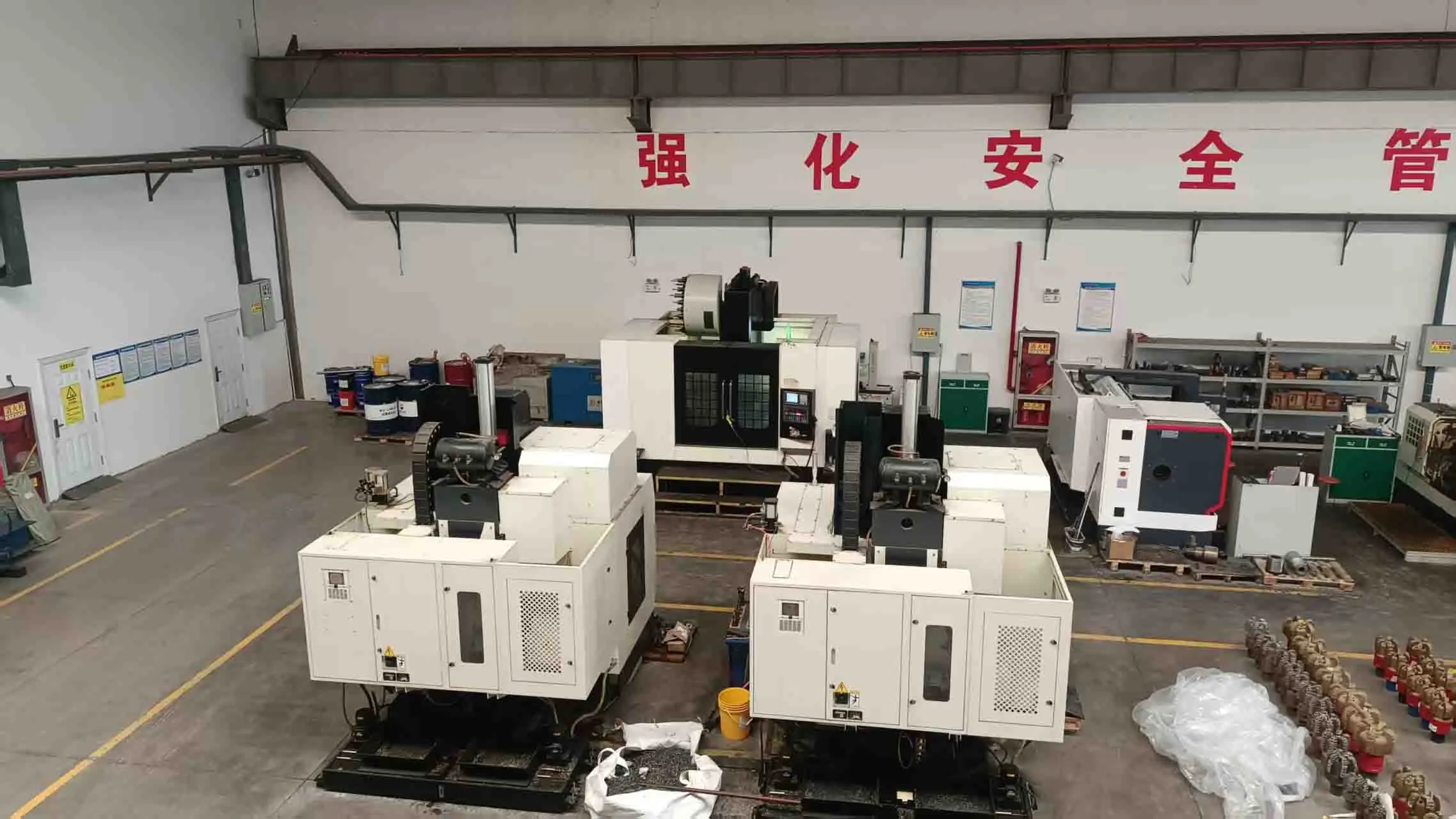

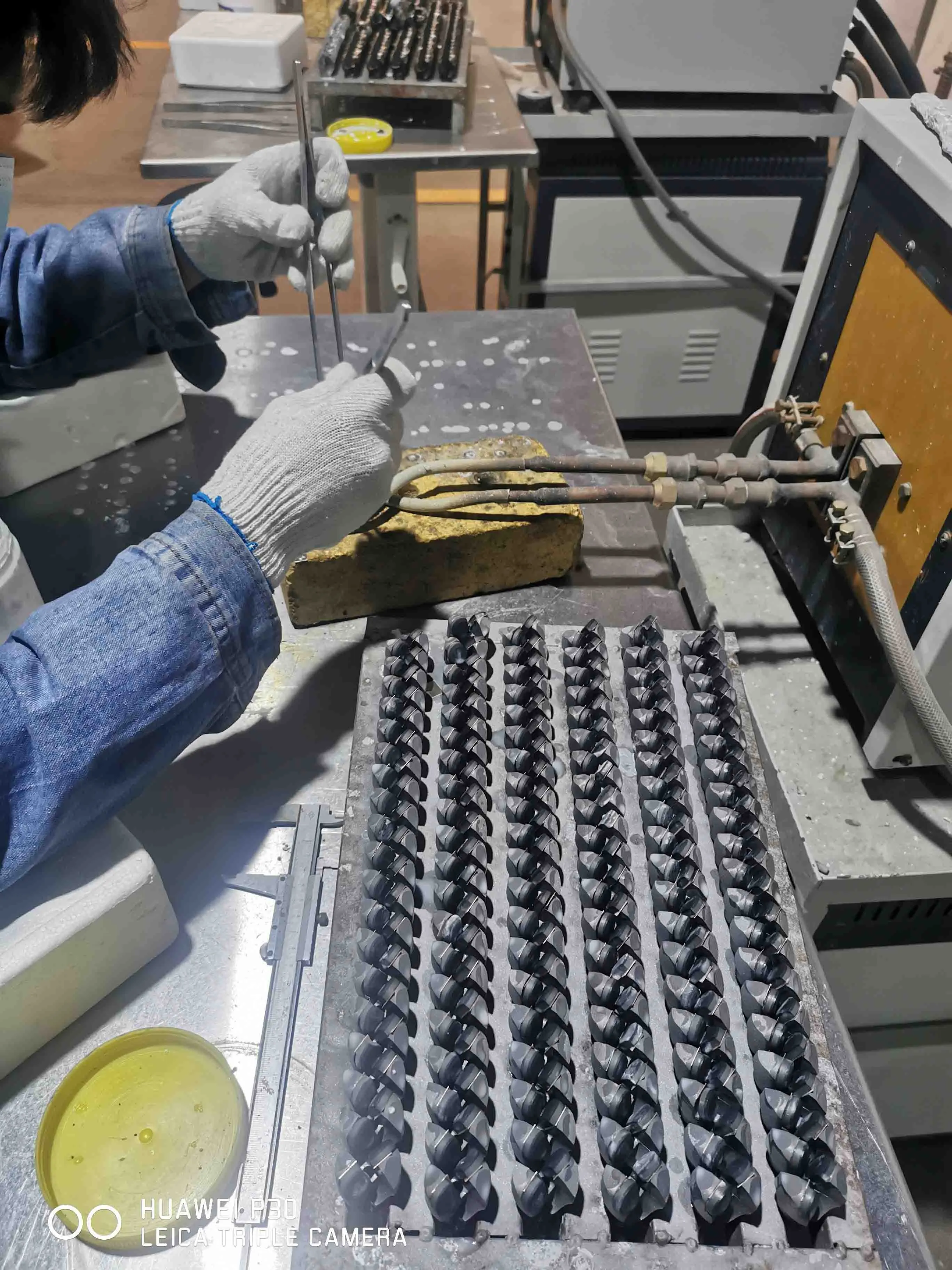

At Shaanxi Hainaisen Petroleum Technology Co., Ltd., we specialize in the research, development, and production of high-quality PDC drill bits. Our 3,500m² facility in Xi'an features state-of-the-art production workshops and advanced processing equipment, including 5-axis machining centers and CNC machine tools. Whether you're a large oil service company requiring stringent quality standards or a smaller water well drilling team seeking cost-effective solutions, our dedicated R&D team can design custom bits to meet your specific needs. Experience the difference that our 5-blade steel body PDC drill bits can make in your drilling operations. Contact us today to discuss how we can optimize your drilling performance and efficiency.
FAQ
1. What are the main advantages of 5-blade PDC drill bits over traditional designs?
5-blade PDC drill bits offer enhanced cutting distribution, improved hydraulics, and a better balance between aggressiveness and stability. They provide more efficient cuttings removal, faster penetration rates, and greater versatility across various formation types.
2. How do 5-blade PDC bits perform in abrasive formations?
Modern 5-blade PDC bits with advanced cutter technology can perform well in moderately abrasive environments. Their steel body construction provides the necessary durability, although extremely abrasive formations may require specialized bit designs.
3. Can 5-blade PDC bits be customized for specific drilling conditions?
Yes, manufacturers can customize various aspects of 5-blade PDC bits, including blade profile, cutter size, and placement. This adaptability allows for optimization based on specific formation characteristics and drilling requirements.
4. Are 5-blade PDC bits suitable for all types of rock formations?
While 5-blade PDC bits are versatile and effective in many formations, they may face limitations in ultra-hard or highly fractured formations. For these extreme conditions, specialized bits or hybrid designs might be more appropriate.
