Rock Roller Drill Bit: Professional Tricone Drilling Solutions for Complex Formations

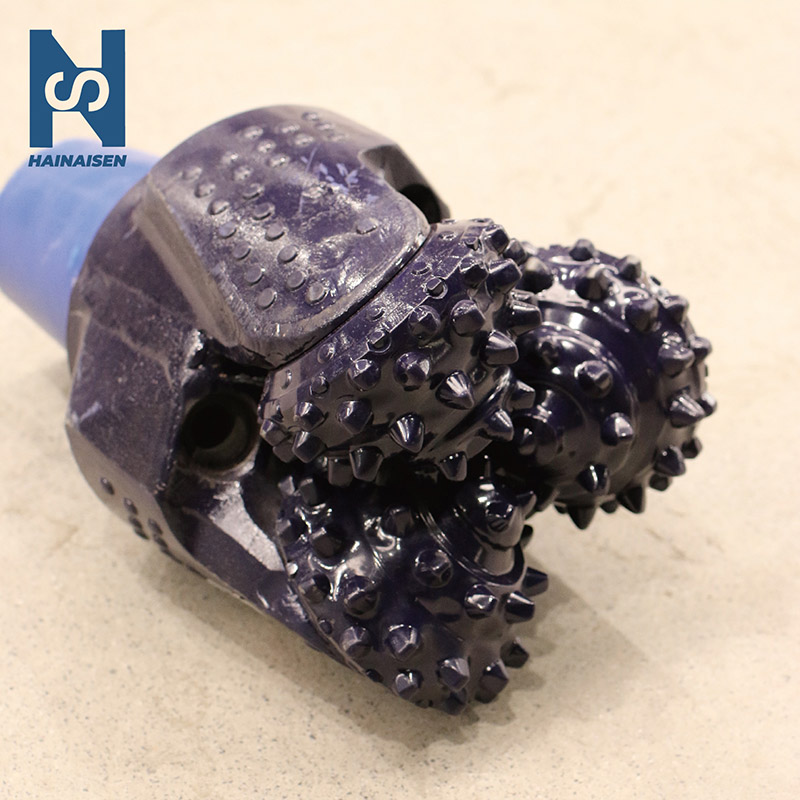

SHAANXI HAINAISEN INTELLIGENT EQUIPMENT MANUFACTURING CO., LTD delivers advanced Rock Roller Drill Bit technology backed by over 10 years of drilling expertise. Our 140mm tricone Roller Bit features three independently rotating conical rollers with precision-engineered buttons, designed for level 1-12 strata applications. Manufactured in our 6,000-square-meter facility by a team of 20 senior technicians, each bit weighs 16kg and connects via 3-1/2 REG.PIN configuration. With three strategically positioned nozzles and customizable specifications, our roller bits achieve exceptional penetration rates while maintaining dimensional accuracy throughout their operational lifespan.

Understanding Tricone Roller Bit Technology

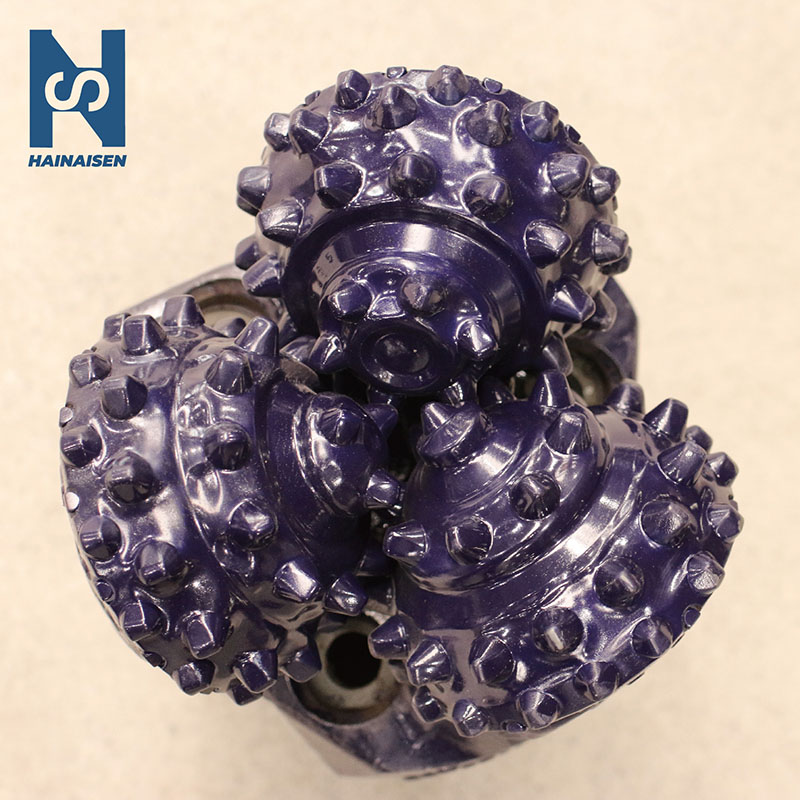

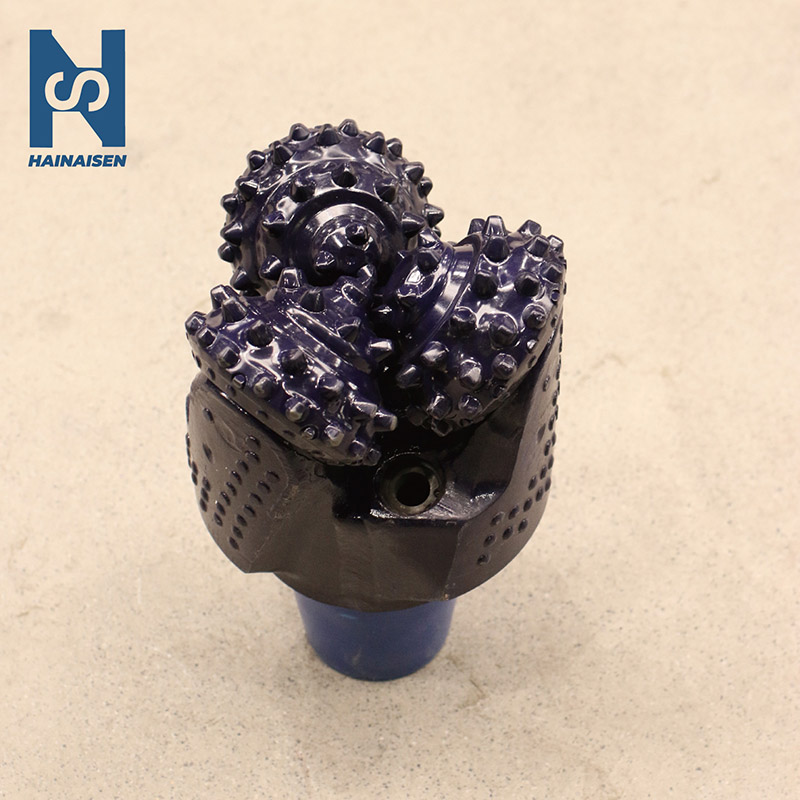

The Rock Roller Drill Bit represents a fundamental advancement in drilling tool design. This equipment consists of three independently rotating cones mounted on the main bit body, each equipped with multiple cutting structures.

During operation, the rollers rotate freely against the formation. This motion generates combined crushing and grinding forces that break through various geological layers efficiently. The button arrangement on each cone varies according to target formations, optimizing performance across different drilling conditions.

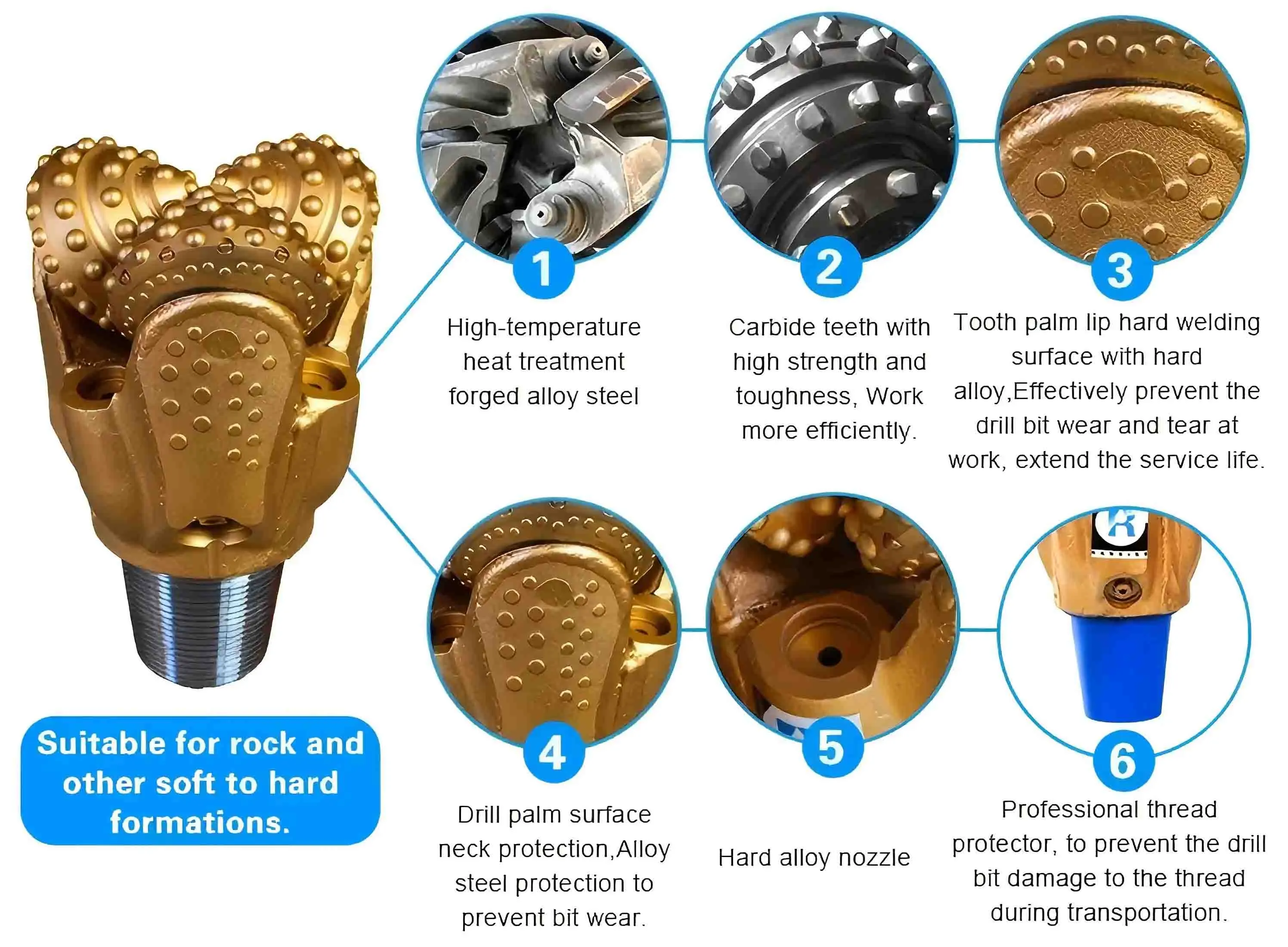

High-strength cemented carbide construction ensures your bit maintains cutting efficiency even in abrasive environments. The material selection directly impacts both penetration rates and operational longevity.

Bit Selection & Comparison Guide

How to Choose the Right Roller Bit

1. Formation type: Select steel tooth bits for soft formations, TCI bits for hard/abrasive rock
2. Drilling method: Match bit design to vertical, horizontal, or directional drilling
3. Well parameters: Consider well depth, temperature, pressure, and rig capacity
4. Project goals: Prioritize ROP for fast drilling, or bit life for long intervals

Hainaisen vs. Competitors

Core Performance Advantages

Our roller bits deliver measurable benefits across multiple operational dimensions. The multi-button design accelerates rock breaking, reducing your time-per-hole significantly.

Versatility stands as a defining characteristic. Whether you're drilling through soft soil or penetrating hard rock formations, these bits maintain consistent performance. The adaptive design handles transitional zones without compromising efficiency.

Durability translates directly to cost savings. Extended operational life means fewer bit replacements during your project. This reduces both equipment expenses and non-productive time associated with tripping operations.

The hydraulic configuration optimizes cuttings removal. Three nozzles positioned around the bit face ensure effective debris evacuation, preventing regrinding and maintaining penetration rates.

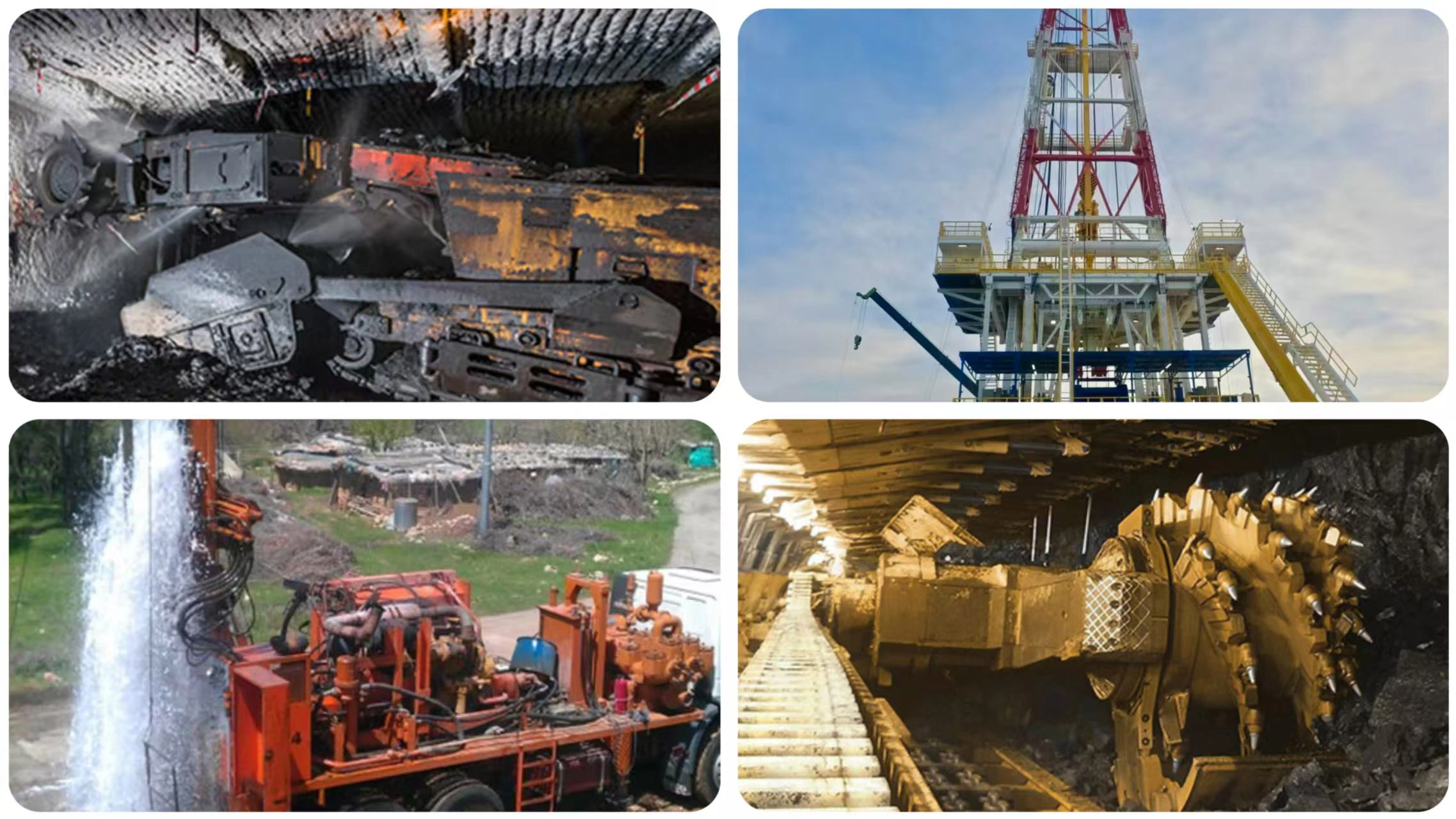

Application Scenarios

Oil and gas exploration operations benefit from the reliable performance in sedimentary formations. The bits handle interbedded layers effectively, maintaining gauge accuracy throughout extended runs.

Water well drilling projects require equipment that performs consistently across varying geological conditions. Our Rock Roller Drill Bit adapts to changing formations without sacrificing drilling speed.

Mining operations demand durability under high-impact conditions. The cemented carbide construction withstands the repeated shock loading characteristic of mineral exploration drilling.

Geothermal well development presents unique challenges with elevated temperatures and abrasive formations. The material selection and thermal management features address these demanding environments.

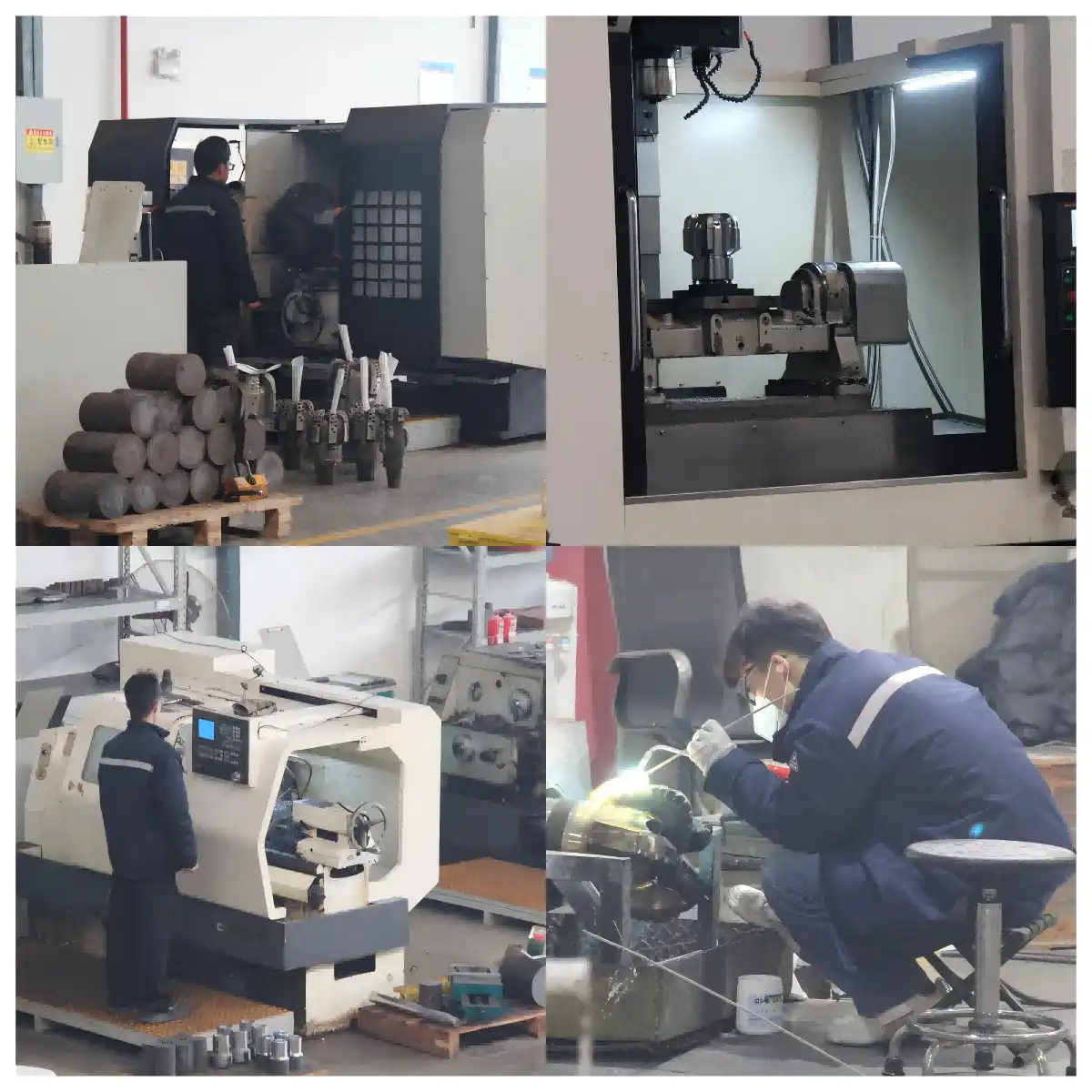

Manufacturing Excellence

Our Xi'an production facility implements strict quality control protocols throughout the manufacturing process. Each bit undergoes dimensional verification and material testing before shipment.

The technical team brings decades of combined experience in drilling tool development. This expertise informs design decisions that enhance field performance and reliability.

Customization capabilities allow us to modify connection types, button configurations, and hydraulic designs according to your specific requirements. We work directly with your engineering team to optimize bit specifications for target formations.

Quality Control

At HAINAISEN, quality is our top priority. We implement rigorous quality control measures throughout the manufacturing process, including:

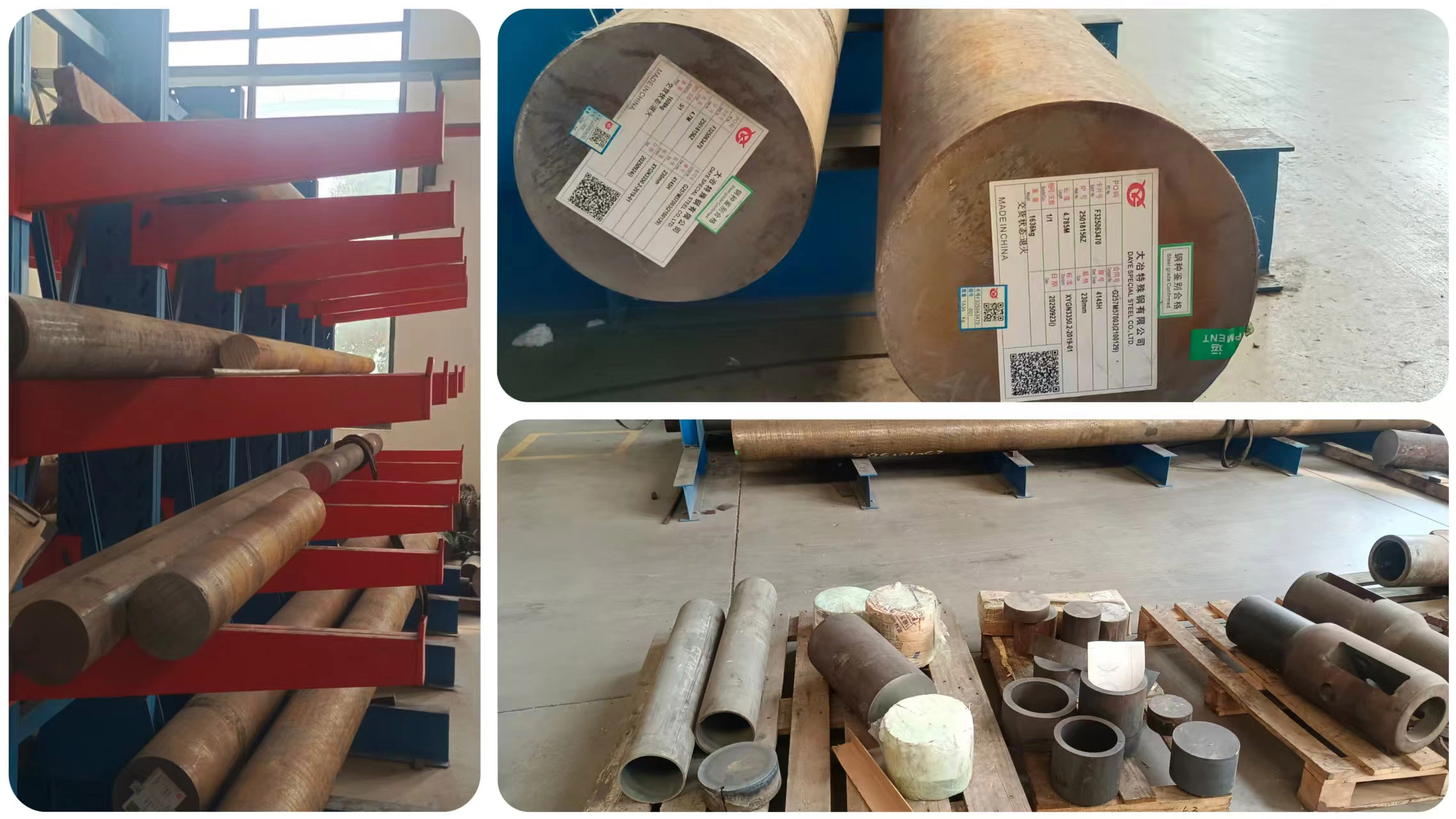

• Strict material selection and testing
• Precision machining and assembly
• Comprehensive performance testing
• Regular quality audits and inspections

Project Case Studies

A coal mining operation in northern China faced challenging interbedded formations with frequent hard stringers. After switching to our 140mm roller bits, they achieved 35% faster penetration rates compared to previous tooling. Bit life increased by 28%, reducing replacement frequency and lowering overall drilling costs.

An oil exploration project in central Asia required bits capable of handling abrasive sandstone with occasional chert layers. Our customized Rock Roller Drill Bit configuration with modified button placement maintained gauge specifications through extended drilling intervals. The client reported improved directional control and reduced non-productive time.

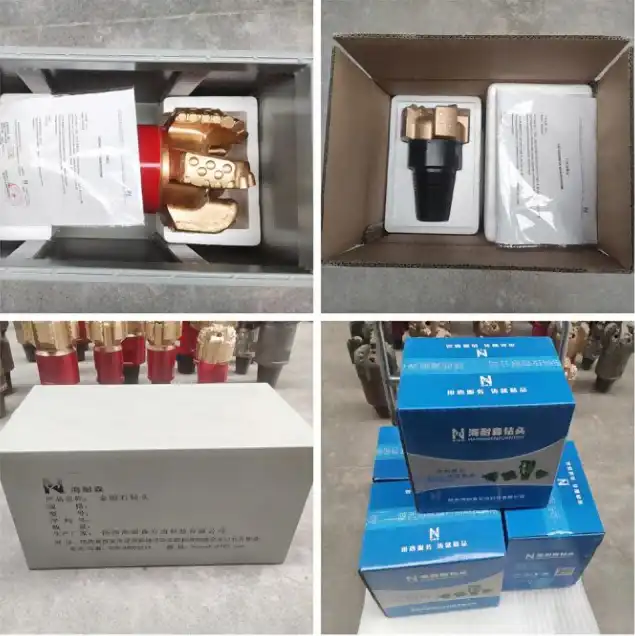

Packaging and Transportation

Our products are securely packaged to ensure safe transportation. We offer various shipping options to meet your delivery needs.

Transaction Feedback

We value your feedback. After your purchase, we'll follow up to ensure your satisfaction and address any concerns promptly.

After Sales Service

Our commitment doesn't end with the sale. We provide comprehensive after-sales support, including:

• Technical assistance
• Maintenance guidance
• Performance optimization tips

Qualification Certification

HAINAISEN holds various industry Certifications, demonstrating our commitment to quality and safety standards.

FAQ

Q1: What formations can these bits handle effectively?
A: Our roller bits perform across level 1-12 strata classifications. This includes soft formations like clay and shale through medium-hard sandstone and limestone to harder volcanic and metamorphic rocks.

Q2: How do I select the appropriate button configuration?
A: Button selection depends on your specific formation characteristics. Spade buttons excel in soft to medium formations, while conical inserts suit harder, more abrasive conditions. Our technical team provides consultation based on your geological data.

Q3: What maintenance extends bit operational life?
A: Proper weight-on-bit parameters and rotational speeds prevent premature wear. Adequate hydraulic flow ensures effective cuttings removal. We provide operational guidelines with each shipment to optimize your drilling parameters.

Q4: Can you modify connection specifications?
A: Yes, connection types are customizable. While standard offerings include 3-1/2 REG.PIN, we manufacture alternative thread configurations to match your drill string requirements.

Q5: What delivery timeframe should we expect?
A: Standard specifications ship within 5-7 business days. Custom configurations may require additional manufacturing time depending on modification complexity.

Contact Us

Ready to enhance your drilling operations with our premium Rock Roller Drill Bits? Contact Us at hainaisen@hnsdrillbit.com for expert advice and personalized solutions.
