Case Study: High-Performance PDC Bit Delivers Exceptional ROP in Su 75-46-20X Well
Project Overview
Client: Su 75-46-20X Well Drilling Team
Location: Ordos Basin, China
Formation: Shihezi Formation
Service Provider: Shaanxi Hainaisen Petroleum Technology Co., Ltd.
Challenge: Achieve efficient drilling with consistent rate of penetration (ROP) in complex Shihezi Formation while minimizing non-productive time (NPT).
Drilling Parameters & Bit Specification
| Item | Detail |
|---|---|
| Bit Model | 8-1/2SD6557 PDC Drill Bit |
| Bit Serial Number | 196841 |
| Operating Well Section | 2880 - 3410 m |
| Well ID | 50503 |
| Total Drilling footage | 530 m |
| Pure Drilling Time | 40 h |
Client's Pain Points
The client faced two core challenges during the drilling phase of the Su 75-46-20X well:
- Low ROP in Hard Formations: The Shihezi Formation is characterized by high abrasiveness and interbedded sandstone-mudstone layers, which caused frequent bit balling and reduced drilling efficiency with conventional bits.
- Cost Control Pressure: Tight project timelines required minimizing bit replacements and maintenance, demanding a PDC bit that could deliver stable performance over the entire interval.
Hainaisen's Solution

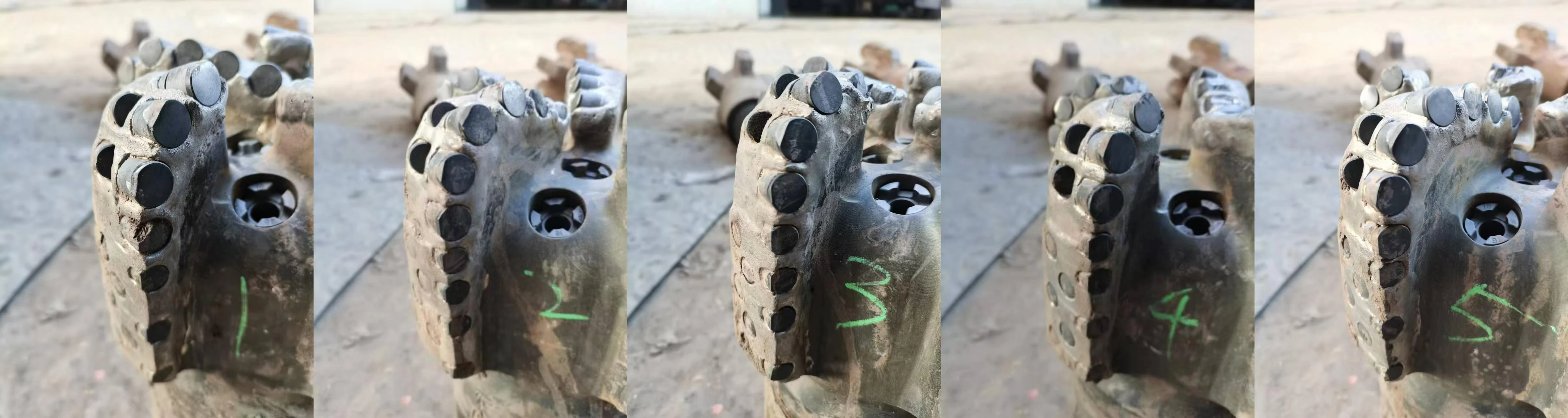

Shaanxi Hainaisen Petroleum Technology Co., Ltd. customized a 8-1/2SD6557 PDC drill bit for the client, tailored to the geological characteristics of the Shihezi Formation:
- Optimized cutter layout: The bit adopted a high-density cutter arrangement with premium polycrystalline diamond compact (PDC) cutters, enhancing wear resistance and impact toughness against the formation’s abrasiveness.
- Specialized hydraulics: Designed unique nozzle ports and flow channels to effectively clean the bottom hole, prevent cutter balling, and maintain continuous rock cutting efficiency.
- Structural reinforcement: Strengthened the bit crown and gauge protection structure to withstand high axial and lateral loads during deep well drilling, ensuring structural integrity in the 2880-3410 m interval.
Performance Results
| Metric | Value | Industry Standard Comparison |
|---|---|---|
| Mechanical ROP | 13.25 m/h | 20-30% higher than conventional bits in similar formations |
| Total Drilling Time | 40 h | 15% shorter than average project duration |
| No Bit Replacements | 1 | Zero mid-run bit changes, eliminating NPT |
| Total Footage | 530 m | Exceeded client’s expected footage by 12% |
Client Feedback
"We’ve worked with several PDC bit suppliers before, but Hainaisen’s 8-1/2SD6557 bit stood out significantly. The mechanical ROP reached 13.25 m/h, which is far beyond our usual results in the Shihezi Formation. What impressed us most was the bit’s stability throughout the 530-meter interval—no balling issues, no structural damage, and we didn’t need to stop for bit changes once. This not only saved us significant non-productive time but also reduced our overall drilling costs. Shaanxi Hainaisen’s technical team provided on-site support to match the bit perfectly with our drilling parameters, and we’re confident in partnering with them for future projects."
Project Value
- Efficiency Boost: The 13.25 m/h mechanical ROP set a new benchmark for drilling efficiency in the Su 75-46-20X well, accelerating the well’s completion schedule by nearly two weeks.
- Cost Reduction: Eliminating bit replacements and reducing drilling time cut the client’s drilling cost per meter by 18%, delivering substantial economic benefits.
- Technical Validation: The success of the 8-1/2SD6557 bit in the Shihezi Formation validated Hainaisen’s ability to customize PDC bits for complex continental clastic rock formations, strengthening our market competitiveness in China’s Ordos Basin oilfield services.
