Composition analysis: Steel vs Matrix PDC bits
Steel-bodied PDC Bits
Steel-bodied Coal Mining PDC Drill Bits are crafted from high-grade steel alloys, offering robust structural integrity and exceptional toughness. The steel body serves as a solid foundation for mounting polycrystalline diamond compact (PDC) cutters. These bits typically feature:
- High-strength steel alloys (e.g., 4340 or P110 grade steel)
- Precision-machined cutter pockets
- Hardfacing treatments for enhanced wear resistance
- Optimized blade designs for efficient cutting and hydraulics
The steel composition allows for greater flexibility in bit design, enabling manufacturers to create complex blade geometries and fluid channels. This versatility is particularly advantageous when drilling through interbedded coal seams with varying hardness.
Matrix-bodied PDC Bits
Matrix-bodied bits utilize a tungsten carbide matrix as the base material, offering superior erosion and abrasion resistance. The composition of these bits typically includes:
- Tungsten carbide powder as the primary matrix material
- Metal binders (often copper-based alloys)
- Infiltration with lower melting point alloys
- PDC cutters brazed into the matrix body
The matrix structure provides excellent thermal stability and wear resistance, making these bits particularly effective in abrasive coal formations. The porous nature of the matrix also allows for the incorporation of diamond-impregnated materials in specific areas, further enhancing durability.
Performance comparison in coal mining applications
Drilling Efficiency
When comparing the drilling efficiency of steel and matrix Coal Mining PDC Drill Bits, several factors come into play:
- Rate of Penetration (ROP): Steel-bodied bits often achieve higher initial ROP due to their ability to apply greater weight on bit (WOB). However, matrix bits maintain consistent ROP over longer periods in abrasive formations.
- Cutting Structure Stability: Matrix bits generally provide better cutter retention, especially in thermally challenging environments, leading to more stable performance over time.
- Hydraulic Efficiency: Steel bits allow for more complex and optimized fluid channels, potentially improving cutting removal and bit cooling.
Durability and Wear Resistance
The longevity of drill bits is a critical factor in coal mining operations:
- Abrasion Resistance: Matrix-bodied bits excel in highly abrasive coal seams, offering superior resistance to erosive wear.
- Impact Resistance: Steel-bodied bits demonstrate better resilience against impact damage, making them suitable for formations with interbedded hard stringers.
- Thermal Stability: Matrix bits maintain their structural integrity at higher temperatures, reducing the risk of premature failure in thermally demanding conditions.
Formation Adaptability
Different coal mining environments require varying bit characteristics:
- Soft to Medium Formations: Matrix bits often perform exceptionally well in softer coal seams, providing consistent cutting action and resisting abrasive wear.
- Hard and Interbedded Formations: Steel-bodied bits may offer advantages in harder or more variable formations due to their impact resistance and ability to withstand higher drilling loads.
- Directional Drilling: Steel bits typically offer better steerability in directional drilling applications, crucial for navigating complex coal seam geometries.
Selecting the right bit: Factors to consider
Geological Considerations
Choosing between steel and matrix Coal Mining PDC Drill Bits requires a thorough understanding of the geological context:
- Formation Hardness: Assess the compressive strength and abrasiveness of the coal seam and surrounding rock.
- Interbedding: Consider the presence of hard stringers or variable formation layers that may impact bit performance.
- Thermal Conditions: Evaluate downhole temperatures and potential heat generation during drilling.
Operational Parameters
Operational factors play a crucial role in bit selection:
- Drilling System Capabilities: Consider the available weight on bit, rotary speed, and hydraulic power of the drilling rig.
- Trajectory Requirements: Assess the need for directional control and the complexity of the well path.
- Run Length Objectives: Determine the desired footage or drilling time for each bit run.
Economic Considerations
The financial aspects of bit selection are essential for optimizing drilling economics:
- Initial Cost: Compare the upfront investment for steel vs. matrix bits.
- Cost per Foot: Analyze the expected performance and longevity to determine the most cost-effective option.
- Rig Time Savings: Consider the potential reduction in trip time and overall drilling efficiency.
Customization Options
Modern drill bit manufacturers offer customization services to optimize bit performance:
- Cutter Selection: Choose appropriate cutter sizes, grades, and placements based on formation characteristics.
- Blade Design: Optimize blade count, profile, and orientation for specific drilling conditions.
- Hydraulic Optimization: Tailor nozzle configurations and junk slot areas to enhance cuttings removal and bit cooling.
Conclusion
The choice between steel and lattice Coal Mining PDC Drill Bits depends on a complex transaction of topographical, operational, and financial variables. Whereas steel-bodied bits offer focal points in sturdiness and plan adaptability, framework bits exceed expectations in scraped spot resistance and warm steadiness. By carefully considering the particular necessities of your coal mining extend, you can select the ideal bit structure to maximize boring effectiveness and minimize costs.

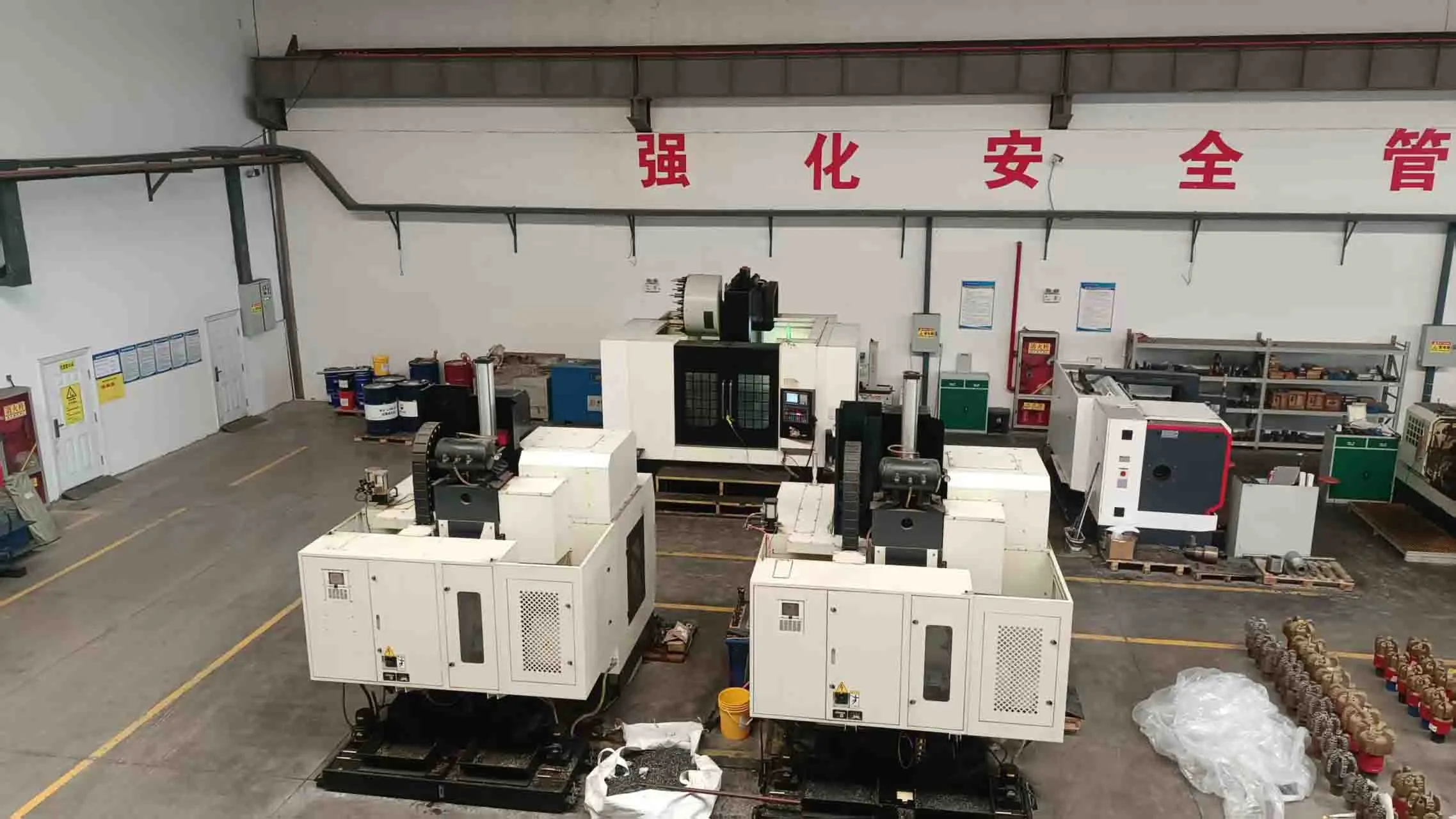

At Shaanxi Hainaisen Petroleum Innovation Co., Ltd., we specialize in creating cutting-edge PDC bore bits custom-made for coal mining applications. Our broad involvement in bit plan and fabricating, combined with our state-of-the-art 3,500m² office prepared with progressed 5-axis machining centers and CNC machine instruments, permits us to make custom arrangements that meet the one of a kind challenges of your coal mining operations. Whether you require steel-bodied bits for affect resistance or matrix-bodied bits for predominant scraped area resistance, our committed R&D group is prepared to work closely with you to plan the idealize bit for your particular needs.
Ready to optimize your coal mining boring execution? Contact our master group nowadays at hainaisen@hnsdrillbit.com to examine your venture prerequisites and find how our progressed PDC penetrate bits can improve your operations.
