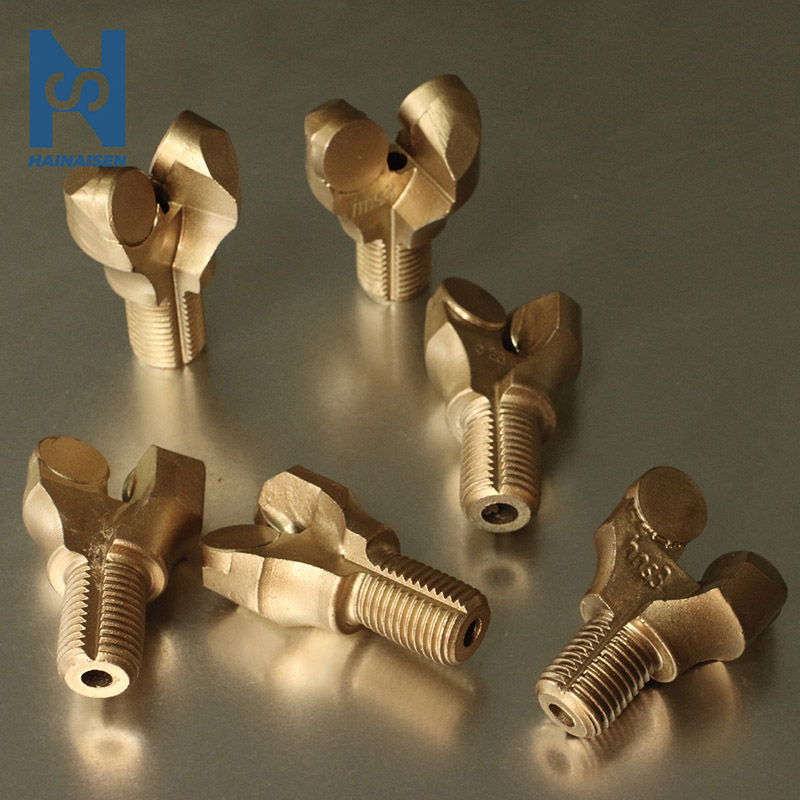

30mm Half Blade Anchor Bit For Mine Coal Fields

30mm Half Blade Anchor Bit For Mine Coal Fields - Professional Rock Drilling Solution for Underground Support Systems

SHAANXI HAINAISEN INTELLIGENT EQUIPMENT MANUFACTURING CO.,LTD presents the 30mm Half Blade Anchor Bit For Mine Coal Fields, engineered specifically for underground coal mining support operations. This precision-Manufactured anchor drilling tool features 1304 PDC cutters and M14X1.5 connection threading, delivering exceptional performance across strata levels 1-12. With over 10 years of PDC cutting technology expertise and a production facility spanning 6,000 square meters, our company combines advanced manufacturing capabilities with rigorous quality standards. Our technical team of 20+ senior engineers ensures each bit meets the demanding requirements of modern mining operations, providing reliable anchoring solutions that enhance workplace safety and operational efficiency.

Advanced PDC Cutting Technology

The anchor bit utilizes polycrystalline diamond compact technology, where diamond particles are sintered with metallic binders under extreme pressure and temperature conditions. This manufacturing process creates a superhard cutting surface capable of withstanding the rigorous demands of coal field drilling.

Your drilling operations benefit from enhanced wear resistance and extended tool life. The half blade design optimizes cutting efficiency while maintaining structural integrity during continuous operation. This configuration proves particularly effective in the softer to medium-hard formations commonly encountered in coal mining environments.

Selection Guide

How to Choose the Right Bit

1. Start with your hole sizeUse the 30mm standard bit for most roof bolting applications.If your anchor rod requires a different diameter, we can customize from 20–45mm.

2. Match the rock hardness

   • Soft to medium coal seams (Grade 1–6): Standard half-blade with 1304 PDC works perfectly.
   • Hard, broken rock (Grade 7–12): Choose a reinforced version with upgraded cutters or full-blade design.

3. Check your rig connectionConfirm your drill rig’s thread size.M14×1.5 is common, but we can adjust to fit your equipment exactly.

4. Prioritize your needs

   • Fast drilling speed: Stick with the half-blade design.
   • Tough, abrasive formations: Upgrade to full-blade or higher-grade cutters.

Key Performance Advantages

Enhanced Durability

Your operations experience reduced downtime thanks to the superior hardness of PDC materials. The diamond-enhanced cutting structure resists abrasive wear significantly better than conventional tungsten carbide alternatives.

Cost-Effective Operation

While the initial investment may exceed traditional bits, the extended service life and faster penetration rates deliver substantial cost savings over time. You'll complete more anchor holes per bit, reducing tool replacement frequency and associated labor costs.

Optimized Blade Configuration

The half blade design strikes an ideal balance between cutting aggression and stability. This geometry facilitates efficient chip evacuation while maintaining directional control during anchor hole drilling. Your operators will appreciate the consistent performance across varying geological conditions.

Versatile Application Range

The 30mm Half Blade Anchor Bit For Mine Coal Fields handles multiple coal mining support tasks, including roof bolt installation, cable anchoring, and reinforcement drilling. The adaptable design accommodates different rock compositions within the specified strata range.

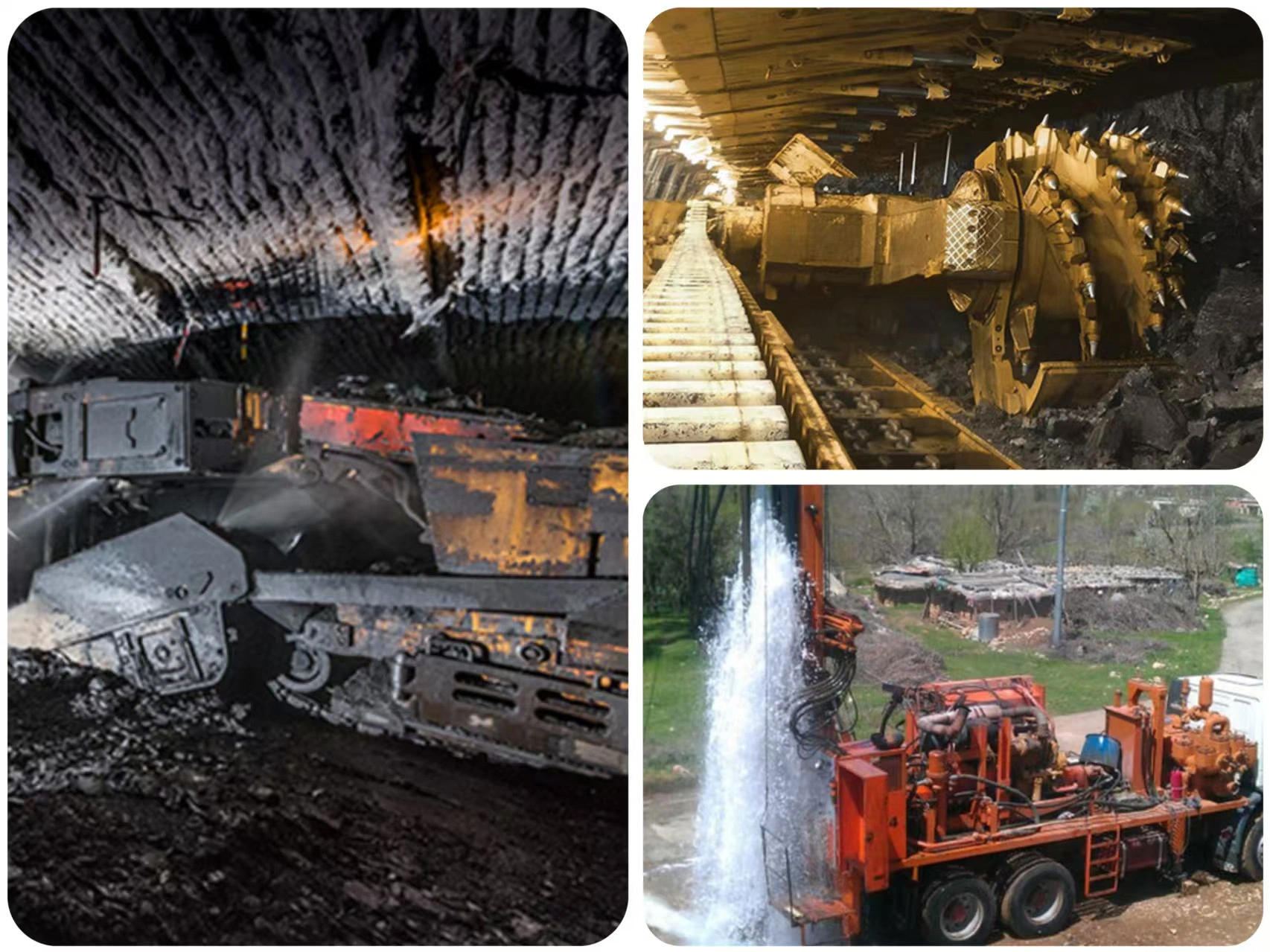

Application Scenarios in Coal Mining

Roof Support Installation

Your safety systems rely on properly installed anchor bolts. This bit drills precise holes for roof support anchors, ensuring secure attachment points that meet regulatory compliance standards. The reliable penetration rate maintains project schedules without compromising hole quality.

Roadway Reinforcement

Coal mine roadways require systematic support to prevent ground instability. The bit's efficient drilling capabilities enable rapid deployment of anchor mesh support systems. You can establish comprehensive ground control measures that protect personnel and equipment.

Gas Drainage Operations

Proper gas drainage is critical for mine safety. Our anchor bits create accurate boreholes for drainage pipe installation, supporting effective methane management strategies that reduce explosion risks and improve ventilation conditions.

Material

Our bits are crafted using premium-grade materials, including:

• High-strength steel body for durability
• Tungsten carbide inserts for superior wear resistance
• PDC (Polycrystalline Diamond Compact) cutters for enhanced cutting efficiency

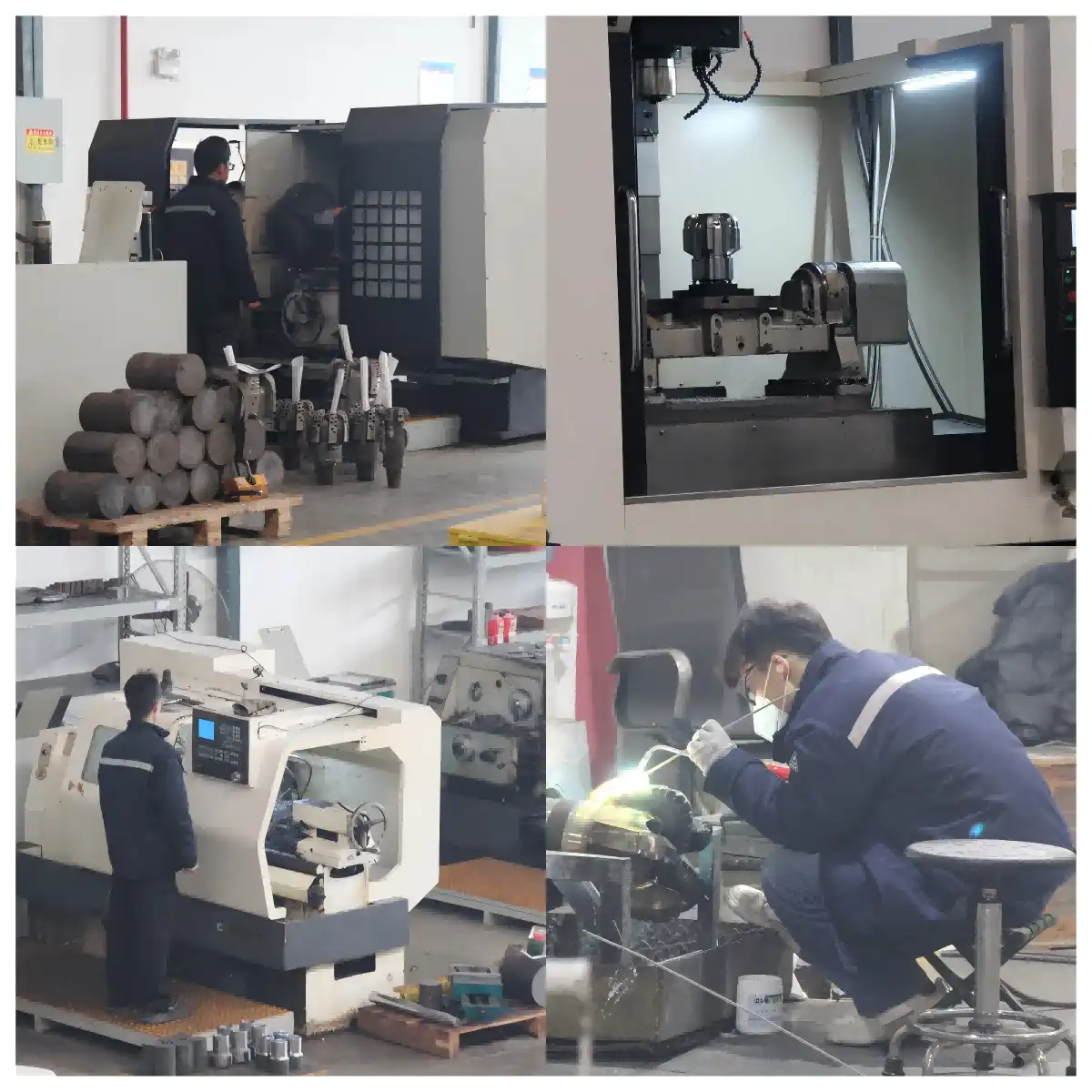

Quality Control

At HAINAISEN, quality is our top priority. We implement rigorous quality control measures throughout the manufacturing process:

• Strict raw material inspection
• Advanced CNC machining for precise dimensions
• Comprehensive performance testing before shipment

Project Case Studies

Underground Coal Mine Expansion Project

A major coal producer in northern China implemented our 30mm Half Blade Anchor Bit For Mine Coal Fields across their expansion operation. The project required drilling over 5,000 anchor holes through mixed strata formations.

Results achieved:

· 40% reduction in bit replacement frequency compared to previous tooling

· 25% improvement in average penetration rate

· Zero bit failures throughout the project duration

· Completion two weeks ahead of schedule

Safety System Upgrade Initiative

A coal field operator upgraded their anchoring support system using our specialized bits. The operation involved installing reinforced roof support across 12 operational sections with varying geological conditions.

Outcomes included:

· Consistent hole quality across all strata types encountered

· Simplified inventory management with single bit specification

· Enhanced operator confidence in tool reliability

· Improved safety compliance scores during regulatory inspections

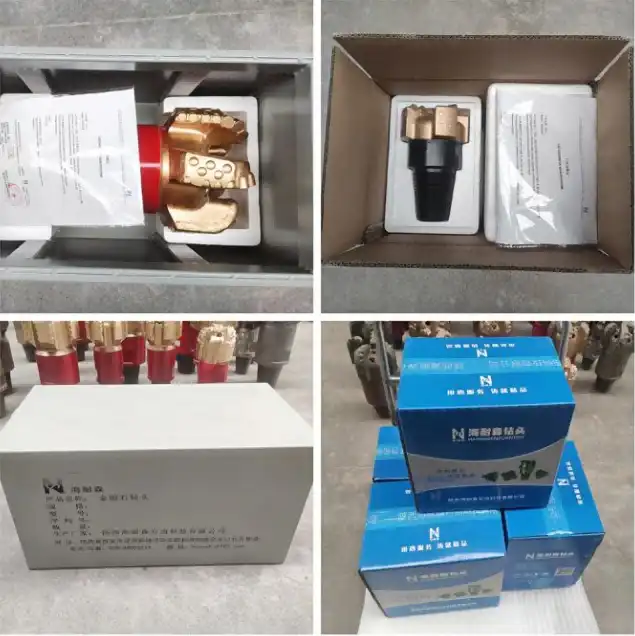

Packaging and Transportation

• Secure packaging to prevent damage during transit
• Multiple shipping options available (sea, air, express)
• On-time delivery guaranteed

Transaction Feedback

At HAINAISEN, we cherish every piece of feedback from our clients, recognizing it as a vital catalyst for enhancing our products and services. Our dedicated customer support team remains consistently available to attentively address your concerns, ensuring that your voice is heard and valued at every stage. By proactively incorporating your suggestions into our improvement processes, we aim to refine our offerings to better align with your needs and expectations. This commitment to listening and evolving not only strengthens the quality of our solutions but also deepens our relationship with you, fostering a partnership built on trust, mutual respect, and a shared pursuit of excellence.

After-Sales Service

• 24/7 technical support
• Comprehensive user manuals and training materials
• Prompt replacement of defective parts (if any)

Qualification Certification

• ISO 9001:2015 certified
• CE certified
• API certified

FAQ

Q1: Why is this bit appropriate for use in coal fields?
A: For coal measure rocks, PDC cutter technology and half blade geometry work best together. When you come across tougher bands, which are frequently seen in coal seams, you maintain durability while getting effective cutting action in softer formations.

Q2: What are the advantages of drilling operations with the 1304 PDC cutter configuration?
A: Cutting speed and tool longevity are balanced in this cutter standard. In order to minimize vibration and improve hole straightness, which is essential for anchor installation, the size and location maximize force distribution throughout the bit face.

Q3: Is it possible to alter the connection threading?
A: Absolutely. Although M14X1.5 is our usual arrangement, different thread requirements can be accommodated by our production capabilities. Without the need for adapter hardware, you may match the bit connection to your current drill equipment.

Q4: What range of stratum hardness is represented by "levels 1-12"?
A: Formations ranging from very soft coal and clay to medium-hard sandstone and limestone are included in this group. One bit type can be used in a variety of subsurface circumstances because the range covers common coal measure geology.

Q5: For the longest possible service life, how should operators preserve these bits?
A: After every shift, routine cleaning avoids material accumulation, which lowers cutting efficiency. Before deploying, check PDC cutters for damage. To avoid impact damage, keep parts in protective cases. Choosing the right drill parameters stops excessive heat production, which weakens cutter bonding.

Q6: For continuous manufacturing, how much should operations stock?
A: Maintaining three to five bits per operating drill allows for sufficient rotation for cleaning and inspection based on common usage patterns. Drilling volume, formation features, and logistical concerns all affect your particular needs.
