PDC vs. hard alloy bits: Cost vs. durability breakdown
When evaluating the cost-effectiveness of PDC and hard alloy scraper drill bits, it's essential to consider both the initial investment and long-term operational costs. When assessing the cost-effectiveness of PDC and difficult amalgam scrubber bore bits, it's basic to consider both the starting speculation and long-term operational costs.

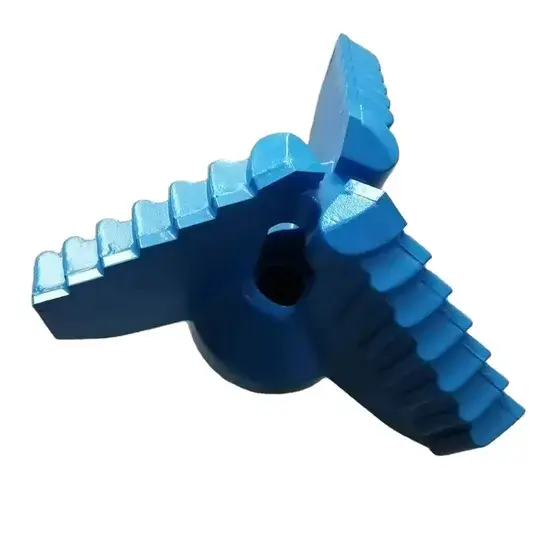

Hard alloy scraper bits, while typically less expensive upfront, may require more frequent replacements in certain formations. This can lead to increased downtime and higher cumulative costs over the course of a drilling project. However, in highly abrasive or unpredictable formations, the robust nature of hard alloy bits can sometimes provide a more cost-effective solution.
Factors influencing bit longevity:
- Formation hardness and abrasiveness
- Drilling parameters (weight on bit, rotary speed)
- Hydraulics and hole-cleaning efficiency
- Bit design and cutter placement
- Quality of manufacturing and materials used

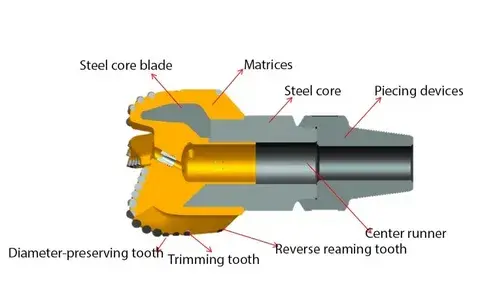

To illustrate the durability comparison, consider a case study where a PDC bit with a 161mm diameter, featuring 34 PDC cutters (13 mm/16 mm in size) across 3 blades, was used in a medium-hard formation. This bit, designed for strata levels 1-12, demonstrated exceptional longevity, often outlasting traditional hard alloy scraper bits by a factor of 2-3 in similar conditions. The advanced alloy composition and precision-engineered design contributed significantly to its extended operational life.
Do PDC bits outperform hard alloy in abrasive formations?
The execution of PDC bits versus difficult combination scrubber penetrate bits in rough arrangements is a subject of continuous talk about and inquiryin the boring industry. While PDC bits have made significant strides in recent years, Hard alloy scraper drill bits hold their ground in certain highly abrasive environments.
PDC bits, with their diamond-impregnated cutters, offer superior resistance to wear in many abrasive formations. The synthetic diamond material used in PDC cutters is exceptionally hard and can maintain a sharp cutting edge for extended periods. This characteristic permits PDC bits to keep up higher infiltration rates and, in general, effectiveness in numerous rough scenarios.
Advantages of PDC in abrasive formations:
- Sustained cutting efficiency
- Reduced trips for bit changes
- Improved overall rate of penetration (ROP)
- Better directional control in deviated wells
However, hard alloy scraper bits still have their place in extremely abrasive or heterogeneous formations. The robust construction and unique scraping action of these bits can be more effective in formations with interbedded hard stringers or highly variable lithology. In such conditions, the durability of hard alloy materials can sometimes surpass that of PDC cutters, which may be more susceptible to impact damage or rapid wear in extremely harsh environments.
It's worth noting that advancements in PDC bit design, such as optimized cutter placement and improved heat resistance, have narrowed the gap in performance even in highly abrasive formations. For instance, our PDC bits with 3 blades and 34 cutters are engineered to withstand extreme conditions, offering a balance of durability and cutting efficiency that rivals traditional hard alloy scrapers in many challenging scenarios.
When to choose hard alloy scraper bits over PDC?
While PDC bits have become increasingly popular due to their overall performance and longevity, there are specific scenarios where hard alloy scraper drill bits remain the preferred choice. Understanding these situations is crucial for optimizing drilling operations and maximizing cost-effectiveness.
Scenarios favoring hard alloy scraper bits:
- Extremely hard and abrasive formations: In formations with high compressive strength and abrasiveness, hard alloy bits can sometimes outlast PDC bits due to their robust construction and resistance to impact damage.
- Heterogeneous formations: When drilling through formations with interbedded hard stringers or rapidly changing lithology, the scraping action of hard alloy bits can be more effective than the shearing action of PDC cutters.
- High-temperature environments: Some hard alloy compositions offer superior heat resistance compared to certain PDC formulations, making them suitable for high-temperature drilling conditions.
- Shallow, fast-spud applications: In scenarios where rapid drilling of shallow sections is required, the lower cost and simplicity of hard alloy bits can be advantageous.
- Budget constraints: For projects with tight budgets or in areas where PDC bits are not readily available, hard alloy scraper bits can provide a cost-effective alternative.
Our hard alloy scraper bits, featuring advanced alloy compositions and precision-engineered scraper designs, are particularly well-suited for these challenging scenarios. The superior heat resistance and optimized cutting structure ensure effective drilling indeed in the most demanding conditions.
It's important to note that the choice between PDC and hard alloy scraper bits isn't always clear-cut. Factors Similarly, specific conformation characteristics, drilling parameters, and design economics all play a part in the decision-making process. In many cases, a combination of both bit types may be used at different stages of the drilling process to maximize overall efficiency and cost-effectiveness.
Conclusion
In the ongoing debate of hard alloy scraper drill bits versus PDC bits, there's no one-size-fits-all answer. While PDC bits generally offer longer dates and superior performance in numerous drilling scripts, hard amalgamation scraper bits remain inestimable in specific operations. The key to successful drilling operations lies in choosing the right tool for the job based on a thorough understanding of the formation, drilling conditions, and project requirements.
At Shaanxi Hainaisen Petroleum Technology Co., Ltd., we understand the critical nature of bit selection in the oil and gas, coal mining, and geological exploration industries. Our extensive range of both PDC and hard alloy scraper drill bits is designed to meet the diverse needs of medium to large oil service companies, coal mining operations, and water well drilling teams. With our state-of-the-art 3,500m² facility equipped with advanced 6-axis machining centers and CNC machine tools, we're committed to delivering high-quality, durable drilling solutions tailored to your specific needs.
Whether you're dealing with challenging abrasive formations or need a cost-effective solution for your next drilling project, our team of experts is here to help. Don't let bit selection uncertainty impact your operational efficiency. Contact us today at hainaisen@hnsdrillbit.com to discuss your drilling requirements and discover how our customized bit solutions can optimize your drilling performance and reduce overall costs.
