What are optimal RPM & WOB ranges?
The optimal RPM and WOB ranges for Directional Well PDC Drill Bits vary depending on several factors, including bit size, formation characteristics, and drilling objectives. However, some general guidelines can help operators establish a starting point for optimization:
RPM Ranges:
- Soft formations: 120-220 RPM
- Medium formations: 80-160 RPM
- Hard formations: 60-120 RPM
WOB Ranges (per inch of bit diameter):
- Soft formations: 1,000-2,000 lbs/inch
- Medium formations: 2,000-4,000 lbs/inch
- Hard formations: 4,000-6,000 lbs/inch
It's critical to note that these ranges are only beginning focuses. The genuine ideal settings may go astray from these rules based on particular penetrating conditions and bit plans. For occurrence, a 120mm PDC bit with four edges and 1308 cutters might require distinctive RPM and WOB settings compared to a bigger or littler bit with a distinctive configuration.
When determining the best RPM and WOB combination, drillers should consider the following factors:
- Bit hydraulics and cutter cooling
- Wellbore stability
- Directional control requirements
- Vibration management
- Desired rate of penetration (ROP)
By carefully balancing these factors, drilling teams can achieve optimal bit performance while maintaining directional control and minimizing bit wear. It's often beneficial to start with conservative settings and gradually increase RPM and WOB while monitoring drilling parameters to find the sweet spot for each specific application.
How settings vary by formation?
The geological formations encountered during directional drilling significantly influence the optimal RPM and WOB settings for PDC drill bits. Different rock types and structures require varying approaches to achieve efficient drilling and maintain directional control. Let's explore how these settings typically vary across different formation types:
Soft Formations:
In soft formations such as unconsolidated sands, clays, or salt, Directional Well PDC Drill Bits generally perform well with higher RPM and lower WOB. This combination allows for rapid penetration while minimizing the risk of bit balling or excessive torque.
- RPM: 120-220
- WOB: 1,000-2,000 lbs/inch of bit diameter
The higher RPM helps maintain efficient cuttings removal, while the lower WOB prevents over-penetration of the cutters into the soft material. In these formations, hydraulics play a crucial role in clearing cuttings and preventing bit balling.
Medium Formations:
Medium hardness formations, such as sandstones, limestones, and some shales, require a more balanced approach. These formations benefit from moderate RPM and WOB settings to achieve optimal penetration rates while maintaining bit stability.
- RPM: 80-160
- WOB: 2,000-4,000 lbs/inch of bit diameter
In medium formations, it's crucial to find the right balance between aggressive cutting action and bit stability. Too high RPM can lead to excessive vibration, while too low WOB may result in bit whirl or inefficient cutting.
Hard Formations:
Hard formations, including dense carbonates, quartzites, and igneous rocks, demand lower RPM and higher WOB to effectively fracture and remove the rock. This combination helps prevent excessive heat generation and premature cutter wear.
- RPM: 60-120
- WOB: 4,000-6,000 lbs/inch of bit diameter
In hard formations, the focus shifts to maintaining sufficient energy transfer to the rock while preventing excessive vibration and cutter damage. The lower RPM allows for better weight transfer to the bit, while the higher WOB ensures effective rock breakage.
Transitional and Interbedded Formations:
One of the most challenging scenarios for Directional Well PDC Drill Bits is drilling through transitional or interbedded formations. These formations consist of alternating layers of soft and hard rock, requiring frequent adjustments to RPM and WOB to maintain optimal performance.
In such cases, a dynamic approach is necessary. Drilling teams may need to:
- Implement automated drilling systems that can quickly adjust parameters based on real-time drilling data
- Use averaged RPM and WOB settings that perform adequately across the varying formation types
- Employ specialized bit designs with features like depth-of-cut control elements to help manage the transitions between soft and hard layers
The key to success in transitional formations is flexibility and continuous monitoring of drilling parameters. By promptly adjusting RPM and WOB based on formation changes, drillers can maintain efficient penetration rates while minimizing bit damage and directional control issues.

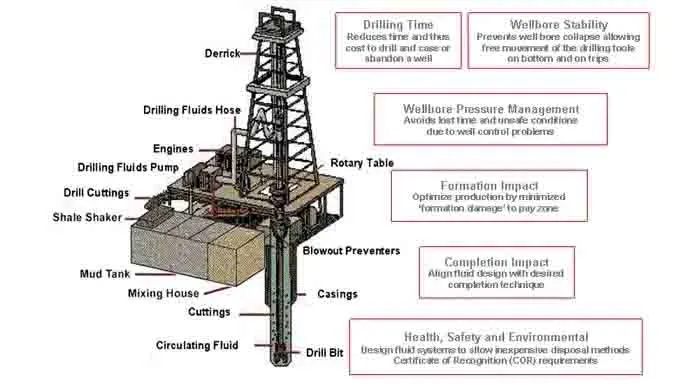

Examples from directional operations
To illustrate the practical application of RPM and WOB optimization for Directional Well PDC Drill Bits, let's examine some real-world examples from directional drilling operations. These cases demonstrate how tailoring bit parameters to specific formation characteristics and drilling objectives can lead to improved performance and efficiency.
Case Study 1: Soft Formation Directional Drilling
Location: Gulf of Mexico
Formation: Soft, unconsolidated sandstone
Bit Size: 120mm (4-3/4")
Initial Settings:
- RPM: 140
- WOB: 8,000 lbs (1,684 lbs/inch)
Results: Initial penetration rates were moderate, but cuttings removal was inefficient, leading to frequent bit balling issues.
Optimized Settings:
- RPM: 180
- WOB: 7,000 lbs (1,474 lbs/inch)
Outcome: By increasing RPM and slightly reducing WOB, the drilling team achieved a 30% improvement in ROP. The higher RPM enhanced cuttings evacuation, while the lower WOB prevented over-penetration of the cutters. This combination resulted in smoother drilling with fewer instances of bit balling and improved directional control.
Case Study 2: Medium-Hard Formation Transition
Location: Permian Basin
Formation: Interbedded limestone and shale
Bit Size: 150mm (5-7/8")
Initial Settings:
- RPM: 120
- WOB: 25,000 lbs (4,255 lbs/inch)
Results: Satisfactory performance in limestone sections but struggled in shale intervals, leading to inconsistent ROP and directional control issues.
Optimized Settings:
- Limestone intervals: RPM 100, WOB 30,000 lbs (5,106 lbs/inch)
- Shale intervals: RPM 140, WOB 20,000 lbs (3,404 lbs/inch)
Outcome: By implementing a dynamic approach with real-time parameter adjustments based on formation changes, the drilling team achieved a 25% overall improvement in ROP. The lower RPM and higher WOB in limestone sections provided better weight transfer and rock breakage, while the higher RPM and lower WOB in shale intervals prevented bit balling and maintained directional control.
Case Study 3: Hard Formation Directional Drilling
Location: North Sea
Formation: Dense, abrasive sandstone
Bit Size: 200mm (7-7/8")
Initial Settings:
- RPM: 100
- WOB: 35,000 lbs (4,449 lbs/inch)
Results: Slow penetration rates and excessive vibration leading to premature bit wear.
Optimized Settings:
- RPM: 80
- WOB: 45,000 lbs (5,720 lbs/inch)
Outcome: By reducing RPM and increasing WOB, the drilling team achieved a 40% improvement in ROP while significantly reducing vibration. The lower RPM allowed for better energy transfer to the rock, while the higher WOB ensured effective rock breakage. This optimization not only improved drilling efficiency but also extended bit life by reducing cutter wear.
These case ponders highlight the significance of fitting RPM and WOB settings to particular arrangement characteristics and penetrating conditions. By carefully optimizing these parameters, boring groups can altogether move forward execution, diminish costs, and improve the by and large proficiency of directional boring operations.
It's worth noticing that the victory of these optimizations regularly depends on the quality and plan of the PDC penetrate bits utilized. Progressed bit plans, such as those including optimized cutter situation, upgraded hydrodynamics, and specialized gage cushion arrangements, can advance open up the benefits of appropriate RPM and WOB settings.
Conclusion
Optimizing RPM and WOB settings for Directional Well PDC Penetrate Bits is a complex but vital angle of effective directional boring operations. By carefully considering arrangement characteristics, bit plan, and particular penetrating destinations, administrators can essentially upgrade boring execution, diminish costs, and make strides wellbore quality.
The cases and rules given in this article serve as a beginning point for parameter optimization. Be that as it may, it's vital to keep in mind that each penetrating operation is one of a kind, and nonstop observing and alteration of penetrating parameters are basic for accomplishing the best results.
For oil and gas boring companies, oil benefit companies, and other substances included in directional boring operations, contributing in high-quality PDC bore bits and actualizing strong optimization methodologies can lead to considerable enhancements in penetrating proficiency and cost-effectiveness.
Are you looking to optimize your directional boring operations with progressed PDC penetrate bits? Shaanxi Hainaisen Petroleum Innovation Co., Ltd. specializes in the inquire about, advancement, and generation of cutting-edge jewel and PDC penetrate bits outlined for prevalent execution in directional wells.
Our experienced R&D team can work with you to create custom bit designs tailored to your specific formation challenges and drilling objectives. Whether you're a large oil service company with stringent quality requirements or a coal mining operation seeking cost-effective solutions, we have the expertise and manufacturing capabilities to meet your needs. Partner with a trusted Directional Well PDC Drill Bit supplier to ensure superior drilling performance and long-term operational efficiency.
FAQ
1. What factors influence the choice of RPM and WOB for directional PDC drill bits?
Several factors influence the optimal RPM and WOB settings, including formation hardness, bit size and design, wellbore trajectory, hydraulics, and specific drilling objectives. It's crucial to consider all these aspects when determining the best parameters for a given operation.
2. How do RPM and WOB settings affect directional control?
RPM and WOB settings can significantly impact directional control. Higher RPM can increase the bit's tendency to walk or deviate from the intended path, while excessive WOB can lead to unintended deflection or even stalling in directional applications. Finding the right balance is key to maintaining precise directional control.
3. Can RPM and WOB optimization help extend bit life?
Yes, proper optimization of RPM and WOB can significantly extend bit life. By minimizing excessive vibration, preventing overloading of cutters, and ensuring efficient cuttings removal, optimized parameters can reduce wear and damage to the bit, ultimately leading to longer bit runs and improved overall performance.
4. How often should RPM and WOB settings be adjusted during directional drilling?
The frequency of adjustments depends on the formation variability and drilling conditions. In homogeneous formations, settings may remain relatively stable for extended periods. However, in transitional or interbedded formations, frequent adjustments may be necessary to maintain optimal performance. Real-time monitoring of drilling parameters is crucial for determining when adjustments are needed.
