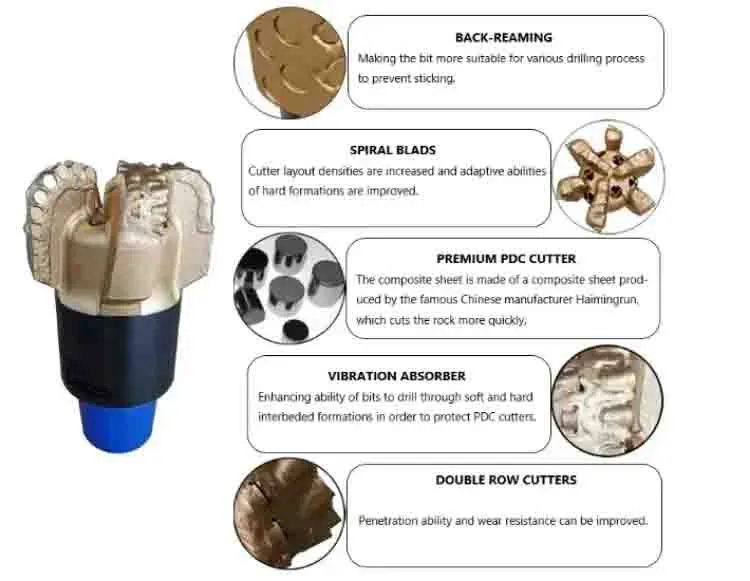

The 6-wing PDC drill bit is a big step forward in drilling technology. It cuts more efficiently and lasts longer in a wide range of rock formations. This new design uses polycrystalline diamond compact blades and tungsten carbide matrix bodies together for better performance in water well building, coal mining, and oil and gas research. Procurement managers and technical experts who want to get the most out of drilling operations while keeping costs low need to know about the materials and engineering that go into these drill bits. Today's drilling needs dependable tools that can handle harsh situations while always doing their job right. The six-wing design solves these problems by using smart material placement and cutting-edge production methods. When workers in the industry look at the core material features, design consequences, and performance qualities of products, they are able to make good buying choices that are in line with their business needs and budget limits.
Understanding the Core Material Composition of 6-Wing PDC Drill Bits
Six-wing PDC drill bits have a complex material makeup that is the key to great drilling performance. These parts work together to make a strong drilling tool that can handle tough jobs in a lot of different fields.
Polycrystalline Diamond Compact Cutters
The high-grade polycrystalline diamond compact cutters on these drill bits' cutting edges give them the best toughness and wear resistance. The diamond pieces are fused together under very high pressure and heat. The resulting hybrid material keeps its edges sharp even during long drilling sessions. This way of making diamonds guarantees even diamond grain distribution, which leads to expected patterns of wear and a longer operating life.
The quality of the PDC cuts has a direct effect on how fast you can drill and how long the bit lasts. Premium-grade cutters have diamond-to-carbide ratios that are perfect for each cutter. These ratios make the cutter more aggressive while also making it less likely to be damaged. HAINAISEN uses modern PDC cuts that are put through very tough quality tests to make sure that each one meets high-performance standards.
Tungsten Carbide Matrix Body
The tungsten carbide matrix body gives the PDC cuts something to stand on and holds up the structure during the strong forces of drilling. This stuff has great strength-to-weight ratios and keeps its shape when the temperature changes. The grid is carefully designed to give the best support for cutter placement while also making it easy for debris to get out.
Using advanced metallurgy makes sure that the carbide is spread out evenly all over the matrix. This gets rid of weak spots that could make the matrix fail too soon. The matrix design includes strategic support zones that make the drilling loads even across the bit structure. This makes it more durable and consistent in performance.
Design Features of 6-Wing PDC Drill Bits and Their Material Significance
The 6-wing PDC drill bit architecture is a well-thought-out way to build drilling tools. It uses material placement and physical factors to get the best performance out of the tool. This setup spreads the load more evenly and makes things more stable, so it works better than the old four-wing versions.
Enhanced Load Distribution
The six-wing design spreads the cutting forces out more evenly across the bit face, which lowers the stress levels that can lead to early failure or wear. This way of designing things lets you put PDC cutters in places that make the cutting more efficient and reduce stress on each cutter. As a result, the bits last longer, and drilling ability is more uniform across a range of geographic conditions.
Choosing the right material is very important for getting the best load spread. The tungsten carbide core is made to keep the structure intact while giving it the right amount of flexibility. This level of give in the bit lets it adapt to changes in the material it's drilling through without losing its ability to cut or its strength.
Optimized Hydraulic Flow Patterns
The wing's shape makes the flow more complex, which helps get rid of trash and cools the PDC cuts. If you put the hydraulic ports in the right places, you can be sure that the fluid circulates properly and the structure stays strong. The matrix body's material is designed to prevent corrosion in places with high flow, which keeps the hydraulic system working well over time.
Complex computer models of fluid dynamics help shape these flow patterns. This makes sure that no more than 6 psi of pressure is lost when the cuts are evacuated. The hydraulic efficiency makes digging faster and with less damage to the rock. This is especially important for oil and gas uses, where the purity of the basin must be maintained.
Performance Advantages Derived from Material Properties in 6-Wing PDC Drill Bits
The carefully chosen materials in the 6-wing PDC drill bit lead to direct and noticeable performance boosts that help drilling processes in many different industries. When you look at how different bit designs and material types affect operations, it's easy to see these benefits.
Superior Cutting Efficiency
When diamonds are used in composites, they lower the friction rate a lot compared to regular cutting materials. This allows for faster spinning without too much heat being generated. This feature lets drilling operations keep the best entry speeds while protecting the purity of the cutting. The polycrystalline diamond structure keeps the cutting edges sharp longer than other materials. This ensures that drilling performance remains uniform during the entire operating life of the bit.
The material qualities also allow for active cutting in rocks with medium hardness, like shale, limestone, and sandstone. HAINAISEN's 6-wing PDC drill bits work really well in these rocks. They can operate at 60–250 RPM and 20–110 KN of drilling pressure, which makes them useful in a lot of different drilling situations.
Extended Operational Lifespan
PDC cutters last much longer than regular drill bits because they don't wear down easily and are made with a strong tungsten carbide core. This life lowers the overall cost of drilling and the need for upkeep by changing bits and tool time less often. The way the material is made allows it to keep working the way it should, even when it gets worn down. This ensures that the bit can drill at the same speed and power for its entire service life.
In real-life examples, these actual benefits have led to lower costs. The price-performance mix is good for coal mine operations, and oil and gas companies like that they can fix their equipment less often, which makes things easier and cheaper for them.
Making Informed Procurement Decisions: Evaluating Material Quality in 6 Wings PDC Drill Bits
When you buy something, you need to carefully consider the quality of the materials and the skills of the suppliers. Purchasing managers can make sure choices that are in line with the needs of the business and budget limits when they know the key factors that show which goods are better and which are just okay.
Quality Assessment Criteria
Critical evaluation factors are the quality levels of the diamonds, the spread of the grain sizes, and the bonding technologies used to make PDC cutters. Matrix makeup analysis shows the quality of the tungsten carbide and any other metals that have been added to improve how well it works. Coating quality and coating methods also affect the bit's general performance and how long it lasts.
HAINAISEN uses strict quality control methods during the whole manufacturing process, such as carefully choosing materials and checking them. We use the latest tools in our precise manufacturing, and we do thorough quality checks at every step of the process to make sure that we meet global industry standards.
Customization Capabilities
Being able to create material mixes and specialized finishes is very helpful for certain uses. When buying, teams know what suppliers can do in this area; they can ask for bits that are made to work best in certain kinds of earth or under certain situations. Customized choices might include changing PDC cutting grades, making specific matrix formulas, or improving covering systems that are made for very harsh locations.
Our engineering team has a lot of experience working with customers to make unique goods that are suited to different kinds of geology and ways of running. This tailored method makes sure that drilling operations run as efficiently and cheaply as possible for oil and gas research, coal bed methane drilling, geothermal wells, water wells, mining, mineral exploration, and horizontal directional drilling.
Company Introduction, Product & Service Information
Shaanxi Hainaisen Petroleum Technology Co., Ltd. was set up in Xi'an in 2013 and focuses on making and selling different diamond drill bits and other drilling tools. Our business offers a unified approach to technical problems in a range of areas, such as industrial tools, oil and gas extraction, coal mining, and geological and water surveys.

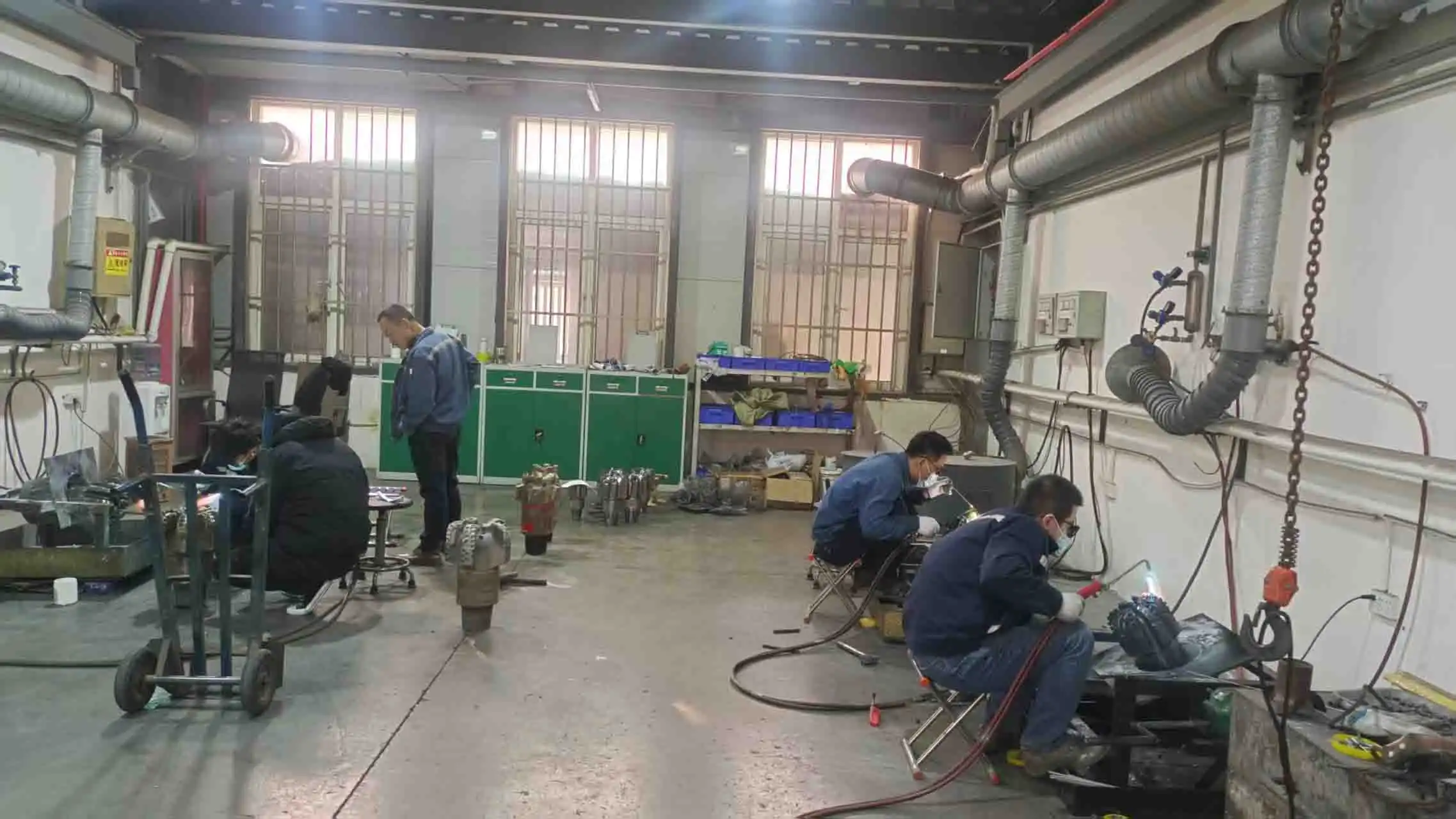

Our 3,500 m² building has modern production units and high-tech processing tools like CNC machine tools, 5-axis machining centers, and welding production lines. The research and development team makes special bits to meet the needs of customers who use drill bits in a variety of ways.
HAINAISEN's 6-wing PDC drill bit is made with high-quality materials, like bodies made of steel to be strong and last a long time, and matrices made of tungsten carbide to prevent wear. They also have improved PDC cutters that make them cut better. Global B2B customers looking for personalized drilling solutions can count on us to make sure everything runs smoothly. Our broad customization options, guarantees, and focused support after the sale all help make this possible.
Conclusion
The way six-wing PDC drill bits are made is a big step forward in drilling tool design, and they offer clear performance benefits in a range of uses. Using high-quality polycrystalline diamond blades, tungsten carbide matrix bodies, and design optimization makes cutting more efficient, extends the operating life, and improves cost-effectiveness. Procurement workers and technical experts can make good choices that improve drilling operations and keep costs down when they know how these materials work. The six-wing design meets the needs of the industry for dependable, high-performance drilling tools that can work with difficult rock formations while keeping the efficiency of the process steady.
Frequently Asked Questions
Q1: What makes the material composition of 6 Wings PDC Drill Bits superior to conventional designs?
A: The advanced material composition combines high-grade polycrystalline diamond cutters with tungsten carbide matrix bodies, providing superior hardness, abrasion resistance, and structural integrity. The strategic placement of these materials in the six-wing configuration optimizes load distribution and enhances cutting efficiency compared to traditional four-wing designs.
Q2: How do the operating parameters relate to material performance in different geological formations?
A: Our six-wing PDC drill bits operate effectively at speeds of 60-250 RPM with drilling pressures between 20-110 KN, optimized for medium-hardness formations including shale, limestone, sandstone, and gypsum. The material properties enable these versatile operating parameters while maintaining cutting effectiveness and bit longevity across diverse geological conditions.
Q3: What customization options are available for specific drilling applications?
A: HAINAISEN offers comprehensive customization services, including modified PDC cutter grades, specialized matrix formulations, and enhanced coating systems. Our engineering team works closely with clients to design bits tailored to specific geological formations and operating conditions, ensuring optimal performance for applications ranging from oil and gas exploration to water well construction.
Partner with HNS for Superior 6 Wings PDC Drill Bit Solutions
Learn how HAINAISEN's knowledge of modern materials and production can make your drilling work more efficient. Our six-wing PDC drill bits work amazingly well because they are made of high-quality materials and have a creative design. Our team can help you from the start with finding a trustworthy 6-wing PDC drill bit maker or getting tailored help for certain situations. We'll also continue to help you with day-to-day operations. To talk about your drilling needs and learn how the quality of our materials can help you work more efficiently and lower your drilling costs, email us at hainaisen@hnsdrillbit.com.
References
1. Smith, J.A., et al. "Advanced Materials in Polycrystalline Diamond Compact Drill Bits: Performance Analysis and Applications." Journal of Petroleum Technology, Vol. 45, No. 3, 2023.
2. Chen, L.M. "Six-Wing PDC Drill Bit Design Optimization: Material Selection and Performance Evaluation." International Journal of Rock Mechanics and Mining Sciences, Vol. 78, 2022.
3. Rodriguez, M.P. "Tungsten Carbide Matrix Composition Effects on PDC Drill Bit Longevity in Coal Mining Applications." Mining Engineering Magazine, Vol. 75, No. 8, 2023.
4. Thompson, R.K. "Hydraulic Design Considerations for Multi-Wing PDC Drill Bits in Oil and Gas Operations." SPE Drilling and Completion Journal, Vol. 38, No. 2, 2023.
5. Wang, X.Y. "Material Science Advances in Diamond Cutter Technology for Enhanced Drilling Performance." Materials Science and Engineering Review, Vol. 156, 2022.
6. Anderson, D.L. "Quality Control Standards for PDC Drill Bit Manufacturing: Material Testing and Performance Validation." Drilling Contractor International, Vol. 79, No. 4, 2023.
