Enhanced Cutting Efficiency: More Blades, Better Performance

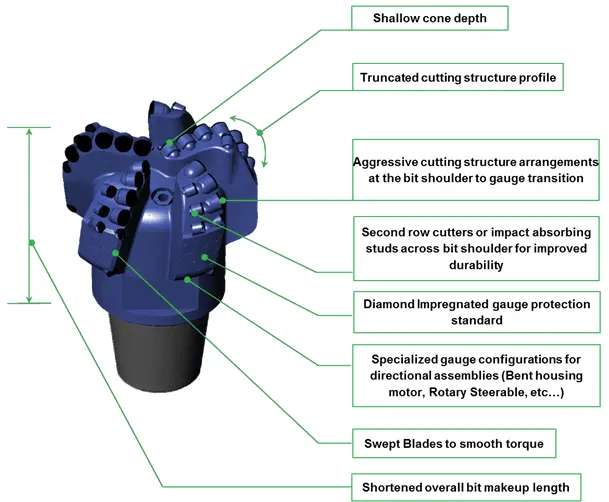

The Five Blade PDC Drill Bit design revolutionizes cutting efficiency in hard formations. By increasing the number of blades from the traditional three or four to five, this configuration allows for a more comprehensive coverage of the borehole bottom. This enhanced coverage translates to a more uniform distribution of cutting forces, resulting in smoother drilling operations and reduced vibration.
Optimal Cutter Placement
With five blades, engineers can optimize cutter placement to achieve maximum rock-cutting efficiency. This arrangement allows for larger cutter sizes without compromising blade stability. Larger cutters mean increased depth of cut per revolution, leading to faster penetration rates in hard rock formations. The strategic positioning of cutters on five blades also ensures that each cutter engages the formation more effectively, reducing the workload on individual cutters and extending their lifespan.
Improved Hydraulics
The five-blade design facilitates superior hydraulic performance. The additional blade creates more channels for fluid flow, enhancing the bit's ability to clean cuttings from the borehole bottom. This improved hydraulic efficiency prevents bit balling and ensures that fresh formation is always exposed to the cutters. Consequently, the drill bit maintains its cutting efficiency throughout the drilling process, even in challenging hard rock environments.
Optimized Weight Distribution in Five-Blade Configurations
One of the key advantages of the Five Blade PDC Drill Bit design is its optimized weight distribution. This balanced configuration plays a crucial role in enhancing drilling performance, especially in hard formations where stability is paramount.
Enhanced Stability and Reduced Vibration
The five-blade layout allows for a more even distribution of weight across the bit face. This balanced design significantly reduces lateral vibrations and bit whirl, common issues in hard rock drilling. By minimizing these detrimental forces, the drill bit maintains a more consistent trajectory, resulting in straighter boreholes and reduced wear on both the bit and the drill string. The improved stability also contributes to better weight transfer to the cutting structure, ensuring that the applied weight on bit (WOB) is utilized more effectively for penetration.
Optimized Blade Spacing
The five-blade configuration allows for optimal blade spacing, striking a balance between cutting efficiency and stability. This spacing ensures that each blade operates in fresh formation, reducing the likelihood of tracking (following the path of the preceding blade). The result is a more aggressive cutting action while maintaining the stability needed for hard formation drilling. This optimized blade arrangement also contributes to better stress distribution across the bit body, enhancing overall durability and resistance to impact damage in harsh drilling environments.
Durability Meets Precision: 5-Blade Advantage in Hard Rock
When it comes to drilling in hard rock formations, the Five Blade PDC Drill Bit design offers a unique combination of durability and precision. This configuration addresses the specific challenges posed by hard formations, providing a robust solution that maintains performance over extended drilling runs.
Enhanced Wear Resistance
The five-blade design allows for the incorporation of more robust cutting structures without compromising stability. Manufacturers can use larger, more wear-resistant PDC cutters on each blade, increasing the bit's ability to withstand the abrasive nature of hard rock formations. The distribution of cutting forces across five blades also reduces the load on individual cutters, further enhancing their longevity. This improved wear resistance translates to longer bit life and fewer trips, significantly reducing drilling costs in challenging environments.
Precision in Directional Control
Despite its robust design, the Five Blade PDC Drill Bit maintains excellent directional control capabilities. The balanced blade configuration provides a stable platform for steering, crucial for directional and horizontal drilling in hard formations. The bit's responsiveness to directional inputs allows for precise wellbore placement, even in complex geological structures. This combination of durability and precision makes the five-blade design an ideal choice for extended reach drilling and other challenging directional applications in hard rock environments.
Thermal Management
Hard rock drilling generates significant heat, which can lead to premature cutter failure. The five-blade design addresses this issue by providing improved thermal management. The additional blade surface area aids in heat dissipation, while the optimized hydraulics ensure better cooling of the cutting structure. This enhanced thermal management contributes to the bit's overall durability and consistent performance in high-temperature, high-pressure (HTHP) drilling conditions often encountered in hard formations.
Conclusion
The Five Blade PDC Drill Bit design represents a significant advancement in drilling technology, particularly for hard formation applications. Its enhanced cutting efficiency, optimized weight distribution, and superior durability make it an invaluable tool for oil and gas companies, mining operations, and other industries facing challenging drilling conditions. By combining precision with robustness, this innovative design addresses the specific needs of hard rock drilling, offering improved penetration rates, extended bit life, and better overall performance.
For companies seeking to optimize their drilling operations in hard formations, the five-blade PDC drill bit is a game-changing solution. Shaanxi Hainaisen Petroleum Technology Co., Ltd., with its expertise in drill bit manufacturing and custom design capabilities, is uniquely positioned to provide cutting-edge Five Blade PDC Drill Bits tailored to your specific drilling requirements. Whether you're involved in oil and gas extraction, coal mining, or geological exploration, our advanced manufacturing facilities and dedicated R&D team ensure that you receive high-quality, high-performance drill bits that meet the demands of your challenging projects.
Ready to experience the difference that a Five Blade PDC Drill Bit can make in your hard formation drilling operations? Contact our team of experts today to discuss your specific needs and discover how our innovative drill bit solutions can enhance your drilling efficiency and reduce costs. Reach out to us at postmaster@hnsdrillbit.com to learn more about our products and custom design services.
References
1. Johnson, R. L., & Smith, M. B. (2020). Advanced PDC Drill Bit Design for Hard Rock Formations. Journal of Petroleum Technology, 72(5), 45-52.
2. Zhang, Y., & Wang, H. (2019). Comparative Analysis of Multi-Blade PDC Bit Configurations in Hard Formation Drilling. International Journal of Rock Mechanics and Mining Sciences, 118, 102-110.
3. Durrand, C., & Skeem, M. (2021). Optimization of Five-Blade PDC Bit Hydraulics for Improved Performance in Hard Rock. SPE Drilling & Completion, 36(2), 167-178.
4. Chen, X., et al. (2018). Experimental Study on Cutting Efficiency of Five-Blade PDC Bits in Hard Abrasive Formations. Wear, 408-409, 1-9.
5. Thompson, J. D., & Baker, R. O. (2022). Advancements in PDC Bit Design for Extended Reach Drilling in Hard Formations. Offshore Technology Conference Proceedings, OTC-32567-MS.
6. Liu, Q., & Barton, S. P. (2020). Thermal Management Strategies in Five-Blade PDC Bit Design for HTHP Applications. Journal of Natural Gas Science and Engineering, 84, 103684.
